2AC9N-1684361LED WIRELESS KEYBOARD 10 INCH

1684361       1684361 1684361 FCC statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

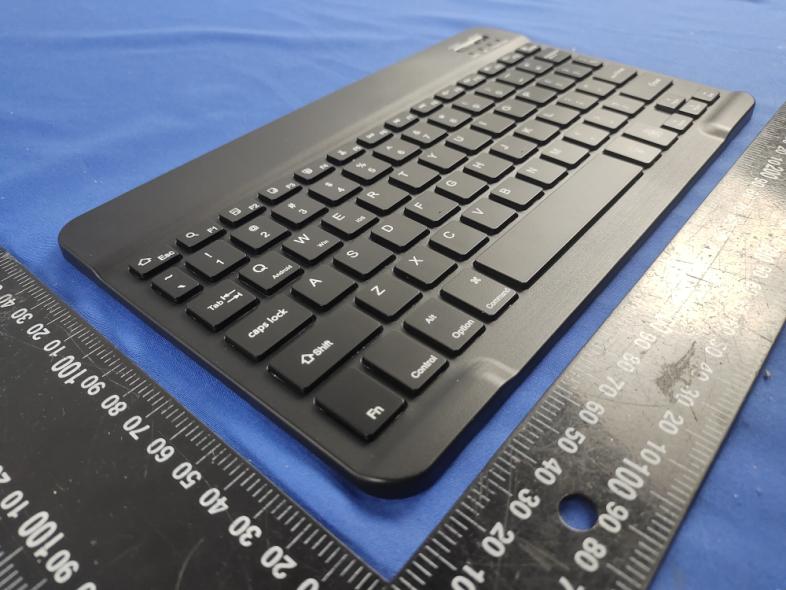

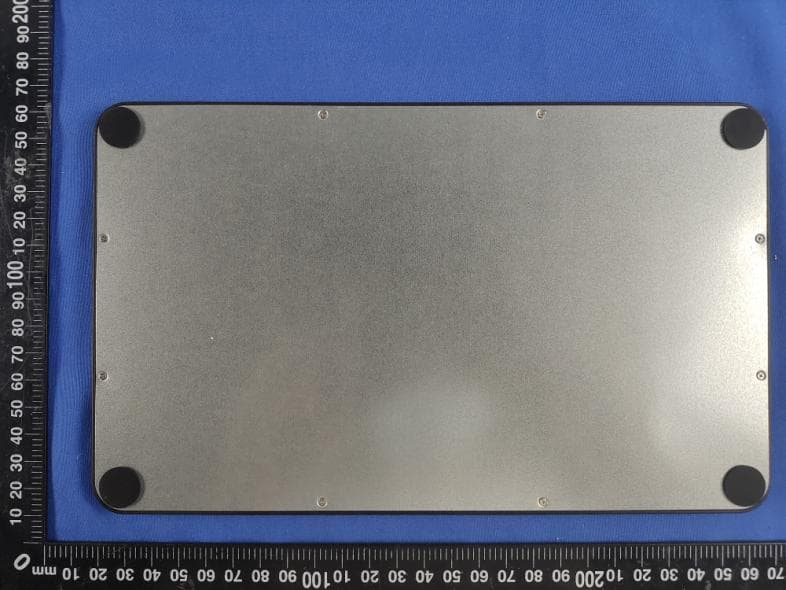

FCC ID: 2AC9N-1684361 Page 1 of 2 Report No.: CTL2106087021-WF External Photos of EUT FCC ID: 2AC9N-1684361 Page 2 of 2 Report No.: CTL2106087021-WF

FCC ID: 2AC9N-1684361 Page 1 of 1 Report No.: CTL2106087021-WF FCC ID Label Information 1. Label location: LED WIRELESS KEYBOARD 10 INCH Model: 1684361 FCC ID: 2AC9N-1684361 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2AC9N-1684361 Page 1 of 2 Report No.: CTL2106087021-WF Internal Photos of EUT Antenna FCC ID: 2AC9N-1684361 Page 2 of 2 Report No.: CTL2106087021-WF

version01 Cotton On USA Inc 16511, Trojan Way, La Miranda, California 90638, United States Tel: +61 3 5277 Fax: N/A:+61 3 52777003 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: 1684361, 1684361-01, 1684361-XXX (XXX represents 2 or 3 digital numbers from 00 to 999 indicating the external finish of the product) FCC ID: 2AC9N-1684361 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 0dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Cotton On USA Inc Address: 16511, Trojan Way, La Miranda, California 90638, United States City: YangZhou ZIP / Postal code: La Miranda Country: Place: Manager Date: 2021-07-01 Signature:

FCC ID: 2AC9N-1684361 Page 1 of 1 Report No.: CTL2106087021-WF RF Exposure Letter According to 447498 D01 General RF Exposure Guidance v05 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison pt=7.48dBm=5.5976mW at 2440MHz So (5.5976mW/5mm)x √2.440GHz = 1.7487<3 Then SAR evaluation is not required

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 1 of 18 Report No.: CTL2106087021-WF Appendix for 15.247 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) 1M 2402 SISO 1 0.507 ≥0.5 PASS 2440 SISO 1 0.503 ≥0.5 PASS 2480 SISO 1 0.502 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 1M 2402 SISO 1 1.002 Only for Report Use 2440 SISO 1 1.004 Only for Report Use 2480 SISO 1 1.004 Only for Report Use 1.2 Test Graph - 6dB Bandwidth Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 2 of 18 Report No.: CTL2106087021-WF Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 3 of 18 Report No.: CTL2106087021-WF 1.3 Test Graph - 99% Occupied Bandwidth Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 4 of 18 Report No.: CTL2106087021-WF Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 5 of 18 Report No.: CTL2106087021-WF Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 6 of 18 Report No.: CTL2106087021-WF Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 7 of 18 Report No.: CTL2106087021-WF 2. Maximum Conducted Output Power 2.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 1M 2402 SISO 6.99 30 PASS 2440 SISO 7.48 30 PASS 2480 SISO 6.86 30 PASS 2.2 Test Graph Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 8 of 18 Report No.: CTL2106087021-WF Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 9 of 18 Report No.: CTL2106087021-WF Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 10 of 18 Report No.: CTL2106087021-WF 3. Maximum Power Spectral Density (PSD) 3.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 1M 2402 SISO -4.40 ≤8 PASS 2440 SISO -3.86 ≤8 PASS 2480 SISO -4.34 ≤8 PASS 3.2 Test Graph Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 11 of 18 Report No.: CTL2106087021-WF Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 12 of 18 Report No.: CTL2106087021-WF Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 13 of 18 Report No.: CTL2106087021-WF 4. Unwanted Emissions in Non-restricted Frequency Bands 4.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 1M 2402 SISO 1 Refer to test graph -12.78 PASS 2440 SISO 1 Refer to test graph -12.78 PASS 2480 SISO 1 Refer to test graph -12.78 PASS 4.2 Test Graph Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 14 of 18 Report No.: CTL2106087021-WF Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 15 of 18 Report No.: CTL2106087021-WF Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 16 of 18 Report No.: CTL2106087021-WF Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 17 of 18 Report No.: CTL2106087021-WF Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] Page 18 of 18 Report No.: CTL2106087021-WF

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2106087021-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Gary Gao (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : LED WIRELESS KEYBOARD 10 INCH Model/Type reference ................ : 1684361 List Model(s) ............................... : See the next page PO.NO. ........................................ : 573851, 573854, 578255 Trade Mark .................................. : TYPO FCC ID ......................................... : 2AC9N-1684361 Applicant’s name ....................... : Cotton On USA Inc Address of applicant ................. : 16511, Trojan Way, La Miranda, California 90638, United States Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No人.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Jun. 09, 2021 Date of sampling ........................ : Jun. 09, 2021 Date of Test Date ........................ : Jun. 09, 2021-Jun. 22, 2021 Date of Issue .............................. : Jun. 23, 2021 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 31 Report No.: CTL2106087021-WF TEST REPORT Test Report No. : CTL2106087021-WF Jun. 23, 2021 Date of issue Equipment under Test : LED WIRELESS KEYBOARD 10 INCH Sample No : CTL210608702-1-S001 Model /Type : 1684361 Listed Models : 1684361-01, 1684361-XXX (XXX represents 2 or 3 digital numbers from 00 to 999 indicating the external finish of the product) Applicant : Cotton On USA Inc Address : 16511, Trojan Way, La Miranda, California 90638, United States Manufacturer : Dongguan EDO Electronic Technology Co., Ltd Address : Floor 5, Yujing Industrial Park, Yaya Industrial Park, Huaideyayap Viliage, Humen Town, Dongguan City, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. 1. The device (Product Name: LED WIRELESS KEYBOARD 10 INCH) Models Name: 1684361, 1684361-01, 1684361-XXX (XXX represents 2 or 3 digital numbers from 00 to 999 indicating the external finish of the product) have same electrical, PCB and BOM, only the colour and model’s names are different for marketing requirements. 2. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 31 Report No.: CTL2106087021-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2021-06-23 CTL2106087021-WF Tracy Qi V1.0 Page 4 of 31 Report No.: CTL2106087021-WF Table of Contents Page 1. SUMMARY .................................................................................................................................................................... 5 1.1. TEST STANDARDS ........................................................................................................................................................... 5 1.2. TEST DESCRIPTION .............................................................................................................................................................. 5 1.3. TEST FACILITY ..................................................................................................................................................................... 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ..................................................................................................................... 6 2. GENERAL INFORMATION ............................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS .............................................................................................................................................. 8 2.2. GENERAL DESCRIPTION OF EUT ............................................................................................................................................ 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY ................................................................................................................ 9 2.4. EQUIPMENTS USED DURING THE TEST ................................................................................................................................... 10 2.5. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................................................... 10 2.6. MODIFICATIONS ............................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ....................................…
