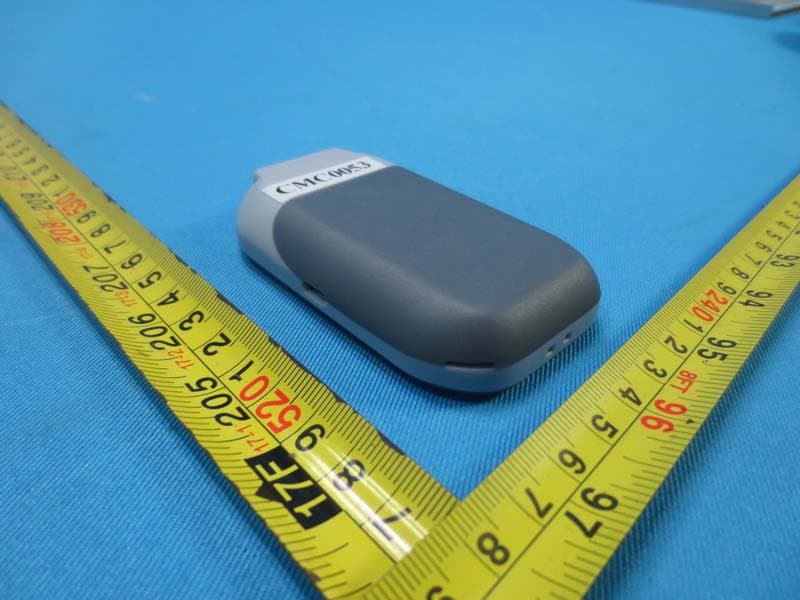

2AC9W-CMC161Portable Scanner

CMC161 User Manual Portable scanner function ： ：： ： front view ： ：： ： Side view ： ：： ： 1. Power on/off 1.1 Power on Long press the power on/off key more than 3s to open the scanner with power in the state of power off. When the pilot led is on for 1s with beep ringing, it means that the scanner has boot up. 1.2 Power off Long press the power on/off key more than 3s to close the scanner in the state of power on. The beep rings once meaning that the scanner has shut down. 2. Bluetooth connection Open the scanner and Pad→Double click “setting” of Pad’s main interface→Open Bluetooth of the pad，click “searching device” to search scanner and pairing with it (you can get the name of scanner at the back)→The green led will be on all along when the Bluetooth is connected . 3. HF Connect Bluetooth between scanner and pad successfully and build a new word file→Lay HF tag against HF reading district→Press “HF scanning” key to read SN of HF tag with the red pilot lamp being on→Transmit tag information to pad through Bluetooth wireless communication. If success, the beep rings once ,otherwise it rings Icon show ： ：： ： 1. Pilot Lamp 2. HF scanning key 3. Direction key 4. Power on/off key 5. Shift key 6. Space key 7. Input switching key 8. Deleting key 9. Enter key 10. Barcode scanning key 11. Chinese input lamp 12. English input lamp 13. Number input lamp 14. LOGO 14 1 2 3 4 5 6 8 7 9 10 4 1 3 I II Icon show con show con show con show ： ：： ： 1. HF reading region 2. 2D barcode scanner 3. Reservation 4. Flash lamp 2 11 12 13 twice→You can see tag information to be read in the word file. 4. Barcode scanning Connect Bluetooth between scanner and pad successfully and build a new word file→Make barcode scanner against 1D/2D barcode→Press “barcode scanning” key to scan barcode, and the red pilot led and red flash led are on and the scanner lamp twinkles for red→Transmit barcode information to pad through Bluetooth wireless communication. If success, the beep rings once, otherwise it rings twice.→You can see barcode information to be scanned in the word file. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FUTAIHUA INDUSTRIAL (SHENZHEN) CO.,LTD. Declaration of Authorization We Name: FUTAIHUA INDUSTRIAL (SHENZHEN) CO.,LTD. Address: B District, Foxconn Technology Park, Guanlan Town, Baoan, Shenzhen, Guang Dong, China Declare that: Name Representative of agent: Cathy Wang Agent Company name: BTL Inc. Address: No.3 Jinshagang 1 st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification of the following product(s) and signing all the related documents including 731 forms: Product description: Portable Scanner Type designation: CMC161 Trademark: CMCID on our behalf. Date: 2014-10-9 City: Shenzhen Name: Ted Sun Function: Manager Signature:

FUTAIHUA INDUSTRIAL (SHENZHEN) CO.,LTD. Date: 2014-10-9 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AC9W-CMC161 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------- Grantee Contact’s Signature Ted Sun Printed name

CERTIFICATE OF COMPLIANCE Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the BTL EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment Portable Scanner Model Name CMC161 Brand Name CMCID Applicant FUTAIHUA INDUSTRIAL (SHENZHEN) CO.,LTD. Address B District, Foxconn Technology Park, Guanlan Town, Baoan, Shenzhen, GuangDong, China Standard(s) FCC Part 15, Subpart B: 2013 ANSI C63.4 -2009 Report(s) BTL-FCCE-1-1407C153 The test data, data evaluation, and equipment configuration contained in our test report(s) above was(were) obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory BTL INC. B1, No.37, Lane 365, Yang Guang St., NeiHu District 114., Taipei, Taiwan TEL:+886-2-2657-3299 FAX:+886-2-2657-3331

RV-0000000 Project No.: 1407C153 Page 2 of 7 RV-0000000 Project No.: 1407C153 Page 3 of 7

Label size: Label Location:

RV-0000000 Project No.: 1407C153 Page 4 of 7 RV-0000000 Project No.: 1407C153 Page 5 of 7 RV-0000000 Project No.: 1407C153 Page 6 of 7 RV-0000000 Project No.: 1407C153 Page 7 of 7

FCC RF EXPOSURE REPORT FCC ID:2AC9W-CMC161 Project No. : 1407C153 Equipment : Portable Scanner Model : CMC161 Applicant : FUTAIHUA INDUSTRIAL (SHENZHEN) CO.,LTD. Address : B District, Foxconn Technology Park, Guanlan Town, Baoan, Shenzhen, GuangDong, China According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Table for Filed Antenna Ant. Manufacturer Model NameAntenna TypeConnector Gain(dBi) 1 N/A N/A printed N/A 0 GENERAL CONCULUSION: Maximum measured transmitter power: OutputPower (dBm) Output Power (mW) Limit (mW) 2.82 1.91 10 According to FCC KDB447498 V05, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The maximum measured output peak power of this EUT is 1.91mW, less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

Report No.: BTL-FCCP-1-1407C153 Page 1 of 10 8 FCC Radio Test Report FCC ID: 2AC9W-CMC161 This report concerns (check one): Original Grant Class II Change Project No. : 1407C153 Equipment : Portable Scanner Model Name : CMC161 Applicant : FUTAIHUA INDUSTRIAL (SHENZHEN) CO.,LTD. Address : B District, Foxconn Technology Park, Guanlan Town, Baoan, Shenzhen, GuangDong, China Date of Receipt : Jul. 21, 2014 Date of Test : Jul. 21, 2014~Aug. 20, 2014 Issued Date : Aug. 25, 2014 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, GuangDong China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1407C153 Page 2 of 10 8 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or an y agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1407C153 Page 3 of 10 8 Table of Contents Page 1 . CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 TEST PROCEDURE 18 4.2.3 DEVIATION FROM TEST STANDARD 18 4.2.4 TEST SETUP 19 4.2.5 EUT OPERATING CONDITIONS 20 4.2.6 EUT TEST CONDITIONS 20 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 20 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 21 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 21 5 . NUMBER OF HOPPING CHANNEL 22 5.1 APPLIED PROCEDURES 22 5.1.1 TEST PROCEDURE 22 5.1.2 DEVIATION FROM STANDARD 22 5.1.3 TEST SETUP 22 5.1.4 EUT OPERATION CONDITIONS 22 5.1.5 EUT TEST CONDITIONS 22 5.1.6 TEST RESULTS 22 Report No.: BTL-FCCP-1-1407C153 Page 4 of 10 8 Table of Contents Page 6 . AVERAGE TIME OF OCCUPANCY 23 6.1 APPLIED PROCEDURES / LIMIT 23 6.1.1 TEST PROCEDURE 23 6.1.2 DEVIATION FROM STANDARD 23 6.1.3 TEST SETUP 23 6.1.4 EUT OPERATION CONDITIONS 24 6.1.5 EUT TEST CONDITIONS 24 6.1.6 TEST RESULTS 24 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 25 7.1 APPLIED PROCEDURES / LIMIT 25 7.1.1 TEST PROCEDURE 25 7.1.2 DEVIATION FROM STANDARD 25 7.1.3 TEST SETUP 25 7.1.4 EUT TEST CONDITIONS 25 7.1.5 TEST RESULTS 25 8 . BANDWIDTH TEST 26 8.1 APPLIED PROCEDURES 26 8.1.1 TEST PROCEDURE 26 8.1.2 DEVIATION FROM STANDARD 26 8.1.3 TEST SETUP 26 8.1.4 EUT OPERATION CONDITIONS 26 8.1.5 EUT TEST CONDITIONS 26 8.1.6 TEST RESULTS 26 9 . PEAK OUTPUT POWER TEST 27 9.1 APPLIED PROCEDURES / LIMIT 27 9.1.1 TEST PROCEDURE 27 9.1.2 DEVIATION FROM STANDARD 27 9.1.3 TEST SETUP 27 9.1.4 EUT OPERATION CONDITIONS 27 9.1.5 EUT TEST CONDITIONS 27 9.1.6 TEST RESULTS 27 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 28 10.1 APPLIED PROCEDURES / LIMIT 28 10.1.1 TEST PROCEDURE 28 10.1.2 DEVIATION FROM STANDARD 28 10.1.3 TEST SETUP 28 10.1.4 EUT OPERATION CONDITIONS 28 10.1.5 EUT TEST CONDITIONS 28 10.1.6 TEST RESULTS 28 11 . MEASUREMENT INSTRUMENTS LIST 29 Report No.: BTL-FCCP-1-1407C153 Page 5 of 10 8 Table of Contents Page 12 . EUT TEST PHOTO 31 ATTACHMENT A - CONDUCTED EMISSION 35 ATTACHMENT B - RADIATED EMISSION (9KHZ-30MHZ) 38 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 40 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 47 ATTACHMENT E - NUMBER OF HOPPING CHANNEL 72 ATTACHMENT F - AVERAGE TIME OF OCCUPANCY 74 ATTACHMENT G - HOPPING CHANNEL SEPARATION MEASUREMENT 87 ATTACHMENT H - BANDWIDTH 92 ATTACHMENT I - PEAK OUTPUT POWER 97 ATTACHMENT J - ANTENNA CONDUCTED SPURIOUS EMISSION 102 Report No.: BTL-FCCP-1-1407C153 Page 6 of 10 8 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1- 1407C153 Original Issue. Aug. 25, 2014 Report No.: BTL-FCCP-1-1407C153 Page 7 of 10 8 1. CERTIFICATION Equipment : Portable Scanner Brand Name : CMCID Model Name : CMC161 Applicant FUTAIHUA INDUSTRIAL (SHENZHEN) CO.,LTD. Manufacturer : FUTAIHUA INDUSTRIAL (SHENZHEN) CO.,LTD. Address : B District, Foxconn Technology Park, Guanlan Town, Baoan, Shenzhen, GuangDong, China Factory : FUTAIHUA INDUSTRIAL (SHENZHEN) CO.,LTD. Address : B District, Foxconn Technology Park, Guanlan Town, Baoan, Shenzhen, GuangDong, China Date of Test : Jul. 21, 2014~Aug. 20, 2014 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C : 201…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1407C153 Page 31 of 108 12. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FCCP-1-1407C153 Page 32 of 108 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1407C153 Page 33 of 108 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1407C153 Page 34 of 108 Radiated Measurement Photos Above 1000MHz
