2ACAHWLP020Programming device for hearing aids

SBO Hearing A/S Kongebakken 9 DK-2765 Smørum www.sbohearing.com Main +45 39 17 71 00 Fax +45 39 27 79 00 Denmark CVR-no. 42334219 1 SBO Hearing Radio Model - Quick Installation Guide Radio Model Name: WLP Multi The WLP Multi Radio Module is a module intended for WireLess Programming devices (WLPs) and completely equipped with both a microprocessor host, a short range low power radio for nEARLink (NL) at 3.84 MHz and a Bluetooth radio at 2.4 GHz on board the same Printed-Circuit-Board (PCB). Besides the host with built in memory and the radio system the module also includes a power management circuit, USB connector, battery connector, two neck loop connectors and small discrete components. When the WLP Multi radio module is mounted inside plastic shells for a wireless programming device with a neck loop antenna attached, then the whole product shall normally be placed on the neck of an end user with one or two wireless hearing aids on the ears, also running at a radio frequency of 3.84 MHz. The end product shall be operated by a trained hearing care professional via a PC with SBO certified SW controlling the product through the Bluetooth connection. (Alternatively the USB interface can connect the WLP to the PC). The radio system inside the module includes two radio transceivers; a low power, short range, inductive NL radio transceiver working at 3.84 MHz providing the connection to the WL hearing aids and a Bluetooth radio at 2.4 GHz providing the connection to the PC. The NL radio system is consisting of (see illustrations next page): - A radio transmitter controller and radio receiver circuit - A frequency generating circuit with a 16 MHz crystal reference and - A dedicated neck loop antenna attached to the NL radio. The low power, inductive radio transmitter is consisting of a Complex Programmable Logic Device (CPLD) fed with data from the host, a clock oscillator and two switching transistors feeding the modulated RF signal at 3.84MHz to a dedicated neck loop antenna. The Bluetooth radio is a traditional Bluetooth power class 2 device with a maximum radiated output power of +6 dBm EIRP and connected internally to an inverted F antenna directly on the same PCB as the radio system. NB: The WLP Multi radio module is ONLY intended for SBO Hearing and OEM branded products intended for wireless programming of hearing aids at 3.84 MHz. If used for other types of products or systems, SBO cannot guarantee continued conformance with FCC part 15 (or IC) regulations. Because of this and due to limited shielding of the module, the WLP Multi radio module is only approved with a limited modular approval. SBO Hearing A/S Kongebakken 9 DK-2765 Smørum www.sbohearing.com Main +45 39 17 71 00 Fax +45 39 27 79 00 Denmark CVR-no. 42334219 2 SBO Hearing Radio Model - Quick Installation Guide Radio Model Name: WLP Multi The WLP Multi Radio Module with all its mounted components is intended to be installed as a module into SBO Hearings WireLess Programming devices (WLPs), (e.g. the FittingLINK WP-2) or similar OEM branded products (like Oticon, Bernafon or Sonic). The module requires only a battery to be mounted together with its neck loop antenna in an external plastic shell (as shown on the previous page). The module requires no microphones or speakers as no sound, only data is streamed wirelessly to connected devices (e.g. Oticons wireless hearing aids). The module has its power management subsystem including all voltage regulators and the charging circuit on board. Also all data interfaces (input-output) on the board are buffered. The mounted module PCB is depicted to the right with its main components and connections: WLP Multi Radio Module – Mounted PCB (Top side) WLP Multi Radio Module – Mounted PCB (Bottom side) SBO Hearing A/S Kongebakken 9 DK-2765 Smørum www.sbohearing.com Main +45 39 17 71 00 Fax +45 39 27 79 00 Denmark CVR-no. 42334219 3 SBO Hearing Radio Model - Regulatory Label Information Radio Model Name: WLP Multi Contains: FCC ID: 2ACAHWLP020 IC: 11936A-WLP020 NOTICE: This device complies with Part 15 of the FCC Rules (hereunder §15.107/207, §15.109/209, §15.223 and §15.247). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this equipment not expressly approved by SBO Hearing A/S may void the FCC authorization to operate this equipment. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

SBO Hearing A/S CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 4 th of July 2014. TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the following products: FCC ID Model name 2ACAHWLP020 WLP Multi For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, Bill-Of-Material (BOM), and PCBs submitted as Equipment Authorization Electronic Filing attachment: “Bill_Of_Material”, “Circuit Diagram” and “PCB_Layout”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “Block diagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “Brief_Product_description” and “Datasheet”. The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Lars Bresler, QM-manager SBO Hearing A/S Kongebakken 9 2765 Smorum DK-Denmark Phone: +45 3913 7100

SBO Hearing A/S SHORT-TERM CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 4 th of July 2014. TO WHOM IT MAY CONCERN Pursuant to the recent upgrade to the Office of Engineering and Technology’s (OET) Equipment Authorization System on 6/15/04 (ref. DA 04 –1705), Oticon A/S requests temporarily confidentiality for the following product: FCC ID Number Product Title/Model 2ACAHWLP020 WLP Multi For the product stated above, we request that the following information be held confidential: 1. External and Internal Photographs 2. Test Setup Photos 3. User Manual We request this confidentiality on the basis of ensuring that business sensitive information remains confidential for 80 days. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Lars Bresler, QM-manager SBO Hearing A/S Kongebakken 9 2765 Smorum DK-Denmark Phone: +45 3913 7100

SBO Hearing A/S Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road, Columbia, MD 21048 7 th of July 2014. SBO Hearing ’WLP Multi’ radio module with FCC ID: 2ACAHWLP020 Limited Modular Approval Request We hereby request to approve the above product as a Limited Modular Approval in accordance with FCC Public Notice KDB 996369 D01 Transmitter Module Equipment Authorization Guide v01r04, released October 2013, and the rules of the Commission regarding modular transmitters (§15.212) operating under FCC’s part 15 about RF Devices. The requirements are met as follows: • 15.212(a)(1)(i) The radio part of the module has no own RF shielding. Therefore we apply only for a Limited Modular Approval (See also §15.212(b)). The module is also constrained to be used by SBO Hearing A/S or its affiliates or sold to Original Equipment Manufactures (OEM) only. The module contains a weak RF transmitter and therefore fulfils Part 15 emission limits without any additional RF shielding. The module is a fully integrated radio module for short range wireless programming of hearing aids, including microcontroller host and radio circuits on board and intended for SBO’s and affiliates wireless hearing aids only. Therefore the module cannot be used directly by end users. The behaviour of the wireless module is locked by the design and can only be changed by SBO Hearing A/S or its affiliates, so the compliance of the end product is always ensured. • 15.212(a)(1)(ii) The module includes buffer stages for its external data/programming inputs. • 15.212(a)(1)(iii) The wireless parts of the radio module share the power supply with digital parts, like the microprocessor host. Therefore we apply for a Limited Modular Approval with the same argumentation as in point 15.212(a)(1)(i). • 15.212(a)(1)(iv) The low power inductive radio part of the WLP Multi module has only a dedicated loop antenna connected to it and is mounted together with its battery in a fixed plastic shell, which is normally not interchangable by the end user. • 15.212(a)(1)(v) The radio parts are included together with the microcontroller host inside the WLP Multi module, which was tested in a stand-alone configuration as can be seen in the CETECOM test reports no. 1- 7988/14-02-06 for the NL radio and 1-7988/14-02-05 for the BT radio part. The module requires no external host, only some external plastic parts e.g. holding the battery and the loop antenna in fixed locations. • 15.212(a)(1)(vi) The size of the module is big enough for the regulatory FCC label in its short form to be placed on the side of the plastic shell holding it, besides also to be found in user manuals and the installation guide. • 15.212(a)(1)(vii) The module is compliant with all applicable FCC rules. Maintenance of compliance is always ensured as only Oticon A/S or its affiliates are able to alter the antenna or other wireless related behaviours. • 15.212(a)(1)(viii) The module is compliant with all applicable RF exposure requirements. This is always ensured as only Oticon A/S or its affiliates are able to alter the antenna or other wireless related behaviours. If you have any questions, please feel free to contact us at the address shown below Sincerely, Lars Bresler, QM-manager SBO Hearing A/S Kongebakken 9 2765 Smorum - DK-Denmark Phone: +45 3913 7100 www.sbohearing.com Main +45 39 17 71 00 Fax +45 39 27 79 00 CVR-no. 42334219 SBO Hearing A/S Kongebakken 9 DK-2765 Smørum Denmark

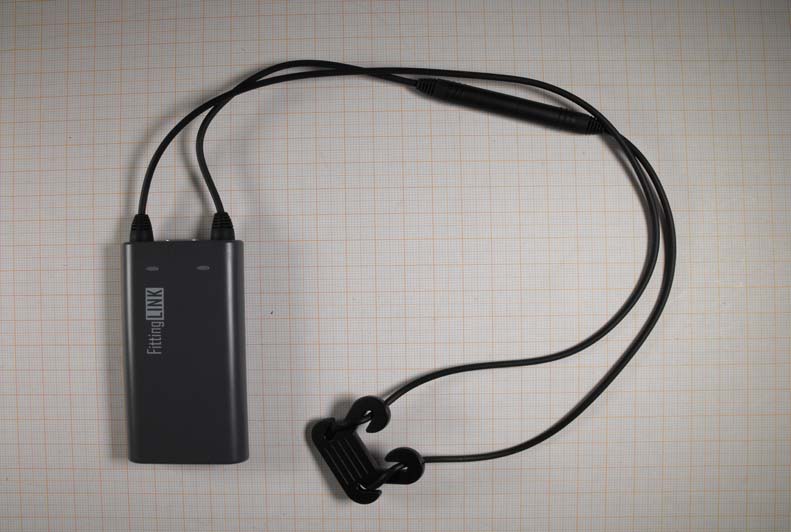

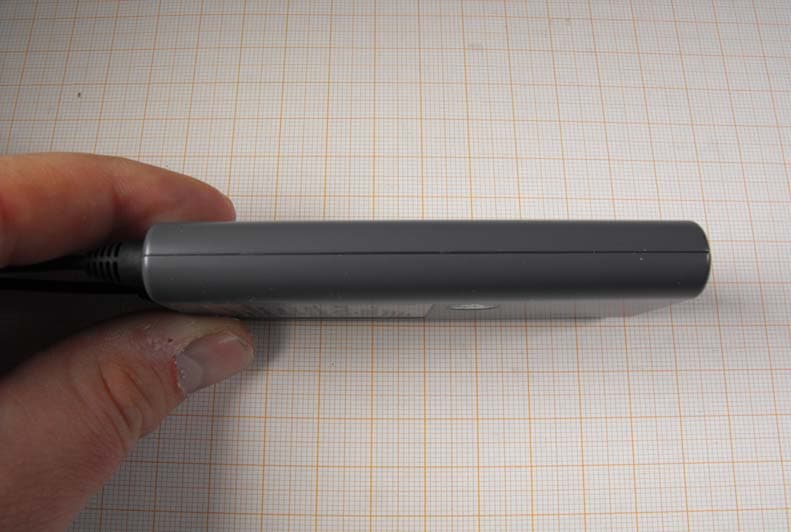

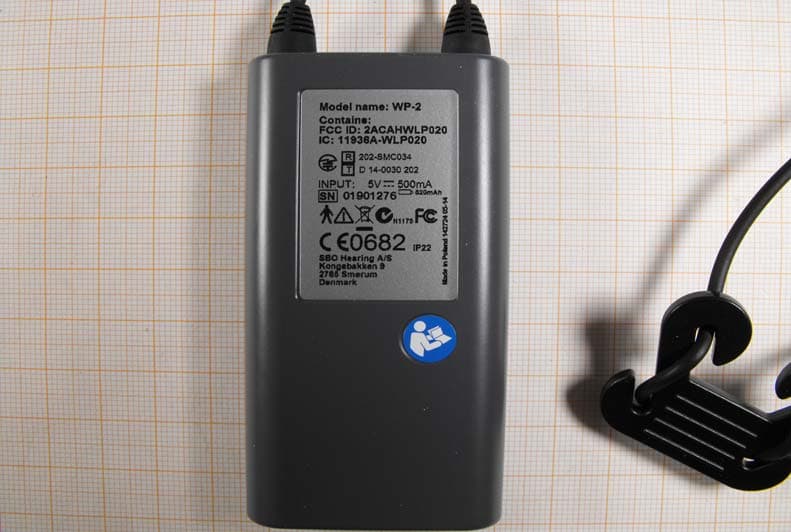

Test report no.: 1-7988_14-02-01_AnnexA 2014-06-20 Page 1 of 5 Annex A This test report annex is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report annex authorised: Tobias Wittenmeier Expert Test report no.: 1-7988_14-02-01_AnnexA 2014-06-20 Page 2 of 5 External photos of the EUT Photo 1: Photo 2: Test report no.: 1-7988_14-02-01_AnnexA 2014-06-20 Page 3 of 5 Photo 3: Photo 4: Test report no.: 1-7988_14-02-01_AnnexA 2014-06-20 Page 4 of 5 Photo 5: Photo 6: Test report no.: 1-7988_14-02-01_AnnexA 2014-06-20 Page 5 of 5 Document history Version Applied changes Date of release Initial release 2014-05-22

888 83 013 Designation Drawing No of shts. Sheet No. This drawing must not be passed on t o any person not authorized by us to receive it nor copied or otherwise made use of by such person without our author ity All dimensions in millimetres. unless otherwise specified. Sheet description Scale ABCDEFGH ABCD 1 2 3 4 5 6 1 2 3 4 5 A3 Revision 3D File Revision Category E ( ) 20.00 ()0.10 3D Filename DOC-00031216-Rev_1-2 2:1 1.2 InitialsDate PCB ASSY, WLP 1 1 Originated by: JHB 28-02-2014 Revised by: JHB 15-05-2014 Ver. 5 DOC-00031216A1 FCC-ID label must not cover any components, holes or outline of the PCB. Note: The FCC-ID label was introduced for the PCB assy used for WP-2. FCC-ID label mounted FCC-ID label Not Released

Test report no.: 1-7988_14-02-01_AnnexB 2014-06-20 Page 1 of 4 Annex B This test report annex is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report annex authorised: Tobias Wittenmeier Expert Test report no.: 1-7988_14-02-01_AnnexB 2014-06-20 Page 2 of 4 Internal photos of the EUT Photo 1: Photo 2: Test report no.: 1-7988_14-02-01_AnnexB 2014-06-20 Page 3 of 4 Photo 3: Photo 4: Test report no.: 1-7988_14-02-01_AnnexB 2014-06-20 Page 4 of 4 Document history Version Applied changes Date of release Initial release 2014-06-20

2014-07-18 Page 1 of 27 TEST REPORT Test report no.: 1-7988/14-02-06-A Testing laboratory Applicant CETECOM ICT Services GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-01 Area of Testing: Radio Communications & EMC (RCE) SBO Hearing A/S Kongebakken 9 2765 Smørum / DENMARK Phone: +45 3913 8538 Contact: Jørgen Peter Hanuscheck e-mail: [email protected] Manufacturer SBO Hearing A/S Kongebakken 9 2765 Smørum / DENMARK Test standard/s 47 CFR Part 15 Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices RSS - 210 Issue 8 Spectrum Management and Telecommunications Radio Standards Specification - Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment RSS - Gen Issue 3 Spectrum Management and Telecommunications Radio Standards Specifications - General Requirements and Information for the Certification of Radio Apparatus For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Programming device for Hearing aids Model name: WLP Multi (used in FittingLINK WP2) FCC ID: 2ACAHWLP020 IC: 11936A-WLP020 Frequency: 3.84 MHz Technology tested: Magnetic coupling Antenna: External neck loop - antenna Power supply: 3.70V DC by Li – Po battery Temperature range: 0°C to +40°C This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorised: Test performed: p.o. Stefan Bös Tobias Wittenmeier Professional Experienced Test report no.: 1-7988/14-02-06-A 2014-07-18 Page 2 of 27 1 Table of contents 1 Table of contents ............................................................................................................................................ 2 2 General information ....................................................................................................................................... 3 2.1 Notes and disclaimer .......................................................................................................................... 3 2.2 Application details ............................................................................................................................... 3 3 Test standard/s ............................................................................................................................................... 3 4 Test environment ............................................................................................................................................ 4 5 Test item .......................................................................................................................................................... 4 5.1 Additional information ........................................................................................................................ 4 6 Test laboratories sub-contracted ................................................................................................................. 4 7 Description of the test setup ......................................................................................................................... 5 7.1 Radiated measurements ..................................................................................................................... 5 7.2 Conducted measurements ................................................................................................................. 6 8 Summary of measurement results ............................................................................................................... 7 9 Additional comments ..................................................................................................................................... 8 10 Measurement results .............................................................................................................................. 9 10.1 Timing of the transmitter ................................................................................................................. 9 10.2 Bandwidth of the modulated carrier ............................................................................................ 10 10.3 Fieldstrength of the fundamental ................................................................................................. 14 10.4 Fieldstrength of the harmonics and spurious ............................................................................ 16 10.5 Receiver spurious emissions ....................................................................................................... 19 10.6 Conducted limits ............................................................................................................................ 22 11 Test equipment and ancillaries used for tests ................................................................................... 24 12 Observations ......................................................................................................................................... 25 Annex A Document history .......................................................................................................................... 26 Annex B Further information ........................................................................................................................ 26 Annex C Accreditation Certificate .......................................................................................................…
