2ACATBL007Bluetooth Speaker

User Manual Bluetooth Speaker Model:BL007 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

GOLDHORSE ELECTRONIC (SHENZHEN) CO.,LTD 5F., Block 2, NO. 2, Chongqing Road, Qiaotou, Fuyong Street, Baoan District, Shenzhen,China TEL: 0755-85268690 FAX: 0755-29120768 Email：[email protected] Date (31/03/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, GOLDHORSE ELECTRONIC (SHENZHEN) CO.,LTD, hereby authorize TUV SUD BABT to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on Oct.10.2015. Sincerely, Company Officer: Chen Bing Telephone Number: 0755-85268690 Email: [email protected]

GOLDHORSE ELECTRONIC (SHENZHEN) CO.,LTD 5F., Block 2, NO. 2, Chongqing Road, Qiaotou, Fuyong Street, Baoan District, Shenzhen,China TEL: 0755-85268690 FAX: 0755-29120768 Email：[email protected] Date (31/03/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2ACATBL007 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Courage Co., Ltd. hereby requests permanent confidential treatment of information accompanying this application as outlined below: 1.Schematics 2.Bill of Materials/Parts List 3.Block Diagrams 4.Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Chen Bing Telephone Number: 0755-85268690 Email: [email protected]

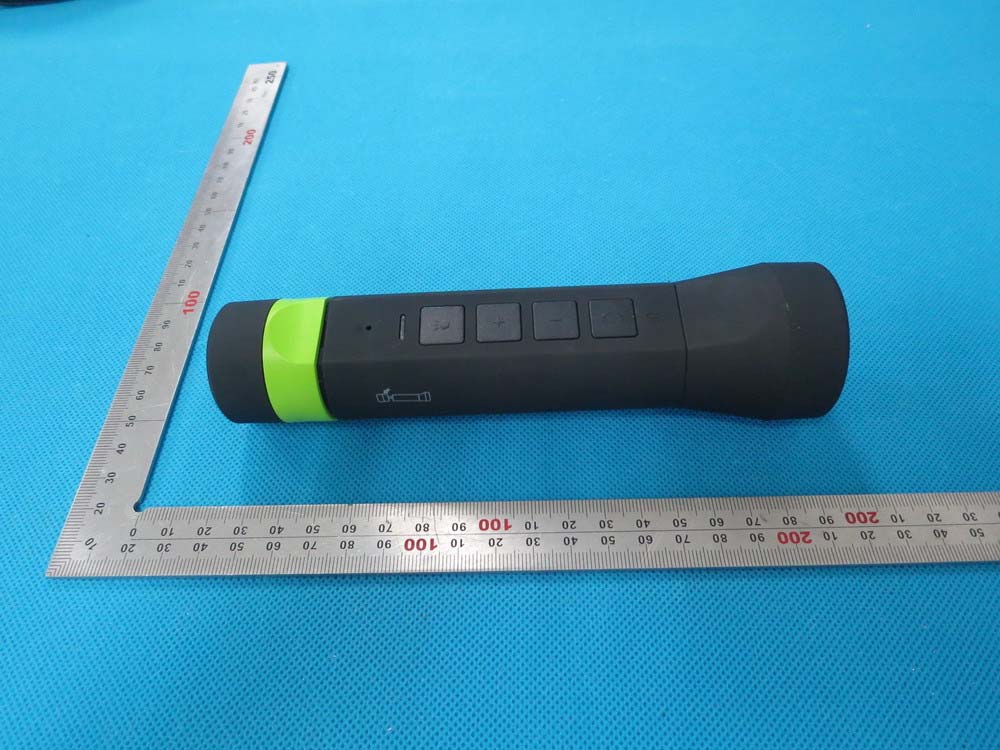

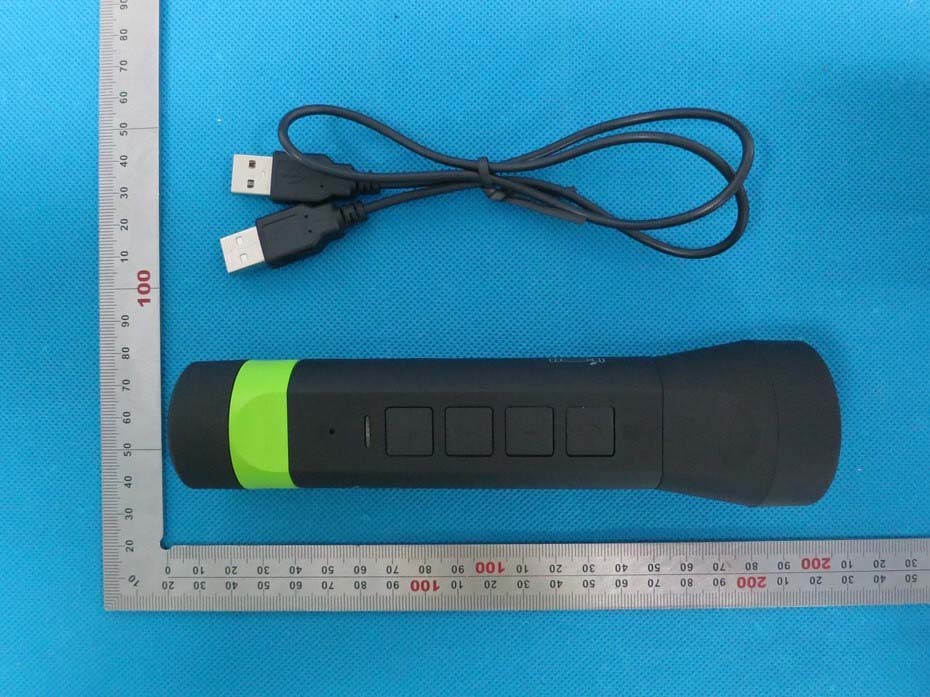

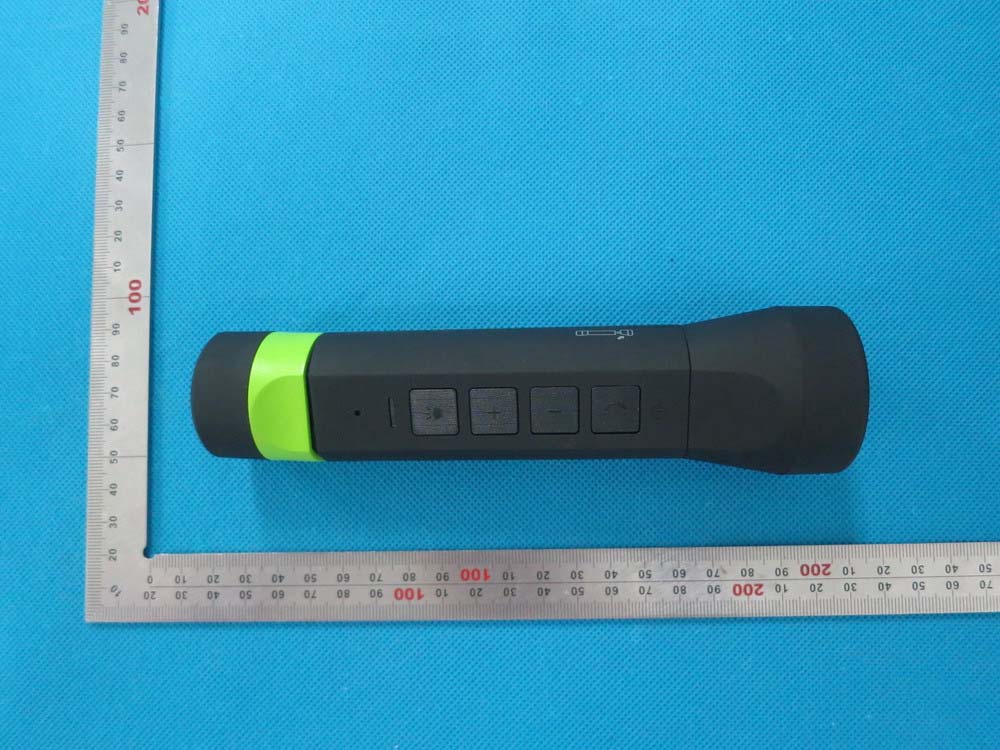

External Photos All VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2ACATBL007

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna

SAR Evaluation Exemption Compliance Information The device has a standalone transmission. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)]·[√f(GHz)] ≤ 3.0 The maximum tune-up limit power is 0.55mW @ 2.402GHz For the head and body SAR, use 50mm as the conservative minimum test separation distance, [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)] = 0.017 ≤ 3.0 So standalone SAR measurements are not required for both head and body.

Page 1 of 43 FCC Test Report Report No.: AGC03155141001FE03 FCC ID : 2ACATBL007 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Speakers BRAND NAME : goldhorse MODEL NAME : BL007,BL008,BL009,BL001,BL002,BL003,BL005,BL006, BL175 CLIENT : GOLDHORSE ELECTRONIC (SHEN ZHEN) CO., LTD DATE OF ISSUE : Nov.25,2014 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC03155141001FE03 Page 2 of 43 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Nov.25,2014 Valid Original Report Report No.: AGC03155141001FE03 Page 3 of 43 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 7 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 7 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 7 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 7 6. TEST FACILITY .................................................................................................................... 8 7 ALL TEST EQUIPMENT LIST ............................................................................................... 8 8. RADIATED EMISSION ......................................................................................................... 9 8.1TEST LIMIT ..................................................................................................................................... 9 8.2. MEASUREMENT PROCEDURE ................................................................................................ 10 8.3. TEST SETUP .............................................................................................................................. 12 8.4. TEST RESULT ............................................................................................................................ 14 9. BAND EDGE EMISSION .................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ................................................................................................ 27 9.2 TEST SETUP ............................................................................................................................... 27 9.3 RADIATED TEST RESULT .......................................................................................................... 28 10. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 32 10.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 32 10.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................ 32 10.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 33 10.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................ 33 10.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ...................................................... 34 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 36 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 38 Report No.: AGC03155141001FE03 Page 4 of 43 1. VERIFICATION OF CONFORMITY Applicant GOLDHORSE ELECTRONIC (SHEN ZHEN) CO., LTD Address 5F., Block 2, NO. 2, Chongqing Road, Qiaotou, Fuyong Street, Baoan District, Shenzhen China Manufacturer GOLDHORSE ELECTRONIC (SHEN ZHEN) CO., LTD Address 5F., Block 2, NO. 2, Chongqing Road, Qiaotou, Fuyong Street, Baoan District, Shenzhen China Product Designation Bluetooth Speakers Brand Name goldhorse Test Model BL007 Series Model BL008,BL009,BL001,BL002,BL003,BL005,BL006,BL175 Different Description All the same except for the model name. Date of test Nov.24,2014 to Nov.25,2014 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Shenzhen STS Test Services Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Water Zuo Nov.25,2014 Checked By Forrest Lei Nov.25,2014 Authorized By Solger Zhang Nov.25,2014 Report No.: AGC03155141001FE03 Page 5 of 43 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 2.402 GHz to 2.480GHz Bluetooth Version V 3.0 Modulation GFSK, π /4-DQPSK, 8DPSK Number of channels 79 Hardware Version BLK-BL10-BT01-MAIN-V1.2 Software Version N/A Antenna Designatio…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP Radiated Measurement Photos Conducted Measurement Photos
