2ACB6-TT3003Attendant Ecosystem Transceiver

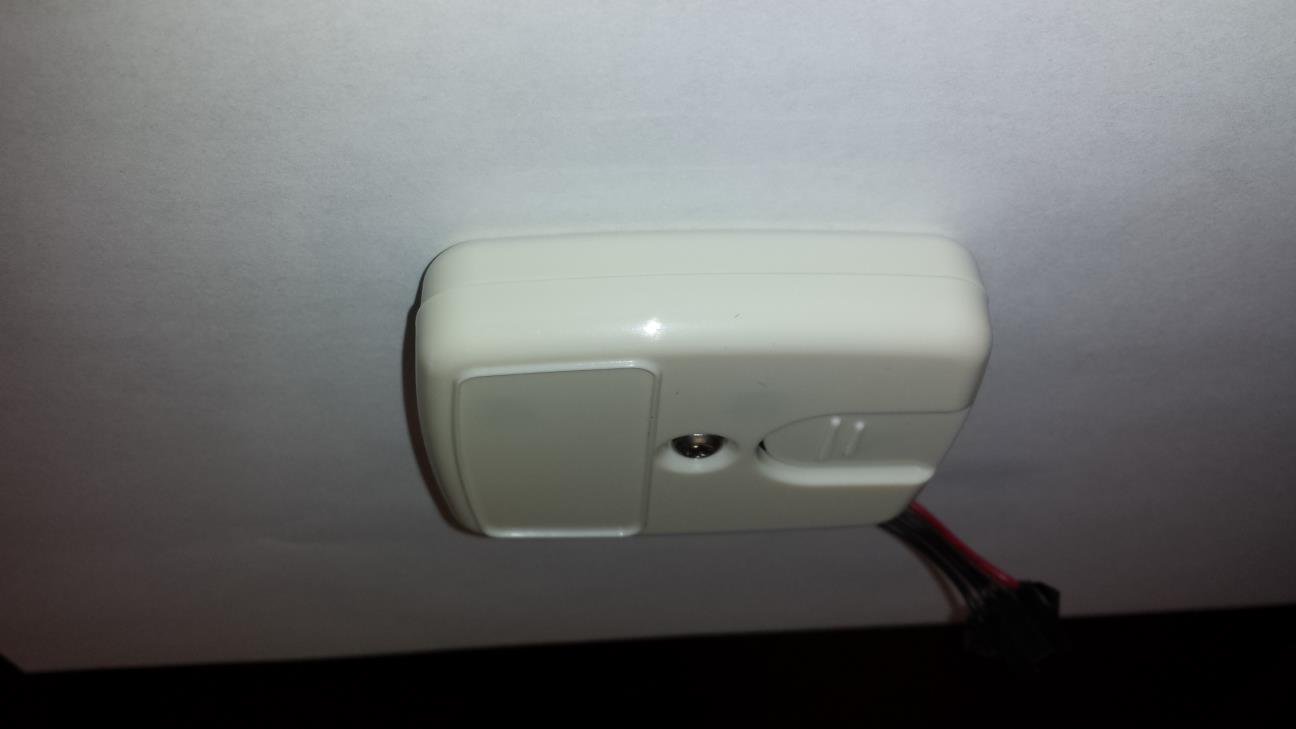

Wireless Ecosystem Version 0.3, March 2014 Pendant User Guide Transceiver User Guide The system locates a fall pad alert Reset the alert Transfer a patient Call for help Where can I use the Transceiver? Transceivers are connected to bed, chair and floor alert pads. When there is a change in pressure status, the transceiver sends an alert to the system. A red LED blinks to indicate that a call was successfully sent. The nearest locator description will be displayed for the mobile chair pad both on the CMU and a pager. It may take up to 12 seconds for the system to calculate the closest locator. The bed and floor pad report their assigned room designated during pairing. Push and hold the “Reset” button for 6 seconds. This will reset the alert if there is an active alert and both red LED lights will blink 3 times. Push and hold the “Reset” button for 6 seconds. If there is not an active alert, this will start a 60 second device time-out to transfer a patient without initiating a call. The alert pads will work in the Alert Coverage Area set up during the system installation. The alert pads will NOT work if you leave the campus. For safe operation, this device shall be installed so that it maintains a minimum of 20cm between it and any users Status Lights Reset button Cable to Alert Pads Wireless Ecosystem Version 0.3, March 2014 Pendant User Guide Transceiver User Guide What do the status lights mean? FCC Statement FCC Part 15 ID: 2ACB6-TT3003 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/ TV technician for help This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Light Pattern Meaning Left Red LED blinks twice You have successfully added the device to the system. Right Red LED blinks 3 times then blinks slowly An active alert has been successfully sent. The LED will blink for 3 minutes and then will stop to preserve battery. Both Red LEDs blink 3 times after an alert has been sent You have successfully closed an active alert.

March 27, 2014 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Pendant, 2ACB6-TT3003

February 21 , 2014 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request for Pendant, 2ACB6-TT3003

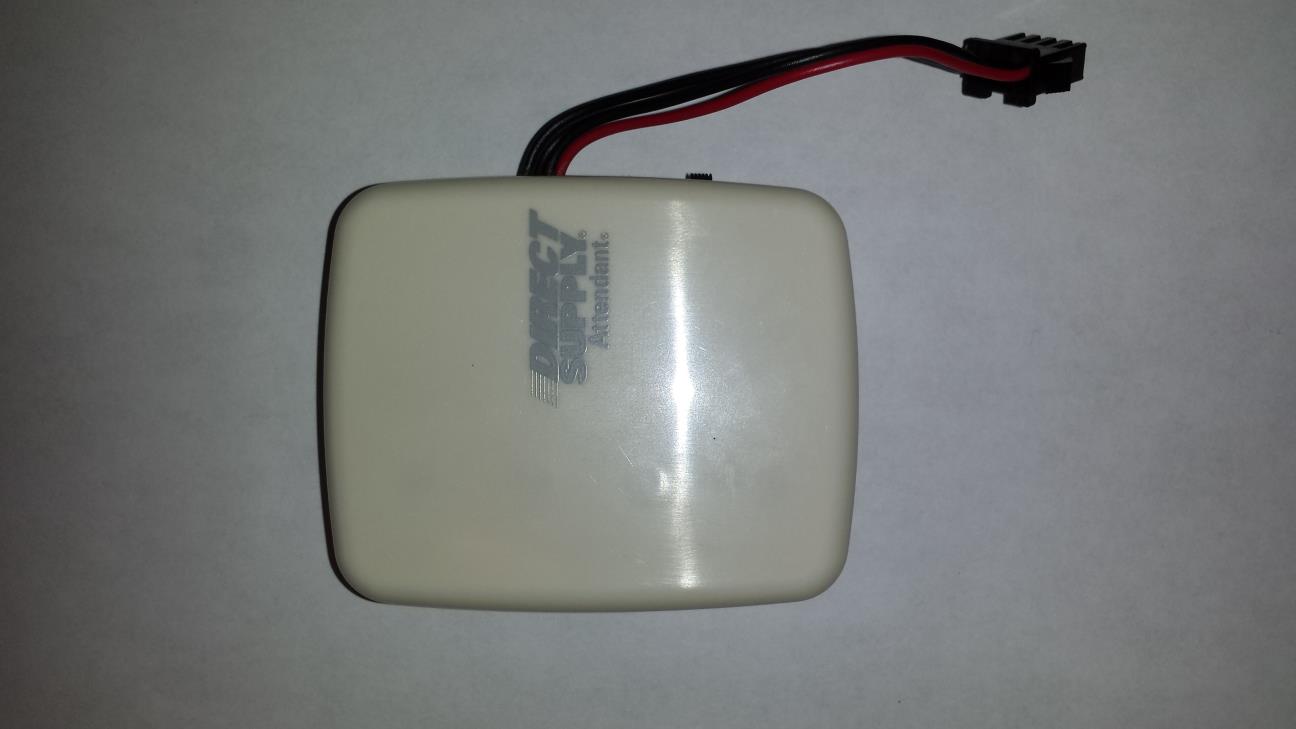

3.2 Labels on Transceiver Enclosure (TT100171) 3.2.1 Product Label Size: See spec on next page. 1.62” wide at narrowest point x 0.86” high Color: white Printing: black Affixed by: Epic Note: Transceiver is always model TT3002 as manufactured. When assembled it will accept a new part number as determined by the paired device (i.e. chair pad, bed pad, floor pad) Direct Supply® Attendant® Ecosystem TM Transceiver Model: TT3003. Lot: 4xxx. SN: 4xxx-xxxxx. Conforms to UL STD 1069 and 2560 Numbering system: -Model: specified by Touchtown -Lot: indicates date of manufacture. 1 st digit indicates year (e.g., “4” = 2014), last 3 digits indicate day of year (e.g., “001” = Jan 1, “365” = Dec 31) -Serial number (SN): first 4 digits same as lot number , last 5 digits are unique sequential number, starting with 00001. 5/8/2014 2 xxxxx Label layout to be rearranged after final ETL text is specified. FCC ID: 2ACB6-TT3003 TT100171 TOUCHTOWN CONFIDENTIAL INFORMATION. Phoenix Packaging and Label Spec, v1.11 Refer to installation instructions.

§ 15.247(i) Maximum Permissible Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. Peak Conducted Power of Transceiver= 6 dBm = 3.98 mW The limit for maximum RF exposure for 2.4GHz device is 1mW/cm^2 The formula for calculating RF exposure is given as S= P=3.98 mW, G=5.5dBi = 3.5 (Linear) & R=20cm, then S = 0.0043 mW/cm^2

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE • BALTIMORE, MARYLAND 21230-3432 • PHONE (410) 354-3300 • FAX (410) 354-3313 33439 WESTERN AVENUE • UNION CITY, CALIFORNIA 94587 • PHONE (510) 489-6300 • FAX (510) 489-6372 3162 BELICK STREET • SANTA CLARA, CA 95054 • PHONE (408) 748-3585 • FAX (510) 489-6372 13301 MCCALLEN PASS • AUSTIN, TEXAS 78753 • PHONE (512) 287-2500 • FAX (512) 287-2513 The Nation’s First Licensed Nationally Recognized Testing Laboratory May 8, 2014 Touchtown Inc. 201-B Ann Street Oakmont, PA 15139 Dear Lindsay Evans, Enclosed is the EMC Wireless test report for compliance testing of the Touchtown Inc., Transceiver as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B and ICES-003, Issue 5 August 2012 for a Class B Digital Device, and FCC Part 15 Subpart C and RSS-210, Issue 8, Dec. 2010 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Touchtown Inc.\EMC39713B-FCC247 Rev. 4) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Touchtown Inc. Cover Page Transceiver CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMC39713B-FCC247 Rev. 4 © 2014, MET Laboratories, Inc. Page ii of viii DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Touchtown Inc. Transceiver Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class B Digital Devices & 15.247 Subpart C & RSS-210, Issue 8, Dec. 2010 for Intentional Radiators MET Report: EMC39713B-FCC247 Rev. 4 May 8, 2014 Prepared For: Touchtown Inc. 201-B Ann Street Oakmont, PA 15139 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Ave Baltimore, MD 21230 Electromagnetic Compatibility Touchtown Inc. Cover Page Transceiver CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMC39713B-FCC247 Rev. 4 © 2014, MET Laboratories, Inc. Page iii of viii DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Touchtown Inc. Transceiver Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class B Digital Devices & 15.247 Subpart C & RSS-210, Issue 8, Dec. 2010 for Intentional Radiators Surinder Singh, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 5 August 2012, RSS-210, Issue 8, Dec. 2010 under normal use and maintenance. Asad Bajwa, Director, Electromagnetic Compatibility Lab Electromagnetic Compatibility Touchtown Inc. Report Status Transceiver CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMC39713B-FCC247 Rev. 4 © 2014, MET Laboratories, Inc. Page iv of viii DOC-EMC702 6/18/2009 Report Status Sheet Revision Report Date Reason for Revision  January 13, 2014 Initial Issue. 1 March 21, 2014 Revised to reflect engineer corrections. 2 April 11, 2014 Revised to correct FCC ID. 3 April 24, 2014 Revised to reflect engineer corrections. 4 May 8, 2014 Revised to correct FCC ID. Electromagnetic Compatibility Touchtown Inc. Table of Contents Transceiver CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMC39713B-FCC247 Rev. 4 © 2014, MET Laboratories, Inc. Page v of viii DOC-EMC702 6/18/2009 Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview .............................................................................................................................................................4 B. References ...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample .................................................................................................................................6 E. Equipment Configuration ....................................................................................................................................6 F. Support Equipment .............................................................................................................................................6 G. Ports and Cabling Information ..........................…

Text truncated - open the document above for the full version.

Photograph 1. Radiated Emissions, Test Setup Photograph 2. Radiated Spurious Emissions, Test Setup, 30 MHz – 1 GHz Photograph 3. Radiated Spurious Emissions, Test Setup, 1 GHz – 18 GHz Photograph 4. Radiated Spurious Emissions, Test Setup, 18 GHz – 25 GHz
