2ACBM80549-24GZombie Smasherz

POW! 1 2 3 1 2 D80549003(SC) FREE APP FOR EXTRA FUN! Turn “ON” before inserting head.Fighter will move and fight on it’s own! ** It will stop automatically after 3 minutes. To start again, repeat the above procedure. Then insert the head to activate. Environmental Protection Discarded electric appliances are recyclable and should not be discarded in the domestic waste! Please actively support us in conserving resources and protecting the environment by returning this appliance to the collection centres (if available). NOTE: • Adjust the fighters before use to make sure both feet have good contact with the ground. Play on a hard, flat surface for best performance. • This product will automatically shut down if not played with for 3 minutes. To reset the product, flip the switch to the OFF position and then back to the ON position. • Maximum operated distance is appx. 26.3 feet / 8 m with new alkaline batteries. IMPORTANT: Use alkaline batteries for best performance. Always make sure batteries are fresh. When batteries are low, the unit may not function properly. Product & colors may vary from those pictured. Assembly required, adult supervision is recommended. Keep packaging and instruction manual for reference as these contain important information. MADE IN CHINA, ZHONGSHAN - GUANGDONG Activate the 2nd fighter to play alone. Single Player Mode: 3+ YEARS Caution: changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Insert head before turning “ON”. 2.4GHz Activate your fighter(s): Dragon-i Toys Ltd. [email protected] Please retain for future reference UK Ofce: G2 Frodsham Business Centre Bridge Lane Frodsham Cheshire WA6 7FZ Europe Ofce: 4 Rue de Bercy 75012, Paris France USA Ofce: 371 W. Tullock Street, Rialto, CA 92376, U.S.A. Part no. Packaging Dimension Coating Packaging Color Language Date Prepared by Checked by Approved by Remarks #D80549003(SC) IM 148(L) x 210(H) mm (A5) single-sided print N/A English 2020/12/03 Wendy Kwok DI-Std (new remote version) Product Description: # 80549 Zombie Smasherz

Page 7 of 6 version Aug 2018 Letter of Agency "I, Jack Cheung, Engineering Manager do hereby authorize Intertek Testing Services (Mr. Terry Chan / Tim Lee/ Herbert Wong / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated: 12 th May 2021 By Signature Jack Cheung Printed Name Engineering Manager Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

Page 8 of 6 version Aug 2018 [12 th May 2021] Attention: Application Examiner Re: Request for confidentiality Applicant: [Dragon-i Toys Ltd.] FCC ID: [2ACBM80549-24G] To whom it may concern, Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request is hereby submitted by Dragon-i Toys Ltd to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) & 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate]  Schematics  Detailed Block Diagrams  Detailed Operational/Functional Description Short-term Confidentiality [Complete this section if short-term confidentiality is requested] Request is hereby submitted by Dragon-i Toys Ltd. to withhold from public review for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) & 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept confidential for a period of 180 days from the date of Authorization: [Select one or more of items below that are not selected in the list above, as appropriate]  Test setup photos  External photos  Internal photos  User manual Page 9 of 6 version Aug 2018 Rationale for request for confidentiality: Dragon-i Toys Ltd. has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.][Short term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development.] [For FCC certification; delete for TCB certification: The fee for confidentiality has been submitted along with the fee for certification.] If you have questions or need further information, please contact the undersigned. Sincerely, EngineeringManager [Dragon-i Toys Ltd.]

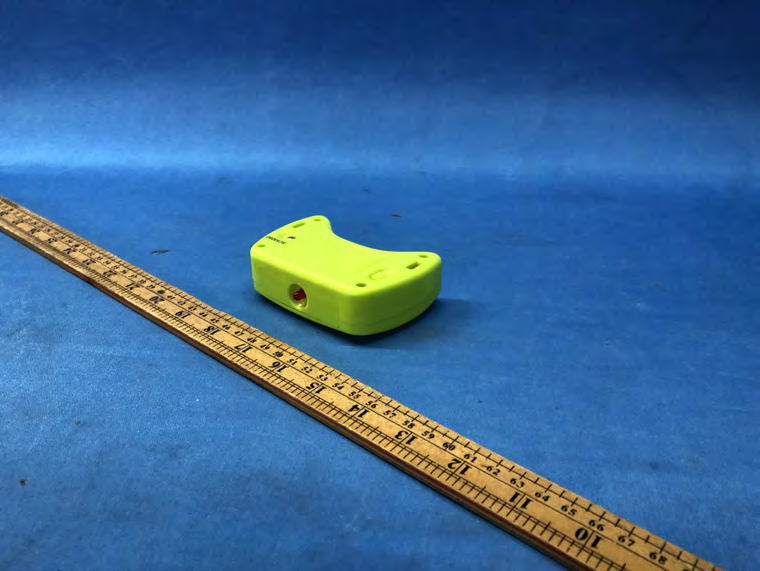

INTERTEK TESTING SERVICE FCC ID: 2ACBM80549-24G Equipment Photographs (External) INTERTEK TESTING SERVICE FCC ID: 2ACBM80549-24G Equipment Photographs (External)

Label Artwork

INTERTEK TESTING SERVICE FCC ID: 2ACBM80549-24G Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: 2ACBM80549-24G Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: 2ACBM80549-24G Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: 2ACBM80549-24G Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: 2ACBM80549-24G Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: 2ACBM80549-24G Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: 2ACBM80549-24G Equipment Photographs (Internal)

Analysis Report The Equipment Under Test (EUT), is a portable 2.4GHz Transmitter (Controller Unit) for a RC Robot. The sample supplied operated on 3 channels, normally at 2402 - 2480MHz. The channels are 2402, 2426 and 2480MHz. The EUT is powered by 2 x 1.5V AAA batteries. After switching on the EUT, the robot will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 85.7dBμV/m at 3m (Peak), 63.1dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the maximum average field strength of production tolerance was 66.1dBμV/m at 3m in frequency 2.426GHz. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.483.5) mW = 9.52 mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 9.52mW is 105dBuV/m @3m Since maximum average field strength plus production tolerance < = 105dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 19 TEST REPORT Report No.: 21041708HKG‐001 Dragon‐I Toys Limited Application For Certification (Original Grant) FCC ID: 2ACBM80549‐24G Transmitter Prepared and Checked by: Approved by: Signed On File Lee For Yiu, Florey Assistant Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: May 28, 2021 TEST REPORT Dragon‐I Toys Limited Intertek Report No: 21041708HKG‐001 Page 2 of 19 GENERAL INFORMATION Grantee: Dragon‐I Toys Limited Grantee Address: 802, Peninsula Centre, 67 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Jack Cheung Tel: 852‐35719198 Fax: 852‐35719198 e‐mail: N/A Manufacturer: Zhongshan Sewco Toys & Novelty Ltd. Manufacturer Address: 31, Sha Gang Main Road, Gangkou Town, Zhongshan City 528447, Guangdong, China. Brand Name: Zombie Smasherz Model : 80549 Additional Model: 80549B, 80549C Type of EUT: Transceiver Description of EUT: Zombie Smasherz Serial Number: N/A FCC ID: 2ACBM80549‐24G Date of Sample Submitted: April 28, 2021 Date of Test: April 28, 2021 to May 05, 2021 Report No.: 21041708HKG‐001 Report Date: May 28, 2021 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Dragon‐I Toys Limited Intertek Report No: 21041708HKG‐001 Page 3 of 19 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2019 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Dragon‐I Toys Limited Intertek Report No: 21041708HKG‐001 Page 4 of 19 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................5 1.1 Product Description .................................................................................................5 1.2 Related Submittal(s) Grants......................................................................................5 1.3 Test Methodology....................................................................................................5 1.4 Test Facility ..............................................................................................................5 2.0 SYSTEM TEST CONFIGURATION.....................................................................................6 2.1 Justification..............................................................................................................6 2.2 EUT Exercising Software...........................................................................................6 2.3 Special Accessories...................................................................................................6 2.4 Measurement Uncertainty.......................................................................................6 2.5 Support Equipment List and Description ..................................................................6 3.0 EMISSION RESULTS.......................................................................................................7 3.1 Field Strength Calculation.........................................................................................7 3.2 Radiated Emission Configuration Photograph...........................................................8 3.3 Radiated Emission Data............................................................................................8 4.0 EQUIPMENT PHOTOGRAPHS ......................................................................................12 5.0 PRODUCT LABELLING..................................................................................................12 6.0 TECHNICAL SPECIFICATIONS .......................................................................................12 7.0 INSTRUCTION MANUAL..............................................................................................12 8.0 MISCELLANEOUS INFORMATION ........................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE FCC ID: 2ACBM80549-24G Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE FCC ID: 2ACBM80549-24G Configuration Photographs Worst-Case Radiated Emissions (Back View)
