2ACBM80620Toy-Fi / Toy-Fi Teddy

10m Toy-Fi Cloud 3. Once the message plays, you can answer, press the right paw one time (blue button). The heart will turn on. Record your message and press the button again to stop recording. The message is sent automatically ! 4. The APP will then receive the message and inform you a message has been received. You can now listen to this message on your smart device. STEP 3 Send a Local Message You can send local messages and long distance messages to Toy-Fi Teddy through out Toy-Fi Cloud. 1. Go to messages on your Toy-Fi APP and record a message. You can now send the message to Toy-Fi Teddy. 2. When a message is received from Toy-Fi Teddy, the heart will blink fast. Wait until the heart blink slowly and press the left paw (green button) to play the message. I miss you! I miss you! Come back soon! Come back soon! Additional Notes: • Toy-Fi Teddy requires a Bluetooth connection with a mobile device. A device with the Toy-Fi APP needs to be within 10 meters of Toy-Fi Teddy. • In step 4 you can enable more devices to connect to Toy-Fi Teddy and enable friends and family to send messages to Toy-Fi Teddy. • You can send a reply to a message after you listen to them. You can not originate a recording message from the Toy without listening to a message first. • Any other question ? Please ask us on Toy-Fi.com STEP 4 Connecting with more people From the Toy-Fi Teddy APP you can invite friends to connect with your Toy-Fi Teddy. Follow the instruction in the Toy-Fi Teddy APP. An email will be sent to your friends to download the APP with a security key to get connected. Additional Notes Step 2: • Enter a valid email address so it can be verified. If you did not receive an email, look in trash or spam as some emails can be filtered! We need a valid email so we can create a key that locks your child’s toy to your device. Child safety is important to us! • Ensure you have a data connection. Wifi or cellular data. • Ensure Bluetooth is ON in you settings of your iOS or Android device. • Toy-Fi APP is on Android and Apple APP stores, search Toy-Fi. • Ensure you are within 10 meters of Toy-Fi Teddy. • If light on Toy starts blinking and APP informs you that Toy-Fi firmware is updating please keep APP open and stay within 10 meters. Toy-Fi firmware update takes around 2 minutes. STEP 2 Set-Up the Toy Download ToyFi APP on an iPhone, iPad, iPod Touch or Android device. Once the APP is downloaded it will ask you to go through the registration process. Confirm your email and you will be able to connect the Bear. Now follow the steps on your app! Please be within 3 meters of toy to ensure strong connection. • Please ensure that you iOS or android device is compatible to connect to Toy-Fi Teddy. iPhone4S and Later, Ipad 3 and later, iPad Mini, Ipod 5 – Later, Select Android devices – Please reference www.toy-fi.com for list of Android devices supported Additional Notes Step 1: • Ensure batteries are placed in battery slots properly and in marked direction • Ensure to use fresh batteries • Ensure power switch is ON Under Toy-Fi Teddy Turn power to “ON” Position, to activate your Toy-Fi Teddy. STEP 1 Power Up Operates on 3 x “AA”/LR6 batteries. Note: When toy is powered on correctly the heart will flash 2 times during initial power up. TOY-FI TEDDY INSTRUCTION SHEET Caution: changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Dragon-i Toys Limited is under license. Other trademarks and trade names are those of their respective owners. BATTERY SAFETY INFORMATION - Only batteries of the same or equivalent type as recommended are to be used. - Batteries are to be inserted in position according to polarity. - Do not mix old and new batteries. - Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries. - Do not attempt to burn batteries. - Dispose of batteries safely and correctly - Remove batteries if the toy will not be used for a long period of time. - Exhausted batteries are to be removed from the toy. - The supply terminals are not to be short circuited. - Do not use rechargeable batteries. - Non-rechargeable batteries are not to be recharged. - Batteries should be replaced under adult supervision. - Do not dispose of in fire. - Different types of batteries are not to be mixed. D80620003 3+ ! D80620003 Toy Fi Teddy IS Size: 370 x 210mm Date: 28th Feb 2014

Dragon DragonDragon Dragon- -- -i Toys Ltd. i Toys Ltd.i Toys Ltd. i Toys Ltd. Room 101, 1/F New East Ocean Centre 9 Science Museum Road, TST East, Kowloon, Hong Kong Tel: (852) 3571 9198 Fax: (852) 3571 9221 Attention: Application Examiner Re: Request for confidentiality Applicant: Dragon-I Toys Ltd FCC ID: [ 2ACBM80620 ] To whom it may concern, Permanent Confidentiality Request is hereby submitted by [Dragon-I Toys Ltd] to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • •• • Schematics • •• • Detailed Block diagrams • •• • Detailed Operational/Functional Description Dragon-I Toys Ltd has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, [Jack Cheung] [Engineering Manager ] [ Dragon-I Toys Ltd] 26May, 2014

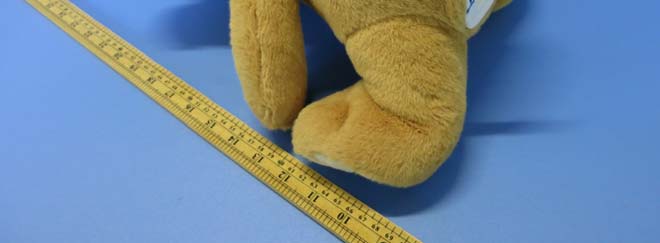

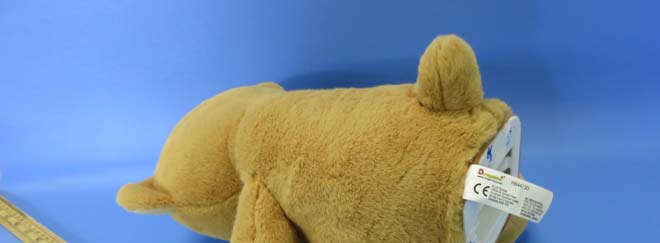

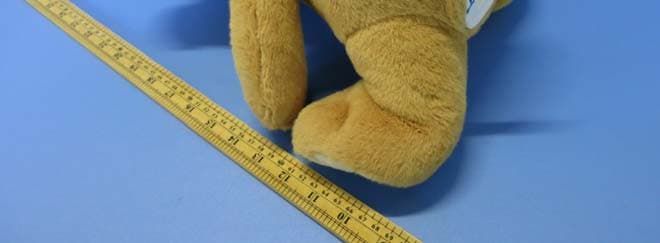

INTERTEK TESTING SERVICE Report No.: 14031446HKG-001 FCC ID: 2ACBM80620 Equipment Photographs Model : 80620 (External) INTERTEK TESTING SERVICE Report No.: 14031446HKG-001 FCC ID: 2ACBM80620 Equipment Photographs Model : 80620 (External)

INTERTEK TESTING SERVICE Report No.: 14031446HKG-001 FCC ID: 2ACBM80620 Equipment Photographs Model : 80620 (Internal) INTERTEK TESTING SERVICE Report No.: 14031446HKG-001 FCC ID: 2ACBM80620 Equipment Photographs Model : 80620 (Internal) INTERTEK TESTING SERVICE Report No.: 14031446HKG-001 FCC ID: 2ACBM80620 Equipment Photographs Model : 80620 (Internal)

Analysis Report Report No.: 14031446HKG-001 The Equipment Under Test (EUT) is a Recording Toy Bear, equipped with Bluetooth 4.0. The EUT operates in the frequency range 2402MHz to 2480MHz (40 channels with 2 MHz spacing). The EUT is powered by 4.5VDC (3 x 1.5V AA Batteries). When the recording is sending the LED (red colour) on the panel of the unit will be lighted. It can be controlled by iPad via Bluetooth communication. . Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 94.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 97.5 dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.687mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 1.687mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Intertek Valued Quality. Delivered. lssuing Laboratory: lntertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HIGS) has accredited th¡s laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKI-AS) for specific laboratory activit¡es as listed in the HOKLAS d¡rectory of accredited laboratories. The results shown in this report were determined by this laboratory ¡n accordance with its terms of accreditation. TEST REPORT Report No.: 1 4031446HKG-001 Dragon-l Toys Limited For Ceftification (Original Grant) (FCC ID: 24C8M80620) Transceiver Application Prepared and Checked by: Wong Kwok Yeung, Kenneth Lead Engineer The test r€port only allows to be rov¡sed w¡th¡n the retention period unl6ss furthor standard or the requirement was noticod This rsport ¡s for ths sxclus¡vo uss of lnt€rtsk's Client and is prov¡ded pursuant to the ågreement between lntertêk and its Clienl lntertek's respons¡bility and liabil¡ty are l¡mited to the t€rms and conditions of the agreement lnt€rtek assumes no l¡abil¡ty to any party, other than to thê Clisnt ¡n accordanæ wilh the agreement, lor ãny loss, expenss or damege occas¡oned by the use of th¡s report, Only lhe Cl¡ent ¡s author¡zed to p€rm¡t copy¡ng or d¡str¡bution of th¡s r€porl end then only in ¡ts ent¡rety Any use of the lntertek name or one of ¡ts marks for the sale or advert¡sement of the tested meteriel, product or sery¡ce must f¡rst be approved ¡n wr¡l¡ng by lntsrlêk Tho obseruat¡ons and tost results ¡n lh¡s report are relevant only to the sample tested, Th¡s rsport by itsslf doos not ¡mply that the mater¡al, product, or sory¡ce ¡s or has ever been under an lntsrl€k cerl¡lìcal¡on program lntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Approved by: Chan Chi Hung, Terry Superuisor Date: May 23,2014 Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14031446HKG-001 i FCC ID: 2ACBM80620 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Dragon-I Toys Limited Grantee Address: Room 101, 1/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Brian Hoi Tel: (852) 3571 9198 Fax: (852) 3571 9221 e-mail: [email protected] Manufacturer: Dragon-I Toys Limited Manufacturer Address: Room 101, 1/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: N/A Model: 80620 Additional Model: 80620A, 80620B, 80620C, 80620D, 80620E, 80620F, 80620G, 80620H, 80620I, 80620J, 80620K, 80620L, 80620M, 80620N, 80620O, 80620P, 80620Q, 80620R, 80620S, 80620T, 80620U, 80620V, 80620W, 80620X, 80620Y, 80620Z, 80625 Type of EUT: Transceiver Description of EUT: Toy-Fi / Toy-Fi Teddy Serial Number: N/A FCC ID: 2ACBM80620 Date of Sample Submitted: March 31, 2014 Date of Test: March 31, 2014 to April 14, 2014 Report No.: 14031446HKG-001 Report Date: May 23, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14031446HKG-001 ii FCC ID: 2ACBM80620 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandedge Requirement 15.249 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14031446HKG-001 iii FCC ID: 2ACBM80620 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Te…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14031446HKG-001 FCC ID: 2ACBM80620 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 80620 INTERTEK TESTING SERVICE Report No: 14031446HKG-001 FCC ID: 2ACBM80620 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 80620
