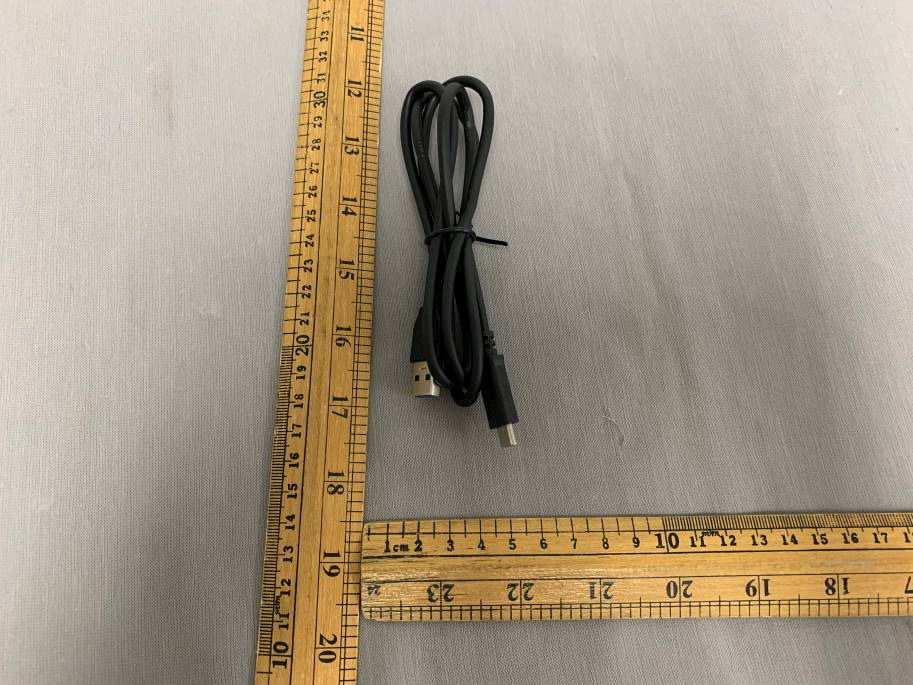

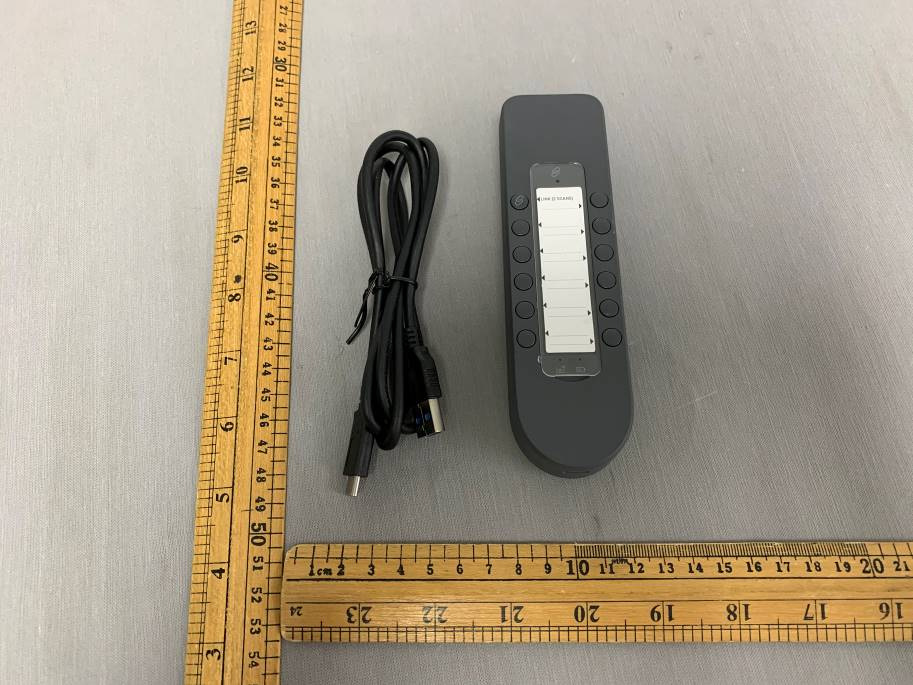

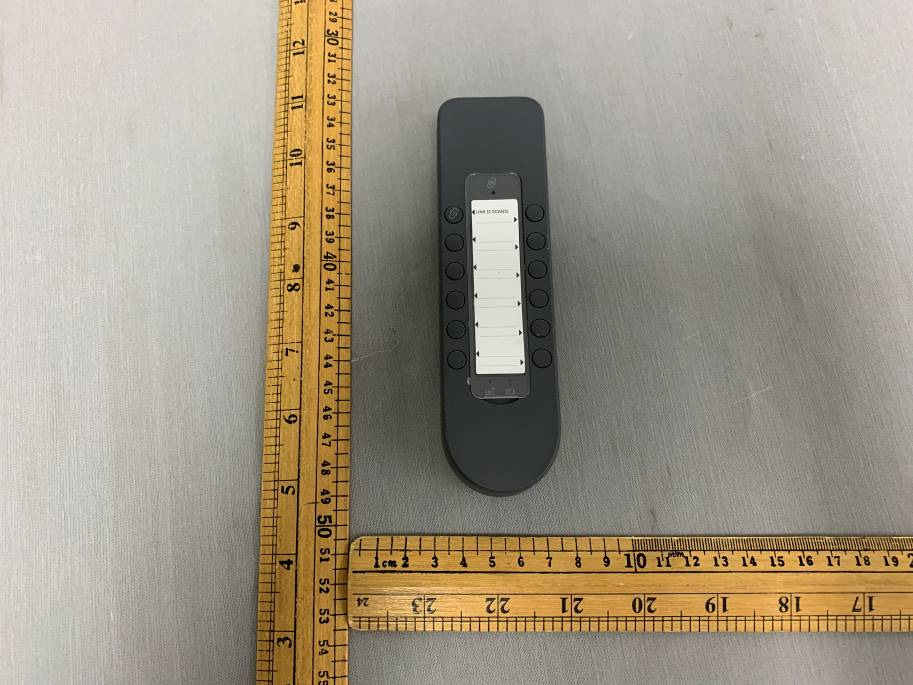

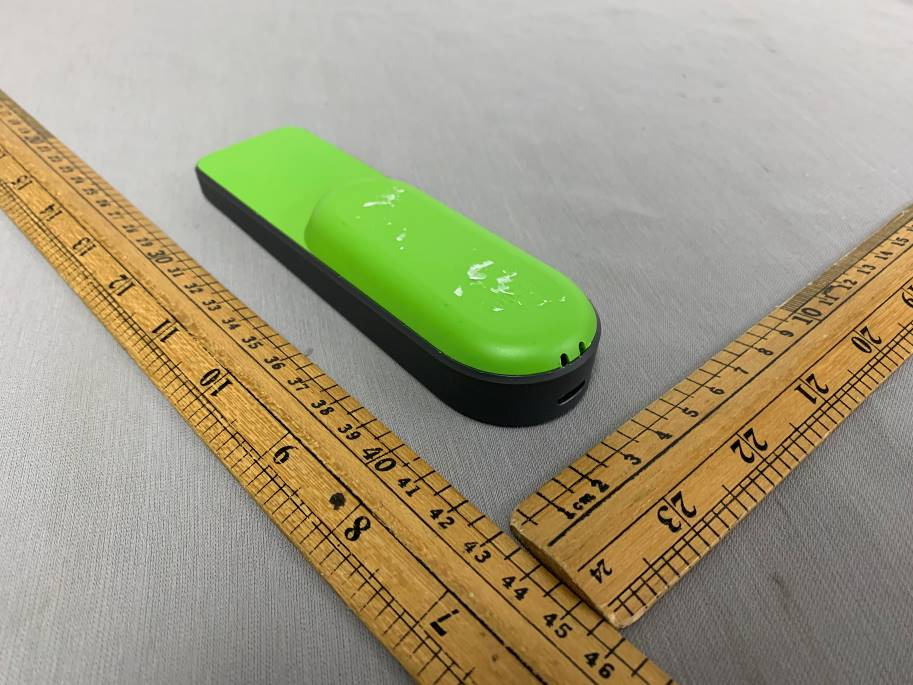

2ACC86617010Pricer Shelf Controller

57767 Rev H, User manual – Pricer Shelf Controller 1 Normal Usage Linking Pricer Label 1. Press and hold the Link button . (The scanner beam is turned on.) 2. Scan the label barcode. The green link LED starts flashing and a beep/vibration confirms the scan. 3. Press and hold the link button again to scan the item barcode. The green link LED will be on for 1 s and a double beep/vibration confirms a successful link. 4. Scanning order can be reversed, i.e. scanning first item and then label is also possible. 5. If any other button is pressed after the first scan the link action is aborted and the scanned item/label is deleted. 6. Scanner beam automatically switches off after three seconds if the scanning fails. Release the link button and press again to activate the scanner. Other actions 1. Press and hold any of the action buttons. (The scanner beam is turned on.) 2. Scan a barcode. Successful scan is confirmed by a beep/vibration. 3. To select a different action simply press and hold the corresponding button and scan like in step 2. Which action that is associated with which button is configured in the Pricer Server integration middleware. Note: The Shelf Controller supports EAN13, EAN7 and Code128 (17 characters) barcodes. Outbox After a successful link or scan the task is stored in the Shelf Controller Outbox and the outbox LED will flash blue until the command is successfully transferred to the server. The Shelf Controller can be used even if a wifi connection is missing. All tasks will then be stored in the Outbox and transferred once the Shelf Controller gets network access again. • Single blue flash: No Wi-Fi coverage at the moment. • Double blue flash: Has Wi-Fi connection but cannot connect to server, or the server does not respond with status code 2xx. • When in sleep mode, the outbox LED will beep and give a short blue flash every five seconds indicating that there are unsent tasks. This will continue for 30 minutes, after that the beep and flash is repeated once every 30 minutes. • The outbox can store 200 scans. A full outbox is indicated by three beeps and the outbox LED flashes red. Scanning is then disabled. To be able to scan again, empty the outbox either by connecting to the server so the commands can be transferred or go to AP mode and delete the outbox. Important! Make sure all actions in Outbox have been transmitted before ending work session. Otherwise actions may be transmitted after deadline. Low battery When the battery level is low, the battery LED will flash red to indicate that the Shelf Controller should be charged. The Shelf Controller can still be used for a while but is then disabled in order to protect the batteries. If the Shelf Controller has stored scans in the Outbox those scans will be kept and transmitted once the Shelf Controller is charged. Charging To charge the Shelf Controller, connect it to a PC or mobile charger using a USB-C cable. During charging the battery LED flashes green. Once the Shelf Controller is fully charged the battery LED turns steady green. Configure sound and vibration The Shelf Controller gives feedback on actions using LEDs, sound and vibration. Default sound and vibration settings are configured in the web interface. • During normal operation it is possible to toggle sound (Off, low, high) by pressing buttons 12 and 9 for 1 s. • During normal operation it is possible to toggle vibration (Off, On) by pressing buttons 12 and 10 for 1 s. • The Shelf Controller returns to the default sound and vibration settings after 8 hours of inactivity. 2 Configuring the Shelf Controller Enter AP mode • An unconfigured Shelf Controller will automatically enter Access-Point (AP) mode when pressing one of the action buttons. • A configured Shelf Controller can be reconfigured by putting it in AP mode by pushing Button 1 and Button 2 simultaneously for 5 seconds. One beep will sound and then the outbox LED starts flashing white. Configure in AP mode • With the Shelf Controller in AP mode, use your laptop or phone to search for the Shelf Controller wifi network Pricer_Remote_xxxx and connect using a web browser to address 192.168.4.1. In the web browser, you will find different settings like Wi-Fi network name / Password, Backend server address and Sound/vibration settings. • The Shelf Controller is default configured to acquire IP address via DHCP. For static address, check the Use Static IP checkbox and enter your data. • The Shelf Controller supports WPA2 Personal and WPA Enterprise (PEAP- MSCHAPv2) networks. For Enterprise, check the PEAP checkbox and enter a username. Note1 – The Backend server (API Endpoint) address must start with http:// or https://. AP mode view AP mode view – PEAP checked: AP mode view – Use Static IP checked Save configuration Once the user configuration is submitted the Shelf Controller control will attempt to connect to provided network and go to sleep. The config page will display the result of the connection test: • Even if the test fails the config is saved. This means that configuration can be done in advance at a location where the wifi is not present. • If the Shelf Controller control is left unconfigured the user can manually put it to sleep to save battery by pushing any of the buttons except Button 1 and Button 2. • In AP mode, the outbox can be cleared by pressing buttons 3 and 4 for 5 seconds. The command is acknowledged by two short beeps and the Outbox LED flashes green. No other configuration is affected. • In AP mode, Factory reset can be obtained by pressing buttons 7 and 8 for 5 seconds. The command is acknowledged by three short beeps. Factory reset will clear all configuration and delete any left items in the outbox. 3 Firmware update The Shelf Controller supports Over the air (OTA) updates. • Enter AP by pushing Button 1 and Button 2 simultaneously for 5 seconds. One beep will sound and then the outbox LED starts flashing white. • Press buttons 5 and 6 simultaneously for 5 seconds. One beep will…

Text truncated - open the document above for the full version.

This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/T erms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. Appendix A Photographs of EUT Constructional Details for HKEM2007000653AT Appendix A: External Photo of HKEM2007000653AT

Comments Scale Units Format - 1:1 mm A4 Prepared Unit label Pricer Shelf Controller Fredrik Tjerneld/200826 Reviewed Language - EN/SV Approved Page - 1 of 1 Document id. Revision 1301-57759 E Label material: PET Silver Label size: 45 x 13 mm Font: Arial 5pt or similar Print colour: Black. Note! It shall not be possible to rub out the text printed Actual size: Enlarged: Position: Made in China Shelf Controller Art. No. 66170-10 Rating 5V d.c. / 0.35A IC: 20234-6617010 FCC ID: 2ACC86617010 Shelf Controller Art. No. 66170-10 Made in China Rating 5V d.c. / 0.35A IC: 20234-6617010 FCC ID: 2ACC86617010

Comments Scale Units Format - 1:1 mm A4 Prepared Unit label Pricer Shelf Controller Fredrik Tjerneld/200826 Reviewed Language - EN/SV Approved Page - 1 of 1 Document id. Revision 1301-57759 E Label material: PET Silver Label size: 45 x 13 mm Font: Arial 5pt or similar Print colour: Black. Note! It shall not be possible to rub out the text printed Actual size: Enlarged: Position: Made in China Shelf Controller Art. No. 66170-10 Rating 5V d.c. / 0.35A IC: 20234-6617010 FCC ID: 2ACC86617010 Shelf Controller Art. No. 66170-10 Made in China Rating 5V d.c. / 0.35A IC: 20234-6617010 FCC ID: 2ACC86617010

Appendix B: Internal Photo of HKEM2007000653AT

Report No.: HKEM200700065303 Page: 1 of 9 Law Man Kit EMC Manager This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request and accessible at http://www.sgs.com/en/Terms-and-conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-conditions.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. T he document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. TEST REPORT Application No.: HKEM2007000653AT Applicant: Pricer AB Address of Applicant: Pricer AB, Box 215, SE-101 24 Stockholm, Sweden Manufacturer: Pricer AB Address of Manufacturer: Västra Järnvägsgatan 7, SE-111 64 Stockholm, Sweden Equipment Under Test (EUT): EUT Name: Pricer Shelf Controller Model No.: 66170-10 Additional model: Please refer to section 2 of this report which indicates which item was actually tested and which were electrically identical. FCC ID: 2ACC86617010 Standard(s) : 47 CFR Part 1.1307; 47 CFR Part 2.1093 Date of Receipt: 2020-07-03 Date of Test: 2020-07-03 to 2020-07-27 Date of Issue: 2020-07-28 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: HKEM200700065303 Page: 2 of 9 Revision Record Version Chapter Date Modifier Remark 01 2020-07-28 Original Authorized for issue by: Leo Xu /Project Engineer Date: 2020-07-28 Law Man Kit /Reviewer Date: 2020-07-28 Report No.: HKEM200700065303 Page: 3 of 9 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result RF Exposure 47 CFR Part 1.1307, Part 1.1310; 47 CFR Part 2.1093 CFR 47 Part 1.1310 CFR 47 Part 1.1310 PASS Declaration of EUT Family Grouping: None. Abbreviation: Tx: In this whole report Tx (or tx) means Transmitter. Rx: In this whole report Rx (or rx) means Receiver. RF: In this whole report RF means Radiated Frequency. CH: In this whole report CH means channel. Volt: In this whole report Volt means Voltage. Temp: In this whole report Temp means Temperature. Humid: In this whole report Humid means humidity. Press: In this whole report Press means Pressure. N/A: In this whole report not application. Report No.: HKEM200700065303 Page: 4 of 9 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................. 3 3 CONTENTS ......................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................. 5 4.1 D ETAILS OF E.U.T. ......................................................................................................................... 5 4.2 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 6 4.3 T EST LOCATION ............................................................................................................................. 7 4.4 T EST FACILITY ............................................................................................................................... 7 4.5 DEVIATION FROM STANDARDS ......................................................................................................... 7 4.6 A BNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 7 5 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................. 8 5.1 RF EXPOSURE ............................................................................................................................... 8 5.1.1 Test Requirement: ................................................................................................................... 8 5.1.1 EUT RF Exposure Evaluation ................................................................................................... 9 6 PHOTOGRAPHS ................................................................................................................................. 9 Report No.: HKEM200700065303 Page: 5 of 9 4 General Information 4.1 Details of E.U.T. Power supply: Adaptor Model: IEC 005 Input: AC 100V-240V, 50/60Hz, 0.75A Output: DC 5V, 1A Test voltage: AC 120V Cable: 100cm unshielded 2wires DC cable Antenna Gain: 1.5dBi Antenna Type: PCB Antenna Channel Spacing: 5MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) 802.11n (HT20; HT40): OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels: 802.11b/g/n(HT20):11 802.11n(HT40): 7 Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40):2422MHz to 2452MHz Tested Channels: 802.11b/g/n(HT20): 2412MHz, 2442MHz, 2462MHz 802.11n(HT40): 2422MHz, 2442MHz, 2452MHz Series Number A1 Hardware Version: 57771 D Software Version: 1.00 (ff04c764) Frequency Lis…

Text truncated - open the document above for the full version.

Report No.: HKEM200700065302 Page: 1 of 73 Law Man Kit EMC Manager This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request and accessible at http://www.sgs.com/en/Terms-and-conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-conditions.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. T he document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. TEST REPORT Application No.: HKEM2007000653AT Applicant: Pricer AB Address of Applicant: Pricer AB, Box 215, SE-101 24 Stockholm, Sweden Manufacturer: Pricer AB Address of Manufacturer: Västra Järnvägsgatan 7, SE-111 64 Stockholm, Sweden Equipment Under Test (EUT): EUT Name: Pricer Shelf Controller Model No.: 66170-10 Additional model: Please refer to section 2 of this report which indicates which item was actually tested and which were electrically identical. FCC ID: 2ACC86617010 Standard(s) : 47 CFR FCC Part 15, Subpart C, 2019 Date of Receipt: 2020-07-03 Date of Test: 2020-07-03 to 2020-07-27 Date of Issue: 2020-07-28 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: HKEM200700065302 Page: 2 of 73 Revision Record Version Chapter Date Modifier Remark 01 2020-07-28 Original Authorized for issue by: Leo Xu /Project Engineer Date: 2020-07-28 Law Man Kit /Reviewer Date: 2020-07-28 Report No.: HKEM200700065302 Page: 3 of 73 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Disturbance at AC Power Line(150kHz- 30MHz) 47 CFR Part 15, Subpart C 15.207 ANSI C63.10: 2013 Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.2.3 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Declaration of EUT Family Grouping: None. Abbreviation: Tx: In this whole report Tx (or tx) means Transmitter. Rx: In this whole report Rx (or rx) means Receiver. RF: In this whole report RF means Radiated Frequency. CH: In this whole report CH means channel. Volt: In this whole report Volt means Voltage. Temp: In this whole report Temp means Temperature. Humid: In this whole report Humid means humidity. Press: In this whole report Press means Pressure. N/A: In this whole report not application. Report No.: HKEM200700065302 Page: 4 of 73 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................. 3 3 CONTENTS ......................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................. 6 4.1 D ETAILS OF E.U.T. ......................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 7 4.3 M EASUREMENT UNCERTAINTY ......................................................................................................... 8 4.4 T EST LOCATION ............................................................................................................................. 9 4.5 TEST FACILITY ............................................................................................................................... 9 4.6 D EVIATION FROM STANDARDS ......................................................................................................... 9 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 9 5 EQUIPMENT LIST .....................................................................................................…

Text truncated - open the document above for the full version.

Appendix C: Setup Photo of HKEM2007000653AT Conducted Emissions at Mains Terminals (150kHz-30MHz) Test Setup Radiated Emissions (30MHz-1GHz) Test Setup Radiated Emissions (Above 1GHz) Test Setup Conducted Peak Output power Test Setup
