2ACDVML2000RFID Reader

SuZhou MuLan Ele&Tec Co.,Ltd http://www.mlrfid.com http://www.mlrfid.cn ML-M2000DX RFID Reader 1. Product Pictures 2. Product Features Support the communication with computers by RS485/Wiegand-26/ Wiegand-34/TCP/IP method. Encryption calculation and certification, to ensure data security, to prevent the crack with the data link eavesdropping Controllable range, maximum support 32 level power control; The adjustment of reception distance by sending commands to readers Be able to identify fast mobile electronic tags within 200 km/hour Be able to identify 200 cards at the same time The use of channel isolation technique, non-interference multiple devices The advanced collision technology, support for multiple tag reading and writing Configurable microwave work module, transmitted power can be adjusted Compatible with customers card Meet the requirements of industrial environment Physical Properties Housing Material: Front plastic, aluminum back Weight: 2.5 kg Color: off white Outlook: 320*200*100mm Protection grade: IP65 Installation: Special mounting bracket, derrick installation 3. Electrical characteristics Working Voltage: +9V到+12V DC（MAX 1000mA） SuZhou MuLan Ele&Tec Co.,Ltd http://www.mlrfid.com http://www.mlrfid.cn Working current: <1000mA Reliability: MTBF more than 70000 hours Working life: longer than 15 years Communication interface: RS232/RS485/Wiegand 4. Air Link Specifications Modulation：GFSK Working frequency: 2.4~2.5 GHz Receiving sensitivity：≤-93dBm(Can be adjusted by sending commands) Antenna polarization: vertical Recognition range: Orientation recognition Microwave Communication distance: 0-100 meters Link Error Check: CRC16 Bit-error rate/B.E.R：10 -7 Working Environment 1.Anti-interference and lightning protection design, meeting the needs of the industrial environment 2.Working temperature：-40°C～+80°C 3.Storage Temperature：-60°C～+80°C 4.Anti-electromagnetic interference: 10V/m 0.1～1000MHz AM Application Fields Trans parking system Vehicles no-parking management system Home school access system School access system Tunnel personnel management system installation Underground personnel positioning management system SuZhou MuLan Ele&Tec Co.,Ltd http://www.mlrfid.com http://www.mlrfid.cn Forces classified asset management system Automatic recognition system of motor vehicle electronic license plate Automatic management syatem of bus benchmarking Automatic examination system of Entry - Exit of enterprise or business unit personnel Warehouse management of Entry - Exit Warehouse electrical equipment inspection Sea transport、water transport、highway and railway container transport Other remote automatic identification system Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SuZhou MuLan Ele&Tec Co.,Ltd Address: No. 625, ChuangYe Building, Binhe Road, Suzhou, Jiangshu Province, China Tel: 0512-87655880 2014-05-13 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2ACDVML2000 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : wang xue mei / GM Assistant Contact information / address : No. 625, ChuangYe Building, Binhe Road, Suzhou, Jiangshu Province, China Tel: 0512-87655880

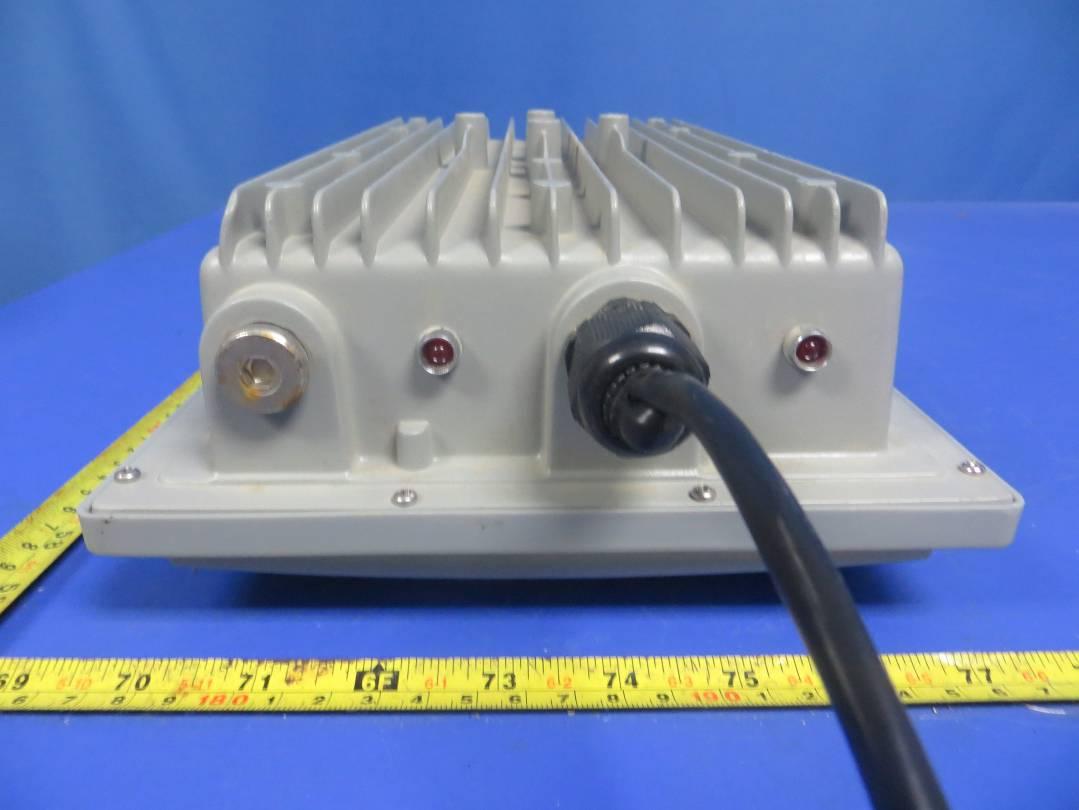

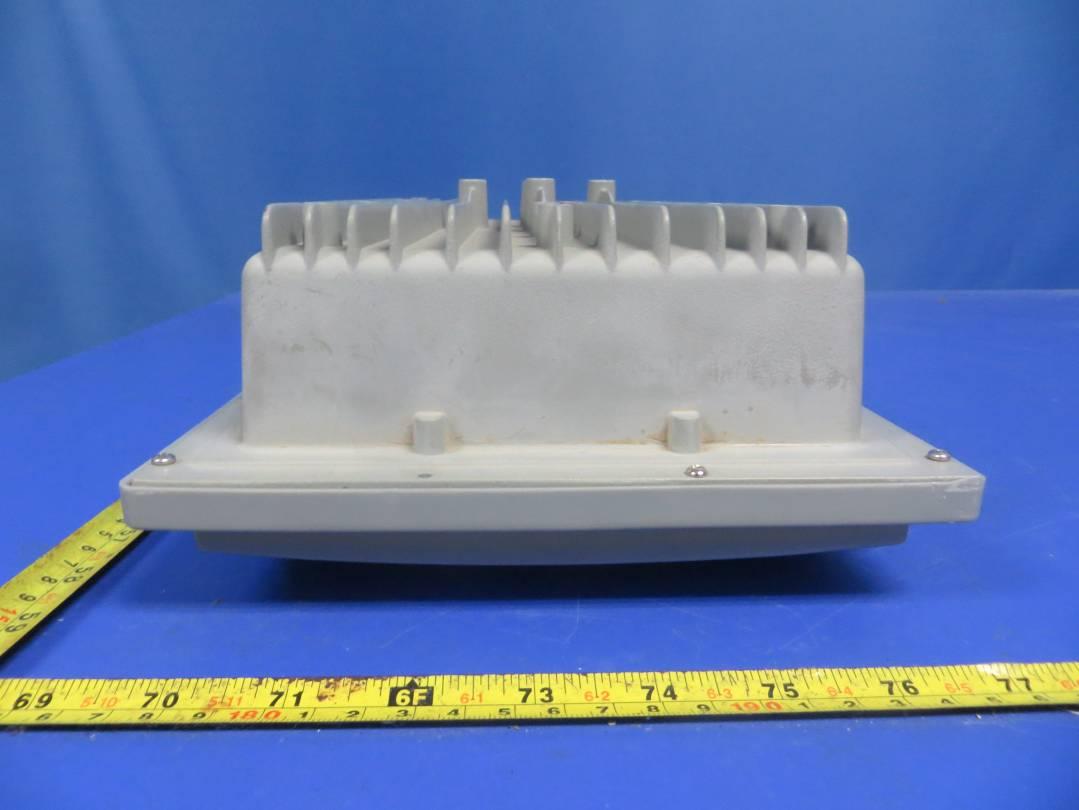

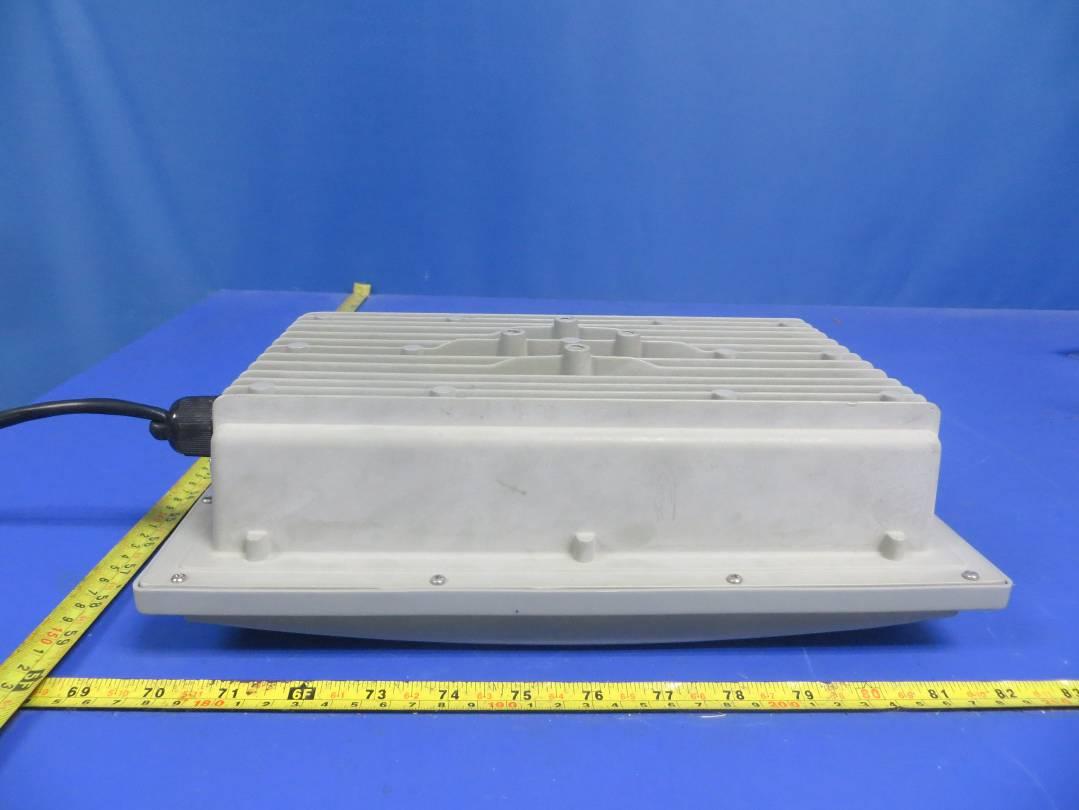

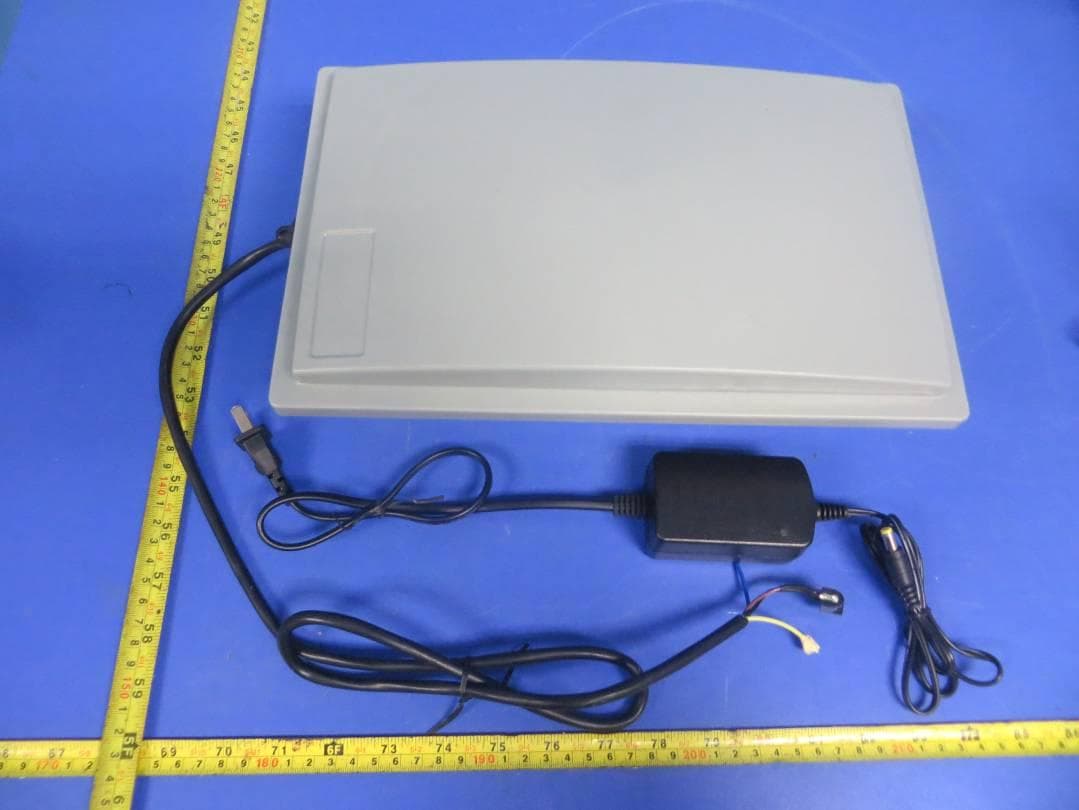

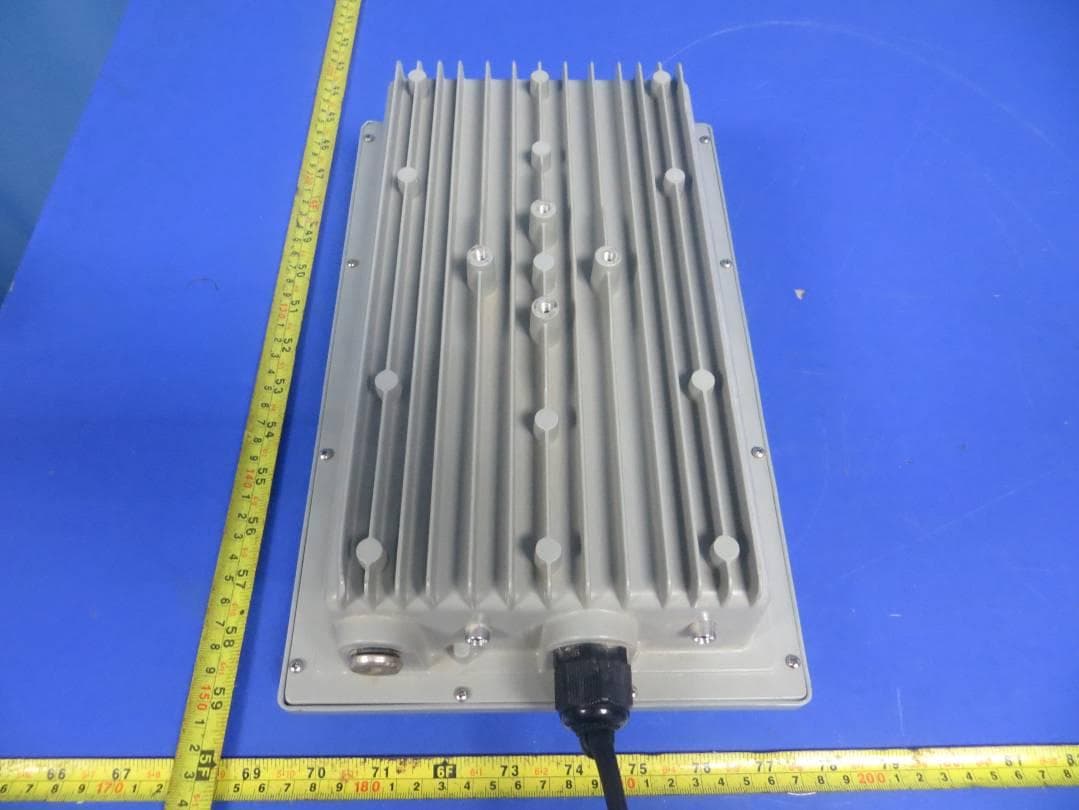

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML2000 Report No.: LCS1405060201E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML2000 Report No.: LCS1405060201E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML2000 Report No.: LCS1405060201E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML2000 Report No.: LCS1405060201E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML2000 Report No.: LCS1405060201E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION Size: L2.0mm*W1.5mm Material: Tagboard Glue: adhesive sticker Font color: Black Label color: White Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML2000 Report No.: LCS1405060201E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML2000 Report No.: LCS1405060201E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML2000 Report No.: LCS1405060201E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML2000 Report No.: LCS1405060201E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 27 FCC TEST REPORT FOR SuZhou MuLan Ele&Tec Co.,Ltd RFID Reader Model No.: ML-M2000DX Prepared for : SuZhou MuLan Ele&Tec Co.,Ltd Address : No. 625, ChuangYe Building, Binhe Road, Suzhou, Jiangshu Province, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong , China Date of receipt of test sample : May 06, 2014 Number of tested samples : 1 Serial number : Prototype Date of Test : May 06, 2014 - May 13, 2014 Date of Report : May 13, 2014 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML2000 Report No.: LCS1405060201E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 27 FCC TEST REPORT FCC CFR 47 PART 15 C(15.249): 2013 Report Reference No. ............... : LCS1405060201E Date of Issue ................................. : May 13, 2014 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address......................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : SuZhou MuLan Ele&Tec Co.,Ltd Address......................................... : No. 625, ChuangYe Building, Binhe Road, Suzhou, Jiangshu Province, China Test Specification Standard ....................................... : FCC CFR 47 PART 15 C(15.249): 2013 Test Report Form No. .................. : LCSEMC-1.0 TRF Originator ............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................ : RFID Reader Trade Mark ................................... : Model/ Type reference ................. : ML-M2000DX Ratings ......................................... : DC 9~12V, 1000mA Result ......................................... : Positive Compiled by: Supervised by: Approved by: Jacky Li/ File administrators Danny Huang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML2000 Report No.: LCS1405060201E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 27 FCC -- TEST REPORT Type / Model........................... : ML-M2000DX EUT......................................... : RFID Reader Applicant............................... : SuZhou MuLan Ele&Tec Co.,Ltd Address.................................. : No. 625, ChuangYe Building, Binhe Road, Suzhou, Jiangshu Province, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : SuZhou MuLan Ele&Tec Co.,Ltd Address................................... : No. 625, ChuangYe Building, Binhe Road, Suzhou, Jiangshu Province, China Telephone............................... : / Fax.......................................... : / Factory................................... : SuZhou MuLan Ele&Tec Co.,Ltd Address................................... : No. 625, ChuangYe Building, Binhe Road, Suzhou, Jiangshu Province, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1405060201E May 13, 2014 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML2000 Report No.: LCS1405060201E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 27 TABLE OF CONTENTS 1. GENERAL INFORMATION ..................................................................................................... 5 1.1. Description of Device (EUT) .............................................................................................................. 5 1.2. Host System Configuration List and Details ....................................................................................... 5 1.3. External I/O ......................................................................................................................................... 5 1.4. Description of Test Facility ................................................................................................................. 6 1.5. Statement of the measurement uncertainty .......................................................................................... 6 1.6. Measurement Uncertainty ................................................................................................................... 6 1.7. Description Of Test Modes ................................................................................................................. 7 2. TEST METHODOLOGY ......................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML2000 Report No.: LCS1405060201E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1 Photo Of Radiated Emission Measurement(X Position) Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML2000 Report No.: LCS1405060201E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 1.2 Photo Of Power line conducted emissions
