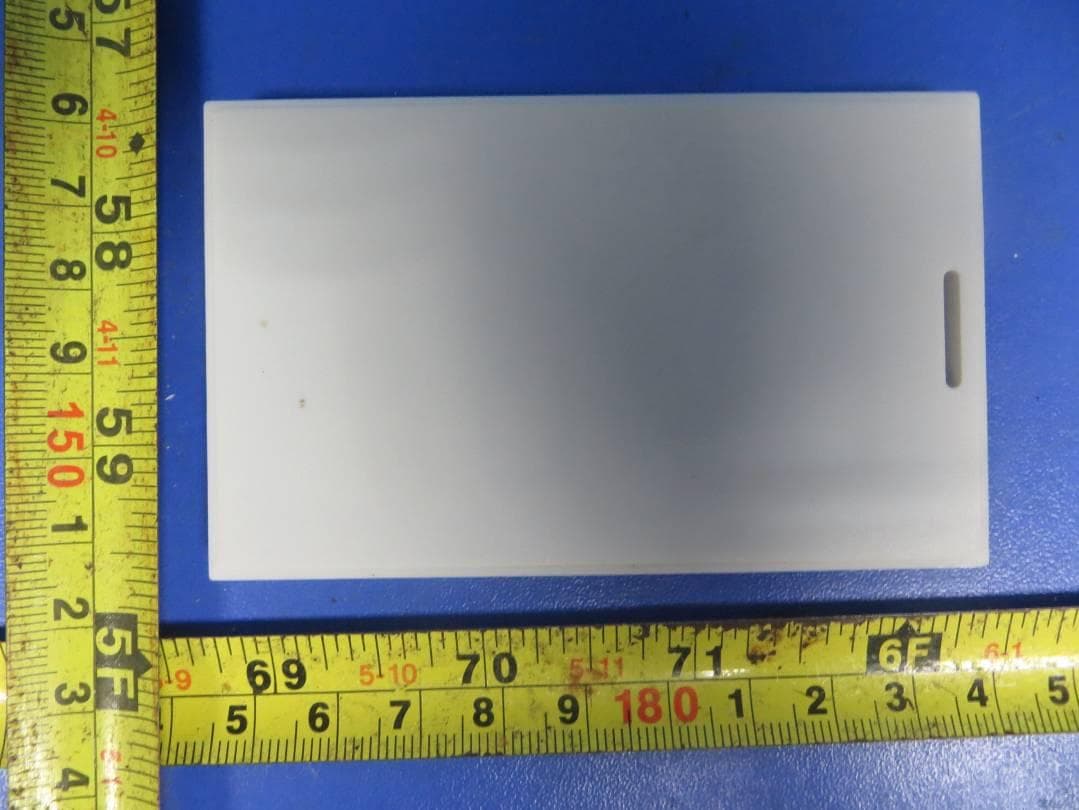

1. Electrical Features Quiescent Current：less than 3mA Working current: less than 15mA Battery life: less than 4.5 years (service life: 20 years) Working frequency: 3 times/seconds 2. Air Link Specifications Modulation：GFSK Baud Rate: two-way 1024Kbit/s Working frequency: 2401~2480 MHZ Output Power: less than or equal to 0dbm Communication distance: less than 80 meters Bit-error rate: 10-9 3. Pysical characteristics Housing Material: PC-ABS Outlook: 86×54×4mm Weight: 25 g Color: ivory by default Protection grade: IP34 Installation: hanging or paste to surfaces 4. Working Environment 1) Working temperature：-20°C ～ +60°C（ML-T80 ）；-40°C ～ +80°C（ML-T801 ） 2) Working Humidity: less than 85% 3) Storage Temperature：-40°C ～ +80°C 4) Vibration：10～2000Hz，15g for three axis 5) Free Fall: 1000mm to concrete ground, twice 6)Anti-electromagnetic interference: 10V/m 0.1～1000MHz AM 5. Product Features Anti-collision： Advanced anti-collision technology, be able to identify more than 100 per second at the same time. High-spped: The highest recognition rate can reach 200 km/h Security: Encryption algorithm and certification to ensure data security, to prevent cracking with the data link eavesdropping Directivity: capable of identification of directional and omnidirectional directional and omnidirectional High reliability：Anti-collision in -40°C-85°C Cost：all made of 0.18 uM chip, a lower cost Transmission：Low frequency and high frequency are open microwave frequencies around the world, do not need to apply for and pay High Noise Resistance：no special requirements to the field of various interference sources 6. Working Principles Active identification card continuously sends out a radio signal actively(three times in one second, the sending power can be modified according to user requirements), and the ability to pass long distances, the wireless signal is encoded, each identification card code is exclusive. If id card issued by the wireless signal is in the effective measurement range, card reader, the antenna of the radio signal through the card reader will received and decoded by readers, then the reader sends the information to the management system or other monitoring and control system through the TTL232 / RS232 / RS485 / CAN bus/Ethernet/Wiegand - / Wiegand 26-34 / USB/GPRS. 7. Precautions for use 1) Keep the surface of the label dry. 2) Stay away from places of many metals. 3) Keep it away from closed space. 4) Stay away from placed near corrosive goods. 5) Please use under normal working humidity. 6) Inspection shall not be arbitrarily change the parameters of the product components, specifications, models. 7) Tags can get wet in the rain, but don't soak it in water. 8. Application Fields The factory staff swipe cards automatically. Access management. Long-distance identification system Automatic identification of personnel management system Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Block Diagram

Battery 16MHz

Cover Letter(s)

SuZhou MuLan Ele&Tec Co.,Ltd Address: No. 625, ChuangYe Building, Binhe Road, Suzhou, Jiangshu Province, China Tel: 0512-87655880 2014-05-13 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2ACDVML801 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : wang xue mei / GM Assistant Contact information / address : No. 625, ChuangYe Building, Binhe Road, Suzhou, Jiangshu Province, China Tel: 0512-87655880

External Photos

Operational Description

Operation of Description The RFID Reader is worked in 2.4GHz ISM band. The chip U1 NRF24L01 works with a 16MHz crystal transmits wireless signal. It is operating in 2401M-2480MHz with 80 channels. Modulation Type: GFSK (1Mbps). The antenna’s is on the PCB board and its gain is 0dBi. MSP430F2001 works with is the main chip. It controls the product transmit signal. This product is power by a DC 3V by battery.

Schematics

ABCD DCBA Title Number Revision Size A4 Date: 14-May-2014 Sheet of File: E:\SCH PCB DianLuTu\Now Folder\2013\ML-T804 IC 0402 V1.0\ML-T804-0402 V1.0.ddb Drawn By: CE 1 CSN 2 SCK 3 MOSI 4 MISO 5 IRQ 6 VDD 7 VSS 8 XC2 9 XC1 10 VDD_PA 11 ANT1 12 ANT2 13 VSS 14 VDD 15 IREF 16 VSS 17 VDD 18 DVDD 19 VSS 20 U1 NRF24L01 C81nF C4 4.7pF C910nF C51.5pF C7 33nF C61.0pF C32.2nF C212pF C1 12pF R222K R1 1M L22.7nHL33.9nH L18.2nH +3.6V +3.6V CECSNSCKMOSIMISO +3.6V 12 BT1+3.6 1 1 GND 2 3 3 GND 4 X116M 12 ANTA VCC 1 P1.0/TACLK/ACLK/A0+ 2 P1.1/TA0/A0-/A4+ 3 P1.2/TA1/A1+/A4- 4 P1.3/VREF/A1- 5 P1.4/SMCLK/A2+/TCK 6 P1.5/TA0/A2-/TMS 7 P1.6/TA1/A3+/SDO/SCL//TDI/TCLK 8 P1.7/A3-/SDI/SDA/TDO/TDI 9 RST/NMI/SBWTDIO 10 TEST/SBWTCK 11 XOUT/P2.7 12 XIN/P2.6/TA1 13 GND 14 U2 2001 1 2 3 4 J7CON4 +3.6V +3.6V MISOMOSI SCKCSNCE R3 100K IRQ IRQ R430K R5100K MSP430F2001

Test Report

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML801 Report No.: LCS1405060202E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 24 FCC TEST REPORT FOR SuZhou MuLan Ele&Tec Co.,Ltd RFID Tag Model No.: ML-T80 Prepared for : SuZhou MuLan Ele&Tec Co.,Ltd Address : No. 625, ChuangYe Building, Binhe Road, Suzhou, Jiangshu Province, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong , China Date of receipt of test sample : May 06, 2014 Number of tested samples : 1 Serial number : Prototype Date of Test : May 06, 2014 - May 13, 2014 Date of Report : May 13, 2014 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML801 Report No.: LCS1405060202E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 24 FCC TEST REPORT FCC CFR 47 PART 15 C(15.249): 2013 Report Reference No. ............... : LCS1405060202E Date of Issue ................................. : May 13, 2014 Testing Laboratory Name .......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : SuZhou MuLan Ele&Tec Co.,Ltd Address ......................................... : No. 625, ChuangYe Building, Binhe Road, Suzhou, Jiangshu Province, China Test Specification Standard ........................................ : FCC CFR 47 PART 15 C(15.249): 2013 / RSS-210 Issue 8 / RSS-Gen Issue 3 Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................ : RFID Tag Trade Mark ................................... : Model/ Type reference.................. : ML-T80 Ratings .......................................... : DC 3.0V, 20mA Result ......................................... : Positive Compiled by: Supervised by: Approved by: Jacky Li/ File administrators Danny Huang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML801 Report No.: LCS1405060202E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 24 FCC -- TEST REPORT Type / Model........................... : ML-T80 EUT......................................... : RFID Tag Applicant............................... : SuZhou MuLan Ele&Tec Co.,Ltd Address.................................. : No. 625, ChuangYe Building, Binhe Road, Suzhou, Jiangshu Province, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : SuZhou MuLan Ele&Tec Co.,Ltd Address................................... : No. 625, ChuangYe Building, Binhe Road, Suzhou, Jiangsh u Province, China Telephone............................... : / Fax.......................................... : / Factory................................... : SuZhou MuLan Ele&Tec Co.,Ltd Address................................... : No. 625, ChuangYe Building, Binhe Road, Suzhou, Jiangshu Province, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1405060202E May 13, 2014 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACDVML801 Report No.: LCS1405060202E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 24 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Host System Configuration List and Details ..................................................................................... 5 1.3. External I/O ....................................................................................................................................... 5 1.4. Description of Test Facility ............................................................................................................... 6 1.5. Statement of the measurement uncertainty ........................................................................................ 6 1.6. Measurement Uncertainty ................................................................................................................. 6 1.7. Description Of Test Modes ............................................................................................................... 7 2. TEST METHODOLOGY .......................................................................…
