2ACEG-PR102-3198ARC-2.0

User manual Using the Wrist band The Arc‐2.0 is easy‐to‐use and simple to navigate. The Arc‐2.0 works with ACT2FIT, the app designed to help you track your fitness goals. Simply sync your wrist band data with the fitness app daily so you can review your STEPS, DISTANCE ,CALORIES , EXERCISE TIMER, TA R G E T GOAL, SLEEP MONITORING and monitor your activity for both day and night. PLEASE NOTE : the wrist band will automatically RESET at MIDNIGHT. At that time, the PREVIOUS DAY'S data will automatically be saved. The Arc‐2.0 stores up to 30 days of activity so you can SYNC the wrist band & app at your convenience. Setting the wrist band Before you can set up your wrist band or transfer data from your wrist band to the fitness app, you need to install the FREE ACT2FIT App on your Bluetooth Smart Ready device. Search for the ACT2FIT App in iTunes. To provide you with the most accurate information, please set up all information requested in the App. Incorrect or missing information might result in inaccurate workout / activity recordings. Once all information is entered in the app, SYNC the data to your ARC‐2.0 ‐ SIMPLE! Understanding the Data EESTIMATED CALORIES BURNED NOTE : The ESTIMATED CALORIES BURNED are based on an advanced 24‐hour calories burn formula : BASAL Metabolic Rate (BMR) : This is the estimated amount of energy burned daily while you are at rest. Even as you sleep, your body burns energy (expressed in the form of calories). Therefore, when you wake up in the morning, the watch will already display a certain number of burned calories based on the BMR. Yo u DO NOT have to wear the watch for the BMR to record, the BMR is based on a formula, not movement. EXERCISE : When you are wearing the wrist band, your steps + distance + calories + Exercise time will automatically record (based on your motion). Like all exercise routines, the more you walk, the more calories you burn. Yo u DO have to wear the wrist band for the STEPS, DISTANCE & EXERCISE TIME to record; these are all based on movement. For BEST RESULTS, the wrist band should be worn 24/7. Ta r g e t GOAL METER During your information set‐up (on the app), you will select a daily goal based on calories, steps OR distance. To help you track your daily goal, the % of the goal you have achieved in GOAL mode. WEAR the ARC‐2.0 24/7 MONITOR daily activity on your watch & app : estimated calories burned, steps, distance and exercise (activity) time SYNC the wrist band data to the fitness app TRACK your goals and progress Battery Conservation Mode To conserve the battery, the display will become inactive after 5 seconds and enter into POWER SAVE MODE. To activate the screen, simply double‐tap the case or press any button to 'WAKE UP" the wrist band. Low Battery Warning Signs of failing / dying batteries are: ‐ “LOW BATT.” appears in the display when you press the switch or double tap the Arc‐2.0 Yo u r activity will continue to record on your watch for a limited time, so it is imperative that you have the battery charged to avoid losing your stored activity data. Charging the wrist band: ‐ A trick indicates that the battery is fully charged. THIS WRIST BAND IS NOT WATERPROOF ! IPX4 NOTE : Environments with steam or extremely high humidity levels could cause water damage. CAUTION : This WRIST BAND is only water resistant to a STATIC pressure of IPX4 and water damage will occur if you accidentally press a button under water. Ple ase take extreme caution if you decide to wear the wrist band during water‐based activities or while bathing. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners. iPhone, iPod touch, iPad mini, Mac, iTunes and App Store are trademarks of Apple Inc., registered in the US & other countries. Warnings & Cautions WARNING : Before starting any exercise program, we strongly suggest that you visit your doctor for a complete physical and to discuss your exercise plans. PLEASE READ all information in this instruction manual before using this unit. This is NOT A MEDICAL DEVICE! NOTICE TO PEOPLE WEARING PA C E M A K E RS : While Bluetooth is a passive system and should have no direct effect on a pacemaker, we strongly recommend anyone fitted with such a device contact their physician or cardiologist before using this product or starting an exercise program. Please keep in mind; your wrist band is a sensitive technical instrument. With proper care and maintenance, it will last for many years. However, improper care and handling can cause the various sensors to be damaged and will harm the functioning capabilities. NEVER push the buttons under water, when the watch is wet or when you are cleaning or rinsing the unit. Yo u are actually pushing water inside the wrist band. THE WRIST BAND IS NOT WATERPROOF. DO NOT use the wrist band in a hot tub or extremely hot shower / bath. High temperatures and steam can damage the rubber seals. DO NOT expose the wrist band to sudden changes of temperature by going from a hot tub to cold water. This can make the rubber seals contract and allow water to penetrate. DO NOT wear the wrist band in soapy dishwater or bubble baths. The alkali contained in soaps can damage the rubber seals. DO NOT use cleaning solvents to clean your wrist band. Solvents WILL damage the integrity of the plastic. The wrist band can be wiped clean with a lightly moistened cloth. ALWAYS rinse the wrist band with clear tap water after exposure to salt water. Salt is highly corrosive and can damage both the rubber seals and the wrist band case. PROTECT the wrist band from extreme heat, shocks and excessive exposure to direct sunlight. NEVER expose the wrist band to strong chemicals such as gasoline, cleaning solvents, acetone, alcohol, insect repellent, sunscreen and other toiletries, as they may damage the unit. KEEP the unit out of the reach of children and pets. The unit…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 4.0 Organix Concept Ltd. July 11, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Organix Concept Ltd. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product Description: ARC-2.0 Model name: PR102，3198 FCC ID: 2ACEG-PR102-3198 Sincerely, Client’s signature Client’s name / title: Albert Ng / Manager Contact information / address: Unit B, 10/F, Hyde Centre, 223 Gloucester Road, Wanchi, Hong Kong, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Organix Concept Ltd. July 11, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACEG-PR102-3198 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title: Albert Ng / Manager Contact information / address: Unit B, 10/F, Hyde Centre, 223 Gloucester Road, Wanchi, Hong Kong, China

Organix Concept Ltd. July 11, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC ID: 2ACEG-PR102-3198 To Whom It May Concern: This letter is to ascertain that Organix Concept Ltd. （Product： ARC-2.0 Model name: PR102, 3198） has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature: Client’s name / title: Albert Ng /Manager Contact information / address: Unit B, 10/F, Hyde Centre, 223 Gloucester Road, Wanchi, Hong Kong, China

FCC Certification label Sample Organix Concept Ltd. ARC-2.0 Model No.: PR102, 3198 FCC ID: 2ACEG-PR102-3198

FCC Certification Label Location Sample Label location

Antenna

FCC ID : 2ACEG-PR102-3198 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. GFSK Mode Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2402 -4.11 0.388 0.121 3.0 2440 -6.97 0.201 0.063 3.0 2480 -6.36 0.231 0.073 3.0 Threshold at which no SAR required is ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION N/A

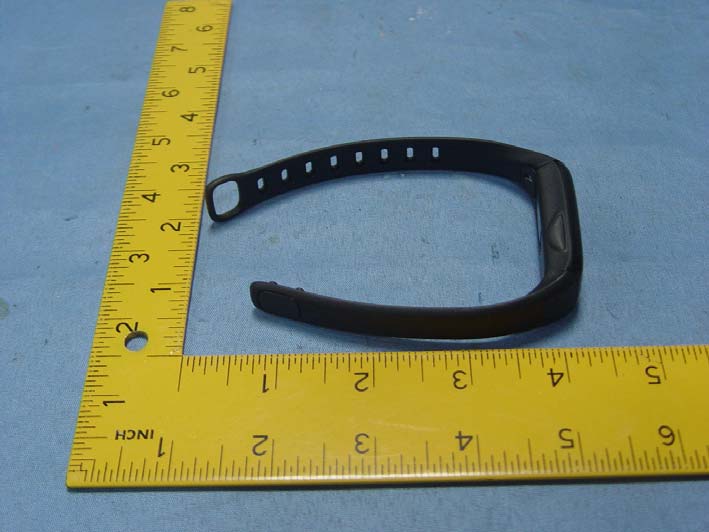

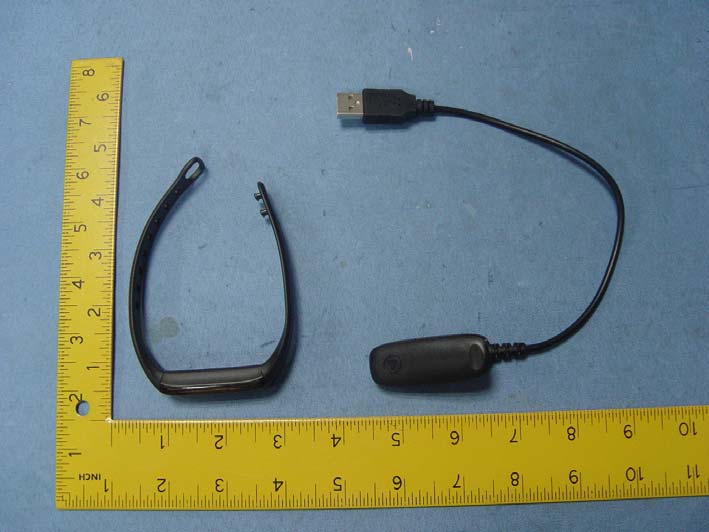

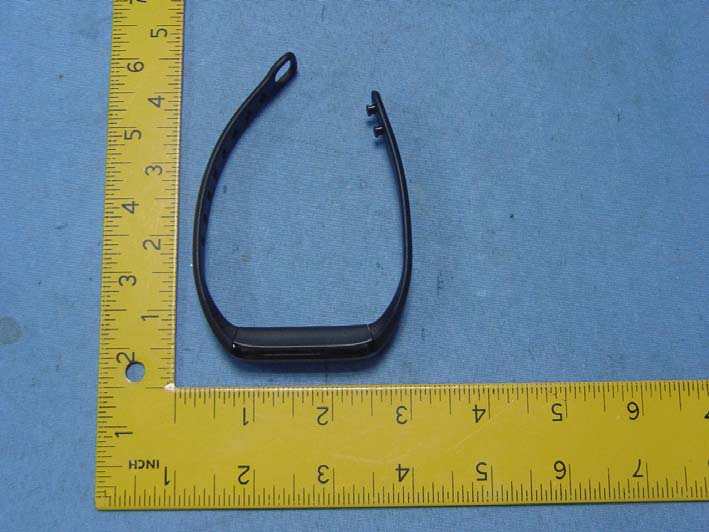

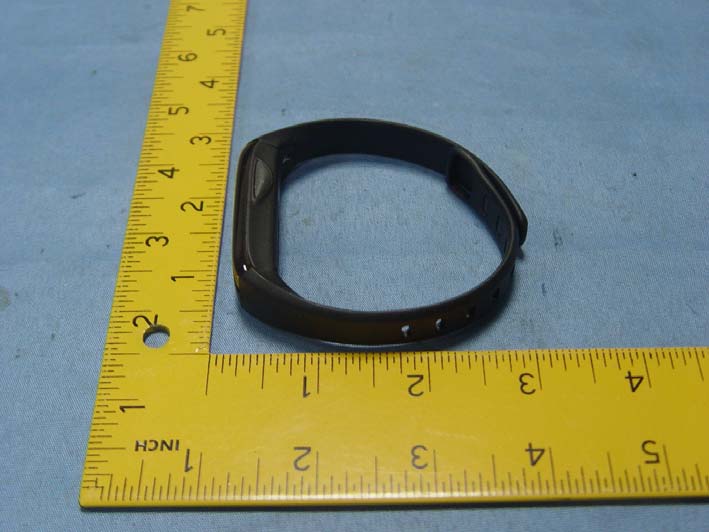

Report No.: ATE20141188 Page 1 of 52 FCC ID: 2ACEG-PR102-3198 ACCURATE TECHNOLOGY CO., LTD Report No.ATE20141188 APPLICATION CERTIFICATION FCC Part 15C On Behalf of Organix Concept Ltd. ARC-2.0 Model No.: PR102, 3198 FCC ID: 2ACEG-PR102-3198 Prepared for : Organix Concept Ltd. Address : Unit B, 10/F, Hyde Centre, 223 Gloucester Road, Wanchi, Hong Kong, China Prepared by : ACCURATE TECHNOLOGY CO., LTD Address : F1, Bldg. A, Chan Yuan New Material Port, Keyuan Rd. Science & Industry Park, Nan Shan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE20141188 Date of Test : July 4-9, 2014 Date of Report : July 11, 2014 Report No.: ATE20141188 Page 2 of 52 FCC ID: 2ACEG-PR102-3198 ACCURATE TECHNOLOGY CO., LTD Report No.ATE20141188 TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 5 1.1. Description of Device (EUT)....................................................................................................................5 1.2. Carrier Frequency of Channels .................................................................................................................6 1.3. Special Accessory and Auxiliary Equipment ...........................................................................................6 1.4. Description of Test Facility ......................................................................................................................7 1.5. Measurement Uncertainty.........................................................................................................................7 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 8 3. OPERATION OF EUT DURING TESTING ................................................................................. 9 3.1. Operating Mode ........................................................................................................................................9 3.2. Configuration and peripherals ..................................................................................................................9 4. TEST PROCEDURES AND RESULTS ....................................................................................... 10 5. 6DB BANDWIDTH MEASUREMENT ........................................................................................ 11 5.1. Block Diagram of Test Setup..................................................................................................................11 5.2. The Requirement For Section 15.247(a)(2) ............................................................................................11 5.3. EUT Configuration on Measurement .....................................................................................................11 5.4. Operating Condition of EUT ..................................................................................................................11 5.5. Test Procedure ........................................................................................................................................12 5.6. Test Result ..............................................................................................................................................12 6. MAXIMUM PEAK OUTPUT POWER ....................................................................................... 14 6.1. Block Diagram of Test Setup..................................................................................................................14 6.2. The Requirement For Section 15.247(b)(3)............................................................................................14 6.3. EUT Configuration on Measurement .....................................................................................................14 6.4. Operating Condition of EUT ..................................................................................................................14 6.5. Test Procedure ........................................................................................................................................15 6.6. Test Result ..............................................................................................................................................15 7. POWER SPECTRAL DENSITY MEASUREMENT.................................................................. 17 7.1. Block Diagram of Test Setup..................................................................................................................17 7.2. The Requirement For Section 15.247(e).................................................................................................17 7.3. EUT Configuration on Measurement .....................................................................................................17 7.4. Operating Condition of EUT ..................................................................................................................17 7.5. Test Procedure ........................................................................................................................................18 7.6. Test Result ..............................................................................................................................................19 8. BAND EDGE COMPLIANCE TEST ........................................................................................... 21 8.1. Block Diagram of Test Setup..................................................................................................................21 8.2. The Requirement For Section 15.247(d) ................................................................................................21 8.3. EUT Configuration on Measurement .....................................................................................................21 8.4. Operatin…

Text truncated - open the document above for the full version.

Conducted Emission test Radiated emissions test 30MHz - 1GHz Radiated emissions test > 1GHz
