2ACEK-W850-1Tablet PC

Regulatory Compliance Information – W850 FCC Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government, Industry Canada, and other national regulatory agencies. The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. While there may be differences between the SAR levels of various devices and at various positions, they all meet the government requirement. Equipment Authorization has been granted to this model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching the FCC ID:2ACEK-W850-1 For questions related to the EMC performance of this product, contact: [Key Contact]: Patty Hu [ODM Name]: South Holdings Industrial Limited [ODM Address]: Building 1,Hao'er JiaShiTai Industrial Park,FengTang Road,FuYong Town,Bao'an District,ShenZhen,518103,China CE mark. Declaring compliance to all the applicable European Union (EU) directives. For CE mark related questions: [Key Contact]: Patty Hu [ODM Name]: South Holdings Industrial Limited [ODM Address]: Building 1,Hao'er JiaShiTai Industrial Park,FengTang Road,FuYong Town,Bao'an District,ShenZhen,518103,China French SAR/DAS Votre ordinateur tablette a un DAS:1.6W/kg. Pour plus d'informations, voir le portail radiofréquences-sante-environnement: www.radiofrequences.gouv.fr In the European Union, this symbol indicates that this product including battery must not be disposed of with household waste. It is your responsibility to hand it over to a designated collection point for the recycling of waste electrical and electronic equipment. For more information, please contact your local waste collection center or the point of purchase of this product. Any special accessories needed for compliance must be specified in the instruction manual. Warning：Use only shielded cables to connect I/O devices to this equipment. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Intel Tablet PC for Windows8.1 Quick Start Guide Introduction Thank you for your choosing the new Tablet PC. This guide serves to enable users to get to know and familiar with our product as soon as possible. Here we have made a brief introduction to the key layout and definitions in figures and words. Attentions: This manual includes important safety instructions and the information on how to use correctly, for avoid the accidents happening, so ensure you should read the manual before using the product. ● Please don’t put the product on the places with high temperature, humidity or more dust. ● Please don’t put the product on the places with high temperature, especially not put the products in a car with close windows in summer. ● Not fall off or knock this product strongly, not let IPS panel be shocked, otherwise it may cause IPS panel broken or display abnormal. ● Please choose the right sound volume, not too big when use earphone, if feel tinnitus, please turn down the volume or stop using. ● Please do the charge when meet below situaƟons: A. When the icon of battery capacity display no electricity. B. System power off automatically, the unit will be power off fast after powering on again. C. No response when press the power button. ● Please not open the link suddenly when the player is doing format or the unit is uploading or downloading, otherwise it will cause the procedure error. ● For the products broken, repair or other reasons caused the memory informaƟon lost, our company will be not responsible for this, please follow the manual to do operations. ● Please not tear down the unit, not use the alcohol, diluents or benzene to clear the products. ● Not use this unit in the forbidden area(such as airplane). ● Not use this unit when driving or walking, otherwise it will cause the accidents. ※ Our company will keep the right with products’ improving, specifications and designs, and not do the notice. 1. Cosmetic and button instruction Number introduction as below: 1. Power button  Starting up with short press, or enter standby status, or wake up from standby.  Keeping press 4s to enter shut down interface, and keep pressing 10s to compel the unit shut down. 2. Volume button  volume up and down 3. Rear Camera  Rear camera can take a picture and video 4. Internal MIC  Using for video meeting, sound control and record. 5. Dual using jack with 3.5mm earphone and MIC  Can output the sound signals of computer to external speaker or earphone; also can link the external MIC. 6. Micro SD slot  Can support the card with Micro SD and Micro SD HC 7. HDMI  HDMI can exchange to external High‐definition LCD 8. Micro USB  Can connect the devices with USB keyboard, mouse and U disk... 9. Front camera  Take a picture or video for front 10. Touch panel  Can operate the unit by touching 11. Windows logo  Can back to original desktop 12. SIM slot  For inserting SIM card 13. Stereo speaker port  For output the external voice 2. Introduction to Desktop 1. Windows 8.1 start image: On the start screen, you can see many programs fixed in the image. These application programs are displayed in the form of “magnet”. As long as you click them, you can easily visit them. You need to log on your Microsoft account before the application program completely runs. 3. Image slide applications Slide to right Slide to left Slide to the right from the left side Slide to the left from the right side of the of the screen to start the application screen to start Charm menu column. program in running. Reduce Enlarge On the touch screen, narrow two fingers On the touch screen, widen two fingers to reduce the image. to enlarge the image. Slide downward Slide with finger In start screen, slide from the top of the screen In start screen, slide finger right and left to view all application programs to move the image. Slide upward In the start screen, slide upward from the bottom of the screen to visit all application program (APPS) interfaces. 4． Introduction to app Interface Besides the application programs already fixed on the start screen, you can also start other application programs in all application programs, such as other software application programs attached to the Tablet PC. If you want to fix more application programs on the start interface, see the operation in the figure below, (1) lightly touch, press and hold the application program magnet for about one second and then let go, and select (2) to fix to the start screen. Conversely, if you want to cancel or delete a certain application in the start screen, (1) lightly touch, press and hold the application program magnet for about one second and then let it go and run, and select (2) attribute column to cancel the programs such as fixation and deletion and then it can be completed. 5． Charm menu column Slide it to the left from the right side of the screen to start Charm menu column, including: Start, Device, Setup, Share, and Search Program. Slide it to the left from the right side of the screen to start Charm menu column, including: Start, Device, Setup, Share, and Search Program. Can let you search the files and application programs in the Tablet PC. Can let you share the program through social exchange website or e‐mail. Can return to the start screen. From the start screen, you can also use this function to return the application program that is opened in the latest. Can let you read, write and share files, connect external screen or printer with the device connected to the Tablet PC. Can let you set up the Table PC. Search menu Share menu Device Menu Set up Menu 6． Dual‐Screen Application On my computer in (Figure 1), slide it inward from the left side of the screen, drag it and hold. Let go when seeing double interfaces appear. In (Figure 2), press the partition button on the middle partition line and drag right and left to partition the display proportion of the double screens. (Figure 1) (Figure 2) 7. Basic Operations 7.1. Dormancy, restart and …

Text truncated - open the document above for the full version.

:2ACEK-W850-1

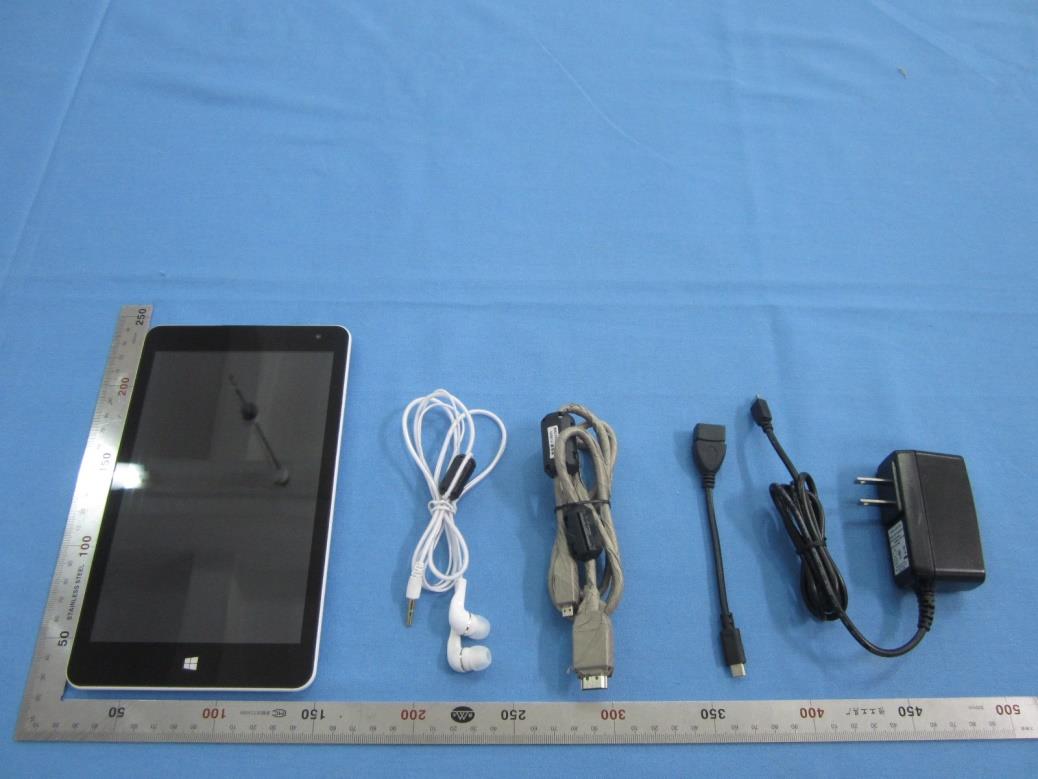

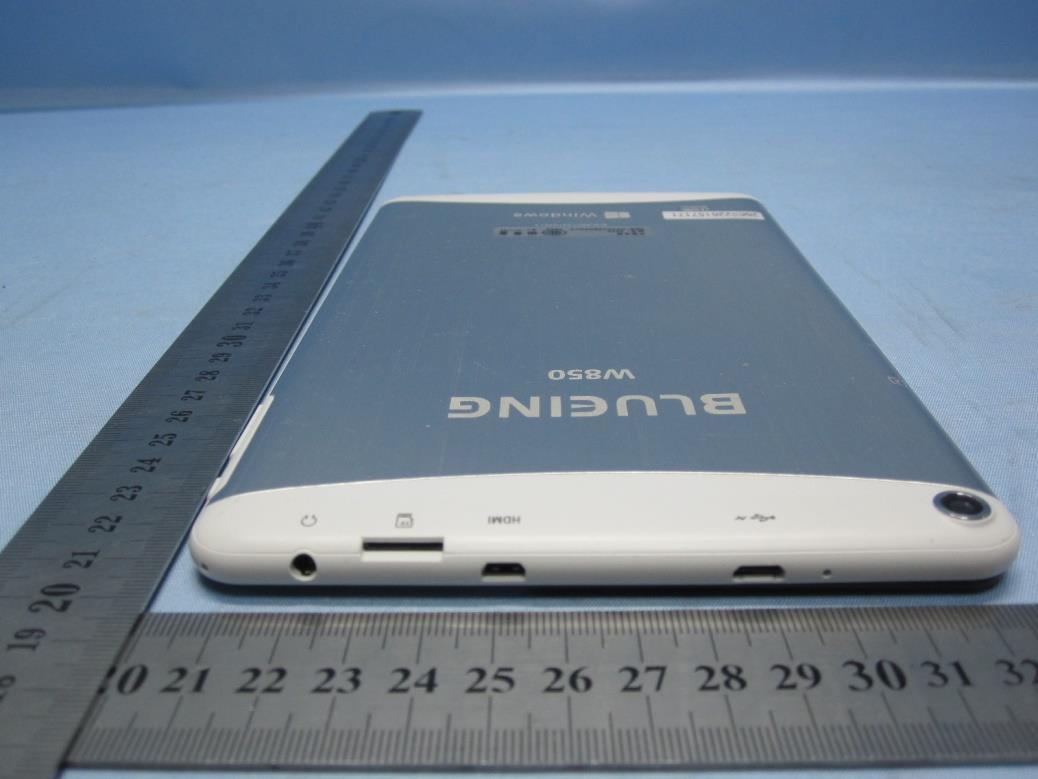

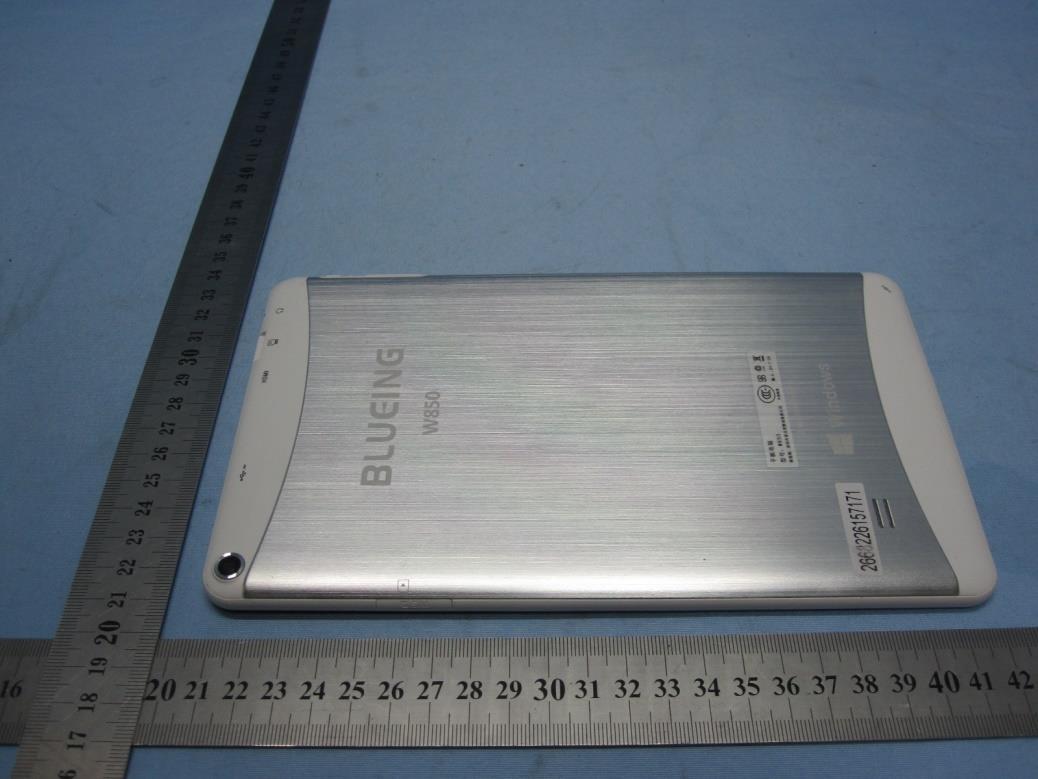

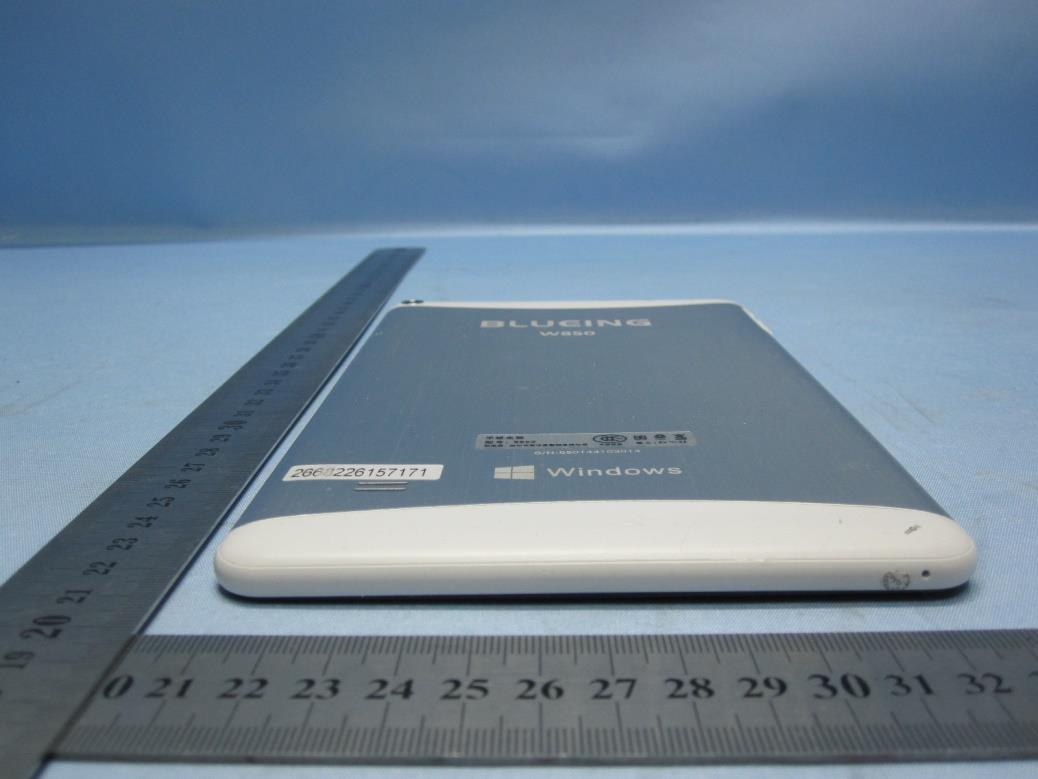

Worldwide Testing and Certification EUT photo -details- Figure 1 EUT External Photo Figure 2 EUT External Photo Worldwide Testing and Certification Figure 3 EUT External Photo Figure 4 EUT External Photo Worldwide Testing and Certification Figure 5 EUT External Photo Figure 6 EUT External Photo Worldwide Testing and Certification Figure 7 EUT External Photo

Worldwide Testing and Certification EUT photo -details- Figure 1 EUT Internal Photo Figure 2 EUT Internal Photo Worldwide Testing and Certification Figure 3 EUT Internal Photo Figure 4 EUT Internal Photo Worldwide Testing and Certification Figure 5 EUT Internal Photo Figure 6 EUT Internal Photo Worldwide Testing and Certification Figure 7 EUT Internal Photo Figure 8 EUT Internal Photo Worldwide Testing and Certification Figure 9 EUT Internal Photo Figure 10 EUT Internal Photo Worldwide Testing and Certification Figure 11 EUT Internal Photo Figure 12 EUT Internal Photo Worldwide Testing and Certification Figure 13 EUT Internal Photo Figure 14 EUT Internal Photo

Tune Up Procedure During manufacturing each device is individually calibrated. Measurement is performed in a fully calibrated setup using an Agilent 8960 base station simulator (system tester). Measurement procedure is outlined below: Measurement Procedure: 1. Set the device to operational voltage and on a predefined channel in a special test mode. 2. The actual output power is measured at several power levels. 3. The gain factors of each individual device are adjusted until the target value is met. The appropriate gain control settings for each output power level are stored in each device individually (for each power level). The user has no possibility to change these settings later on. 4. The maximum gains of each individual device are adjusted and measured until the target value is met. The production target power with tolerance compiles with the maximum power in test report. Maximum Target Power for Production Unit Mode WIFI 802.11b 14.5±1 dBm 802.11g 11.0±1 dBm 802.11n(H20) 10.5±1 dBm 802.11n(H40) 10.5±1 dBm Power unit: dBm Then these appropriate gain settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated in this range. The measurement is done in a fully calibrated setup, which is based on the base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCIS14120106001 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configura tion other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) t ested and such sample(s) are retained for 90 days only. 1 Cover Page FCC SAR REPORT Applicant: South Holdings Industrial Limited Address of Applicant: Building 1, Hao'er JiaShiTai Industrial Park, FengTang Road, Tangwei, FuYong Town, Bao'an District, ShenZhen, 518103, China Equipment Under Test (EUT) Product Name: Tablet PC Model No.: W850 FCC ID: 2ACEK -W850 Applicable standards: FCC 47 CFR Part 2.1093 Date of Test: 26 Dec., 2014 ~ 26 Dec., 2014 Test Result: Maximum Reported 1-g SAR (W/kg) Body: 0.107 2ACEK-W850-1 Report No: CCIS14120106001 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS141201060RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 88 2 Version Version No. Date Description 00 04 Jan., 2015 Original Prepared by: Date: 04 Jan., 2015 Report Clerk Reviewed by: Date: 04 Jan., 2015 Project Engineer Report No: CCIS14120106001 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS141201060RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 88 3 Contents 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 GENERAL INFORMATION .................................................................................................................................. 5 4.1 CLIENT INFORMATION ..................................................................................................................................................................... 5 4.2 GENERAL DESCRIPTION OF EUT ................................................................................................................................................... 5 4.3 MAXIMUM RF OUTPUT POWER ...................................................................................................................................................... 6 4.4 ENVIRONMENT OF TEST SITE ......................................................................................................................................................... 6 4.5 TEST LOCATION ............................................................................................................................................................................. 6 5 INTRODUCTION ................................................................................................................................................... 7 5.1 INTRODUCTION ............................................................................................................................................................................... 7 5.2 SAR DEFINITION ............................................................................................................................................................................ 7 6 RF EXPOSURE LIMITS ....................................................................................................................................... 8 6.1 UNCONTROLLED ENVIRONMENT ..................................................................................................................................................... 8 6.2 CONTROLLED ENVIRONMENT ......................................................................................................................................................... 8 6.3 RF EXPOSURE LIMITS .................................................................................................................................................................... 8 7 SAR MEASUREMENT SYSTEM ......................................................................................................................... 9 7.1 E-FIELD PROBE............................................................................................................................................................................ 10 7.2 DATA ACQUISITION ELECTRONICS (DAE) .................................................................................................................................... 10 7.3 ROBOT ......................................................................................................................................................................................... 11 7.4 MEASUREMENT SERVER ...........................…

Text truncated - open the document above for the full version.

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2402 MHz 3.25dBm（2.11mW） output power] (2.11mW /5mm) ·[√2.402(GHz)]=0.7 <3 for 1-g SAR Then SAR evaluation is not required

South Holdings Industrial Ltd. Page 1 of 82 FCC ID:2ACEK-W850-1 Reference No.: 274749 FCC Test Report FCC EVALUATION REPORT FOR CERTIFICATION Project Reference No. 274749 Product Tablet PC Brand Name XTRATECH Model W850 Alternate Model N/A Tested according to FCC Rules and Regulations Part 15 Subpart C 2013, 15.247 ANSI C63.4-2009 Tested in period 2014-12-25 to 2014-12-30 Issued date 2014-12-31 Name and address of the Test House Nemko Shanghai Ltd Shenzhen Branch Unit CD, Floor 10, Tower 2, Kefa Road 8#, Hi-Technology Park, Nanshan District, Shenzhen, China Phone : +86 755 8221 0420 Fax : +86 755 8221 3363 Tested by 2014-12-31 Zone Peng date Verified by 2014-12-31 Daria Liu date This form is only for use by Nemko, or by others according to special agreement with Nemko. The report may be reproduced infull. Partial reproduction may only be made with the written content of Nemko Shanghai. This report applies only to the sample(s) tested. It is the manufacturer’s responsibility to assure the additional production units of this product are manufactured with identical electrical and mechanical components. South Holdings Industrial Ltd. Page 2 of 82 FCC ID:2ACEK-W850-1 Reference No.: 274749 Contents of This Report 1. Client Information ............................................................................................................................... 5 1.1 Applicant .................................................................................................................................... 5 1.2 Manufacturer .............................................................................................................................. 5 1.3 Scope ......................................................................................................................................... 5 2. Equipment under Test (EUT) .............................................................................................................. 6 2.1 Identification of EUT .................................................................................................................. 6 2.2 Detail spec: ................................................................................................................................ 6 2.3 Additional Information Related to Testing .................................................................................. 6 3. General Test Conditions ...................................................................................................................... 7 3.1 Location ..................................................................................................................................... 7 3.2 Operating Environment .............................................................................................................. 7 3.3 Operating During Test ................................................................................................................ 7 3.4 Test Equipment .......................................................................................................................... 7 4. Measurement Uncertainty ................................................................................................................... 8 5. Conducted Emission (150 KHz to 30 MHz) ................................................................................... 9 5.1 Test Procedure ........................................................................................................................... 9 5.2 Measurement Equipment ........................................................................................................... 9 5.3 Test Result ................................................................................................................................. 9 5.3.1 Diagram 5-1 ................................................................................................................................. 10 5.3.2 Diagram 5-2 ................................................................................................................................. 10 6. Radiated Electromagnetic Disturbances ........................................................................................... 11 6.1 Test Procedure ......................................................................................................................... 11 6.2 Measurement Equipment ......................................................................................................... 11 6.3 Test Result ............................................................................................................................... 12 6.3.1 Diagram 6-1 ................................................................................................................................. 14 6.3.2 Diagram 6-2 ................................................................................................................................. 15 6.3.3 Diagram 6-3 ................................................................................................................................. 16 6.3.4 Diagram 6-4 ................................................................................................................................. 16 6.3.5 Diagram 6-5 ................................................................................................................................. 17 6.3.6 Diagram 6-6 ................................................................................................................................. 18 6.3.7 Diagram 6-7 ................................................................................................................................. 19 6.3.8 Diagram 6-8 ................................................................................................................................. 19 6.3.9 Diagram 6-9 ..................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photographs of EUT 1. Conducted Emission Test Setup Photographs 2. Radiated Emission (Below 1GHz)Test Setup Photographs 3. Radiated Emission (above 1GHz)Test Setup Photographs
