Product Specification and User Manual RFID GEN3 System CONFIDENTIAL Page 1 of 34 Product Specification and User Manual RFID GEN3 System ORIGIN Originator Guy Gingras Date 2022-09-14 Last modified Guy Gingras Date 2022-10-14 RELEASE HISTORY Release Modifications Date Changes made by 1 Initial Release – Based on 1001114151-06 2022-09-14 Guy Gingras 2 Modification to FCC / IC statement 2022-10-14 Guy Gingras Product Specification and User Manual RFID GEN3 System CONFIDENTIAL Page 2 of 34 Contents Contents .......................................................................................................................... 2 Figures ............................................................................................................................ 4 Tables ............................................................................................................................. 5 Manufacturer Information ................................................................................................ 6 FCC Compliance Statement ............................................................................................ 7 FCC SAR Statement ....................................................................................................... 7 ISED Compliance Statement ........................................................................................... 8 ISED SAR Statement ...................................................................................................... 8 IFETEL Statement: .......................................................................................................... 9 Taiwan Statement ........................................................................................................... 9 Applicable Standard and Regulations ........................................................................... 10 References .................................................................................................................... 12 Terminology .................................................................................................................. 13 1 General information ................................................................................................ 14 2 RFID GEN3 System Overview ................................................................................ 15 2.1 RFID Key ........................................................................................................... 17 2.2 RFID DESS Post ............................................................................................... 18 3 RFID GEN3 Functional Specification ...................................................................... 19 3.1 Bidirectional Communication ............................................................................. 19 3.2 Cut-off System ................................................................................................... 19 3.3 Operating and Storage Temperature ................................................................. 20 3.4 RFID Tag Reading Sequence ........................................................................... 20 4 RFID GEN3 Electrical Specification ........................................................................ 22 4.1 Connector .......................................................................................................... 22 5 RF Specifications .................................................................................................... 25 6 Antenna specification .............................................................................................. 25 7 Localization and Installation on Vehicle .................................................................. 26 Product Specification and User Manual RFID GEN3 System CONFIDENTIAL Page 3 of 34 7.1 Metallic Materials. .............................................................................................. 26 7.2 Noise Sources Identifications ............................................................................ 27 8 Diagnostic Tool ....................................................................................................... 28 8.1 CAN Variant ...................................................................................................... 28 8.2 MOWP Variant .................................................................................................. 29 8.3 Performance Criteria ......................................................................................... 33 9 Validation plan ........................................................................................................ 34 10 International RF certification ................................................................................... 34 Product Specification and User Manual RFID GEN3 System CONFIDENTIAL Page 4 of 34 Figures Figure 1: RFID Key and Post System ............................................................................ 15 Figure 2: RFID DESS System Block Diagram ............................................................... 16 Figure 3: RFID DESS Key Composition ........................................................................ 17 Figure 4: RFID GEN3 Post - CAN ................................................................................. 18 Figure 5: RFID GEN3 Post - MOWP ............................................................................. 18 Figure 6: Cut-off System ............................................................................................... 20 Figure 7: UID Reading Sequence. ................................................................................ 21 Figure 8: CAN Variant Connector .................................................................................. 22 Figure 9: MOWP Variant Connector .............................................................................. 22 Figure 10: Example of Vehicle Installation ....…

Text truncated - open the document above for the full version.

KONGSBERG AUTOMOTIVE 90, 28e Rue Shawinigan (Québec) G9T 5K7 T: 819 533-3201 WWW.KONGSBERGAUTOMOTIVE.COM // 1 Nemko North America, Inc. 303 River Road, Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent for FCC application On our behalf, I appoint Spencer Zhong of Nemko Canada, Inc. at 303 River Road, Ottawa, Ontario, Canada K1V 1H2, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Kongsberg Inc., 90 28 th street, Shawinigan, Qc, Canada Dated: september 23, 2022 A gency agreement expiration date: 2023-03-24 *Up to 12 months Signed by: Alain Lafreniere Signature Print name Manager test Laboratory Title (819) 533-3201 ext.:5566 Phone On behalf of: Kongsberg Inc. Company name

KONGSBERG AUTOMOTIVE 90, 28e Rue Shawinigan (Québec) G9T 5K7 T: 819 533-3201 WWW.KONGSBERGAUTOMOTIVE.COM // 1 september 23, 2022 Nemko North America, Inc. 303 River Road, Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Request for Confidentiality – FCC FCC ID: 2ACER-1001317030 Pursuant to FCC 47 CFR 0.457(d)(1)(ii) and 0.459 and FCC guidance published in KDB 726920, we hereby request confidential treatment of information accompanying this application as outlined below: Type of Confidentiality RequestedExhibit ☐ Short Term ☒ Permanent (Long Term) Block Diagrams ☐ Short Term ☒ Permanent (Long Term) Operation Description / Theory of Operation ☐ Short Term ☒ Permanent (Long Term) Parts List & Placement / BOM ☐ Short Term ☐ Permanent (Long Term) 1 Tune-Up Procedure ☐ Short Term ☒ Permanent (Long Term) Schematics ☐ Short Term ☐ Permanent (Long Term) * 2 User’s Manual ☐ Short Term ☐ Permanent (Long Term) * Internal Photos ☐ Short Term --------------------------- External Photos ☐ Short Term --------------------------- Test Setup Photos ------------------ ☐ Permanent (Long Term) SDR Software / Security Info Our company has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. When the device is marketed before the requested number of days listed above, the grantee will inform the TCB to release the Short-Term Confidentiality information withheld on the FCC equipment authorization website. The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Signed by: Alain Lafreniere Signature Print name Manager Test Laboratory Title 1 - Applicable only for licensed equipment. 2 - The asterisked items (*) require further information to be provided to TCB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and review section II, 3) regarding specific information that must accompany these requests.

KONGSBERG AUTOMOTIVE 90, 28e Rue Shawinigan (Québec) G9T 5K7 T: 819 533- 3201 WWW.KONGSBERGAUTOMOTIVE.COM // 1 Nemko North America, Inc. 303 River Road, Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Model difference RFID DESS Post Model 1001317030 As illustrated in Figure 4 and Figure 5, the Post is composed of a plastic cover, an O- ring, a main PCB, a header, a secondary PCB and a plastic housing.The plastic cover, plastic housing and O-ring protect the internals from the external environment. The cover provides a mechanical mating interface for a connector. The CAN variant has a 5-pin connector, the MOWP variant has a 4-pin connector. Those over molded pins are providing the electrical path between the main PCB and the vehicle’s harness connected to the ECU. The secondary PCB is mounted to the main PCB using a 3-pin header. The secondary PCB holds the hall sensor. The main PCB holds the remaining electronics needed for operation: power supply, microcontroller, communication transceiver, contact output circuitry, RFID initiator/reader and antenna. KONGSBERG AUTOMOTIVE ASA DYRMYRGATA 48, P.O. BOX 62, NO- 3601 KONGSBERG, NORWAY T: +47 32 77 05 00 // ORG. NO. 942 593 821 WWW.KONGSBERGAUTOMOTIVE.COM // 2 Model variant for CAN : 1001316154 Model variant for MOWP : 1001316155 Dated: 9/27/2022 Signed: Printed name: Alain Lafreniere Title: Manager Test Laboratory On behalf of: Kongsberg Inc Alain lafreniere

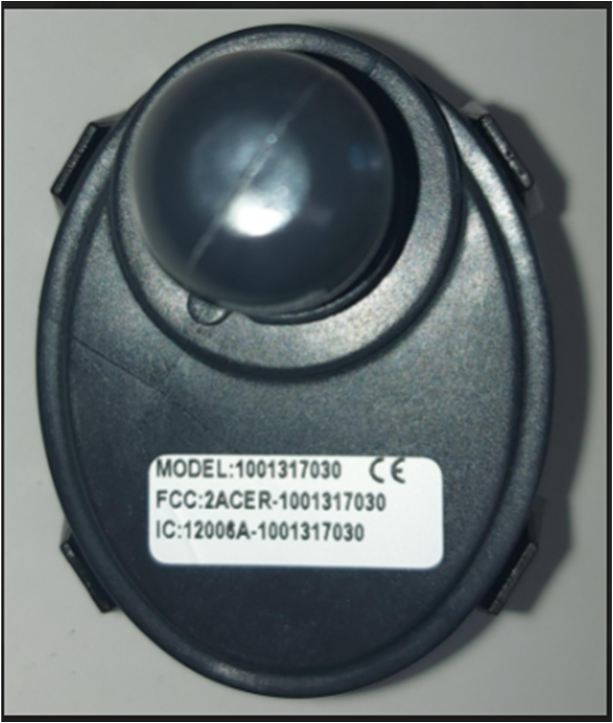

1001317030 RFID GEN3 SystemProduct Pictures Product variants: 1001316154 RFID GEN3 CAN1001316155 RFID GEN3 MOWP CONFIDENTIAL 1001316154 RFID GEN3 CAN - EXTERNAL CONFIDENTIAL Certification Label 5-pin connector Product Label TOP BOTTOM SIDE 1001316154 RFID GEN3 CAN - INTERNALTOP BOTTOM CONFIDENTIAL 1001316155 RFID GEN3 MOWP - EXTERNAL TOP BOTTOM CONFIDENTIAL Product Label 4-pin connector SIDE Certification Label 1001316155 RFID GEN3 MOWP - INTERNALTOP BOTTOM CONFIDENTIAL

1001317030 RFID GEN3 System Product Pictures Product variants: 1001316154 RFID GEN3 CAN 1001316155 RFID GEN3 MOWP CONFIDENTIAL 1001316154 RFID GEN3 CAN -EXTERNAL CONFIDENTIAL Certification Label 5-pin connector Product Label TOP BOTTOM SIDE 1001316154 RFID GEN3 CAN -INTERNAL TOPBOTTOM CONFIDENTIAL 1001316155 RFID GEN3 MOWP -EXTERNAL TOP BOTTOM CONFIDENTIAL Certification Label Product Label 4-pin connector SIDE 1001316155 RFID GEN3 MOWP -INTERNAL TOPBOTTOM CONFIDENTIAL

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The SCC Accreditation Symbol is an official symbol of the Standards Council of Canada, used under licence. SCC File Number: 15064 (Ottawa/Almonte); 151100 (Montreal); 151097 (Cambridge) FCC and RSS-102 Annex C – SAR Exemption; Date: May 2021 C h o o s e S c a n d i n a v i a n t r u s t RADIO TEST REPORT – APFWL Type of assessment: SAR Exemption report Manufacturer: Product Marketing Name (PMN): Kongsberg Automotive Dess Post RFID Gen3 Hardware Version Identification Number (HVIN): HMN: 1001317030 1001316154, 1001316155 FCC ID: ISED certification number: 12006A-1001317030 12006A-1001317030 Specifications:  FCC 47 CFR Part 2 Subpart J, §2.1093  FCC KDB 447498 D01 General RF Exposure Guidance v06  ISED Canada RSS-102 Issue 5 Amendment 1, (February 2021)  Health Canada Safety Code 6 RSS-102 Annex C Attestation: I attest that the radiocommunication apparatus meets the exemption from the routine evaluation limits in these standards; that the Technical Brief was prepared and the information contained therein is correct; that the device evaluation was performed or supervised by me; that applicable measurement methods and evaluation methodologies have been followed; and that the device meets the SAR and/or RF field strength limits of the above standards. Date of issue: October 17, 2022 Andrey Adelberg, Senior EMC/RF Specialist Prepared by Signature Report reference ID: APFWL Page 2 of 6 Lab locations Company name Nemko Canada Inc. Facilities Ottawa site: 303 River Road Ottawa, Ontario Canada K1V 1H2 Tel: +1 613 737 9680 Fax: +1 613 737 9691 Montréal site: 292 Labrosse Avenue Pointe-Claire, Québec Canada H9R 5L8 Tel: +1 514 694 2684 Fax: +1 514 694 3528 Cambridge site: 1-130 Saltsman Drive Cambridge, Ontario Canada N3E 0B2 Tel: +1 519 650 4811 Almonte site: 1500 Peter Robinson Road West Carleton, Ontario Canada K0A 1L0 Tel: +1 613 256-9117 Test site identifier Organization Ottawa/Almonte Montreal Cambridge FCC: CA2040 CA2041 CA0101 ISED: 2040A-4 2040G-5 24676 Website www.nemko.com Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contained in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: APFWL Page 3 of 6 Table of Contents Table of Contents ......................................................................................................................................................................................................... 3 Section 1 Evaluation summary ........................................................................................................................................................................... 4 1.1 SAR exemption for standalone transmission ............................................................................................................................................................ 4 Section 1.1 SAR exemption for standalone transmission Report reference ID: APFWL Page 4 of 6 Section 1 Evaluation summary 1.1 SAR exemption for standalone transmission 1.1.1 References, definitions and limits FCC §2.1093 (2) The SAR limits for general population/uncontrolled exposure are 0.08 W/kg, as averaged over the whole body, and a peak spatial-average SAR of 1.6 W/kg, averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the parts of the human body treated as extremities, such as hands, wrists, feet, ankles, and pinnae, where the peak spatial-average SAR limit is 4 W/kg, averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube). Exposure may be averaged over a time period not to exceed 30 minutes to determine compliance with general population/uncontrolled SAR limits. FCC KDB 447498 D01 4.3.1 Standalone SAR test exclusion considerations The SAR-based exemption formula of §1.1307(b)(3)(i)(B), repeated here, applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold P th (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). P th is given by formula 푃 푡ℎ ( 푚푊 ) = { 퐸푅푃 20 푐푚 ( 푑 20 푐푚 ⁄) 푥 푑≤20 푐푚 퐸푅푃 20 푐푚 20 푐푚<푑 ≤40 푐푚 where 푥=−log 10 ( 60 퐸푅푃 20 푐푚 √ 푓 ) Appendix C SAR Test Exclusion Thresholds for < 100 MHz and < 200 mm Approximate SAR test exclusion power thresholds at selected frequencies and test separation distances are illustrated in the following table. The equation and threshold in 4.3.1 must be applied to determine SAR test exclusion. Section 1.1 SAR exemption for standalone transmission Report reference ID: APFWL Page 5 of 6 References, definitions and limits, continued RSS-102, Section 2.5.1 SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up…

Text truncated - open the document above for the full version.

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The SCC Accreditation Symbol is an official symbol of the Standards Council of Canada, used under license. SCC File Number: 15064 (Ottawa/Almonte); 151100 (Montreal); 151097 (Cambridge) FCC 15.225, RSS-210 RFID; Date: September 2020 C h o o s e S c a n d i n a v i a n t r u s t RADIO TEST REPORT – 484077-1TRFWL Type of assessment: Final product testing Applicant: Product: Kongsberg Inc Dess Post RFID Gen3 Model (HVIN): HMN: 1001317030 1001316154, 1001316155 FCC ID: ISED certification number: 2ACER1001317030 12006A-1001317030 Specifications:  FCC 47 CFR Part 15 Subpart C, §15.225  RSS-210, Issue 10, December 2019, Annex B.6 Date of issue: November 9, 2022 Atefeh Beiginezhad, EMC/RF Specialist Tested by Signature Kevin Rose, EMC/RF Specialist Reviewed by Signature Report reference ID: 484077-1TRFWL Page 2 of 25 Lab locations Company name Nemko Canada Inc. Facilities Ottawa site: 303 River Road Ottawa, Ontario Canada K1V 1H2 Tel: +1 613 737 9680 Fax: +1 613 737 9691 Montréal site: 292 Labrosse Avenue Pointe-Claire, Québec Canada H9R 5L8 Tel: +1 514 694 2684 Fax: +1 514 694 3528 Cambridge site: 1-130 Saltsman Drive Cambridge, Ontario Canada N3E 0B2 Tel: +1 519 650 4811 Almonte site: 1500 Peter Robinson Road West Carleton, Ontario Canada K0A 1L0 Tel: +1 613 256-9117 Test site identifier Organization Ottawa/Almonte Montreal Cambridge FCC: CA2040 CA2041 CA0101 ISED: 2040A-4 2040G-5 24676 Website www.nemko.com Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contained in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 484077-1TRFWL Page 3 of 25 Table of Contents Table of Contents ......................................................................................................................................................................................................... 3 Section 1 Report summary ................................................................................................................................................................................. 4 1.1 Test specifications .................................................................................................................................................................................................... 4 1.2 Test methods ............................................................................................................................................................................................................ 4 1.3 Exclusions ................................................................................................................................................................................................................. 4 1.4 Statement of compliance .......................................................................................................................................................................................... 4 1.5 Test report revision history ....................................................................................................................................................................................... 4 Section 2 Engineering considerations ................................................................................................................................................................. 5 2.1 Modifications incorporated in the EUT for compliance ............................................................................................................................................ 5 2.2 Technical judgment .................................................................................................................................................................................................. 5 2.3 Model variant declaration ........................................................................................................................................................................................ 5 2.4 Deviations from laboratory tests procedures ........................................................................................................................................................... 5 Section 3 Test conditions ................................................................................................................................................................................... 6 3.1 Atmospheric conditions ............................................................................................................................................................................................ 6 3.2 Power supply range .................................................................................................................................................................................................. 6 Section 4 Measurement uncertainty ..........................................................................................................................................................…
