Project No Doc description Doc part Document No. Product group Customer Owner Doc type Version Product Specification and User Manual RFID DESS System All information contained herein is confidential and/or proprietary to Kongsberg Inc. and any unauthorized disclosure or utilization is expressly prohibited. The information is legally safeguarded by digital fingerprints and offenders will be held liable for any damages suffered. All rights and/or title to any intellectual property are reserved. Page 1 of 32 Product Specification and User Manual RFID DESS System GEN2 ORIGIN Originator Guy Gingras Date 2020-05-05 Last Modified Martin Goulet Date 2020-05-08 Last modified Alain Lafreniere Date 2020-06-10 RELEASE HISTORY Release Modifications Date Changes made by 1 Initial Release – Based on 1000996039-05 2020-05-05 Guy Gingras 2 Electrical specifications section 4.1.1 2020-05-08 Martin Goulet 3 FCC and IC statement 2020-06-10 Alain Lafreniere REFERENCE Name Function / Title Martin Goulet Electronic Designer William Deshaies Software Designer Christian Laing Mechanical Designer Guy Gingras R&D Manager Luc St-Pierre Sales & Marketing Product Specification and User Manual RFID DESS System All information contained herein is confidential and/or proprietary to Kongsberg Inc. and any unauthorized disclosure or utilization is expressly prohibited. The information is legally safeguarded by digital fingerprints and offenders will be held liable for any damages suffered. All rights and/or title to any intellectual property are reserved. Page 2 of 32 Contents Contents .......................................................................................................................... 2 Figures ............................................................................................................................ 4 Tables ............................................................................................................................. 5 FCC and IC statement ..................................................................................................... 6 Applicable Standard and Regulations ............................................................................. 7 References ...................................................................................................................... 9 Audience and confidentiality ............................................................................................ 9 Terminology .................................................................................................................. 10 1 General information ................................................................................................. 11 2 RFID DESS System Overview ................................................................................ 12 2.1 RFID Key ........................................................................................................... 13 2.2 RFID DESS Post ............................................................................................... 14 3 RFID DESS Functional Specification ...................................................................... 16 3.1 Bidirectional Communication ............................................................................. 16 3.2 Cut-off System ................................................................................................... 16 3.3 Operating and Storage Temperature ................................................................. 16 3.4 RFID Tag Reading Sequence ........................................................................... 16 4 RFID DESS Electrical Specification ........................................................................ 18 4.1 Connector .......................................................................................................... 18 5 RF Specifications .................................................................................................... 21 6 Localization and Installation on Vehicle................................................................... 22 6.1 Metallic Materials. .............................................................................................. 22 6.2 Noise Sources Identifications ............................................................................ 24 7 Diagnostic Tool ....................................................................................................... 25 7.1 CAN Variant ...................................................................................................... 25 Product Specification and User Manual RFID DESS System All information contained herein is confidential and/or proprietary to Kongsberg Inc. and any unauthorized disclosure or utilization is expressly prohibited. The information is legally safeguarded by digital fingerprints and offenders will be held liable for any damages suffered. All rights and/or title to any intellectual property are reserved. Page 3 of 32 7.2 MOWP Variant .................................................................................................. 26 7.3 Performance Criteria ......................................................................................... 31 8 RF Compliances ...................................................................................................... 32 Product Specification and User Manual RFID DESS System All information contained herein is confidential and/or proprietary to Kongsberg Inc. and any unauthorized disclosure or utilization is expressly prohibited. The information is legally safeguarded by digital fingerprints and offenders will be held liable for any damages suffered. All rights and/or title to any intellectual property are reserved. Page 4 of 32 Figures Figure 1: RFID Key and Post System............................................................................ 12 Figure 2: RFID DESS System Block Diagram .................................................…

Text truncated - open the document above for the full version.

Nemko Canada Inc 303 River Road Ottawa,Ontmio, Canada KlV IH2 Atfir: Director of Certification Authoritv to A,ct,as Asent FCC On our behalf, I appoint Jenny Gibbs ofNemko USA, Inc. 2650 FM 407, Suite 255P Bartonville, TX76226, to act as our agent in the preparation of this application for equipment certificatioa. I certifr that submitled documents properly describe the device or system for which equipment certifieation is sought. I also certift that each unit manufactured, imported or marketed, as defined in FCC regulations will have aflixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial ofFederal benefits, that include FCC benefrts, pursuant to Section 5301 of the Anfi-Drug Abuse Act of 1988, 21 U.S.C. $ 862 because of a conviction for possession or distribution of a conffolled substance. See 47 CFR I .2002(b) for the definition of a "par[r" for these purposes. For instances where our authorized agent signs the application for certification on our behal{ I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides Kongsberg Inc, 90 28e street, Shawinigan, Quebec, Canada. Dated thi$ 24Dcy of April2020 04/24/2021 Alain Lafreniere Printed Title: Manager Test Laboratory On behalf of :Kongsberg Ino (819) 533-32Al e.:1566 & KONGSBER.G Jli-liijaricTii,ii: Kon8sberg lftc 90, 28e Rue, CP10034 Shawinigan (Qu6bec) Canada G9T 5K7 Tdl.:819-533-3201, T6ldc.819-533-3901 info.ngm@ka-group-com www.kongsbergautomotive.com Telephone:

RE: Model differences 2.2 RFID DESS Post As illustrated in Figure 4 and Figure 5, the Post is composed of a plastic cover, an O- ring, a main PCB, a header, a secondary PCB and a plastic housing. The plastic cover, plastic housing and O-ring protect the internals from the external environment. The cover provides a mechanical mating interface for a connector. The CAN variant has a 5-pin connector, the MOWP variant has a 4-pin connector. Those over molded pins are providing the electrical path between the main PCB and the vehicle’s harness connected to the ECU. The secondary PCB is mounted to the main PCB using a 3-pin header. The secondary PCB holds the hall sensor. The main PCB holds the remaining electronics needed for operation: power supply, microcontroller, communication transceiver, contact output circuitry, RFID initiator/reader and antenna. Model variant for CAN : 1001105692 Model variant for MOWP : 1001105693

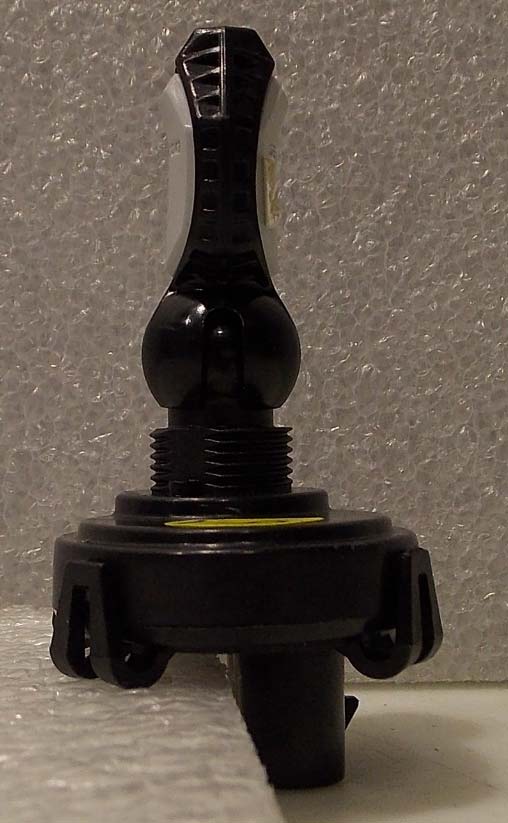

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation External photos.docx; Date: May 2013 External photos Section 1: External photos Report reference ID: ‐1RADWL Page φ of ϋ Section λ. External photos Figure ‐υ: Front view photo Section 1: External photos Report reference ID: ‐1RADWL Page χ of ϋ Figure‐ φ: Rear view photo Section 1: External photos Report reference ID: ‐1RADWL Page ψ of ϋ Figure ‐χ: Side view photo Section 1: External photos Report reference ID: ‐1RADWL Page ω of ϋ a Figure ‐ψ: Side view photo Section 1: External photos Report reference ID: ‐1RADWL Page ϊ of ϋ Figure‐ω: Top view photo Section 1: External photos Report reference ID: ‐1RADWL Page ϋ of ϋ Figure ‐ϊ: Bottom view photo Variant : MOWP 1001105693 (connector 4 pins) Variant : CAN 1001105692 (connector 5 pins)

Enhancing the driving experience 1001002222 RFID DESS System Integrated Antenna and RF Shielding CONFIDENTIAL Enhancing the driving experience 2 Top Layer –RF circuit CONFIDENTIAL Enhancing the driving experience 3 Inner Layer 1 -RF Shielding & Antenna CONFIDENTIAL Enhancing the driving experience Inner Layer 2 & Bottom Layer -Antenna CONFIDENTIAL Inner Layer 2Bottom Layer Enhancing the driving experience 4 CONFIDENTIAL Top PCB Bottom PCB

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation FCC 15.225 and RSS-210 B.6.docx; Date: September 2016 MRA il ac SCC Accredited LAB LAB Accrédité CCN TM Choose Scandinavian trust RADIO TEST REPORT – 395590-1TRFWL Type of assessment: Final product testing Applicant: Product name (type): Kongsberg inc. Borne RFID Gen2( RF/Dess post) Model: Model variant(s): 1001105692 1001105693 FCC ID: IC Registration number: 2ACER1001002222 12006A-1001002222 Specifications:  FCC 47 CFR Part 15.225  RSS-210 Issue 10,December 2019, Annex B.6 Date of issue: June 11, 2020 Yong Huang, EMC/RF Specialist Tested by Signature David Duchesne, EMC/RF Lab Manager Reviewed by Signature Report reference ID: 395590-1TRFWL Page 2 of 21 Lab locations Company name Nemko Canada Inc. Facilities Ottawa site: 303 River Road Ottawa, Ontario Canada K1V 1H2 Tel: +1 613 737 9680 Fax: +1 613 737 9691 Montréal site: 292 Labrosse Avenue Pointe-Claire, Québec Canada H9R 5L8 Tel: +1 514 694 2684 Fax: +1 514 694 3528 Cambridge site: 1-130 Saltsman Drive Cambridge, Ontario Canada N3E 0B2 Tel: +1 519 650 4811 Almonte site: 1500 Peter Robinson Road West Carleton, Ontario Canada K0A 1L0 Tel: +1 613 256-9117 Fax: +1 613 256-8848 Test site registration Organization Recognition numbers and location FCC/ISED FCC: CA2040; IC: 2040A-4 (Ottawa/Almonte); FCC: CA2041; IC: 2040G-5 (Montreal); CA0101 (Cambridge) Website www.nemko.com Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contained in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 395590-1TRFWL Page 3 of 21 Table of contents Table of contents .......................................................................................................................................................................................................... 3 Section 1. Report summary ................................................................................................................................................................................. 4 1.1 Applicant and manufacturer .................................................................................................................................................................................... 4 1.2 Test specifications .................................................................................................................................................................................................... 4 1.3 Statement of compliance ......................................................................................................................................................................................... 4 1.4 Exclusions ................................................................................................................................................................................................................. 4 1.5 Test report revision history ...................................................................................................................................................................................... 4 Section 2. Summary of test results ....................................................................................................................................................................... 5 2.1 FCC Part 15 Subpart C, test results ........................................................................................................................................................................... 5 2.2 ISED, test results ....................................................................................................................................................................................................... 5 Section 3. Equipment under test (EUT) details ..................................................................................................................................................... 6 3.1 Sample information .................................................................................................................................................................................................. 6 3.2 EUT information ....................................................................................................................................................................................................... 6 3.3 Technical information .............................................................................................................................................................................................. 6 3.4 Product description and theory of operation ........................................................................................................................................................... 6 3.5 EUT exercise details .................................................................................................................................................................................................. 6 3.6 EUT setup diagram .................…
