2ACHUEK10HWireless Network IP Camera

Quick Installation Guide Plug & Play Camera BAYCOM K10 1. Package Contents Camera / Mounting Bracket / AC Power Adapter / Mounting Screws / Quick Installation Guide / Warranty Card/ CD 2. Physical Descriptions 1. Lens 2. IR LED (Night vision function) 3. Built-in Microphone 4. Power / WPS / Reset LED indicator, Network LED Indicator 5. UID 6. RJ-45 Network port 7. WPS botton 8. DC5V-IN Socket 9. Reset botton 10. Audio jack (to speaker) 11. Micro SD Card Slot 720P HD Day & Night 3. Network Requirements - An ADSL modem with Internet connection. - A broadband router, preferably with Wi-Fi capability. Please make sure DHCP is enabled on your router. - Android or iOS smartphones ; 3G/WiFi netwrok connection preferred. 4. Installation Step 1 : Install APP “P2PCamLive” to your mobile device. - For iPhone / iPad, please download P2PCam_Live from Apple Store and install it. - For Android Smartphone / Tablet, please download P2PCamLive from Play Store and install it. WPS setup Note Please unplug the network cable for WPS setup. 1. Plug the power adapter and power on your then wait for 40 seconds to boot the camera (operating system). 2. Press the WPS button (on the lower back of for 4 seconds until its LED blinks. Then press the WPS button on your router and wait for the Wi-Fi connection to be established (within 10 to 120 seconds). Step 3 : Add camera 1. Download APP “P2PCamLive” from Google Play for Android devices or from Apple Store for iOS devices. 2. Open P2PCamLive and “Click here to add camera”, by scan QR code on the back of to get the UID (Unique ID) or you can enter it manually. 3. Enter Security Code ( default 888888 ) then press OK to add your . 4. Once you have seen the status of your is Online and then you can click and watch the live video right away. 5. Frequently Asked Questions 1. How to move your uCAM to a new en vironment Wired modeRemove the power adapter of and follow the Wired setup of step 2. Wi-Fi modeRemove the power adapter of uCAM and follow the Wi-Fi setup of step 2. 2. If you are still having diculty, you may attempt to perform a factory reset on your . With the power on, press the RESET button on the back of your for 10 seconds and then proceed to setup your camera from the beginning again. 3. can support up to 32GB (FAT32) Micro SD Card for recording storage. 4. The maximum recording time of 32GB Micro SD Card is 71 hours (about 2.9 days) with the highest resolution. Step 2 : Connect to Internet Please check if your router has a WPS botton, then follow the WPS setup. If not (or unsure), please follow the Wired setup. Wired setup 1. Connect a network cable to the network port, which is on the back of and a LAN port of the router. 2. Then plug the power adapter of to power on the camera. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. 15.21 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. 15.19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

8F, No.63, Juguang Rd, Zhonghe Dist, New Taipei City 235, Taiwan, R.O.C. Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw R FA-02-P370-70B-80 Electrical Specifications Frequency range 2400 MHz – 2500 MHz Peak Gain 2 dBi VSWR 2.0 : 1 Max. Polarization Linear, vertical Power handling 1W (cw) Impedance 50 Ω Cable Ø1.13mm Environmental & Mechanical Characteristics Temperature - 10°C to +55°C Humidity 95％ @ 25°C

RF_160, Issue 03 Declaration of Authorization We Name: Address: 1F., NO.9, INDUSTRIAL EAST 9TH RD., HSINCHU SCIENCE PARK, HSIN-CHU CITY30075, TAIWAN, R.O.C. City: HSIN-CHU 30076 Country: Taiwan (R.O.C.) Declare that: Name Representative of agent: Winnie Chen Agent Company name: Compliance Certification Services Inc. Address: No.989-1 Wen Shan Rd., Shang Shan Village,Qionglin Township, City: Hsinchu County 30741, Country Taiwan, R.O.C is authorized to apply for Certification of the following product(s): Product description: Type designation: Trademark: on our behalf. Date:2014-6-9 Signature: ... ............................ Name/Title: Company Name: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: BAYCOM OPTO-ELECTRONICS TECHNOLOGY CO., LTD. Address : 1F., NO.9, INDUSTRIAL EAST 9TH RD., HSINCHU SCIENCE PARK, HSIN-CHU CITY30075, TAIWAN, R.O.C. City: HSIN-CHU 30076 Country: Taiwan (R.O.C.) To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: 2ACHUEK10H Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2014-6-9 Name and signature of applicant: Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

DECLARATION OF CONFORMITY (DoC) Equipment: Trademark(s) and Model(s): BAYCOM / FCC ID in case other parts of this equipment are subject to certification: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number:T140516S01Issue date:2014-05-30 Test Lab: Compliance Certification Services Inc. Company name: Name/Title (legal representative): Address: 1F., NO.9, INDUSTRIAL EAST 9TH RD., HSINCHU SCIENCE PARK, HSIN-CHU CITY30075, TAIWAN, R.O.C. E-mail: [email protected] Date: 2014-06-9 Signature:

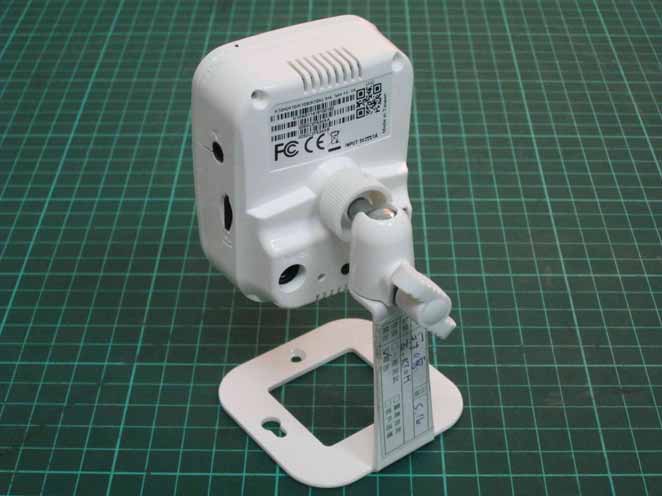

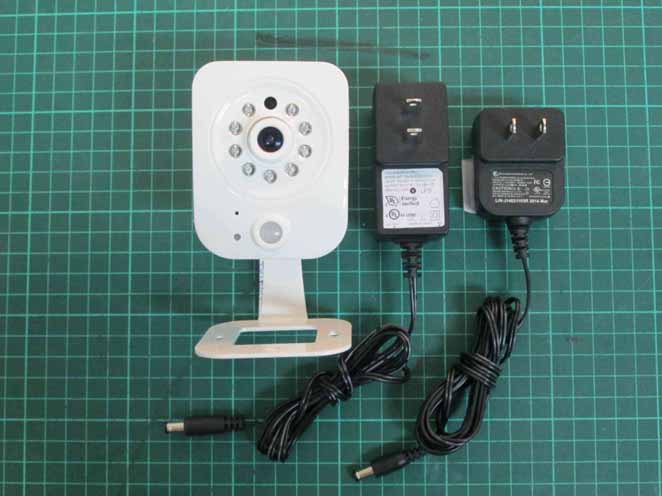

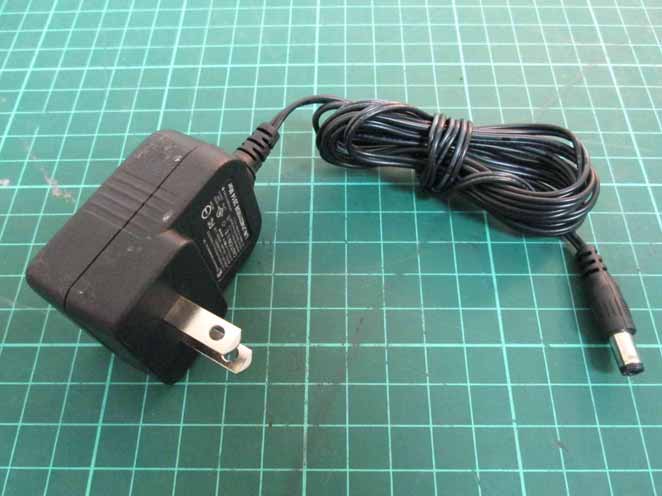

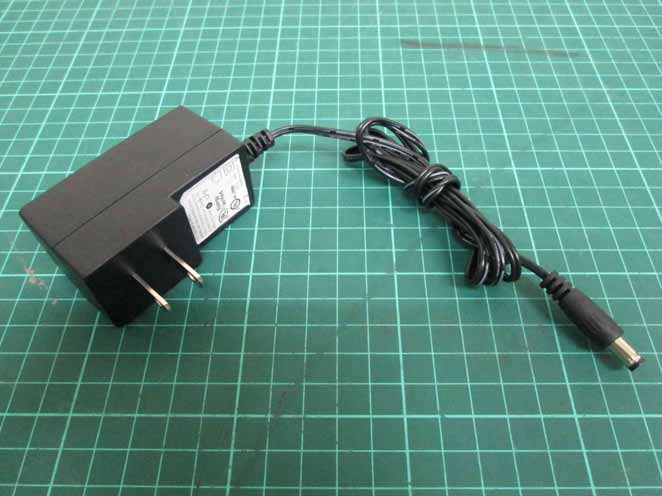

Report No.T140516S01 Page 1 of 9 External Photo Report No.T140516S01 Page 2 of 9 Report No.T140516S01 Page 3 of 9 Report No.T140516S01 Page 4 of 9 Report No.T140516S01 Page 5 of 9 Report No.T140516S01 Page 6 of 9 Adapter Photo(Model: AU1050507u) Report No.T140516S01 Page 7 of 9 Report No.T140516S01 Page 8 of 9 Adapter Photo(Model: MU06-E050100-A1) Report No.T140516S01 Page 9 of 9

Report No.T140516S01 Page 1 of 14 Internal Photo Report No.T140516S01 Page 2 of 14 Report No.T140516S01 Page 3 of 14 Report No.T140516S01 Page 4 of 14 Report No.T140516S01 Page 5 of 14 Report No.T140516S01 Page 6 of 14 Report No.T140516S01 Page 7 of 14 Report No.T140516S01 Page 8 of 14 Report No.T140516S01 Page 9 of 14 Report No.T140516S01 Page 10 of 14 Report No.T140516S01 Page 11 of 14 Report No.T140516S01 Page 12 of 14 Report No.T140516S01 Page 13 of 14 Report No.T140516S01 Page 14 of 14

FCC ID : 2ACHUEK10H Report No.T140516S01-RP1 Page 92 / 97 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theenvironment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 30 1,500-100,000 -- -- 1 30 CALCULATIONS Given d G×P×30 =E & 3770 E =S 2 Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 d3770 G×P×30 =S Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 d G×P ×0796.0= 100/d×3770 G×1000/P×30 =S Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm2 FCC ID : 2ACHUEK10H Report No.T140516S01-RP1 Page 93 / 97 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS Mode Antenna Gain (dBi) Minimum separation distance (cm) Output Power (dBm) Numeric antenna gain Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 2.0 20 15.40 1.58 1.00 0.010933 IEEE 802.11g 2.0 20 21.89 1.58 1.00 0.048721 IEEE 802.11gn HT20 2.0 20 19.87 1.58 1.00 0.030572 IEEE 802.11gn HT40 2.0 20 19.66 1.58 1.00 0.029155 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

FCC ID : 2ACHUEK10H Report No.T140516S01-RP1 Page 1 / 97 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2009 TEST REPORT For Wireless Network IP Camera Model : K10H(K10/K10S/K10K) Trade Name : BAYCOM Issued for BAYCOM OPTO-ELECTRONICS TECHNOLOGY CO., LTD. 1F., NO.9, INDUSTRIAL EAST 9TH RD., HSINCHU SCIENCE PARK, HSIN-CHU CITY30075, TAIWAN, R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: June 18, 2014 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC ID : 2ACHUEK10H Report No.T140516S01-RP1 Page 2 / 97 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 06/06/2014 Initial Issue All Page 97 Gloria Chang 01 06/18/2014 Added FCC test site number & Revised MPE Average time P.8 & P92 Gloria Chang FCC ID : 2ACHUEK10H Report No.T140516S01-RP1 Page 3 / 97 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 8 5. FACILITIES AND ACCREDITATION ........................................................................... 8 5.1 FACILITIES ............................................................................................................ 8 5.2 ACCREDITATIONS ................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 9 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................... 10 7. FCC PART 15.247 REQUIREMENTS .......................................................................... 12 7.1 6dB BANDWIDTH .................................................................................................. 12 7.2 MAXIMUM PEAK OUTPUT POWER ..................................................................... 22 7.3 AVERAGE POWER ............................................................................................... 25 7.4 POWER SPECTRAL DENSITY ............................................................................. 28 7.5 CONDUCTED SPURIOUS EMISSION .................................................................. 39 7.6 RADIATED EMISSION ........................................................................................... 52 7.7 CONDUCTED EMISSION ...................................................................................... 85 APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE ..................................................... 92 APPENDIX II SETUP PHOTOS ....................................................................................... 94 FCC ID : 2ACHUEK10H Report No.T140516S01-RP1 Page 4 / 97 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant BAYCOM OPTO-ELECTRONICS TECHNOLOGY CO., LTD. Address 1F., NO.9, INDUSTRIAL EAST 9TH RD., HSINCHU SCIENCE PARK, HSIN-CHU CITY30075, TAIWAN, R.O.C. Equipment Under Test Wireless Network IP Camera Model K10H(K10/K10S/K10K) Trade Name BAYCOM Tested Date May 16 ~ June 05, 2014 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2009 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Rex Liao Jacky Chen Deputy Manager Section Manager FCC ID : 2ACHUEK10H Report No.T140516S01-RP1 Page 5 / 97 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name Wireless Network IP Camera Model Number K10H(K10/K10S/K10K) Identify Number T140516S01 Received Date May 16, 2014 Frequency Range IEEE 802.11b/g, 802.11gn HT20 : 2412MHz ~ 2462MHz IEEE 802.11gn HT40 : 2422MHz ~ 2452MHz Transmit Power IEEE 802.11b : 15.40 dBm (0.0347 W) IEEE 802.11g : 21.89 dBm (0.1545 W) IEEE 802.11gn HT20 : 19.87 dBm (0.0970 W) IEEE 802.11gn HT40 : 19.66 dBm (0.0925 W) Channel Spacing IEEE 802.11b/g, 802.11gn HT20/HT40 : 5MHz Channel Number IEEE 802.11b/g, 802.11gn HT20 : 11 Channels IEEE 802.11gn HT40 : 7 Channels Transmit Data Rate IEEE 802.11b : 11, 5.5, 2, 1 Mbps IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11gn HT20 : 72.2, 65, 58.5, 57.8, 52, 43.3, 39, 28.9, 26, 21.7, 19.5, 14.4, 13, 7.2, 6.5 Mbps IEEE 802.11gn …

Text truncated - open the document above for the full version.

FCC ID : 2ACHUEK10H Report No.T140516S01-RP1 Page 94 / 97 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX II SETUP PHOTOS RADIATED EMISSION SETUP Below 1GHz FCC ID : 2ACHUEK10H Report No.T140516S01-RP1 Page 95 / 97 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1GHz FCC ID : 2ACHUEK10H Report No.T140516S01-RP1 Page 96 / 97 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP FCC ID : 2ACHUEK10H Report No.T140516S01-RP1 Page 97 / 97 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
