2ACHV-MO-CS001makeON Charging Stand

makeON Charging Stand User Manual_MO-CS001 How to use 1. Use 1) Connect the USB charger to the rated 5V adapter. 2) The White LED in charger will flash three times. 3) Attach the product, The White LED will turn on. 4) Charging is in progress. Specification List Spec Input Voltage DC 5V, 1A Input Current (based on 2.1W charging) 840mA Output Voltage 4.2V Output Current 500mA SWITCHING FREQUENCY 110 ~ 205kHz Temperature / Humidity 15 ～ 25°C / Bathroom(90%) Size(W*D*H) 74*15 ㎜ Weight 90g - Manufacturer : SENTRONIX Co., Ltd New Joong-Ang Bldg., 1011-6, Gwonsun-dong Gwonsun-gu, Suwon-si, Gyenggi-do, KOREA, 441-822 - Seller : Amorepacific Corporation 100, Cheonggyecheon-ro, Jung-gu, Seoul, Korea  Customer service center : 080-850-5454 ( * reverse charging) CE Hereby, Amorepacific Corporation declares that this MO-CS001 is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC. FCC CAUTION FCC NOTICE TO USERS: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encourged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to the equip ment not expressly approved by the party responsible for compliance could void user's authority to operate the equipment.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 4.0 Jul. 14, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Amorepacific Corporation hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (MakeON Charging Stand, MO-CS001) Sincerely, Lee Jeong In Director Amorepacific Corporation 100, Cheonggyecheon-ro, Jung-gu, Seoul, Korea SCS-F18: Project and Product Certification Representative Authorization Letter Page 3 of 3 Rev 4.0 Jul. 14, 2014 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Amorepacific Corporation hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): (MakeON Charging Stand, MO-CS001) We affirm that between SIEMIC, Inc. and Amorepacific Corporation, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Lee Jeong In Director Amorepacific Corporation 100, Cheonggyecheon-ro, Jung-gu, Seoul, Korea

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 3.0 Jul. 10, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACHV-MO-CS001 We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Lee, Jeong In / Director Contact information / address: 080-850-5454 / 100, Cheonggyecheon-ro, Jung-gu, Seoul, South Korea SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 3.0 Jul. 10, 2014 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: 2ACHV-MO-CS001 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - e.g. User Manual - e.g. Ext Photo - e.g. Int Photo - e.g. Test Photo The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : Client’s name / title : Lee Jeong In / Director Contact information / address : 080-850-5454 / 100, Cheonggyecheon-ro, Jung-gu, Seoul, South Korea

Amorepacific Corporation 100, Cheonggyecheon-ro, Jung-gu, Seoul, Korea Date: Jul. 10, 2014 SIEMIC 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: 2ACHV-MO-CS001 including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Amorepacific Corporation “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Lee Jeong In Director

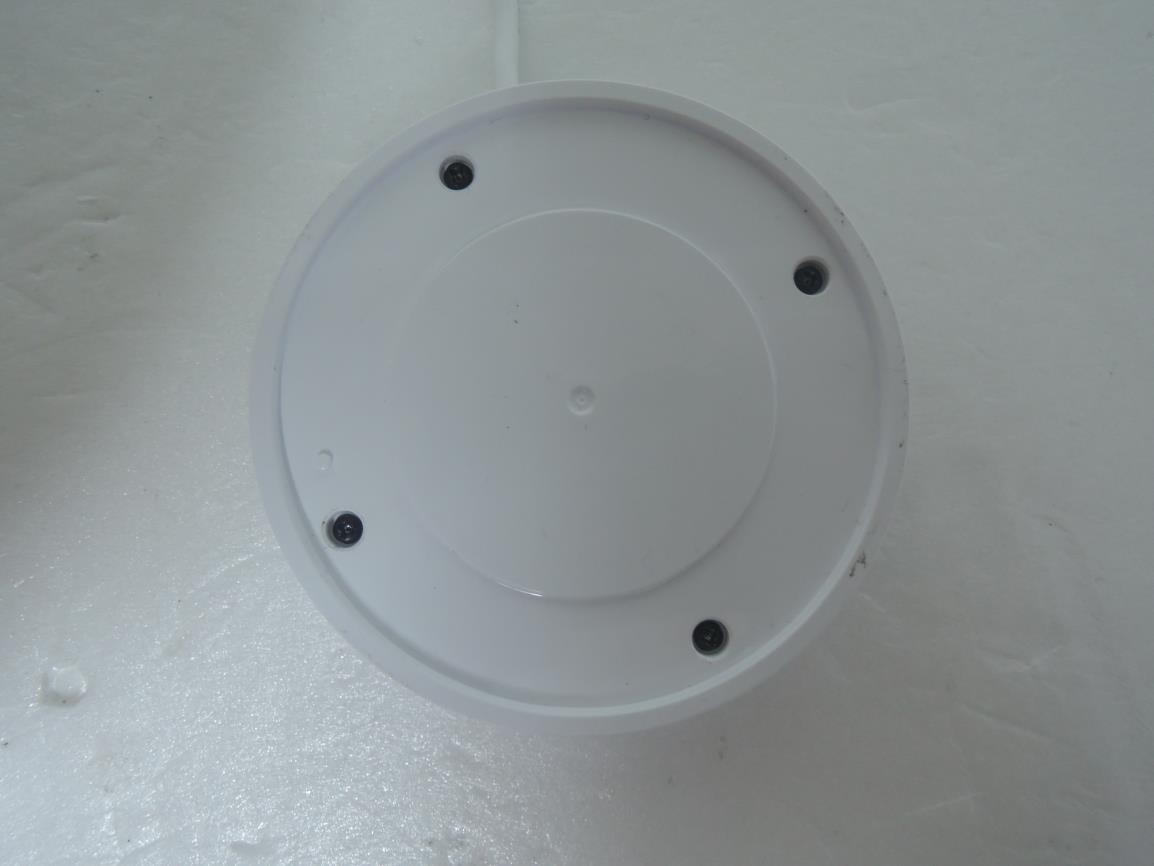

FCCID: 2ACHV-MO-CS001 Copyright Ⓒ 2014, DT&C Co., Ltd. Page 1 / 3 View 1 FCCID: 2ACHV-MO-CS001 Copyright Ⓒ 2014, DT&C Co., Ltd. Page 2 / 3 View 2 FCCID: 2ACHV-MO-CS001 Copyright Ⓒ 2014, DT&C Co., Ltd. Page 3 / 3 View 3

FCC ID: 2ACHV-MO-CS001 Copyright Ⓒ 2014, DT&C Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase Label locate bottom side - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. - The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.

FCCID: 2ACHV-MO-CS001 Copyright Ⓒ 2014, DT&C Co., Ltd. Page 1 / 3 View 1 FCCID: 2ACHV-MO-CS001 Copyright Ⓒ 2014, DT&C Co., Ltd. Page 2 / 3 View 2 FCCID: 2ACHV-MO-CS001 Copyright Ⓒ 2014, DT&C Co., Ltd. Page 3 / 3 View 3

DEMC1405-02001 FCC ID: 2ACHV-MO-CS001 Report No.: DRTFCC1407-0914(1) TRF-RF-220(00)131220 Page2 / 7 Copyright ○ C 2014, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1407-0914 Jul. 10, 2014 Initial issue DRTFCC1407-0914(1) Jul. 14, 2014 Update Result DEMC1405-02001 FCC ID: 2ACHV-MO-CS001 Report No.: DRTFCC1407-0914(1) TRF-RF-220(00)131220 Page3 / 7 Copyright ○ C 2014, DT&C Co., Ltd. CONTENTS 1. Equipment information ............................................................................ 4 1.1 Equipment description ........................................................................... 4 1.2 Support equipment................................................................................. 4 2. Information about test items ................................................................... 5 2.1 Test Configuration and Mode ................................................................. 5 2.2 Tested environment ................................................................................ 5 3. E and H field strength .............................................................................. 6 DEMC1405-02001 FCC ID: 2ACHV-MO-CS001 Report No.: DRTFCC1407-0914(1) TRF-RF-220(00)131220 Page4 / 7 Copyright ○ C 2014, DT&C Co., Ltd. 1. Equipment information 1.1 Equipment description FCC Equipment Class Part 15 Low Power Transmitter Below 1705 kHz (DCD) Equipment type makeON Charging Stand Equipment model name MO-CS001 Equipment add model name N/A Equipment serial no. Identical prototype Frequency range 110 ~ 205kHz Output power Max : 2.1 W Power AC 120V/ 60Hz Antenna type Coil Antenna(Circular single coil) 1.2 Support equipment Equipment Model No. Serial No. Manufacturer Note Travel Adapter KBC-S240 N/A Shenzhen Theone Electronic - - - - - - - - - - - Note: The supporting equipments were supported by manufacturer. DEMC1405-02001 FCC ID: 2ACHV-MO-CS001 Report No.: DRTFCC1407-0914(1) TRF-RF-220(00)131220 Page5 / 7 Copyright ○ C 2014, DT&C Co., Ltd. 2. Information about test items 2.1 Test Configuration and Mode ▪Test configuration The field strength of both E-field and H-field were measured at 10 cm using RF exposure survey meter with E-field and H- field probes for determining compliance with the MPE requirements of FCC Part 1.1310 During measurements, the wireless charging pad (EUT) was wirelessly charging a battery housed inside a portable handset and was loaded with the client device using the resistor as described below summary table for test modes and conditions. The RF power density was measured with the battery at 2 different charge conditions: battery at almost 0 % and 50 % status, 3 resistive load conditions: 300 mA, 600 mA, 1000 mA (Max. charging current with 5 Ω resister). These testing were performed at test configuration as test setup diagram on clause 3 of this test report. EUT was placed on a non-conductive turntable, and the portable handset with charging cover for charging a battery or client device with resistive load for drawing various load current. This device uses a wireless charging circuit for power transfer operating at the frequency of 110 KHz ~ 205 KHz. Thus, the 300 KHz RF exposure limits were used as below table. ▪Test mode This device has been tested with the below test modes and charging current conditions: Charging Current Support Equipment 300mA Wireless Charging Cover 600mA 1000mA(Max) ▪ Limit Frequency E-Field limit H-Field limit FCC Part 1.1310 300 kHz ~ 3 MHz 614 V/m 1.63 A/m 2.2 Tested environment Temperature : 21 °C Relative humidity content : 38 ~ 40 % R.H. Details of power supply : AC 120 V/60 Hz DEMC1405-02001 FCC ID: 2ACHV-MO-CS001 Report No.: DRTFCC1407-0914(1) TRF-RF-220(00)131220 Page6 / 7 Copyright ○ C 2014, DT&C Co., Ltd. 3. E and H field strength For RF exposure purposes, the E and H field strengths are measured separately with E and H probes and meters at different locations surrounding the test setup. ▪ Test setup diagram ▪ Measurement procedure These testing were performed at test configuration as above diagram. EUT was placed on a turntable, and the measurement distance of 10 Cm from the center of the probe to the edge of the device. And test was performed all sides of the EUT(except bottom side). ▪Test equipment list Type Manufacturer Model Cal.Date (yy/mm/dd) Next. Cal.Date (yy/mm/dd) S/N Magnetic Field Meter Holaday Industries HI-3627 14/01/09 16/01/09 23776 Electric Field Meter Combinova EFM200 14/01/20 16/01/20 185(N2443) DEMC1405-02001 FCC ID: 2ACHV-MO-CS001 Report No.: DRTFCC1407-0914(1) TRF-RF-220(00)131220 Page7 / 7 Copyright ○ C 2014, DT&C Co., Ltd. ▪Measurement data: Tested Frequency Result Limit E-field(V/m) H-field(A/m) E-field(V/m) H-field(A/m) 0 90 180 270 0 90 180 270 Lowest 5.10 3.11 3.77 3.77 0.74 0.28 0.42 0.21 614 1.63 Middle 5.42 3.56 4.03 5.11 0.69 0.26 0.48 0.23 Highest 8.33 4.67 4.42 5.22 0.71 0.32 0.48 0.26 Note: The worst case data were reported.

FCC ID : 2ACHV-MO-CS001 DEMC1405-02001 Report No.: DRTFCC1407-0913 TRF-RF-204(01)110221 Page 2 / 15 Copyright ○ C 2014, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1407-0913 Jul. 10, 2014 Initial issue FCC ID : 2ACHV-MO-CS001 DEMC1405-02001 Report No.: DRTFCC1407-0913 TRF-RF-204(01)110221 Page 3 / 15 Copyright ○ C 2014, DT&C Co., Ltd. CONTENTS 1. Equipment information ............................................................. 4 1.1 Equipment description ............................................................ 4 1.2 Support equipments ............................................................... 4 2. Information about test items .................................................... 5 2.1 Test mode ............................................................................... 5 2.2 Tested environment ................................................................ 5 2.3 EMI Suppression Device(s)/Modifications .............................. 5 3. FACILITIES AND ACCREDITATIONS ........................................ 6 3.1 FACILITIES ............................................................................ 6 3.2 EQUIPMENT .......................................................................... 6 4. Test Report ................................................................................ 7 4.1 Summary of tests ................................................................... 7 4.2 Transmitter requirements........................................................ 8 4.2.1 20dB Bandwidth ................................................................. 8 4.2.2 Radiated Emissions ........................................................... 9 4.2.3 AC Line Conducted Emissions .......................................... 11 APPENDIX I ................................................................................. 14 FCC ID : 2ACHV-MO-CS001 DEMC1405-02001 Report No.: DRTFCC1407-0913 TRF-RF-204(01)110221 Page 4 / 15 Copyright ○ C 2014, DT&C Co., Ltd. 1. Equipment information 1.1 Equipment description FCC Equipment Class Part 15 Low Power Transmitter Below 1705 kHz (DCD) Equipment type makeON Charging Stand Equipment model name MO-CS001 Equipment add model name N/A Equipment serial no. Identical prototype Frequency band 110 ~ 205kHz Output power Max : 2.1 W Power AC 120V 60Hz DC 5 V Antenna type Coil Antenna(single coil) 1.2 Support equipments Equipment Model No. Serial No. Manufacturer Note Travel Adapter KBC-S240 N/A Shenzhen Theone Electronic - - - - - - - - - - - Note: The above equipments were supported by manufacturer. FCC ID : 2ACHV-MO-CS001 DEMC1405-02001 Report No.: DRTFCC1407-0913 TRF-RF-204(01)110221 Page 5 / 15 Copyright ○ C 2014, DT&C Co., Ltd. 2. Information about test items 2.1 Test mode This device has been tested with the below test modes and charging current conditions: Charging Current Support Equipment 300mA Wireless Charging Cover 600mA 1000mA(Max) 2.2 Tested environment Temperature : 23 o C Relative humidity content : 35 ~ 40 % R.H. Details of power supply : AC 120V 60Hz DC 5V 2.3 EMI Suppression Device(s)/Modifications EMI suppression device(s) added and/or modifications made during testing → None FCC ID : 2ACHV-MO-CS001 DEMC1405-02001 Report No.: DRTFCC1407-0913 TRF-RF-204(01)110221 Page 6 / 15 Copyright ○ C 2014, DT&C Co., Ltd. 3. FACILITIES AND ACCREDITATIONS 3.1 FACILITIES The semi anechoic chamber and conducted measurement facility used to collect the radiated and conducted test data are located at the 38, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935. The site is constructed in conformance with the requirements. - Semi anechoic chamber registration Number: 678747 3.2 EQUIPMENT Radiated emissions are measured with one or more of the following types of antennas: loop, tuned dipole, bi-conical, log periodic, bi-log, and/or ridged waveguide horn. Spectrum analyzers with pre-selectors and peak, quasi-peak detectors are used to perform radiated measurements. Conducted emissions are measured with Line Impedance Stabilization Networks and EMI Test Receivers. Calibrated wideband preamplifiers, coaxial cables, and coaxial attenuators are also used for making measurements. All receiving equipment conforms to CISPR Publication 16-1, “Radio Interference Measuring Apparatus and Measurement Methods.” FCC ID : 2ACHV-MO-CS001 DEMC1405-02001 Report No.: DRTFCC1407-0913 TRF-RF-204(01)110221 Page 7 / 15 Copyright ○ C 2014, DT&C Co., Ltd. 4. Test Report 4.1 Summary of tests FCC Part Section(s) RSS Section(s) Parameter Limit Test Condition Status Note 1 Test Items 2.1049 N/A 20 dB Bandwidth N/A Radiated C 15.209 RSS-Gen [7.2.5] Radiated Emission FCC 15.209 limits C Note2 15.207 RSS-Gen [7.2.4] AC Conducted Emissions FCC 15.207 limits AC Line Conducted C Note3 Note 1: C=Comply NC=Not Comply NT=Not Tested NA=Not Applicable Note 2: This test item was performed in each axis and the worst case data was reported. Note 3: Travel Adapter has been used in the test. The sample was tested according to the following specification: ANSI C-63.4 2009 FCC ID : 2ACHV-MO-CS001 DEMC1405-02001 Report No.: DRTFCC1407-0913 TRF-RF-204(01)110221 Page 8 / 15 Copyright ○ C 2014, DT&C Co., Ltd. 4.2 Transmitter requirements 4.2.1 20dB Bandwidth - Procedure: The 20 dB bandwidth is measured with a spectrum analyzer connected via a receiving antenna placed near the EUT while the EUT is operating. - Measurement Data: Charging Current 1000 mA FCC ID : 2ACHV-MO-CS001 DEMC1405-02001 Report No.: DRTFCC1407-0913 TRF-RF-204(01)110221 Page 9 / 15 Copyright ○ C 2014, DT&C Co., Ltd. 4.2.2 Radiated Emissions - Limit: FCC Part 15.209(a) & RSS-GEN, section 7.2.5 Frequency [MHz] Field Strength [uV/m] Measurement Distance [Meters] 0.009 ~ 0.490 2400/F(kHz) 300 0.490 ~ 1.705 24000/F(kHz) 30 1.705 ~ 30 30 30 30 ~ 88 100 3 88 ~ 216 150 3 216 ~ 960 200 3 Above 960 500 3 ** Except as provided in 15.209(g), fundamental emissions from intentional radiators operating under this…

Text truncated - open the document above for the full version.

FCC ID: 2ACHV-MO-CS001 Copyright Ⓒ 2014, DT&C Co., Ltd. Test Setup Photo for Radiated Emissions FCC ID: 2ACHV-MO-CS001 Copyright Ⓒ 2014, DT&C Co., Ltd. Test Setup Photo for AC Conducted Emissions FCC ID: 2ACHV-MO-CS001 Copyright Ⓒ 2014, DT&C Co., Ltd. Test Setup Photo for RF Exposure FCC ID: 2ACHV-MO-CS001 Copyright Ⓒ 2014, DT&C Co., Ltd. Test Setup Photo for RF Exposure
