2ACIG-9751USTXRF Remote Controller

WARNING: Use provided transformer only. LASER RADIATION AVOID DIRECT EYE EXPOSURE CLASS IIIa LASER PRODUCT Diode Laser Max : Output < 5mW Wavelength 532nm~660nm USER’S GUIDE (READ ME FIRST) Thank you for your purchase of the Elf Light™. Enjoy! SPEED 2h4h6h8h TIMER RESET FLASH TM D a te : 06-12-14 www.technosourceusa.com A Division of LF Products The manufacturer warrants this product to be free from defects in functionality, materials and workmanship for a period of one (1) year from date of purchase. This warranty applies only to the original consumer purchaser and only to products used in normal use and service. If this product is found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications, alterations, neglect or mishandling. This warranty shall not apply to any product that is found to have been improperly installed, set up, or used in any way not in accordance with the instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of an accident, misuse, abuse, negligence, alteration, or faulty installation, or any other failure not relating to faulty material or workmanship. This warranty shall not apply to the finish on any portion of the product, such as surface and/or weathering, as this is considered normal wear and tear. The manufacturer does not warrant and specially disclaims any warranty, whether expressed or implied, of fitness for a particular purpose, other than the warranty contained herein. The manufacturer specifically disclaims any liability and shall not be liable for any consequential or incidental loss of damage, including any labor/expense costs involved in the replacement or repair of said product. For warranty claims, please contact Techno Source at [email protected] or write to Techno Source Pat Johnson 20 W 22nd Street, New York, NY 10010 Product Specifications Laser Classification / Power Laser Wavelength(s) Laser Diode Life Power Consumption Power Input Operating Environment Projection Coverage Maintenance Warranty Limited one year warranty Maintenance Free – No user serviceable parts 25 ft. X 25 ft. Indoor / Outdoor; -15º F to 90º F 120VAC (When used with manufacturer provided transformer) Up to 5 watts @ 65ºF - 90ºF About 7000 hours (at 4hrs per day) 532nm (Green) / 660nm (Red) Class IIIa / Less than 5 mW (single beam) Techno Source, A Division of LF Products, © 2014 LF Products, All rights reserved. 800 Cheung Sha Wan Road, Kowloon, Hong Kong. MADE IN CHINA Product specifications and colors may vary Item number : 97510, 97511 IM - USGR New Submission Revised Submission Artwork Approved Date: Revised Development Techno Source Approved Only REV 2: REV 1: Notes: Signatures: Development Info: Licensor Info: Designer: Product Manager: Director: D a te : 06-12-14 License: Elf Lights Product: Green and Red IM Category: Accessory Size: 7.5”H x 4.5“W Product Manager: Tin Designer: Nancy Balsamello Pantone ® Target Colors: IM size: H7.5” x W4.5” (Folded) Color: 1C (black) double-sided printing This IM is for Green and Red laser (Remote version) PAGE 8 8 Page booklet 1 color print (Black) Please check your state and local laws for outdoor laser usage. Although the Elf Light is generally safe when used responsibly, please exercise the following precautions: Precautions For Laser Usage • Do not aim or shine at people, animals or traffic from land, sea, or air. • Do not use outdoors within 5 nautical miles of an airport. • Use with caution within 5-10 nautical miles of an airport. • The Elf light should always be stationary; do not hold in hand when operating. • Position the Elf light so that the lights are within the confines of the target object. • Do not use near infants/cribs and keep away from children. IMPORTANT SAFETY INSTRUCTIONS THIS PRODUCT HAS A POLARIZED PLUG (ONE BLADE IS WIDER THAN THE OTHER) AS A FEATURE TO REDUCE THE RISK OF ELECTRIC SHOCK. THIS PLUG WILL FIT IN A POLARIZED OUTLET ONLY ONE WAY. IF THE PLUG DOES NOT FIT FULLY IN THE OUTLET, REVERSE THE PLUG. IF IT STILL DOES NOT FIT, CONTACT A QUALIFIED ELECTRICIAN. NEVER USE WITH AN EXTENSION CORD UNLESS PLUG CAN BE FULLY INSERTED. DO NOT ALTER THE PLUG. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the distance between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. NOTE: This is a standard cautionary statement from the FCC which is used to alert the user to troubleshoot in various ways if problems are found. Read All Instructions WARNING: When using outdoors, use portable luminaires. Basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following: a) Use only three-wire outdoor extension cords that have three-prong grounding plugs and grounding receptacles that accept the appliance’s plug. b) Ground Fault Circuit Interrupter (GFCI) protection is to be provided on the circuit(s) or outlet(s) to be used for the wet location portable luminaire. Receptacles are available having built-in GFCI protection and are able to be used for this measure of safety. c) Use only with an extension cord for outdoor use, such as an extension cord of cord type SW, SW-A, SOW, SOW-A, STW, STW-A, STOW, STOW-A, SJW, SJW-A, SJOW, SJOW-A, SJTW, SJTW-A, or SJTOW, SJTOW-A. SAVE THESE INSTRUCTIONS (3)(6) Remote C…

Text truncated - open the document above for the full version.

TerryChan

LF PRODUCTS PTE LTD 07 July 2014 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: 2ACIG-975USTX Request is hereby submitted by [LF Products Pte Ltd] to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and [Philip Chiu] reserves the right to discern which parties can obtain access to these information: x Schematics x Detailed Block diagrams x Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of [LF Products Pte Ltd] and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Philip Chiu Engineer Manager 2ACIG-9751USTX

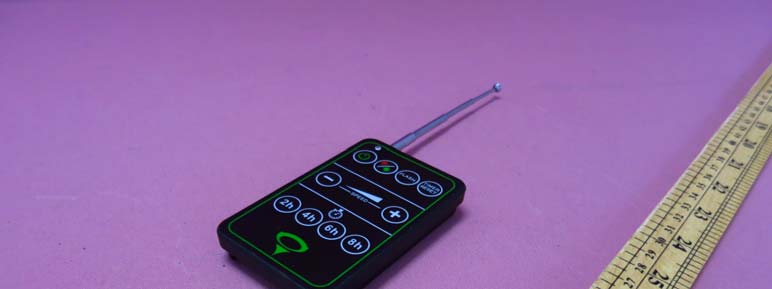

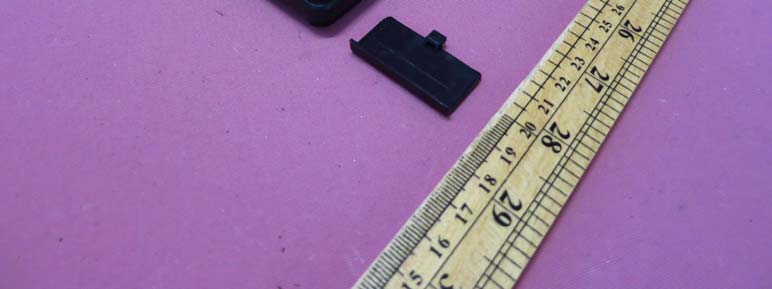

INTERTEK TESTING SERVICES External Photos FCC ID: 2ACIG-9751USTX IC: 12051A-9751CATX external photos - 1 of 1 Report Number 14050180HKG-006 Report Number 14050180HKG-006

INTERTEK TESTING SERVICES Internal photos FCC ID: 2ACIG-9751USTX IC: 12051A-9751CATX internal photos - 1 of 3 Transmitter Unit assembly Transmitter Antenna INTERTEK TESTING SERVICES Internal photos FCC ID: 2ACIG-9751USTX IC: 12051A-9751CATX internal photos - 2 of 3 Main PCB sol der side Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: 2ACIG-9751USTX IC: 12051A-9751CATX internal photos - 3 of 3 Transmitter Unit Oscillator comp side

Analysis Report Report No.: 14050180HKG-006 The Equipment Under Test (EUT) is a 433.92MHz wireless transmitter (remote controller) for its associated receiver (ELF Light unit). It uses discrete radio carriers rather than the conventional FM multiplex system. Transmit carrier is generated by a SAW resonator. The operating frequency is 433.92MHz in one channel. It is powered by one “23A” size 12V battery. A POWER key is on keypad. The LED (red colour) on top of keypad will flash one time when any key is pressed. Antenna Type: external telescope type antenna Antenna Gain: 0dBi Nominal rated field strength: 82.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 85.5dBμV/m at 3m in frequency 433.92MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.106mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.106mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (0.43392) mW = 22.77 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 14050180HKG-006 LF Products Pte Ltd Application For Certification (Original Grant) (FCC ID: 2ACIG-9751USTX) (IC: 12051A-9751CATX) Transmitter Prepared and Checked by: Approved by: Signed On File Chan Kwan Ho, Alex Assistant Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: June 25, 2014 INTERTEK TESTING SERVICES Report No.: 14050180HKG-006 i FCC ID: 2ACIG-9751USTX IC: 12051A-9751CATX GENERAL INFORMATION Grantee: LF Products Pte Ltd Grantee Address: 10 Raeburn Park, #03/08 Block A, Singapore 088702. Contact Person: Philip Chiu Tel: (852) 2300 5439 Fax: N/A e-mail: [email protected] Manufacturer: Max-Plus Co., Ltd Manufacturer Address: 4/F, A Building, No. 3 Jin Ye Street, Ping Nan Village, San Xiang Town, China. Brand Name: The Elf Light FCC Model: 9751-US IC Model: 9751-CATX Type of EUT: Transmitter Description of EUT: RF Remote Controller for Elf Light Serial Number: N/A FCC ID / IC: 2ACIG-9751USTX / 12051A-9751CATX Date of Sample Submitted: May 05, 2014 Date of Test: May 05, 2014 to June 14, 2014 Report No.: 14050180HKG-006 Report Date: June 25, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 14050180HKG-006 ii FCC ID: 2ACIG-9751USTX IC: 12051A-9751CATX SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a), (b), (c) / RSS-210 A1.1 Pass Radiation Emission in Restricted Bands 15.205 / RSS-210 2.2 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 3, December 2010 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 14050180HKG-006 iii FCC ID: 2ACIG-9751USTX IC: 12051A-9751CATX Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Measurement Uncertainty ............................................................................. 2 2.5 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 4.0 Equipment Photographs ................................................................................ 7 5.0 Product Labelling........................................................................................... 7 6.0 Technical Specifications................................................................................ 7 7.0 Instruction Manual ......................................................................................... 7 8.0 Miscellaneous Information ............................................................................ 8 8.1 Measured Bandwidth .................................................................................... 8 8.2 Discussion of Pulse Desensitization .............................................................. 9 8.3 Calcu…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: 2ACIG-9751USTX config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View
