2ACIXP5WHP5 Wireless Headphones

LL13692 Issue 3 MH-W_Safetey_Warranty_Cover_ALL.indd 119/01/2015 14:06 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Clean only with a dry cloth. 6 Only use attachments/accessories specified by the manufacturer. 7 Ensure that the headphones are not worn with, or kept in the immediate vicinity (closer that 10cm) of, a pacemaker. 8 Do not insert headphone jack plugs into electric power sockets. 9 Always supervise children using these headphones. 10 The operation of switches on your hi-fi system, or the action of plugging-in the headphones, may cause audible clicks which, at high volume levels, may effect your hearing. Always therefore set the volume control to minimum before operating switches or plugging-in the headphones. 11 Do not use headphones while driving or cycling. 12 Contains small parts which may be a choking hazard. Not suitable for children aged 3 or under. 13 This product contains magnetic material. 14 Do not drop, sit on, or allow headphones to be immersed in water. 15 Headphone listening at high volume levels, particularly over extended periods of time, may damage your hearing. 16 This product is only designed to work at an ambient temperature of up to 45°C. 17 This product contains Lithium batteries, if misused or damaged this can become a hazard and is at risk of explosion. 18 Do not handle the product should the battery leak. 19 Do not incinerate the product. The internal battery could explode causing injury or death. 20 Do not attempt to access or replace the product’s battery, the battery is internal and not user serviceable. 21 Refer to the product manual for information on battery care. 22 Do not expose the product to rain or moisture 23 Do not use the product near water, bathtubs, sinks, saunas, pools or steam rooms. 24 Turn off the product before boarding aircraft. 25 Do not position or store the product or accessories on or near a vehicle air bag, should the airbag exploded there is a risk of injury. 26 Dispose of this product in accordance with local regulations. This product must not be disposed of with regular household waste. 27 Do not allow children to use this product without supervision. Compliance markings are located underneath the left and right removable ear cushions. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. English Important safety instructions MH-W_Safetey_Warranty_Cover_ALL.indd 219/01/2015 14:06 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: The product comply with the US portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Canada, Industry Canada (IC) Notices This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Radiation Exposure Statement: The product comply with the Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. Bowers & Wilkins products are designed and manufactured to the highest quality standards. However, if something does go wrong with the product, B&W Group Ltd. and its national distributors warrant free of charge labour (exclusions may apply) and replacement parts in any country served by an official Bowers & Wilkins distributor. This warranty complements any national or regional legal obligations of dealers or national distributors and does not affect your statutory rights as a customer. Some regional legal obligations outside the control of B&W Group Ltd. may reduce the scope or time of the terms outlined below. In particular: • Special warranty terms apply in the Russian Federation. • Specific import regulations apply in Brazil. Please contact the relevant national distributor for details. Terms and Conditions This wa…

Text truncated - open the document above for the full version.

P5 Wireless Headphones 2 ENGLISH www.bowers-wilkins.com Welcome to Bowers & Wilkins and the MH-W Wireless Headphones Thank you for choosing Bowers & Wilkins. When John Bowers first established our company he did so in the belief that imaginative design, innovative engineering and advanced technology were keys that could unlock the enjoyment of audio in the home. His belief is one that we continue to share and it inspires every product we design. MH-W is a high performance on-ear headphone that provides the highest quality personal audio experience combined with the convenience of wireless operation based on the latest Bluetooth audio standards. This manual will tell you everything you need to know to get the most from your MH-W Headphones. MH-W headphones can be used either wirelessly, to play music streamed from your mobile phone, tablet or computer using Bluetooth wireless technology, or conventionally in “passive” mode connected by a cable to a suitable headphone output. The MH-W can also be used for wireless telephony. For wireless use, MH-W headphones incorporate a lithium-ion rechargeable battery pack. When fully charged, the battery pack can provide up to 7.5 hours use at average volume levels. Battery power is not consumed when the MH-W is used passively. 3 ENGLISH R L 1. MH-W Carton Contents i. MH-W Headphones ii. USB charging cable iii. Universal cable iv. Quilted pouch i. Literature pack Environmental Information This product complies with international directives, including but not limited to the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment, the Registration, Evaluation, Authorisation and restriction of Chemicals (REACH) and the disposal of Waste Electrical and Electronic Equipment (WEEE). Consult your local waste disposal authority for guidance on how properly to recycle or dispose of this product. 2. Getting to know MH-W Once switched on via the Power slide-switch on its right hand ear piece, the MH-W is controlled via Bluetooth, Play/Pause, Volume + and Volume – buttons. An indicator alongside the Bluetooth button displays Bluetooth connection state and battery charge level. The MH-W also provides audible feedback for some control commands and events. A USB charging socket is fitted to the right hand ear piece with a pin-hole reboot button beneath the ear pad. Beneath the left hand ear pad is a connection socket for the universal cable that enables the MH-W to be used as a passive headphone. Connecting the universal cable is covered in Section 9. 3. MH-W Battery Charging MH-W headphones are shipped with some battery power available and can be used immediately, however, it is good practice to charge the battery fully before first use. It will take approximately ?? minutes for the MH-W battery to reach full charge however it is possible to use the MH-W while the battery is charging. Note: The MH-W indicator initially displays battery charge when the MH-W is switched on. Green means that the battery is above 20% charged. Yellow means that the battery is between 20% and 10% charged. Red means that the battery is below 10% charged. If the indicator blinks red, the battery charge is too low for the MH-W to operate. Note when the LED blinks red MH-W will not power on. To charge the MH-W battery follow the steps described below. Using the supplied USB charging cable, connect the headphones to a powered USB socket; either a computer USB socket, a mains plug USB charger or an in-car charger. While switched off and charging, the MH-W indicator will blink green. As the level of charge increases the illuminated period of the blink will get longer. When the battery is between 80% and 100% charged, the indicator will illuminate for 1.5 seconds in every 4 seconds. Note: No damage will result if the MH-W is left connected to a battery charger beyond the point where it is 100% charged. Low level “trickle” charging will continue with the indicator illuminating for 1 second in every 4 seconds. Diagram 1 Main features CableOn/Off button Volume - Play/Pause Volume + Diagram 2 Rear view headphones - USB charging socket R USB charging socket 4 ENGLISH 4. Switching On and Off To switch MH-W on or off slide the power switch. MH-W will provide audible feedback as it switches on. Note: If an MH-W is left switched on but inactive for more than 20 minutes it will automatically enter sleep mode to save battery power. It can be woken by starting a Bluetooth audio stream from a paired device, by siding the power switch, or pressing the Bluetooth button. 5. Wearing your MH-W Headphones Using your headphones correctly will help ensure that their performance reaches its full potential. First, identify the left and right ear pieces. Identification legends are engraved on the metal hinge below the headband. This is illustrated in Diagram 3. Now unfold the headphones and slide them on to your head with the headband adjusted so that each ear piece sits comfortably over the ear. This is illustrated in Diagram 4. It is recommended that you fold and return your headphones to their pouch when not in use. 6. Bluetooth Pairing your MH-W To connect your MH-W to a Bluetooth enabled audio device it must first be “paired” with the device. Once paired, a Bluetooth device and the MH-W will “remember” each other and be able to connect when within range. MH-W can remember up to eight paired Bluetooth devices. The first paired device is automatically designated as the “primary” device. Additional devices are designated as “secondary” devices. The primary device will automatically connect when MH-W is powered on and within range. Secondary devices will not connect automatically when in range but must be connected using their Bluetooth settings menu. When a secondary device is connected, any other existing secondary connection will be ended. At any time, a press of the Bluetooth button will force MH-W to disconnect all current devices and connect to the primary device, if it is within range. …

Text truncated - open the document above for the full version.

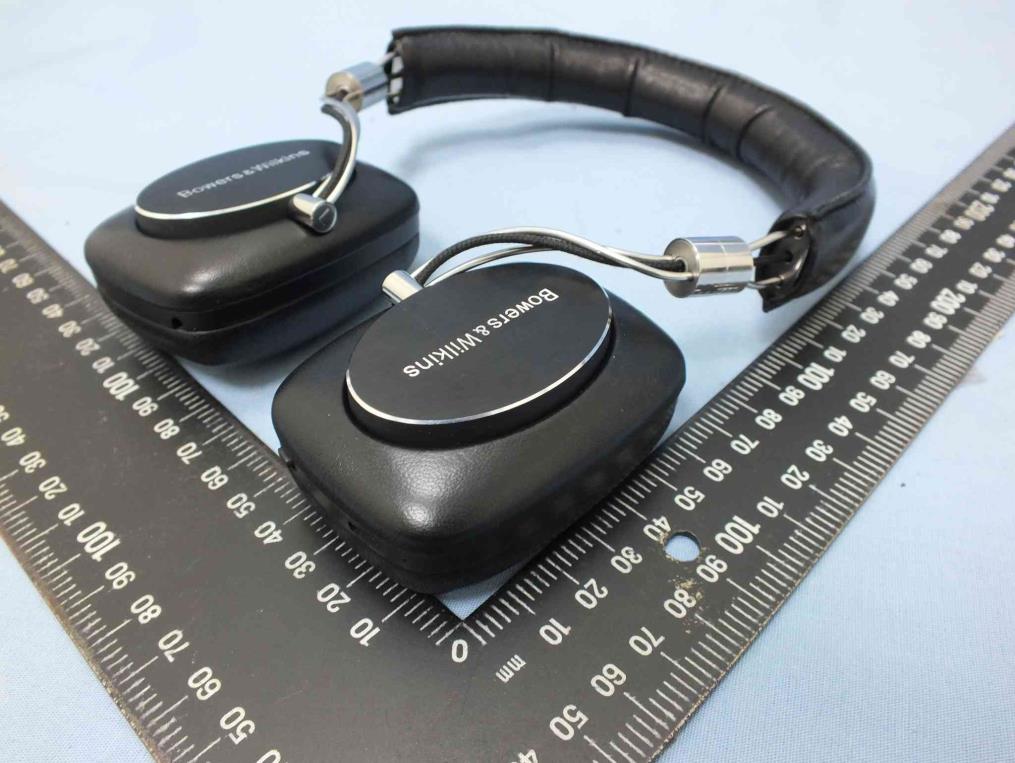

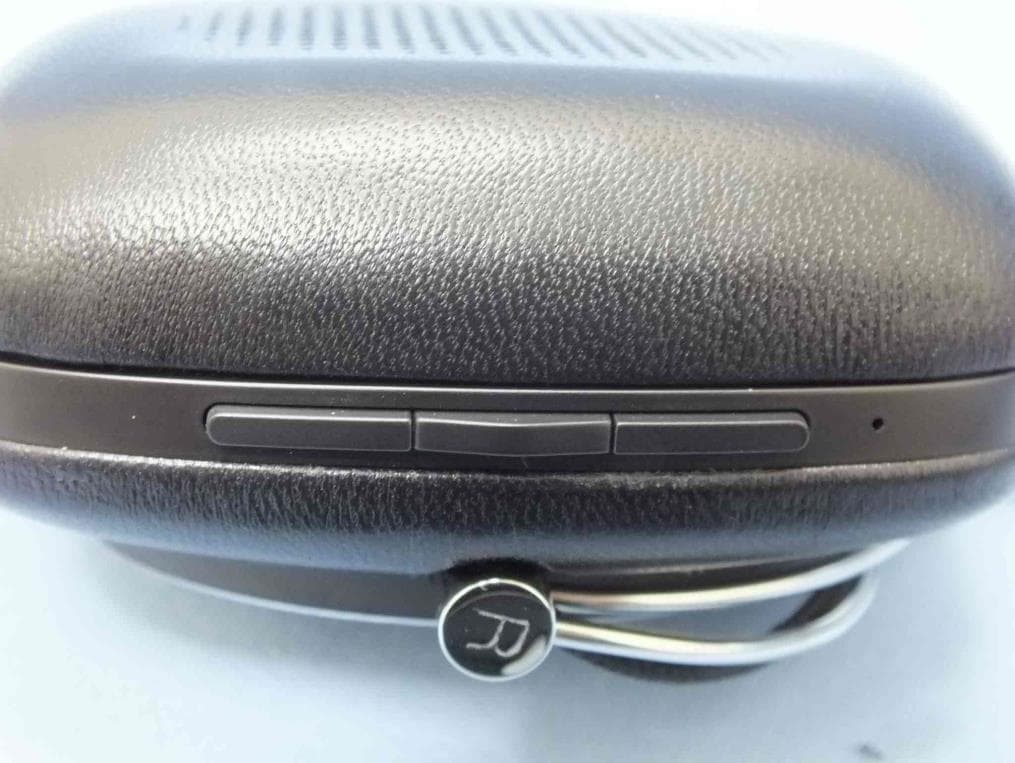

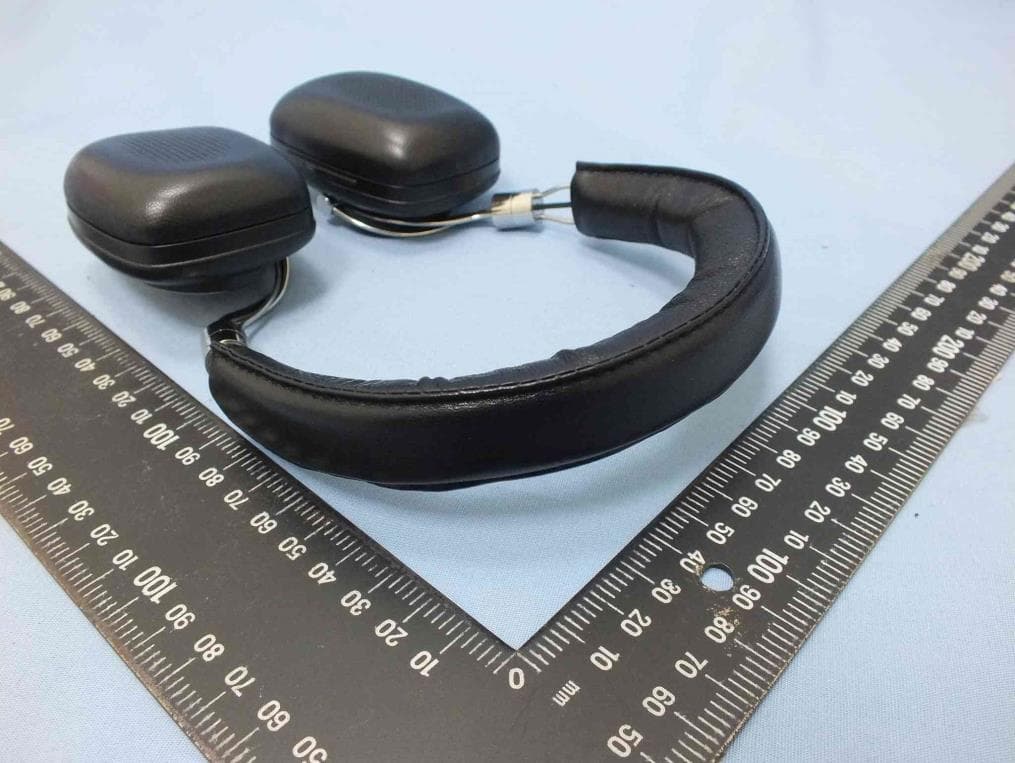

Report No. : EP4D0476 SPORTON International Inc. Page No. : 1 of 14 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Photographs of EUT Report No. : EP4D0476 SPORTON International Inc. Page No. : 2 of 14 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP4D0476 SPORTON International Inc. Page No. : 3 of 14 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP4D0476 SPORTON International Inc. Page No. : 4 of 14 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP4D0476 SPORTON International Inc. Page No. : 5 of 14 TEL : 886-3-327-3456 FAX : 886-3-327-0973

DIMENSIONS IN mm FINISH TOLERANCES 0.0.5 0.00.3 0.00 0.1 SCALE TITLE:- ECN ISS USED ON Material COPYRIGHT © 2014 DATE 23/09/2014 DRAWN BY KH PART NUMBER LL13722 SAP ART NUMBER P5 Wireless UK-EC-NA Rating Label 4 colour CMYK (text is white with black background). Matt lamination finish. White sticker 36mm 12mm R1.5mm FCC ID: 2ACIXP5WH IC: 11946B-P5WH CAN ICES-3 (B)/NMB-3(B) Made in China 6 Model name added and position of label changed to left ear 5 ID removed from IC 4 FCC and IC ID added Centre label to speaker plate LEFT EAR PAD 2mm Model: P5 Wireless

FCC Test Report Report No. : FR4D0476 SPORTON INTERNATIONAL INC. Page No. : 1 of 46 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 FCC Test Report Equipment : P5 Wireless Headphones Brand Name : Bowers & Wilkins Model No. : P5 Wireless FCC ID : 2ACIXP5WH Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DSS Applicant : B&W Group Ltd Dale Road, Worthing, West Sussex. BN11 2BH, United Kingdom The product sample received on Dec. 03, 2014 and completely tested on Dec. 09, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: James Fan / Assistant Manager Tested by: XXXX / Engineer FCC Test Report Report No. : FR4D0476 SPORTON INTERNATIONAL INC. Page No. : 2 of 46 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 12 3.1 AC Power-line Conducted Emissions .................................................................................................. 12 3.2 20dB Bandwidth and Carrier Frequency Separation............................................................................ 15 3.3 Number of Hopping Frequencies ......................................................................................................... 17 3.4 Time of Occupancy (Dwell Time) ......................................................................................................... 19 3.5 RF Output Power .................................................................................................................................. 21 3.6 Emissions in Non-Restricted Frequency Bands ................................................................................... 23 3.7 Transmitter Unwanted Emissions ......................................................................................................... 28 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 45 APPENDIX A. TEST PHOTOS ................................................................................................................. A1-A5 FCC Test Report Report No. : FR4D0476 SPORTON INTERNATIONAL INC. Page No. : 3 of 46 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.150MHz 35.10 (Margin 20.90dB) - AV 48.84 (Margin 17.16dB) - QP FCC 15.207 Complied 3.2 15.247(a) 20dB Bandwidth 1.2565 MHz N/A Complied 3.2 15.247(a) Carrier Frequency Separation (ChS) 1.0029 MHz ChS ≥ BW 20dB x2/3. Complied 3.3 15.247(a) Number of Hopping Frequencies (N) Max:79 Min:20 N ≥ 15 Complied 3.4 15.247(a) Time of Occupancy (Dwell Time) 0.316 sec 0.4 s within 0.4 x N Complied 3.5 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm] 5.54 Power [dBm] 21 Complied 3.6 15.247(d) Emissions in non-restricted frequency bands Out-of -band emissions are 20dB below the highest power Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.7 15.247(d) Transmitter Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 2483.50MHz 49.58 (Margin 4.42dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR4D0476 SPORTON INTERNATIONAL INC. Page No. : 4 of 46 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR4D0476 Rev. 01 Initial issue of report Feb. 13, 2015 2500-2690 FCC Test Report Report No. : FR4D0476 SPORTON INTERNATIONAL INC. Page No. : 5 of 46 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Frequency (MH…
