2ACJAHNDPF1002Social Photo Frame

USER MANUAL HN-DPF1002 Before c onnecting, operating or adjusting this product, please read this user’s manual carefully and completely. ENGLISH Social Photo Frame Can import photos from USB flash driver to photo frame, can’t copy photos from photo frame to USB flash driver, can’t play photos from USB flash driver directly. 4. Micro SD 2. USB 3. RESET Use a needle or paper clip to reset unit. 5.DC Connect DC adapter to power on the device. 1.POWER Load external micro SD memory cards here. (Can import photos from micro SD card to photo frame, can’t copy photos from photo frame to micro SD card, can’t play photos from micro SD card directly). After connecting power adapter, please press and hold power button for approximately 5 seconds (until screen turns on). When it is on, press and hold power button for approximately 3 seconds to access reboot or power off menu. Short press on power button will turn off/onscreen (but leave the photo frame in on position). ENG-1 1 2 3 4 RESET USB DC 5 ENG-2 Contents Getting started ............................................................................................................................... 3 frameoapp ....................................................................................................................................... 3 Feelcarequicksetup ........................................................................................................................ 4 Startusing Feelcare ........................................................................................................................ 4 Navigatingyour Feelcare ................................................................................................................. 5 Settings ............................................................................................................................................ 6 My frame ........................................................................................................................................ 6 Managephotos ............................................................................................................................... 6 My Friends ...................................................................................................................................... 7 Display andslideshow .................................................................................................................... 8 Wi-Fi ................................................................................................................................................. 8 Backupand Restore ........................................................................................................................ 8 About ............................................................................................................................................... 9 Privacy ............................................................................................................................................. 9 Warranty, Compliance,Supportand Safety information ................................................................... 9 ENG-3 Getting​ ​started Once​ ​you​ ​have​ ​set​ ​up​ ​your​ ​Feelcare​ ​frame,​ ​start​ ​connecting​ ​it​ ​to​ ​your​ ​friends​ ​and​ ​family. Frameo​ ​app To​ ​send​ ​photos​ ​to​ ​your​ ​frame,​ ​use​ ​the​ ​frameo​ ​app​ ​for​ ​iOS​ ​or​ ​Android Find​ ​the​ ​frameo​ ​app​ ​on: Google​ ​play​​ ​by​ ​searching​ ​for​ ​“frameo”​ ​or​ ​scan​ ​this​ ​QR​ ​code App​ ​Store​​ ​by​ ​searching​ ​for​ ​frameo​ ​or​ ​scan​ ​this​ ​QR​ ​code Thank you for purchasing your very own Feelcare Social Photo Frame. First, to set up your frame follow the ‘Quick start guide’ included in the package. If you are new to using Feelcare then start by following the frameo quick setup on page or follow the on screen guide​ ​when​ ​powering​ ​it​ ​on​ ​for​ ​the​ ​first​ ​time. Feelcare​ ​quick​ ​setup When​ ​starting​ ​your​ ​frame​ ​for​ ​the​ ​first​ ​time,​ ​you​ ​will​ ​need​ ​to​ ​setup​ ​the​ ​frame. ●First​ ​you​ ​start​ ​by​ ​selecting​ ​a​ ​language.​ ​This​ ​will​ ​be​ ​the​ ​language​ ​used​ ​throughout​ ​frameo. ●Connect​ ​your​ ​frame​ ​to​ ​the​ ​internet​ ​by​ ​connecting​ ​it​ ​to​ ​a​ ​Wi-Fi. If​ ​a​ ​newer​ ​version​ ​of​ ​the​ ​frameo​ ​software​ ​is​ ​available,​ ​then​ ​you​ ​will​ ​be​ ​prompted​ ​with​ ​an update​ ​dialog.​ ​It​ ​is​ ​recommended​ ​to​ ​update​ ​your​ ​frame​ ​immediately​ ​if​ ​prompted. ●Enter​ ​your​ ​name,​ ​and​ ​the​ ​location​ ​where​ ​you​ ​have​ ​placed​ ​your​ ​frame​ ​e.g.​ ​“Living​ ​room”, “Kitchen”​ ​or​ ​“Office”​ ​and​ ​finally​ ​set​ ​the​ ​timezone​ ​if​ ​not​ ​correct. Start​ using​ Feelcare Start​ ​by​ ​connecting​ ​with​ ​your​ ​friends​ ​and​ ​family​ ​by​ ​providing​ ​them​ ​with​ ​a​ ​unique​ ​code​ ​from​ ​your frame. If​ ​you​ ​want​ ​to​ ​be​ ​able​ ​to​ ​send​ ​photos​ ​to​ ​the​ ​frame​ ​yourself,​ ​start​ ​by​ ​downloading​ ​the​ ​app​ ​for​ ​iOS or​ ​Android​ ​on​ ​​App​ ​Store​​ ​or​ ​​Google​ ​Play​.​ ​Then​ ​use​ ​the​ ​code​ ​to​ ​connect​ ​your​ ​frame​ ​and​ ​app​ ​as described​ ​below. Connecting​ ​a​ ​new​ ​friend: ●Make​ ​sure​ ​that​ ​your​ ​friend​ ​has​ ​downloaded​ ​and​ ​installed​ ​the​ ​frameo​ ​app ●Click​ ​the​ ​add​ ​friend​ ​icon​ ​on​ ​your​ ​frame​ ​.​ ​A​ ​dialog​ ​will​ ​appear​ ​showing​ ​a​ ​unique​ ​code which​ ​is​ ​valid​ ​for​ ​12​ ​hours. ●Now​ ​share​ ​this​ ​code​ ​in​ ​whatever​ ​fashion​ ​you​ ​prefer​ ​e.g.​ ​SMS,​ ​E-Mail,​ ​IM,​ ​phone​ ​call,​ ​to your​ ​friend. ●Once​ ​your​ ​friends​ ​have​ ​added​ ​the​ ​code​ ​in​ ​their​ ​frameo​ ​app,​ ​they​ ​will​ ​automatically​ ​appear on​ ​your​ ​frame​ ​and​ ​be​ ​able​ ​to​ ​send​ ​you​ ​photos. ENG-4 You​ ​interact​ ​with​ ​your​ ​frame​ ​through​ ​its​ ​touchscreen. Swipe​ ​left​ ​or​ ​right​ ​to​ ​go​ ​through​ ​your​ ​photos. To​ ​access​ ​the​ ​menu​ ​bar,​ ​simply​ ​tap​ ​once​ ​on​ ​the​ ​screen,​ ​this​ ​will​ ​show​ ​the​ ​m…

Text truncated - open the document above for the full version.

Shenzhen Harmony Technology Co., Ltd 2020-07-02 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ACJAHNDPF1002 Product Name: Social Photo Frame Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Logan Luo Title: N/A Company: Shenzhen Harmony Technology Co., Ltd

Shenzhen Harmony Technology Co., Ltd 2020-07-02 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Tongce Testing Lab. / 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Harmony Technology Co., Ltd / Block 2, Jiayuan Industrial Zone, Heping Community, high-tech park, No 2 Fuyuan Road, Fuyong, Bao'an, Shenzhen, China (Applicant Name and address) <Signature> Name: Logan Luo Title: N/A Applicant Company: Shenzhen Harmony Technology Co., Ltd

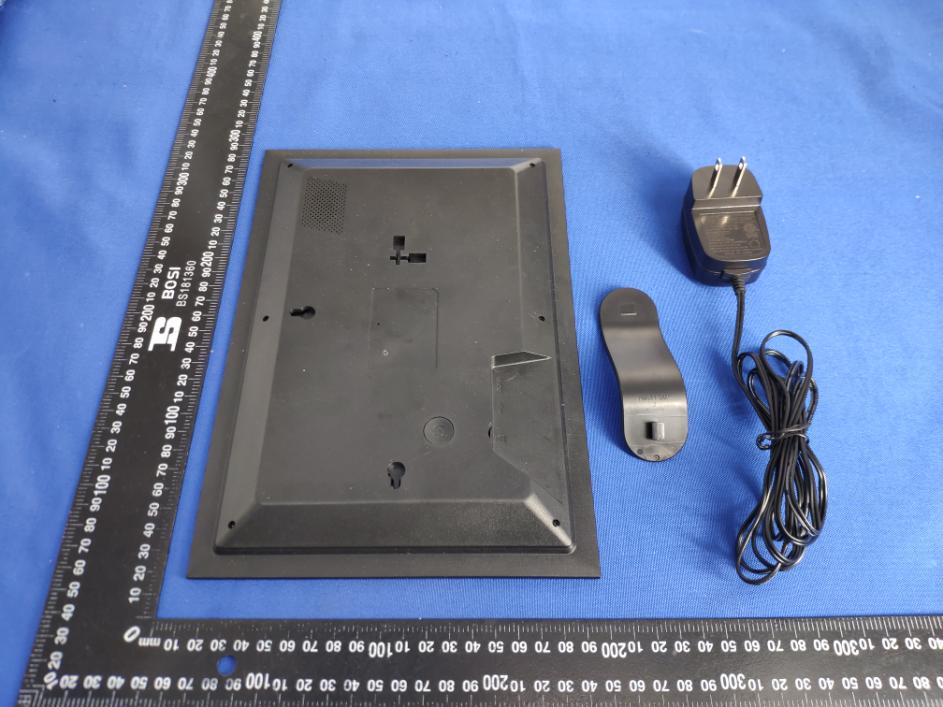

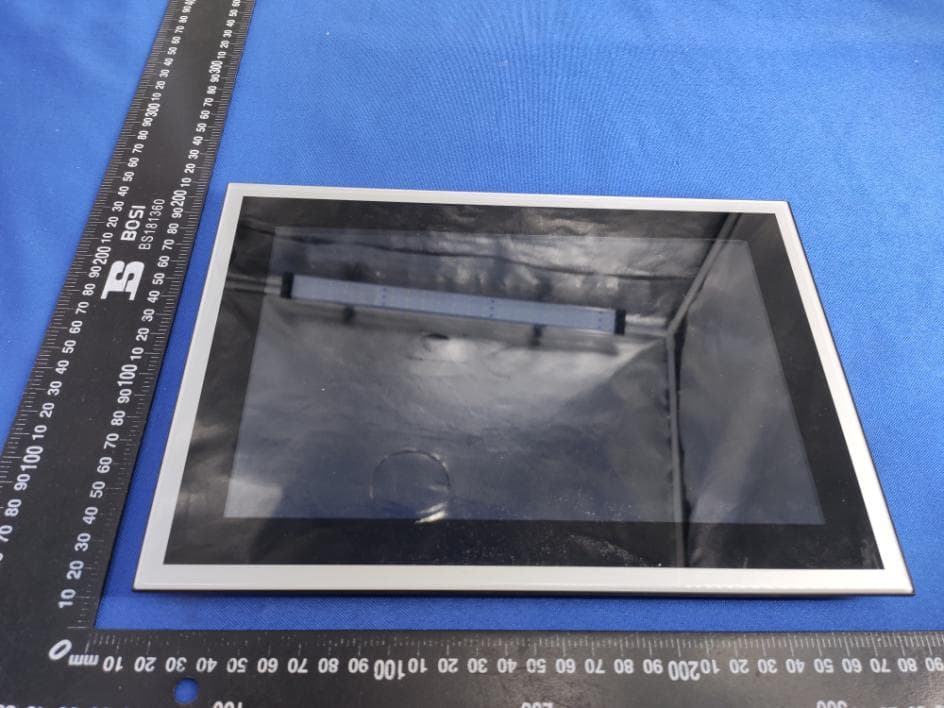

Page 1 of 4 Appendix B: Photographs of EUT Product: Social Photo Frame Model: HN-DPF1002 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: HN-DPF1002 Label: Si ze: L*W=52*38mm Social Photo Frame Model: HN-DPF1002 FCC ID: 2ACJAHNDPF1002 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Location

Maximum Permissible Exposure FCC ID: 2ACJAHNDPF1002 Applicable Standard According to §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Remark: 1) The maximum output power for antenna is 8.78dBm (7.55mW) at 2462MHz, 0dBi antenna gain(with 1.00 numeric antenna gain.) 2) For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20cm, even if the calculation indicate that the MPE distance would be lesser. Maximum Permissible Exposure output power= 7.55mW Numeric Antenna gain= 1.00 Substituting the MPE safe distance using d=20cm into above equation. Yields: S=0.000199*P*G Where P=Power in mW G=Numeric antenna gain S=Power density in mW/cm2 Power density= 0.001502mW/cm2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Report No.: TCT200622E046 Page 51 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 Report No.: TCT200622E046 Page 52 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 0.06 0.06 --- PASS 30~1000 30~1000 -68.698 <=-29.94 PASS 1000~26500 1000~26500 -42.251 <=-29.94 PASS 2437 Reference 0.49 0.49 --- PASS 30~1000 30~1000 -68.54 <=-29.515 PASS 1000~26500 1000~26500 -42.596 <=-29.515 PASS 2462 Reference 0.36 0.36 --- PASS 30~1000 30~1000 -68.791 <=-29.645 PASS 1000~26500 1000~26500 -43.445 <=-29.645 PASS 11G Ant1 2412 Reference -6.04 -6.04 --- PASS 30~1000 30~1000 -68.73 <=-36.04 PASS 1000~26500 1000~26500 -42.419 <=-36.04 PASS 2437 Reference -5.98 -5.98 --- PASS 30~1000 30~1000 -69.095 <=-35.983 PASS 1000~26500 1000~26500 -42.879 <=-35.983 PASS 2462 Reference -5.47 -5.47 --- PASS 30~1000 30~1000 -68.338 <=-35.473 PASS 1000~26500 1000~26500 -42.34 <=-35.473 PASS 11N20SISO Ant1 2412 Reference -6.09 -6.09 --- PASS 30~1000 30~1000 -68.76 <=-36.086 PASS 1000~26500 1000~26500 -43.14 <=-36.086 PASS 2437 Reference -7.05 -7.05 --- PASS 30~1000 30~1000 -68.764 <=-37.046 PASS 1000~26500 1000~26500 -43.038 <=-37.046 PASS 2462 Reference -5.86 -5.86 --- PASS 30~1000 30~1000 -69.078 <=-35.863 PASS 1000~26500 1000~26500 -42.584 <=-35.863 PASS Report No.: TCT200622E046 Page 53 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 Report No.: TCT200622E046 Page 54 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference Report No.: TCT200622E046 Page 55 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference Report No.: TCT200622E046 Page 56 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference Report No.: TCT200622E046 Page 57 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 11G_Ant1_2462_0~Reference Report No.: TCT200622E046 Page 58 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 11N20SISO_Ant1_2412_0~Reference Report No.: TCT200622E046 Page 59 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference Report No.: TCT200622E046 Page 60 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference Report No.: TCT200622E046 Page 61 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 Report No.: TCT200622E046 Page 62 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Limit Verdict 11B Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11G Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11N20SISO Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS Report No.: TCT200622E046 Page 63 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Report No.: TCT200622E046 Page 64 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Report No.: TCT200622E046 Page 65 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Report No.: TCT200622E046 Page 66 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix B: Photographs of Test Setup Product: Social Photo Frame Model: HN-DPF1002 Radiated Emission Report No.: TCT200622E046 Page 67 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Emission Report No.: TCT200622E046 Page 68 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix C: Photographs of EUT Product: Social Photo Frame Model: HN-DPF1002 External Photos Report No.: TCT200622E046 Page 69 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200622E046 Page 70 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200622E046 Page 71 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200622E046 Page 72 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Product: Social Photo Frame Model: HN-DPF1002 Internal Photos Report No.: TCT200622E046 Page 73 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200622E046 Page 74 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com *****END OF REPORT*****

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2ACJAHNDPF1002 Product: Social Photo Frame Model No.: HN-DPF1002 Additional Model No.: DigiFrame 10X, HN-DPF10XX Trade Mark: N/A Report No.: TCT200622E046 Issued Date: Jun. 30, 2020 Issued for: Shenzhen Harmony Technology Co., Ltd Block 2, Jiayuan Industrial Zone, Heping Community, high-tech park, No 2 Fuyuan Road, Fuyong, Bao'an, Shenzhen, China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200622E046 Page 2 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 7 4.1. Test environment and mode ................................................................................. 7 4.2. Description of Support Units ................................................................................ 8 5. Facilities and Accreditations .................................................................. 9 5.1. Facilities ................................................................................................................. 9 5.2. Location ................................................................................................................. 9 5.3. Measurement Uncertainty ..................................................................................... 9 6. Test Results and Measurement Data ................................................... 10 6.1. Antenna requirement .......................................................................................... 10 6.2. Conducted Emission ........................................................................................... 11 6.3. Maximum Conducted (Average) Output Power ................................................ 15 6.4. Emission Bandwidth ........................................................................................... 16 6.5. Power Spectral Density ....................................................................................... 17 6.6. Conducted Band Edge and Spurious Emission Measurement ....................... 18 6.7. Radiated Spurious Emission Measurement ...................................................... 20 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT200622E046 Page 3 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Social Photo Frame Model No.: HN-DPF1002 Additional Model: DigiFrame 10X, HN-DPF10XX Trade Mark: N/A Applicant: Shenzhen Harmony Technology Co., Ltd Address: Block 2, Jiayuan Industrial Zone, Heping Community, high-tech park, No 2 Fuyuan Road, Fuyong, Bao'an, Shenzhen, China Manufacturer: Shenzhen Harmony Technology Co., Ltd Address: Block 2, Jiayuan Industrial Zone, Heping Community, high-tech park, No 2 Fuyuan Road, Fuyong, Bao'an, Shenzhen, China Date of Test: Jun. 23, 2020 – Jun. 29, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Jun. 29, 2020 Brave Zeng Reviewed By: Date: Jun. 30, 2020 Beryl Zhao Approved By: Date: Jun. 30, 2020 Tomsin Report No.: TCT200622E046 Page 4 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT200622E046 Page 5 of 74 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: Social Photo Frame Model No.: HN-DPF1002 Additional Model: DigiFrame 10X, HN-DPF10XX Trade Mark: N/A Operation Frequency: 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20)) Channel Separation: 5MHz Number of Channel: 11 for 802.11b/802.11g/802.11n(HT20) Modulation Technology: (IEEE 802.11b) Direct Sequence Spread Spectrum (DSSS) Modulation Technology: (IEEE 802.11g/802.11n) Orthogonal Frequency Division Multiplexing(OFDM) Data speed (IEEE 802.11b): 1Mbps, 2Mbps, 5.5Mbps, 11Mbps Data speed (IEEE 802.11g): 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps, 48Mbps, 54Mbps Data speed (IEEE 802.11n): Up to 150Mbps Antenna Type: FPC…

Text truncated - open the document above for the full version.

Page 1 of 2 Appendix A: Photographs of Test Setup Product: Social Photo Frame Model: HN-DPF1002 Radiated Emission Page 2 of 2 Conducted Emission
