Wireless Digital Video Recorder Installation and Operating Instructions Model: WDVR-3AX Version 1.1 PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT AND KEEP THIS MANUAL FOR FUTURE REFERENCE. The state of art WIRELESS DIGITAL VIDEO RECORDER is capable of deliver high quality video to your smart-mobile device(s), which would require higher internet bandwidth. Due to your local internet environment condition, your mobile device(s) may display black-screen or temporary disconnect to the WDVR. 0DNHVXUHWKH:'95LVRSHUDWLQJZLWKVXI¿FLHQWLQWHUQHWEDQGZLGWK1.5Mbps (upload speed) per camera is suggested. )RUEHVWSHUIRUPDQFH the smart-mobile device(s) need to be on Wi-Fi or 4G mobile network LQRUGHUWRUHFHLYHPD[LPXPGRZQORDGVSHHG *When the internet transmission is low,\RXU:'95$33ZLOODXWRPDWLFDOO\VZLWFKWR 5HOD\ 0RGH %\DGMXVWLQJLPDJHTXDOLW\WR “low” LQWKHFDPHUDVHWWLQJVHFWLRQPD\LPSURYHWKH WDVR $33SHUIRUPDQFH *Your internet bandwidth is limited.)RUEHVWSHUIRUPDQFHWU\WRDYRLGPRUHWKDQWZR users FRQQHFWLQJWRWKH:'95VLPXOWDQHRXVO\ 0DNHVXUH\RXUVPDUWPRELOHGHYLFH V LVHTXLSSHGZLWKXSWRGDWHWHFKQRORJ\1.5GHz dual core processor or equivalent is suggested. 3OHDVHPDNHVXUHWKHPHPRU\FDUGXVHGLVCLASS10UDWHG 1 CONTENTS KIT CONTENT ................................................................................................. 2 INTRODUCTION .............................................................................................. 3 IMPORTANT SAFETY PRECAUTIONS.....................................................................3 KNOWING YOUR DEVICES ............................................................................5 WIRELESS DIGITAL RECEIVER CONSOLE ............................................................6 WIRELESS DIGITAL OUTDOOR PIR CAMERA........................................................8 INSTALLING YOUR DEVICES ....................................................................... 10 CONNECTING THE WIRELESS DVR TO YOUR TV/MONITOR .............................10 INSTALLING YOUR CAMERA ................................................................................ 11 CONNECTING THE MOUSE ..................................................................................13 CONNECTING TO TV.............................................................................................14 CONNECTING THE ETHERNET ............................................................................15 INSERT MEMORY CARD .......................................................................................16 ,167$//(;3$1'7+(+$5'',6.'5,9( RSWLRQDO ...........................................17 BASIC OPERATION ...................................................................................... 19 QUICK SELECT MENU ..........................................................................................19 LIVE VIEW WITH QUAD DISPLAY .........................................................................20 /,9(9,(::,7+60$5748$'',63/$<............................................................21 LIVE VIEW WITH DYNAMIC DISPLAY ...................................................................21 MAIN MENU ...........................................................................................................21 RECORDED VIDEO FILE PLAYBACK ....................................................................21 AUTO SCAN ...........................................................................................................21 REMOTE SURVEILLANCE SETUP ............................................................... 22 KNOWING THE MAIN MENU......................................................................... 23 ADVANCED SETTINGS ................................................................................. 25 CAMERA SETUP ....................................................................................................25 RECORDER SETUP...............................................................................................27 EVENT LIST ...........................................................................................................32 SYSTEM SETUP ....................................................................................................33 STORAGE SETUP..................................................................................................35 TROUBLE SHOOTING .................................................................................. 37 PRODUCT SPECIFICATION .......................................................................... 39 APPENDIX 1: COMPATIBLE LIST................................................................. 40 APPENDIX 2: RECORDING CAPACITY ........................................................ 41 2 Minimum System Requirement for DVR: 'LJLWDO:LUHOHVV2XWGRRU,5 &DPHUD &DPHUD6WDQG Mouse 2ZQHU0DQXDO&' &DPHUD5HFHLYHU$QWHQQD +'0,&DEOH 0HPRU\&DUG RSWLRQDO 'LJLWDO:LUHOHVV5HFHLYHU &RQVROH (WKHUQHW&DEOH +'' RSWLRQDO x 2 x 2 x 1 x 1 x 3 x 1 x 1 x 1 x 1 x 1 )RU5HFRUGLQJ 0D[7%+''VXSSRUWHG PD[9$ 86%SRZHUVXSSRUWHG  )RU'HVSOD\ )RUEHVWSHUIRUPDQFHRQO\XVH+'0, FDEOHSURYLGHG )RU1HWZRUNLQJ '+&3HQDEOHGURXWHU 0ESVRUDERYHXSORDGEDQGZLGWK ERWKKRPHDQGPRELOHGHYLFH  L3KRQH60LQLL3DGRUDERYH $QGURLG**GXDOFRUHRU DERYH &DPHUD5HFHLYHU$GDSWRU x 2 x 1 &DPHUDSRZHU DGDSWHU9$ WDVR power DGDSWHU 2V/3A 6FUHZ3DFN x 2 x 1 x 1 )RU&DPHUD For HDD 0HWULF6FUHZ 8QL¿HG6FUHZ KIT CONTENT 3 INTRODUCTION IMPORTANT SAFETY PRECAUTIONS 'DPDJHVFDXVHGE\QRQFRPSOLDQFHZLWKWKLVRSHUDWLQJPDQXDOZLOOYRLGWKHZDUUDQW\ :HZLOO QRWDVVXPHDQ\OLDELOLW\IRUGDPDJHVWRLWHPVRUSHUVRQVFDXVHGE\LPSURSHU KDQGOLQJRUQRQ FRPSOLDQFHZLWKWKHVDIHW\QRWLFHV$Q\ZDUUDQW\FODLPZLOOEHQXOODQG YRLGLQVXFKFDVHV 'RQRWGURSSXQFWXUHRUGLVDVVHPEOHWKHFDPHUDRWKHUZLVHWKHZDUUDQW\ZLOOE…

Text truncated - open the document above for the full version.

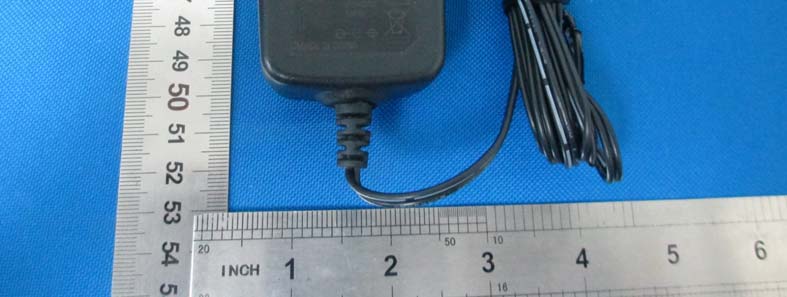

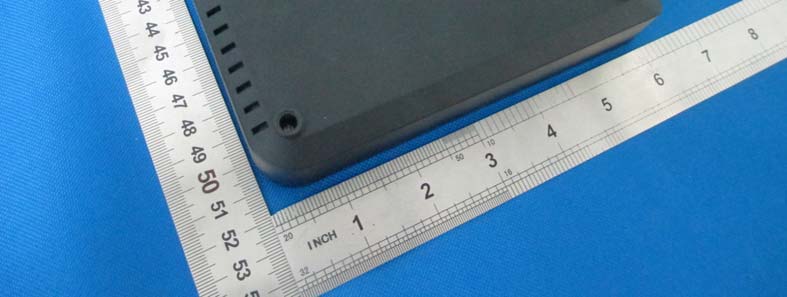

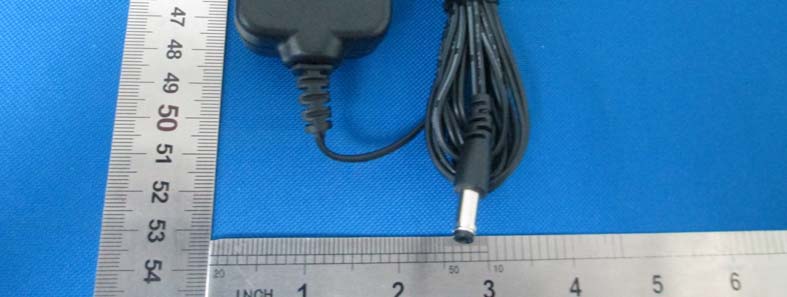

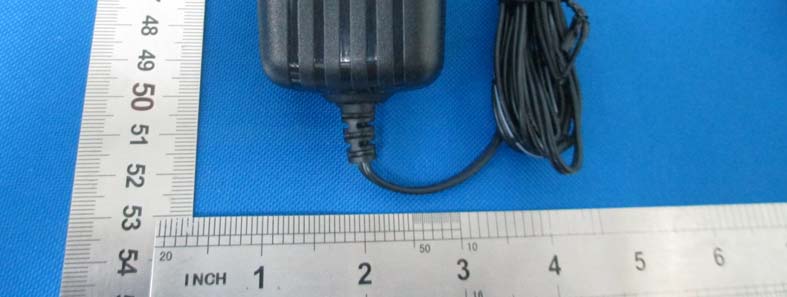

Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-REN140340 Page 63 of 70 14. Photos of the EUT Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-REN140340 Page 64 of 70 Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-REN140340 Page 65 of 70 Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-REN140340 Page 66 of 70 Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-REN140340 Page 67 of 70

Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-REN140340 Page 68 of 70 Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-REN140340 Page 69 of 70 Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-REN140340 Page 70 of 70 END OF REPORT

RF Exposure Evaluation Result 1. Requirement Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. Limits for General Population/Uncontrolled Exposure 2. Calculation Method From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. 3. Estimation Result Mode Frequency (MHz) PK Output power (dBm) Output power (mW) Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) 2403 15.65 36.73 2 2 0.015 2443 16.66 46.34 2 2 0.018 GFSK 2475 15.32 34.04 2 2 0.014 Note: The estimation distance is 20cm Conclusion: PASS Evaluation Test Engineer: ________________ Leo Liu (Lead Engineer) 0.015<1 1.58 0.015

Dongguan Dongdian Testing Service Co., Ltd Report No:DDT-REN140340 Page 1 of 70 FCC CERTIFICATION TEST REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel: +86-0769-22891499 Http://www.dgddt.com Applicant : Atoms Labs LLC Address : 2670 Firewheel Dr. Suite D Flower Mound, TX 75028 United States Equipment under Test : Wireless Digital Video Recorder Model No : ADR41R FCC ID : 2ACMYADR41R Manufacturer : Atoms Labs LLC Address : 2670 Firewheel Dr. Suite D Flower Mound, TX 75028 United States Report No: DDT-REN140340 Issued Date: Oct. 22, 2014 Dongguan Dongdian Testing Service Co., Ltd Report No:DDT-REN140340 Page 2 of 70 TABLE OF CONTENTS Test report declares......................................................................................................................4 1. Summary of test results ............................................................................................................... 5 2. General test information .............................................................................................................. 6 2.1. Description of EUT ..................................................................................................................... 6 2.2. Accessories of EUT..................................................................................................................... 6 2.3. Assistant equipment used for test ................................................................................................ 6 2.4. Block diagram of EUT configuration for test ............................................................................. 7 2.5. Test environment conditions ....................................................................................................... 7 2.6. Test laboratory............................................................................................................................. 7 2.7. Measurement uncertainty ............................................................................................................ 8 3. Maximum Peak Output Power ....................................................................................................9 3.1. Test equipment ............................................................................................................................ 9 3.2. Block diagram of test setup ......................................................................................................... 9 3.3. Limits .......................................................................................................................................... 9 3.4. Test Procedure............................................................................................................................. 9 3.5. Test Result................................................................................................................................... 9 4. 20dB Bandwidth........................................................................................................................ 10 4.1. Test equipment .......................................................................................................................... 10 4.2. Block diagram of test setup ....................................................................................................... 10 4.3. Limits ........................................................................................................................................ 10 4.4. Test Procedure........................................................................................................................... 10 4.5. Test Result................................................................................................................................. 11 4.6. Original test data ....................................................................................................................... 11 5. Emissions outside the specified frequency bands ..................................................................... 14 5.1. Test equipment .......................................................................................................................... 14 5.2. Block diagram of test setup ....................................................................................................... 14 5.3. Limits ........................................................................................................................................ 14 5.4. Test Procedure........................................................................................................................... 14 5.5. Test Result................................................................................................................................. 15 5.6. Original test data ....................................................................................................................... 15 6. Carrier Frequency Separation.................................................................................................... 22 6.1. Test equipment .......................................................................................................................... 22 6.2. Block diagram of test setup ....................................................................................................... 22 6.3. Limits ........................................................................................................................................ 22 6.4. Test Procedure........................................................................................................................... 22 6.5. Test Result................................................................................................................................. 22 Dongguan Dongdian Testing Service Co., Ltd Report No:DDT-…

Text truncated - open the document above for the full version.

Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-REN140340 Page 62 of 70 13. Test setup photograph
