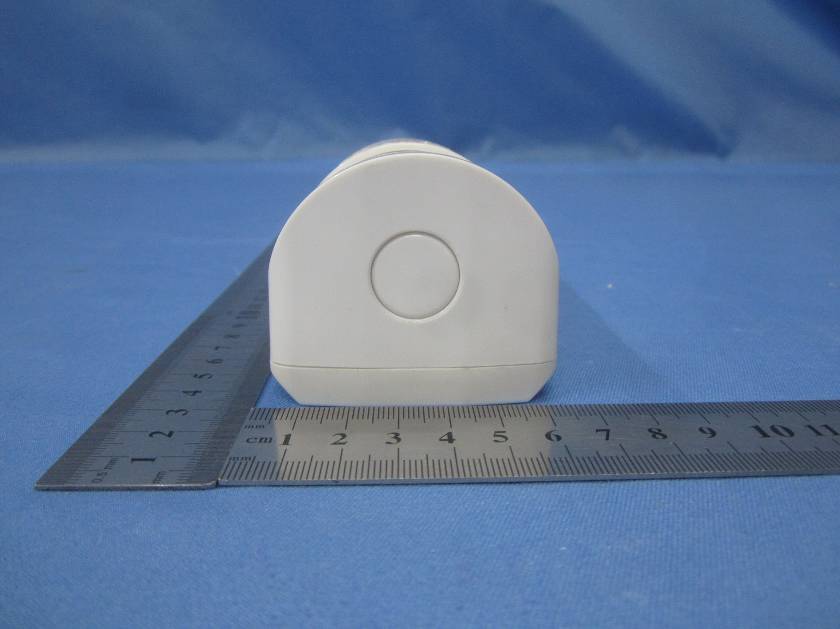

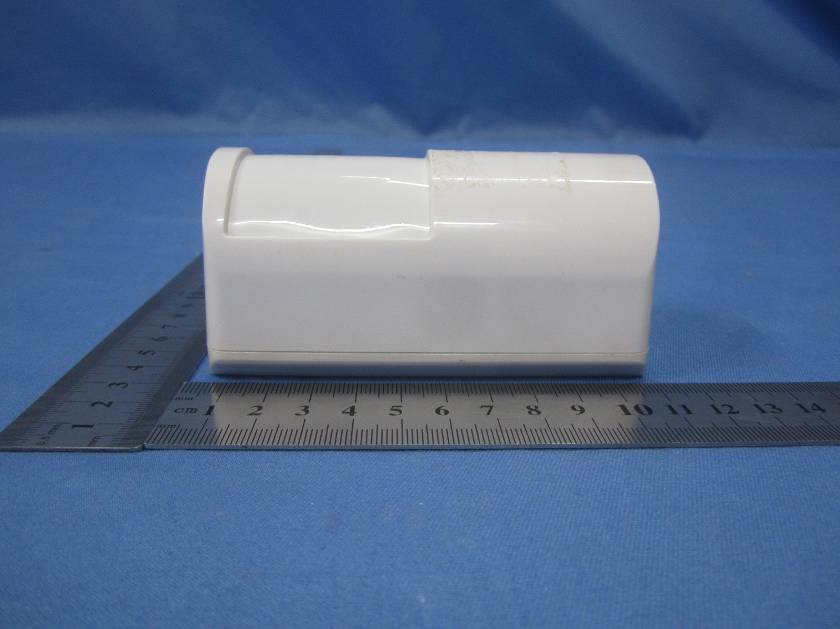

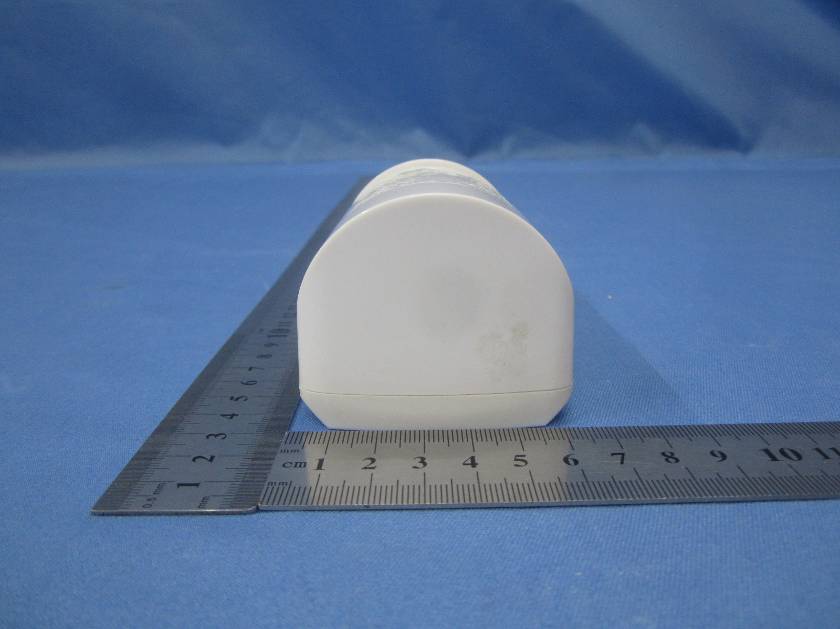

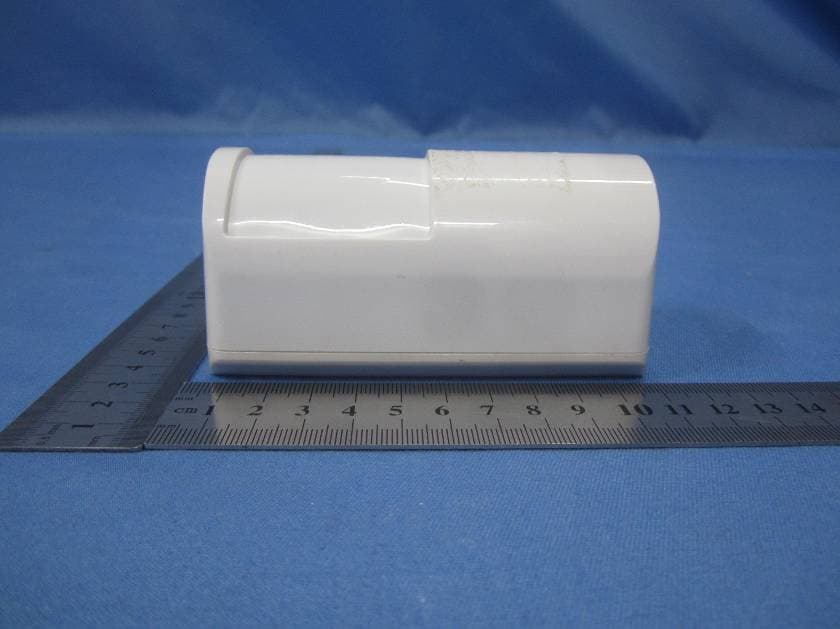

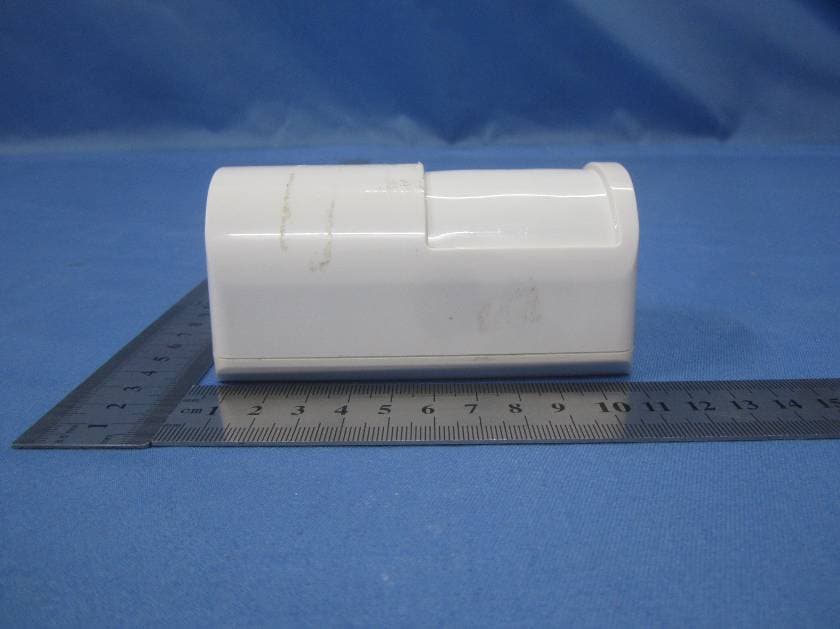

2ACMYAHSS31Passive infrared motion detector

QUICK START GUIDE KIT CONTENT SYSTEM INTRODUCTION GETTING STARTED 1. Connect the gateway box to the Internet (1) Connect gateway box to your router via the Ethernet cable. Then plug in the supplied power cable. (2) The power LED indicator becomes steady RED and you will hear the gateway box beep twice. This means the gateway box is ready for APP setup. (3) Launch 'OMGUARD SHC' APP. The APP will automatically search the available gateway box and brings up the system DID/password. If it is not shown, Please check the system DID on the bottom of the gateway box. Enter the system DID and default password 123456 manually. Note: The gateway box should be powered on and connected to the Internet at all times. You can continue to setup the camera and sensor(s) now. 2. Set up the IP Camera (1) Connect the IP Camera to your router via the Ethernet cable . (2) Plug in the power adapter and wait until both RED and GREED LED begin flashing. Note: DO NOT begin the APP setup process until both LEDs become steady on. Adaptor DC12V/1A Adaptor DC12V/1A Adaptor DC12V/1A Adaptor DC12V/1A Ethernet cable 2M Battery AA 1.5V Battery AA 1.5V x 3 NA Sticky padScrew Battery CR2032 Sticky pad Adaptor DC 5V/1 ABattery AA 1.5V or Battery AA 1.5V x 4 Bracket x 1 Adaptor DC 5V/1.5A x 1 x 1 x 3x 4x 4 x 1x 3x 4 x 1x 4x 1 Battery CR2032 x 1 Screw x 2 Screw Gayway IP Camera Motion PIR On / Off Switch Door / Window Sensor Indoor Siren Panic Remote Steady RED (3) Launch the 'OMGUARD SHC' APP. Click the 'ADD' icon and choose 'Camera' to add the device to system. Follow the APP wizard setup process to add the camera. Note: The APP will search the available IP Camera in LAN area. If the camera you're setting doesn't appear in the searching list, please enter the camera ID (DID) and password manually. Installing the IP Camera: (1) Secure the camera stand on the stable surface. (2) Mount the camera into camera stand. Adjust the viewing angle and fix the camera tightly. 3. Pair the Motion Sensor Launch the 'OMGUARD SHC' APP. Click the 'ADD' icon and choose 'Motion Sensor' and to initiate the pairing process, following with pressing the pairing button located inside the battery compartment to complete the process. Installing the Motion Sensor: (1) Place the motion sensor upward, facing the location to be monitored. The detection distance is up to 16 meteres. For maximum coverage, it is recommanded to place the motion sensor highup with its back against the corner of walls to ensure best detection coverage. (2) Use the double-sided tape to fix the motion sensor. OMGUARDSHC OMGUARDSHC OMGUARDSHC Ethernet cable 2M x 1 Gateway Smart wireless central home control / management center. Door / Window Sensor Wireless door / window access alert sensor. Indoor Siren Wireless portable / wall- mount alert siren. Panic Remote Wireless multi-functional panic remote controller. IP Camera Wireless day / night portable motion alert indoor camera. Motion PIR Wireless portable / wall- mount area motion alert sensor. On / Off Switch Wireless appliance energy management power switch / signal repeater (single device) Remove the insulating plastic Remove the insulating plastic 16 meters ? 4. Pairing the Power Switch Launch the 'OMGUARD SHC' APP. Click the 'ADD' icon and choose ‘Power Switch' and to initiate the pairing process, following with press/hold the front panel button until LED flashing blue. To initiate the repeater function, press / hold the front panel button turned orange, following with pressing the pairing button on the device . 5. Pairing the Door / Window Sensor Launch the 'OMGUARD SHC' APP. Click the 'ADD' icon and choose 'Door Sensor' and to initiate the pairing process, following with removing and reinstalling the battery compartment cover to complete the process. Installing the Door/Window Sensor Using the double-sided tape: (1) Apply the double-sided tape to the backs of the Door/Window sensor. (2) Select a location on the door/window. The large piece of the sensor should be fixed on the immovable frame of the door/window. Align the small piece to the large one. Fix the small piece on the movable part of the door/window frame. (3) When it is finished, open the door or window to test if the sensor has been correctly installed. You'll receive an alert from the mobile device if the APP and sensor have been corrected installed. FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation. Products with CE Marking comply with EMC Directive (2004/108/EC); Low Voltage Directive (73/23/EEC); R&TTE (1999/5/EC); ROHS Directive (2011/65/EU) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms: EMC: EN 301 489 LVD: EN 60950 Radio: EN 300 328 If the camera system no longer functions or can no longer be repaired, it must be disposed of according to the valid statutory regulations. Disposal of spent batteries/accumulators: You are required by law (Battery Ordinance) to return all spent batteries and accumulators. Disposing of spent batteries/accumulators with common household waste is prohibited! Batteries/accumulators that contain hazardous substances are marked with the symbols on the side. These symbols indicate that it is prohibited to dispose of these batteries/accumulators in the household waste. The abbreviations for the respective heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead. You can return spent batteries and accumulators that can no longer be charged to the designated collection points in your community, outlets or wherever batteries or accumulators are sold. Following these instructions will allow you to fulfill the legal requirements and contribute to the protection of our environment! Using the mounting screws: (1)…

Text truncated - open the document above for the full version.

FCC ID:2ACMYAHSS31

30X15mm塑膠材質，需覆膜，白底黑字 Made in China THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS DEVICE. FCC ID:2ACMYAHSS31 Model Number:AHSS31 Battery 1.5V x 3(AA) Made in China THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS DEVICE. FCC ID:2ACMYAHSS31 Model Number:AHSS31 Battery 1.5V x 3(AA) S/N.:R150700001 F441-CCD807-41-E3 序號貼紙 材質：反銀龍+上光 尺寸：25*5mm 顏色：銀底黑字 S/N.:R150700001 R:代表ROHS,固定不變 15：代表生產年份，即2015年 07：代表生產月份，即7月份 00001：為生產流水號

FCC ID: 2ACMYAHSS31 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where --f(GHz) is the RF channel transmit frequency in GHz --Power and distance are rounded to the nearest mW and mm before calculation --The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) --- 3m So pt = (EXd) 2 /30 x gt Field strength = 92.13dBuV/m @3m Ant gain = 0dBi; so Ant numeric gain=1 So pt={[10 (92.13) /10 6 x3] 2 /(30x1 )}x1000 mW =0.49mW So (0.49mW /5mm)x √0.9168 =0.094<3 Then SAR evaluation is not required

Global United Technology Services Co., Ltd. Report No.: GTSE15060105701 FCC REPORT Applicant: Atoms Labs LLC Address of Applicant: 2670 Firewheel Dr. Suite D Flower Mound TX 75028 United States Equipment Under Test (EUT) Product Name:Passive infrared motion detector Model No.:AHSS31 FCC ID: 2ACMYAHSS31 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2014 Date of sample receipt: June 17, 2015 Date of Test: June 18-23, 2015 Date of report issued: June 24, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. Report No.: GTSE15060105701 2Version Version No.DateDescription 00June 24, 2015Original Prepared By: Date: June 24, 2015 Project Engineer Check By:Date: June 24, 2015 Reviewer Global United Technology Services Co., Ltd.Project No.: GTSE150601057RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960Page 2 of 22 Report No.: GTSE15060105701 3Contents Page 1 COVER PAGE............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 4.1 MEASUREMENT UNCERTAINTY............................................................................................................ 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE........................................................................................................................................ 6 5.4 DESCRIPTION OF SUPPORT UNITS....................................................................................................... 6 5.5 TEST FACILITY.................................................................................................................................... 6 5.6 TEST LOCATION................................................................................................................................. 6 5.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER......................................................................... 6 6 TEST INSTRUMENTS LIST ..................................................................................................................... 7 7 TEST RESULTS AND MEASUREMENT DATA...................................................................................... 8 7.1 ANTENNA REQUIREMENT..................................................................................................................... 8 7.2 RADIATED EMISSION METHOD............................................................................................................. 9 7.2.1 Field Strength of The Fundamental Signal ................................................................................ 11 7.2.2 Spurious emissions.................................................................................................................... 11 7.2.3 Bandedge emissions.................................................................................................................. 14 7.3 20DBOCCUPY BANDWIDTH.............................................................................................................. 15 8 TEST SETUP PHOTO ............................................................................................................................ 16 9 EUT CONSTRUCTIONAL DETAILS .....................................................................................................17 Global United Technology Services Co., Ltd.Project No.: GTSE150601057RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960Page 3 of 22 Report No.: GTSE15060105701 4Test Summary Test ItemSection in CFR 47Resu…

Text truncated - open the document above for the full version.

Radiated Emission
