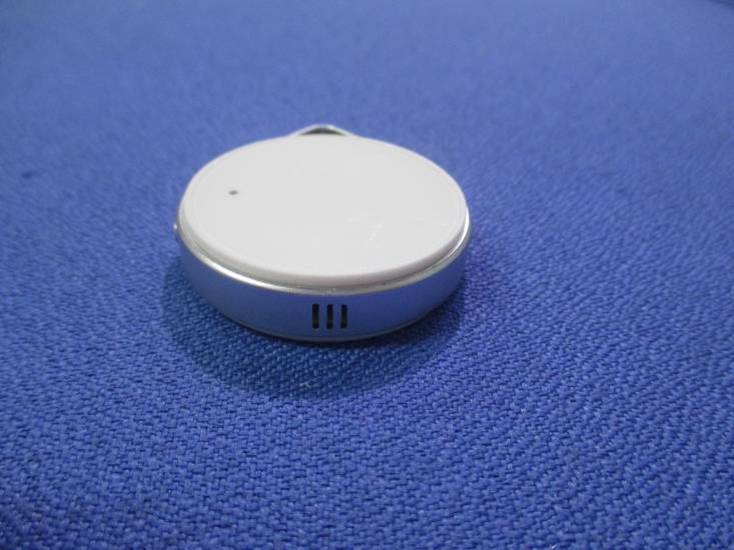

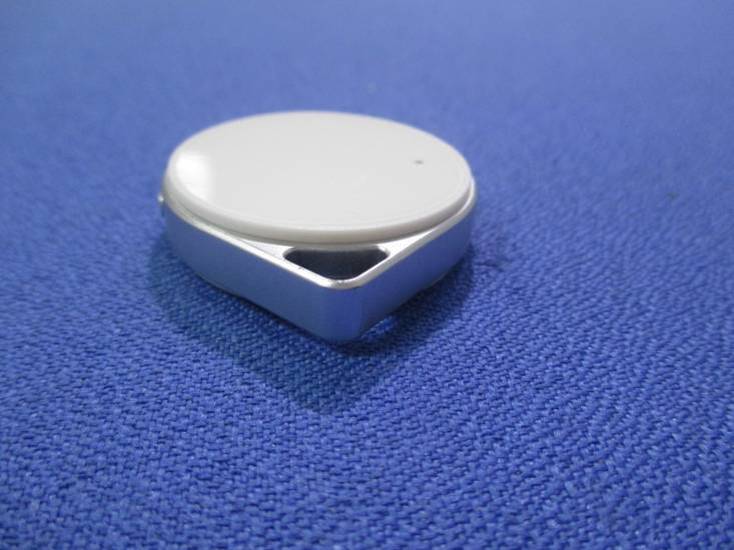

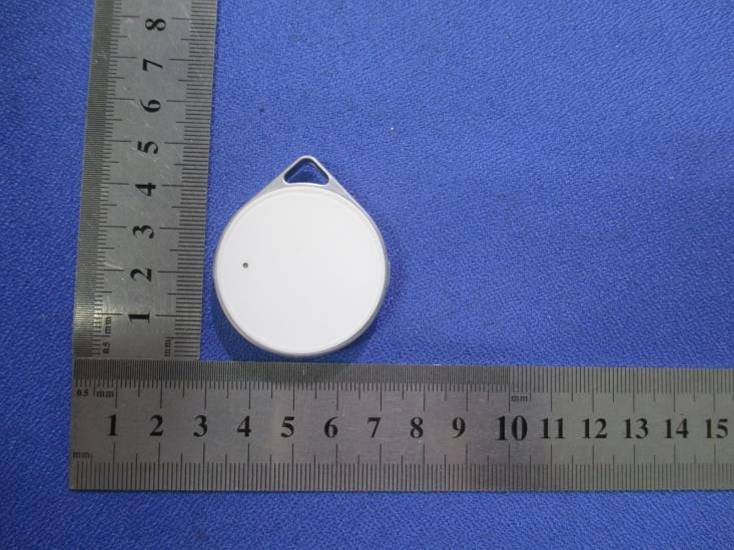

AXAET Anti-Loss Device Quick User Guide Model: PC023 Worked with iPhone4S / 5, iPod Touch 5 the new iPad , iPad with Retina Display . iPad Mini Android 4.3 & above version Samsung Note3/S4 LG Nexus4 Nexus5 etc Battery Install & Replacement Take out AXAET and the complimentary CR2032 battery from the package. Install Battery a. Open Battery Cover by rotating 30 degrees in Counterclockwise to the unlock icon by a coin or other suitable tool , and then detach the battery cover from AXAET. b. Insert the CR2032 into battery slot in the arrow’s direction, and then push CR2032 down into slot. c. Close Battery Cover by rotating 30 degrees in clockwise, until the cover turn to the place. Replace Battery Open the battery cover and take out CR2032 by paper clip. Three Steps to SETUP Step 1: Download and install AXAET APP. Please search and download AXAET APP in the App Store or The Google Play Store, or scan QR code for quick access APP - AXAET Step 2: Open the program and run it On the screen of your Android phone or Apple device click "APP" smart application, then select "Bluetooth permission request." Then click the "Turn on the Bluetooth function." Step 3: Pairing Move AXAET nearby iPhone or Android phone, Press the Connect button (●) 3 seconds Paired with the iPhone or Android, with green LED flashing state. The APP will find AXAET tag, Come out a window “Pair Blue Tooth”please tap the "yes" to allow AXAET connection. Flashing green LED lights will turn off after AXAET is paired with an iPhone or Android. AXAET Status Pairing 1.Long press Connect (●) button in disconnected or closed status. 2.1 beep to entering pairing and fast green light flashing with 0.5s interval, and last 60s. Paired AXAET APP will show connected and paired, The AXAET will be in paired status and the Green light will be off after 2 seconds. Disconnected 1.Out of range or control in AXAET APP to disconnect. 2.Beeps for 5s and slow continuous red-light flashing with 0.5s interval. Closed Tap the OFF icon in APP device panel, and AXAET will be closed. To extend battery use time, Please Close AXAET in spare time. ALERT In/Out of Range Alert If the distance of the Paired AXAET TAG and iPhone/ Android is out of range, both AXAET TAG and Android Phone /iPhone will trigger alert. "Setting mode" in AXAET APP will define the type of alert. When App find and connect pre-paired AXAET TAG, Android 4.3 Phone /iPhone, the Alert will be also triggered. Trigger Find my AXAET Alert Tap "Find me" in APP when AXAET TAG is in paired status, AXAET will have beeps and Red LED flashing light as preset. Tap "Mute" on APP , it will Mute AXAET TAG Alert and stop Red light flashing. Press Connect (●) button”in AXAET TAG can also mute the alert. Trigger Find my iPhone/Android phone Alert Mild Alert: Short Push Connect and Function button together in paired status. It will trigger mild Alert in iPhone/Android phone . High Alert： Long Push (>3S) Connect and Function button together in paired status，it will trigger high Alert in iPhone/Android phone Photograph and record Photograph: Enter photograph page and press function button Record: Enter record page and long press function button Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications made to this device not expressly approved by Shenzhen Aoxingao Technology Co.,Ltd may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Shenzhen Aoxingao Technology Co.,Ltd Rm602, Building C2, Huatongyuan Logistics Center, Minzhi Avenue, Longhua Town, Shenzhen, China TEL: +86-755-29232900-810 FAX: +86-755-29676711 Rev 11/20/07 Confidentiality Letter Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ACN3-PC023. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operation Description Operation Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Sue Liang/Manager

Shenzhen Aoxingao Technology Co.,Ltd Rm602, Building C2, Huatongyuan Logistics Center, Minzhi Avenue, Longhua Town, Shenzhen, China TEL: +86-755-29232900-810 FAX: +86-755-29676711 AGENCY AUTHORIZATION LETTER FCC ID: 2ACN3-PC023 Date: June 19, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize Shenzhen CTL Testing Technology Co., Ltd.(MR. Tracy Qi) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen CTL Testing Technology Co., Ltd. (MR. Tracy Qi) on our behalf shall have the same effect as acts of our own. This authorization expires on June 18, 2015. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Shenzhen Aoxingao Technology Co.,Ltd are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Sue Liang/Manager

FCC ID Label Information 1. Label location: 2. FCC ID Label: Anti-Loss Device PC023 FCC ID: 2ACN3-PC023

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT FCC Part 15.249 Report Reference No......................: CTL1406171379-WF Compiled by ( position+printed name+signature)..: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Tracy Qi Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: June 27, 2014 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name............................: Shenzhen Aoxingao Technology Co., Ltd Address.............................................: Rm602, Building C2, Huatongyuan Logistics Center, Minzhi Avenue, Longhua Town, Shenzhen, China Test specification: Standard ...........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Anti-Loss Device Trade Mark .......................................: N/A Models/Type reference.....................: PC023 Modulation .......................................: GFSK Work Frequency...........................: 2402 MHz~2480 MHz Antenna Type..............................: internal FCC ID .............................................: 2ACN3-PC023 Result................................................: Positive V1.0 Page 2 of 28 Report No.: CTL1406171379-WF T E S T R E P O R T Test Report No. : CTL1406171379-WF June 27, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Anti-Loss Device Model /Type : PC023 Applicant : Shenzhen Aoxingao Technology Co., Ltd Address : Rm602, Building C2, Huatongyuan Logistics Center, Minzhi Avenue, Longhua Town, Shenzhen, China Manufacturer Shenzhen Aoxingao Technology Co., Ltd Address Rm602, Building C2, Huatongyuan Logistics Center, Minzhi Avenue, Longhua Town, Shenzhen, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 28 Report No.: CTL1406171379-WF Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 6 2.5. EUT configuration 6 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1. Conducted Emissions Test 10 4.2. Radiated Emission Test 12 4.3. Band Edge Measurement 17 4.4. Occupied Bandwidth Measurement 21 5. ANTENNA REQUIREMENT ....................................................... 23 6. TEST SETUP PHOTOS OF THE EUT .......................................... 24 7. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 25 V1.0 Page 4 of 28 Report No.: CTL1406171379-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009 V1.0 Page 5 of 28 Report No.: CTL1406171379-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : June 17, 2014 Testing commenced on : June 17, 2014 Testing concluded on : June 27, 2014 2.2. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ● Other (specified in blank below) DC 3.0V battery(CR2032) 2.3. Short description of the Equipment under Test (EUT) The EUT is a Anti-Loss Device work at 2402~2480 MHz. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 20 2442 01 2404 21 2444 02 2406 22 2446 03 2408 23 2448 04 2410 24 2450 05 2412 25 2452 06 2414 26 2454 07 2416 27 2456 08 2418 28 2458 09 2420 29 2460 10 2422 30 2462 11 2424 31 2464 12 2426 32 2466 13 2428 33 2468 14 2430 34 2470 15 2432 35 2472 16 2434 36 2474 17 2436 37 2476 18 2438 38 2478 19 2440 39 2480 Power Range: -5dBm~0dBm Modulation: GFSK For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 28 Report No.: CTL1406171379-WF 2.4. EUT operation mode Test Mode(TM) Description Remark TM1 Bottom Channel Transmitting / TM2 Middle Channel Transmitting / TM3 Top Channel Transmitting / The field strength of radiation emission was measured in the following position: EUT stand-up position (Y axis), lie-down position (X, Z axis). The following data show only with the worst case setup. The worst case of Y axis was …
