2ACN6SBT1014Bluetooth Speaker

SBT1014 Bluetooth Speaker manual 1. Main function introduce 1.1：Bluetooth music play 1.2：LINE IN input 1.3：Infrared remote controller 1.4; 7 colorful light 2. Function button 2.1：Bluetooth indicator light 2.2：Play pause/mode button. Short press for play and pause, long press for change mode 2.3：LED mode change button。 Short press for changing LED mode 2.4 ：AUX indicator light 2.5：VOL”-’button。It is VOL”-‘function under Bluetooth/AUX mode. 2.6：VOL”+” button。It is VOL”+’ function under Bluetooth/AUX mode. 2.7：Infrared remote controller receiver window 2.8：Previous button。Short press for changing previous song 2.9：Next button。Short press for changing next song 2.10：LINE IN input interface 2.11：Power switch 3. LED working indicator 3.1： Blue light blink quickly under Bluetooth pairing mode 3.2： Blue light blink slowly under Bluetooth play mode 3.3： Green light blink slowly under LINE IN mode 4. Operation instruction 4.1:When you first use the speaker, please insert DC9V switch power into indoor house socket ,then insert DC head into DC9V interface at the back bottom of the speaker. Put switch to ON position, you will hear opening speaker indicator voice and the LED blue light blink quickly. You can open phone or other Bluetooth device to pair with this speaker named “SBT1014”,then it can play music normally after pairing successfully. 4.2：If you want to use LINE IN function, please insert one head of audio cable in computer or MP3 etc audio output device, insert the other head of audio cable in AUX hole at the right of control panel. The speaker will enter into LINE IN play mode automatically. 4.3： The infrared remote controller along with speaker can control machine in distance. Operation instruction same as control panel button. 4.4： LED atmosphere light panel built-in the front of the speaker panel, you can alternate LED atmosphere light change mode by LED button on panel. 5. Function parameter Rated output ratio：8W*2TDH=10% S/N： 》65dB Frequency response：80HZ-18KHz Charging：DC9V 6. Connection 6.1 Bluetooth mode：HSP 、HFP、 A2DP 6.2 Bluetooth Version：Bluetooth 3.0 6.3 Bluetooth emission frequency：2.402---2.48GHZ 6.4 Transmission distance：10M 7. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

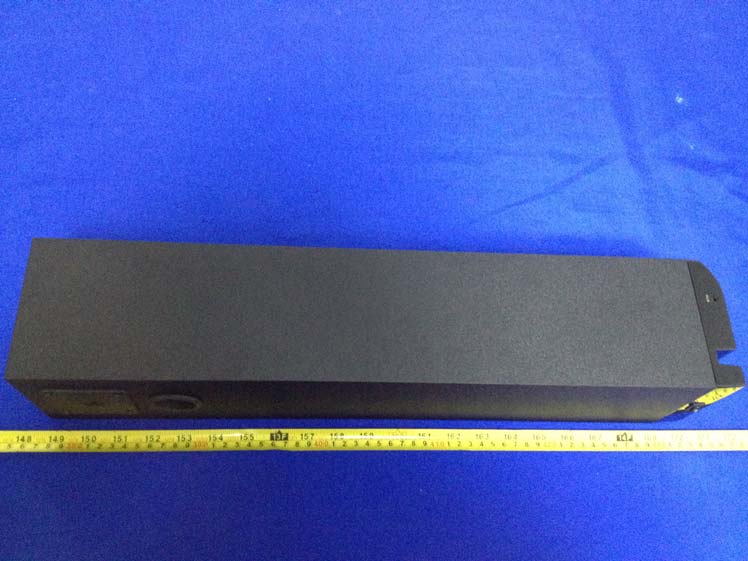

Page 1 of 9 Appendix B: Photographs of EUT Model: SBT1014 External Photos Page 2 of 9 Page 3 of 9 Page 4 of 9

LABEL ARTWORK AND LOCATION FCC ID Location

Page 5 of 9 Model: SBT1014 Internal Photos Page 6 of 9 Page 7 of 9 Page 8 of 9 Page 9 of 9

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2ACN6SBT1014 Product: Bluetooth Speaker Model No.: SBT1014 Additional Model: SBT619, SBT3002, SBT619Y Trade Mark: SHARPER IMAGE Report No.: TCT151203E016 Issued Date: Dec. 18, 2015 Issued for : SHENZHENG YONGCHENGCHUANGXIN TECHNOLOGY CO.,LTD. 7/F.Keji Block, Yongqixifa C district, yintian baoan, Shenzhen, China Issued By: Shenzhen Tongce Testing Lab. 1F, Leinuo Watch Building, Fuyong Town, Baoan Dist, Shenzhen, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT151203E016 Page 2 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification....................................................................................... 3 2. Test Result Summary ............................................................................... 4 3. EUT Description ........................................................................................ 5 4. Genera Information ................................................................................... 6 4.1. Test environment and mode ................................................................................. 6 4.2. Description of Support Units ................................................................................ 6 5. Facilities and Accreditations ................................................................... 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty ..................................................................................... 7 6. Test Results and Measurement Data ...................................................... 8 6.1. Antenna requirement ............................................................................................ 8 6.2. Conducted Emission ............................................................................................. 9 6.3. Conducted Output Power ................................................................................... 13 6.4. 20dB Occupy Bandwidth .................................................................................... 14 6.5. Carrier Frequencies Separation ......................................................................... 15 6.6. Hopping Channel Number .................................................................................. 16 6.7. Dwell Time ............................................................................................................ 17 6.8. Pseudorandom Frequency Hopping Sequence ................................................ 18 6.9. Conducted Band Edge Measurement ................................................................ 19 6.10. Conducted Spurious Emission Measurement ................................................. 20 6.11. Radiated Spurious Emission Measurement .................................................... 21 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT151203E016 Page 3 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Bluetooth Speaker Model No.: SBT1014 Additional Model: SBT619, SBT3002, SBT619Y Applicant: SHENZHENG YONGCHENGCHUANGXIN TECHNOLOGY CO.,LTD. Address: 7/F.Keji Block, Yongqixifa C district, yintian baoan, Shenzhen, China Manufacturer: SHENZHENG YONGCHENGCHUANGXIN TECHNOLOGY CO.,LTD. Address: 7/F.Keji Block, Yongqixifa C district, yintian baoan, Shenzhen, China Date of Test: Dec. 03 – Dec. 17, 2015 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date:Dec. 17, 2015 Beryl Zhao Reviewed By: Date:Dec. 18, 2015 Joe Zhou Approved By: Date:Dec. 18, 2015 Tomsin Report No.: TCT151203E016 Page 4 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna Requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(1) PASS 20dB Occupied Bandwidth §15.247 (a)(1) PASS Carrier Frequencies Separation §15.247 (a)(1) PASS Hopping Channel Number §15.247 (a)(1) PASS Dwell Time §15.247 (a)(1) PASS Radiated Emission §15.205/§15.209 PASS Band Edge §15.247(d) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT151203E016 Page 5 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product Name: Bluetooth Speaker Model : SBT1014 Additional Model: SBT619, SBT3002, SBT619Y Trade Mark: SHARPER IMAGE Operation Frequency: 2402MHz~2480MHz Transfer Rate: 1/2/3 Mbits/s Number of Channel: 79 Modulation Type: GFSK, π/4-DQPSK, 8DPSK Modulation Technology: FHSS Antenna Type: Internal Antenna Antenna Gain: …

Text truncated - open the document above for the full version.

Report No.: TCT151203E016 Page 43 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Peak Output Power Result Table Mode Channel. Maximum Peak Output Power [dBm] Verdict GFSK LCH -0.897 PASS GFSK MCH -0.984 PASS GFSK HCH -2.242 PASS π/4DQPSK LCH -0.984 PASS π/4DQPSK MCH -1.114 PASS π/4DQPSK HCH -2.393 PASS 8DPSK LCH -0.997 PASS 8DPSK MCH -1.248 PASS 8DPSK HCH -2.381 PASS Test Graph Graphs GFSK/LCH GFSK/MCH Report No.: TCT151203E016 Page 44 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com GFSK/HCH π/4DQPSK/LCH π/4DQPSK/MCH Report No.: TCT151203E016 Page 45 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com π/4DQPSK/HCH 8DPSK/LCH 8DPSK/MCH Report No.: TCT151203E016 Page 46 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 8DPSK/HCH Report No.: TCT151203E016 Page 47 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Band-edge for RF Conducted Emissions Result Table Mode Channel Carrier Frequency [MHz] Carrier Power [dBm] Frequenc y Hopping Max Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH 2402 -1.637 Off -49.691 -21.64 PASS -2.792 On -50.257 -22.79 PASS GFSK HCH 2480 -3.123 Off -45.789 -23.12 PASS -3.654 On -50.740 -23.65 PASS π/4DQPSK LCH 2402 -3.380 Off -48.974 -23.38 PASS -7.782 On -51.168 -27.78 PASS π/4DQPSK HCH 2480 -5.744 Off -45.855 -25.74 PASS -9.652 On -48.690 -29.65 PASS 8DPSK LCH 2402 -3.862 Off -48.963 -23.86 PASS -7.561 On -50.536 -27.56 PASS 8DPSK HCH 2480 -5.774 Off -42.068 -25.77 PASS -8.889 On -46.480 -28.89 PASS Test Graph Graphs GFSK/LCH/No Hop GFSK/LCH/Hop Report No.: TCT151203E016 Page 48 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com GFSK/HCH/No Hop GFSK/HCH/Hop π/4DQPSK/LCH/No Hop Report No.: TCT151203E016 Page 49 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com π/4DQPSK/LCH/Hop π/4DQPSK/HCH/No Hop π/4DQPSK/HCH/Hop Report No.: TCT151203E016 Page 50 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 8DPSK/LCH/No Hop 8DPSK/LCH/Hop 8DPSK/HCH/No Hop Report No.: TCT151203E016 Page 51 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 8DPSK/HCH/Hop Report No.: TCT151203E016 Page 52 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com RF Conducted Spurious Emissions Result Table Mode Channel Pref [dBm] Puw[dBm] Verdict GFSK LCH -1.917 <Limit PASS GFSK MCH -2.126 <Limit PASS GFSK HCH -3.391 <Limit PASS π/4DQPSK LCH -6.75 <Limit PASS π/4DQPSK MCH -5.926 <Limit PASS π/4DQPSK HCH -6.429 <Limit PASS 8DPSK LCH -3.6 <Limit PASS 8DPSK MCH -6.095 <Limit PASS 8DPSK HCH -4.879 <Limit PASS Test Graph GFSK_LCH_Graphs Pref Puw Report No.: TCT151203E016 Page 53 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT151203E016 Page 54 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com GFSK_MCH_Graphs Pref Puw Report No.: TCT151203E016 Page 55 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT151203E016 Page 56 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com GFSK_HCH_Graphs Pref Puw Report No.: TCT151203E016 Page 57 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT151203E016 Page 58 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com π/4DQPSK_LCH_Graphs Pref Puw Report No.: TCT151203E016 Page 59 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT151203E016 Page 60 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com π/4DQPSK_MCH_Graphs Pref Puw Report No.: TCT151203E016 Page 61 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT151203E016 Page 62 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com π/4DQPSK_HCH_Graphs Pref Puw Report No.: TCT151203E016 Page 63 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT151203E016 Page 64 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 8DPSK_LCH_Graphs Pref Puw Report No.: TCT151203E016 Page 65 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT151203E016 Page 66 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 8DPSK_MCH_Graphs Pref Puw Report No.: TCT151203E016 Page 67 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT151203E016 Page 68 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 8DPSK_HCH_Graphs Pref Puw Report No.: TCT151203E016 Page 69 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT151203E016 Page 70 of 70 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com *****END OF REPORT*****

Page 1 of 2 Appendix A: Photographs of Test Setup Radiated Emission Page 2 of 2 Conducted Emission
