2ACOA-OD2IoT gateway

ill. 1 English Installation and operating instructions IoT gateway outdoor 1. General information 1.1. Intended use Operational safety is only guaranteed if the product is used as intended by the manufacturer. No liability is assumed for damage caused by other applications. Any modifications are only permitted with approval from the manufacturer. Otherwise the manufacturer’s declaration is invalidated. 1.2. Safety instructions If it is necessary to establish a new power connec- tion, the installation and commissioning must only be performed by trained qualified specialists. Only trained qualified electricians may work on electrical systems. They must be able to assess the work assigned to them at all times, detect any potential sources of danger and adopt appropriate safety measures. The installation work must only be performed in a de-energised state. Valid specifications and standards are to be observed. During assembly of the gateway, the applicable national standards are to be observed on setting up antennae systems. 2.2. Scope of delivery The gateway is delivered in a partially assembled state. Depending on the assembly situation to be imple- mented, various preparations and assembly st eps are necessary. Furthermore, it may be necessary to acquire additional assembly materials that are not included in the scope of delivery. Gateway - pre-mounted on mounting bracket Mounting bracket with nuts, spring ring and washers 2x spacer sleeves for mounting bracket 2x 868 MHz LoRaWAN®-Antennas Network cable (5 m) Cable ties 2x RJ45 c onnector Equipotential bonding cable (16 mm²) Power c ord for PoE injector ■ ■ 2.Product description ■ 2.1. Intended use The ZENNER IoT Gateways use high-performance LoRaWAN® technology, whose excellent building penetration and long-range network coverage generally ensure the connectivity of IoT sensors even under chal- lenging environmental and installation conditions. The Outdoor Gateway is ideally suited for LoRa network coverage in rural and urban areas to receive values from multiple sensors. The device can be used across various sectors for a variety of IoT applications and is an integral part of ZENNER IoT system solutions. With a few gate- ways, entire cities can already be covered. Due to the very robust housing made of coated alumi- num, the Outdoor Gateway is very resilient to extreme weather conditions and is characterized by a high degree of reliability. In addition to the two external LoRa antennas, the ZENNER IoT Gateway Outdoor also uses an external LTE antenna to ensure the best possible con- nection to the backend. ■ ■ ■ ■ ■ ■ 2.3. Installation location In order to gain optimum LoRaWAN network coverage, an installation location which is as high as possible is recommended due to various technological advan- tages. For example, if an attic is available with potential installation space, this installation location should be preferred. After selecting the preferred installation location, you should test the cellular network connection in this location prior to attaching it. 7 3.Mounting preparation For power supply of the IoT Gateway Outdoor you need the PoE Injector incl. power cord. A 5m network cable incl. RJ45 connectors and PG gland is already connected to the gateway (see ill. 6). If the cable length is not sufficient or a network cable is already present, you can cut the mounted network cable, pull off the PG gland and use the supplied RJ45 connectors to crimp your network cable. In this case, special tools are needed. It is also recommended to perform a function test of the cable after crimping. 5.Electrical connection 5.1. PoE injector Connect the power c ord to the PoE Injecor. Then connect the network cable of the gateway to the "PoE" port of the PoE Injector. If local network access should be used, the correspond- ing cable is to be connected to the “Data” port. If local network access is to be used, the corresponding cable must be connected to the "Data" port. 4.Installation 4.1. Pole mounting Attach the mounting bracket incl. mounted housing to the desired pole using the u-shaped mounting hard- ware. To do this, you must a ttach the spacer sleeves to the mounting hardware and then tighten each side with a washer, spring washer and nut. Check that the gateway is stably attached to the pole. ill. 4 5.2. Antennas The following illustration shows the usual arrangement and mounting positions of the antennas. Note: The specifications of the LoRaWAN antennas differ from the LTE broadband antenna. Please take care not to mix up the antennas or connections! 4.2. Wall mounting Check whether there are any lines running at the selected mounting location. For wall mounting, use the 4 slotted holes (2 at the top, 2 at the bottom) on the mounting bracket. Mark drilling holes on the wall according to the hole spacing and use a spirit level. Note the length of the network cable (range to the PoE Injector). Drill holes, fix dowels and screws (not included, e.g. M8) in the holes. Attach mounting bracket incl. housing to the wall. Make sure that the correct side of the mounting bracket is facing up. Please refer to ill. 3. ill. 5 Attach the antennas and make sure to tighten the lock nuts accordingly (wrench size SW19). Now connect the antennas with the antenna cables and the connectors on the housing using the following connection layout. 115 10 60 8 115 197 ill. 2 ill. 3 ill. 6 8 Bracket Sets 8 See Note ： 5 the hole can be used for grounding 286 311 Set U - steel rod 100 （ The total length of thread ） Connector Layout LoRa 2 POE LTE div. LoRa 1 LTE main You can additionally fasten the antenna cables to the mounting bracket with cable ties. The antennas are mounted identically for all variants us- ing the supplied lock rings and serrated lock washers. All antennas are connected to the gateway with the enclosed N-connection cables. 6.Commissioning The gateway s tarts immediately after plugging in/con- necting the PoE Injector (making the electrical connect…

Text truncated - open the document above for the full version.

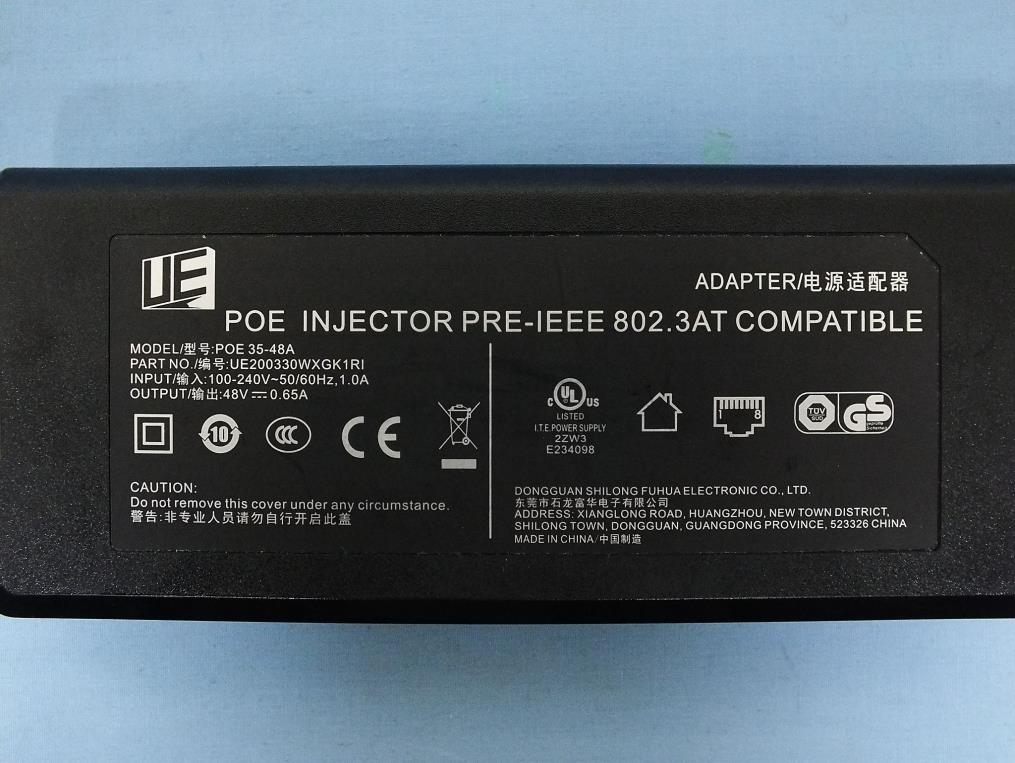

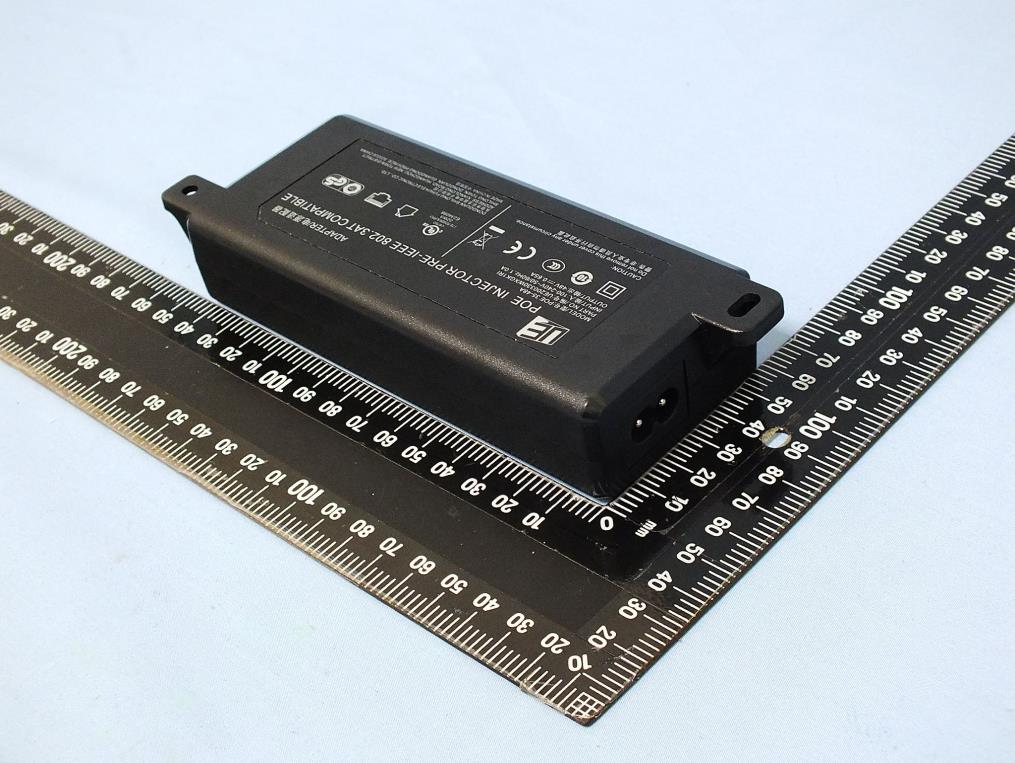

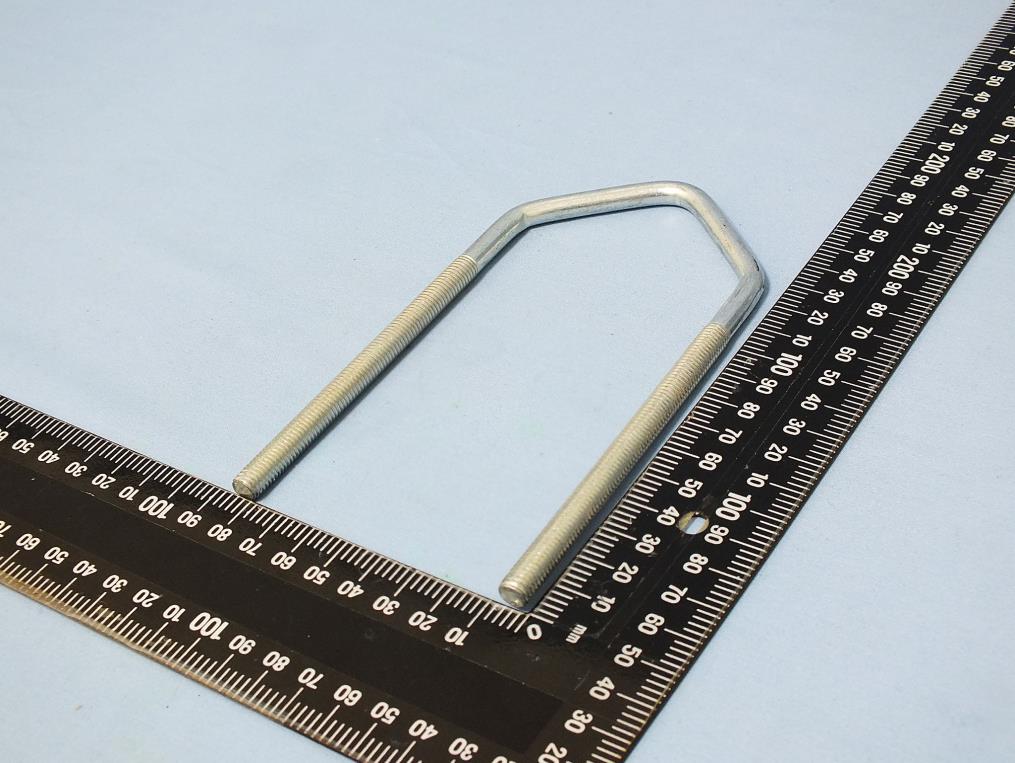

Project No.: 0D0801 Page No. : 1 of 19 Photographs of EUT Project No.: 0D0801 Page No. : 2 of 19 Project No.: 0D0801 Page No. : 3 of 19 Project No.: 0D0801 Page No. : 4 of 19 Project No.: 0D0801 Page No. : 5 of 19 Project No.: 0D0801 Page No. : 6 of 19 Project No.: 0D0801 Page No. : 7 of 19 Project No.: 0D0801 Page No. : 8 of 19 Project No.: 0D0801 Page No. : 9 of 19 Project No.: 0D0801 Page No. : 10 of 19 Project No.: 0D0801 Page No. : 11 of 19 Project No.: 0D0801 Page No. : 12 of 19 Project No.: 0D0801 Page No. : 13 of 19

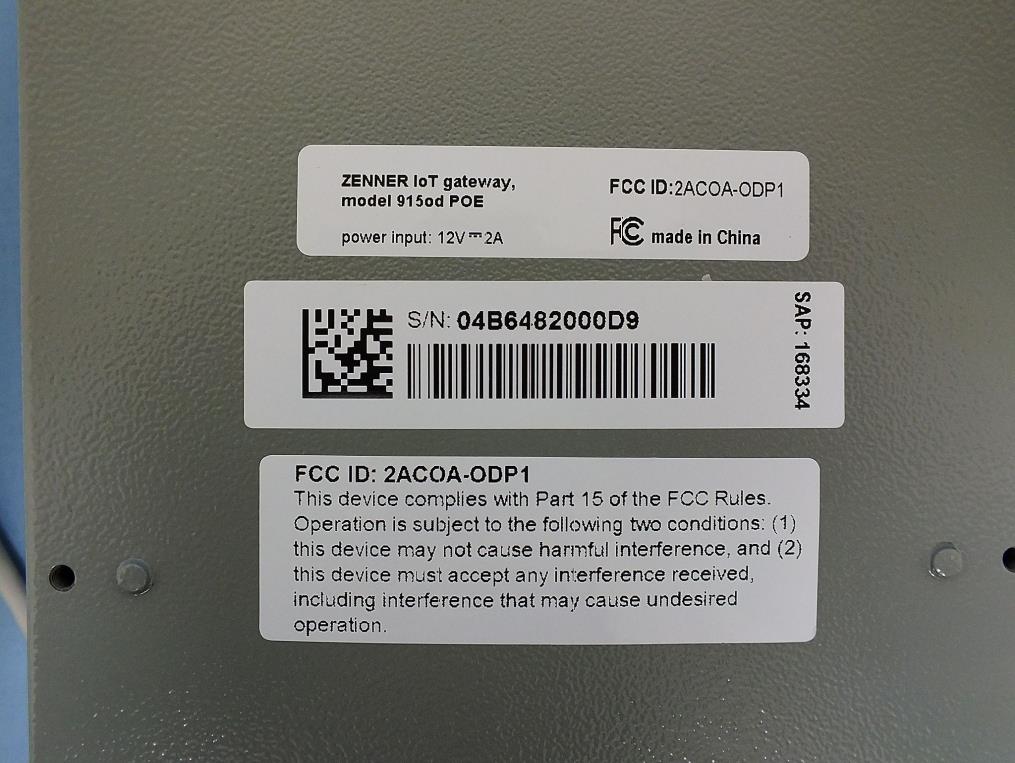

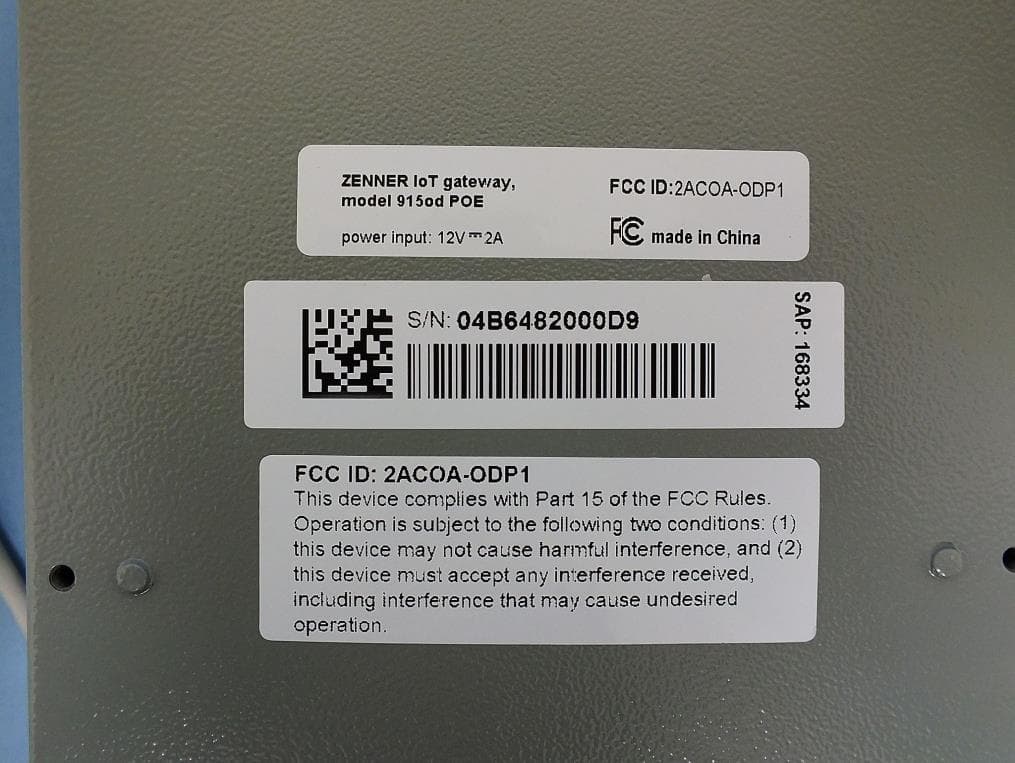

ZENNER IoT gateway, model 915od PoE made in China power input: 12V 2A FCC ID: 2ACOA-OD2 S/N: 04B64830007F SAP: 16xxxx This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2ACOA-OD2 PMN: IoT gateway HVIN: 915od PoE FVIN: 2.0 IC: 26631-OD2 FCC ID: 2ACOA-OD2 IC: 26631-OD2

Project No.: 0D0801 Page No. : 14 of 19 Project No.: 0D0801 Page No. : 15 of 19 Project No.: 0D0801 Page No. : 16 of 19 Project No.: 0D0801 Page No. : 17 of 19 Project No.: 0D0801 Page No. : 18 of 19 Project No.: 0D0801 Page No. : 19 of 19

Report No.: FA0D0801 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : 2ACOA-OD2 Equipment : IoT gateway Model No. : 915od PoE Brand Name : ZENNER USA Applicant : Zenner USA, Inc. Address : 15280 Addison Rd., Suite 240, Addison, TX 75001 Standard : 47 CFR FCC Part 2.1091 Received Date : Dec. 08, 2020 Tested Date : Dec. 11, 2020 ~ Jan. 06, 2021 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA0D0801 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 4 1.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 4 1.5 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA0D0801 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA0D0801 Rev. 01 Initial issue Mar. 05, 2021 Report No.: FA0D0801 Page : 4 of 6 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 1.4 MEASUREMENT UNCERTAINTY The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)). Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA0D0801 Page : 5 of 6 Report Version: Rev. 01 1.5 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) *Ratio Pass / Fail 923.3 ~ 927.5 27.04 27.5 3.05 20 0.226 0.616 0.367 Pass *Ratio = Power density / Limit. Report No.: FA0D0801 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp (EMC and Wireless Communication Laboratory), it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan District. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C.. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR0D0801 Page : 1 of 34 Report Version: Rev. 01 FCC Test Report FCC ID : 2ACOA-OD2 Equipment : IoT gateway Model No. : 915od PoE Brand Name : ZENNER USA Applicant : Zenner USA, Inc. Address : 15280 Addison Rd., Suite 240, Addison, TX 75001 Standard : 47 CFR FCC Part 15.247 Received Date : Dec. 08, 2020 Tested Date : Dec. 11, 2020 ~ Jan. 06, 2021 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR0D0801 Page : 2 of 34 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Test Standards ....................................................................................................................................... 9 1.6 Reference Guidance .............................................................................................................................. 9 1.7 Deviation from Test Standard and Measurement Procedure ................................................................. 9 1.8 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Condition ................................................................................................................................. 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TRANSMITTER TEST RESULTS ........................................................................................................ 11 3.1 Conducted Emissions ........................................................................................................................... 11 3.2 6dB and Occupied Bandwidth .............................................................................................................. 16 3.3 RF Output Power .................................................................................................................................. 19 3.4 Power Spectral Density ........................................................................................................................ 20 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 22 3.6 Emissions in Non-Restricted Frequency Bands ................................................................................... 32 4 TEST LABORATORY INFORMATION ............................................................................................... 34 Report No.: FR0D0801 Page : 3 of 34 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR0D0801 Rev. 01 Initial issue Mar. 05, 2021 Report No.: FR0D0801 Page : 4 of 34 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.348MHz 38.42 (Margin -10.58dB) - AV Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]:316.80MHz 45.38 (Margin -0.62dB) – QP [dBuV/m at 3m]:316.62MHz 45.38 (Margin -0.62dB) - QP Pass 15.247(b)(3) Maximum Output Power Max Power [dBm]: 27.04 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR0D0801 Page : 5 of 34 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Ch. Freq. (MHz) Channel Number Data Rate (bit/sec) Spread Factor Channel Bandwidth (kHz) 902 ~ 928 923.3 ~ 927.5 1 ~ 8 [8] 980 ~ 21900 7~12 500 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: The device uses Lora modulation. 1.1.2 Antenna Details Ant. No. Type Connector Gain (dBi) 1 Dipole N type 3.05 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 48 Vdc 1.1.4 Accessories Accessories No. Equipment Description 1 POE Brand: UE electronic Model: POE 35-48A I/P: 100-240Vac, 50/60Hz, 1.0A O/P: 48Vdc, 0.65A Power Line: 1.45m non-shielded without core 2 RJ45 from EUT (Undetachable) 5m non-shi…
