2ACORXBT40ABT4.0 BLE Module

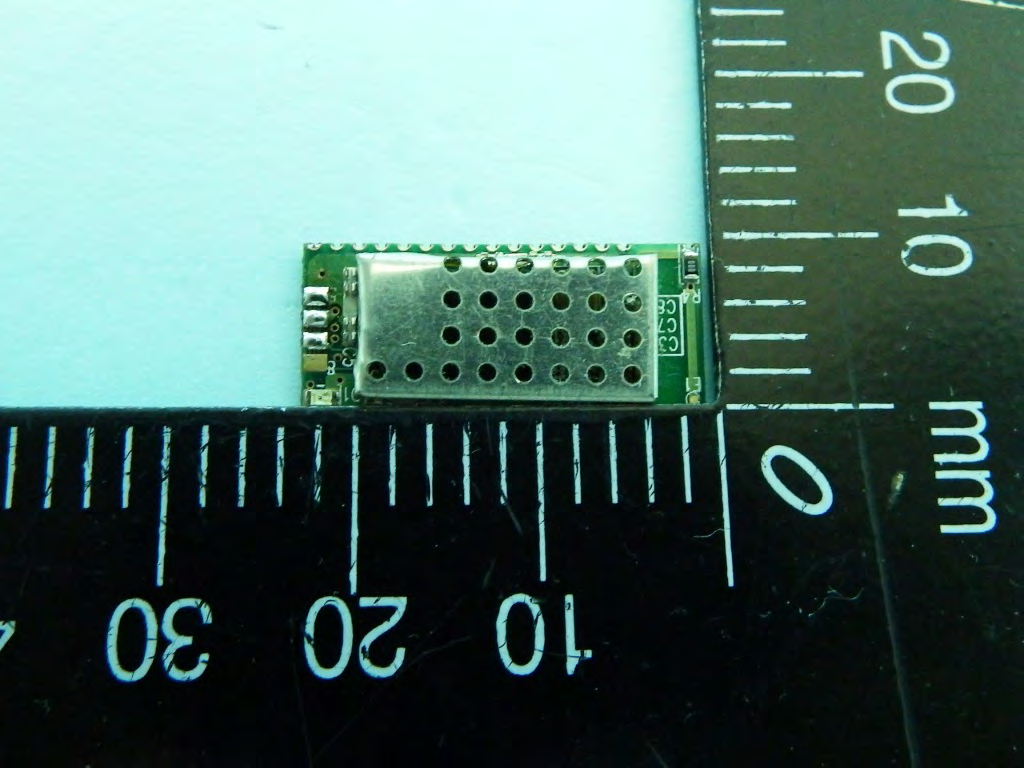

User's Manual Brand Name: XenonBlue Model No.: XBT40A Introduction: XBT40A is a Bluetooth low energy (BLE, BT4.0) module designed based on Nordic nRF51822 series. FCC ID: 2ACORXBT40A Feature: 1. Bluetooth specification version 4.0 (single mode) 2. Fully coverage of wireless applications 3. Dual Transmission Mode of BLE & RF 2.4G upon customer preference 4. Host interface: UART or I2C 5. Low power requirements: 5mA (4uA ULP standby) 6. Ultra-low peak, average and idle mode power consumption 7. Supply voltage: 1.8 to 3.6VDC 8. Operating temperature: -25 to +75 degrees C 9. Storage temperature: -40 to +85 degrees C 10. Miniature size: 23.0 x 10.2 x 2.5 mm 11. Module has embedded 16MHz and 32768Hz clock 12. All 31 GPIO pins of nRF51822 assigned Applications: Computer peripherals and I/O devices 1. Mouse 2. Keyboard 3. Multi-touch trackpad Interactive entertainment devices 1. Remote control 2. 3D Glasses 3. Gaming controller Personal Area Networks 1. Health/fitness sensor and monitor devices 2. Medical devices 3. Key-fobs + wrist watches Remote control toys Operation Description: XBT40A is a Bluetooth low energy (BLE, BT4.0) module and the bluetooth operating band is in the Industrial, Scientific and Medical (ISM) band from 2.400-2.4835 GHz from mobile as well as fixed devices by creation of Personal Area Networks with high security level. Several devices can be connected by using this technology. Originally modulation method used was Gaussian Frequency-Shift Keying (GFSK) scheme which was the only scheme of modulation available. Specification: Part Name XenonBlue40A Part Number XBT40A Category Bluetooth Low Energy 4.0 RF Module Type Transceiver / Controller Band 2.4 GHz, ISM band CPU 16MHz ARM Cortex–M0 32bit processor Flash 256kB Ram 16kB Multi Frequency Yes Interface UART (CTS/RTS) Two-wire Master (I2C compatible) Package-Case SMT Low Supply Voltage 1.8V Typical Supply Voltage 3.0V High Supply Voltage 3.6V Transmit Current 5mA (4uA ULP standby) Receive Current 5mA (4uA ULP standby) Size – Width 10.2mm Size – Length 23.0mm Size – Height 2.5mm RF Interface Built-In Patterned Antenna RF Shield Yes Pin Count 31 available Pin Pitch 1.27mm On-air compatibility nRF24L series Photo: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 23 mm 10.2 mm 1.27 mm 0.66 mm 0.60 mm 1.27 mm 3.81 mm XBT40A module PIN Def 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 23 mm 10.2 mm 1.27 mm 0.66 mm 0.60 mm 1.27 mm 3.81 mm XBT40A module PIN Def UART interface： Baud rate 4800 Data bit 8 Parity No Start bit 1 Stop bit 1 PIN define： PIN Number PIN Number PIN 4 VCC PIN 7 RTS PIN 31 GND PIN 20 CTS PIN 23 RX PIN 24 TX LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: 2ACORXBT40A ". This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. Appropriate measurements (e.g. 15 B compliance) and if applicable additional equipment authorizations (e.g. Verification , Doc) of the host device to be addressed by the integrator/manufacturer. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. LABEL OF PRODUCT: FCC ID: 2ACORXBT40A

Confidentiality Request Letter Date: 2014/9/18 Federal Communications Commission Authorization and Evaluation Division FCC ID：2ACORXBT40A Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Enjoy Research Inc Applicant’s company address : 7F.-2, No.52, Beichang 5th St., Ji’an Township, Hualien County 973, Taiwan (R.O.C.) Signature : Job Title and Dept. : Vincent Ite Hsieh / Project Manager E-mail : [email protected] Te l . : +88622826-7387

Module Approval Request Letter Subject: Module Approval request letter Date: 9/18/2014 FCC ID: 2ACORXBT40A Dear Reviewer, We, Enjoy Research Inc, would request BT4.0 BLE Module approved under module approval authorization. The requirements regulated in 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip (R1100D301C). 3. The requirement of power supply regulation: The part number of the power regulator is nRF51822-QFAA. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE. Please do not hesitate to contact me for any questions of this request letter. Thank you. Applicant’s company name : Enjoy Research Inc Applicant’s company address : 7F.-2, No.52, Beichang 5th St., Ji’an Township, Hualien County 973, Taiwan (R.O.C.) Signature : Job Title and Dept. : Vincent Ite Hsieh / Project Manager E-mail : [email protected] Tel. : +88622826-7387

Date: 2015/5/18 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: 2ACORXBT40A Product name: BT4.0 BLE Module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model XBT40A to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Kevin Liang Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Enjoy Research Inc Address : 7F.-2, No.52, Beichang 5th St., Ji’an Township, Hualien County 973, Taiwan (R.O.C.) Signature : _________________________________ Name and Job Title. : Vincent Ite Hsieh / Project Manager E-mail : [email protected] Tel. : +88622826-7387

FCC Test Report Report No. : FR461355 SPORTON International Inc. PAGE NUMBER : B1 OF B3 TEL : 886-3-327-3456 ISSUED DATE : Oct. 01, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT

Label drawing and Location

FCC Test Report Report No. : FR461355 SPORTON International Inc. PAGE NUMBER : B2 OF B3 TEL : 886-3-327-3456 ISSUED DATE : Oct. 01, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : FR461355 SPORTON International Inc. PAGE NUMBER : B3 OF B3 TEL : 886-3-327-3456 ISSUED DATE : Oct. 01, 2014 FAX : 886-3-327-0973

FCC EMF Test Report Report No. : FA461355 SPORTON INTERNATIONAL INC. Page No. : 1 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1,842 / f 4.89 / f (900/f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1,500 - - F/300 6 1,500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1,500 - - F/1500 30 1,500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FA461355 SPORTON INTERNATIONAL INC. Page No. : 2 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure RF General Information Frequency Range (MHz) Bluetooth Version Ch. Frequency (MHz) Channel Number RF Output Power (dBm) 2400-2483.5 v4.0 LE 2402-2480 0-39 [40] -1.23 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum Permissible Exposure Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode RF Output Power Antenna Gain (dBi) EIRP Power PD (S) (W/m²) LE-1Mbps -1.23 -4.82 -6.05 0.00049 Maximum Permissible Exposure Limit (mW/cm²) 1

FCC Test Report Report No. : FR461355 SPORTON INTERNATIONAL INC. Page No. : 1 of 37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : BT4.0 BLE Module Brand Name : XenonBlue Model No. : XBT40A FCC ID : 2ACORXBT40A Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz Equipment Class : DTS Applicant : Enjoy Research Inc 7F.-2, No.52, Beichang 5th St., Ji’an Township, Hualien County 973, Taiwan (R.O.C.) Manufacturer : SHAWO HWA INDUSTRIAL CO., LTD 8F, NO. 89, Qiao he Road, Zhong he City, Taipei, Taiwan The product sample received on Jun. 13, 2014 and completely tested on Jun. 29, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Vic Hsiao / Supervisor FCC Test Report Report No. : FR461355 SPORTON INTERNATIONAL INC. Page No. : 2 of 37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 Test Channel Frequencies Configuration ............................................................................................... 9 2.3 The Worst Case Power Setting Parameter ............................................................................................ 9 2.4 The Worst Case Measurement Configuration ...................................................................................... 10 2.5 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 20 3.5 Transmitter Radiated Bandedge Emissions ......................................................................................... 22 3.6 Transmitter Radiated Unwanted Emissions ......................................................................................... 25 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 36 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR461355 SPORTON INTERNATIONAL INC. Page No. : 3 of 37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.6935680MHz 27.85 (Margin 18.15dB) - AV 38.33 (Margin 17.67dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth LE: 694.6000kHz ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm] LE: -0.47 Power [dBm] LE:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz] LE: -15.91 PSD [dBm/3kHz]: 8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2551.51MHz: 25.7dB Restricted Bands [dBuV/m at 3m]: 2496.73MHz 60.26 (Margin 13.74) - PK 48.74(Margin 5.26) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 239.52MHz 40.57 (Margin 5.43dB) – PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR461355 SPORTON INTERNATIONAL INC. Page No. : 4 of 37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR461355 Rev. 01 Initial issue of report Oct. 01, 2014 2500-2690 FCC Test Report Report No. : FR461355 SPORTON INTERNATIONAL INC. Page No. : 5 of 37 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) Bluetooth Version Ch. Frequency (MHz) Channel Number RF…
