2ACORXENONIIF2.4G RF Module

User's Manual Introduction: XenonIIF is a proprietary protocol radio frequency (2.4 GHz) module designed based on Nordic nRF24LE1 series. Feature: 1. Xenon proprietary protocol radio frequency 2. Fully coverage of wireless applications 3. Dual Transmission Mode of RF 2.4G upon customer preference 4. Host interface: UART or I2C 5. Low power requirements: 5mA (4uA ULP standby) 6. Ultra-low peak, average and idle mode power consumption 7. Supply voltage: 1.8 to 3.6 VDC 8. Operating temperature: -25 to +75 degrees C 9. Storage temperature: -40 to +85 degrees C 10. Miniature size: 23.0 x 10 x 2.5 mm 11. Module has embedded 16 MHz and 32768 Hz clock Applications: Computer peripherals and I/O devices 1. Mouse 2. Keyboard 3. Multi-touch trackpad Interactive entertainment devices 1. Remote control 2. 3D Glasses 3. Gaming controller Personal Area Networks 1. Health/fitness sensor and monitor devices 2. Medical devices 3. Key-fobs + wrist watches Remote control toys Specification: Part Name XenonIIF Part Number XenonIIF Brand Name XenonBlue Category Xenon RF Module Type Transceiver / Controller Band 2.4 GHz, ISM band CPU 16 MHz 8-bit Enhanced 8051 processor Flash 16kB Ram 1kB Multi Frequency Yes Interface UART (CTS/RTS) Two-wire Master (I2C compatible) Package-Case SMT Low Supply Voltage 1.8V Typical Supply Voltage 3.0V High Supply Voltage 3.6V Transmit Current 5mA (4uA ULP standby) Receive Current 5mA (4uA ULP standby) Size – Width 10.0 mm Size – Length 23.0 mm Size – Height 2.5 mm RF Interface Built-In Patterned Antenna RF Shield Yes Pin Count 31 available Pin Pitch 1.27mm On-air compatibility nRF24LE series UART interface： Baud rate 4800 Data bit 8 Parity No Start bit 1 Stop bit 1 PIN define： PIN Number PIN Number PIN 4 VCC PIN 11 Data full PIN 31 GND PIN 20 Data in PIN 23 RX PIN 24 TX Warranty Policy 1. This device is guaranteed against manufacturing defects for one full year from the original date of purchase. 2. This warranty is valid at the time of purchase and is non-transferable. 3. This warranty must be presented to the service facility before any repair can be made. 4. Sales slip or other authentic evidence is required to validate warranty. 5. Damage caused by accident, misuse, abuse, improper storage, and/or uncertified repairs is not covered by this warranty. 6. All mail or transportation costs including insurance are at the expense of the owner. 7. Do not send any product to service center for warranty without a RMA (Return Merchandise Authorization) and proof of purchase. Ensure a trackable method of delivery is used (keep tracking number). 8. Warranty is valid only in the country of purchase. 9. We assume no liability that may result directly or indirectly from the use or misuse of these products. 10. This warranty will be voided if the device is tampered with, improperly serviced, or the security seals are broken or removed". LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: 2ACORXENONIIF Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. Appropriate measurements (e.g. 15 B compliance) and if applicable additional equipment authorizations (e.g. Verification , Doc) of the host device to be addressed by the integrator/manufacturer. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than the palm of the hand, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " …

Text truncated - open the document above for the full version.

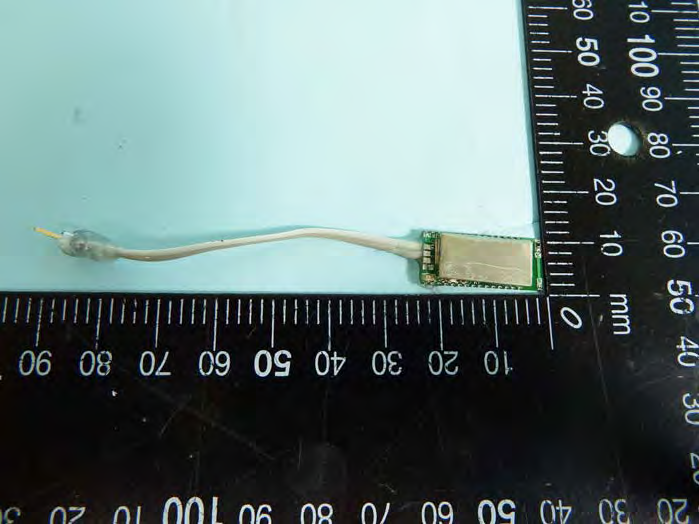

FCC Test Report Report No. : FR470298 SPORTON International Inc. PAGE NUMBER : B1 OF B4 TEL : 886-3-327-3456 Issue Date : Oct. 17, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT

FCC Test Report Report No. : FR470298 SPORTON International Inc. PAGE NUMBER : B1 OF B4 TEL : 886-3-327-3456 Issue Date : Oct. 17, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : FR470298 SPORTON International Inc. PAGE NUMBER : B2 OF B4 TEL : 886-3-327-3456 Issue Date : Oct. 17, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : FR470298 SPORTON International Inc. PAGE NUMBER : B3 OF B4 TEL : 886-3-327-3456 Issue Date : Oct. 17, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : FR470298 SPORTON International Inc. PAGE NUMBER : B4 OF B4 TEL : 886-3-327-3456 Issue Date : Oct. 17, 2014 FAX : 886-3-327-0973

FCC Test Report Report No. : FR470298 SPORTON INTERNATIONAL INC. Page No. : 1 of 27 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Equipment : 2.4G RF Module Brand Name : XenonBlue Model No. : XenonIIF FCC ID : 2ACORXENONIIF Standard : 47 CFR FCC Part 15.249 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DXX Applicant : Enjoy Research Inc 7F.-2, No.52, Beichang 5th St., Ji’an Township, Hualien County 973, Taiwan (R.O.C.) Manufacturer : SHAWO HWA INDUSTRIAL CO., LTD 8F, NO. 89, Qiao he Road, Zhong he City, Taipei, Taiwan The product sample received on Jul. 04, 2014 and completely tested on Sep. 01, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Vic Hsiao / Supervisor FCC Test Report Report No. : FR470298 SPORTON INTERNATIONAL INC. Page No. : 2 of 27 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 Test Channel Frequencies Configuration ............................................................................................... 9 2.3 The Worst Case Measurement Configuration ........................................................................................ 9 2.4 Test Setup Diagram ............................................................................................................................. 10 3 TRANSMITTER TEST RESULT .......................................................................................................... 11 3.1 AC Power-line Conducted Emissions .................................................................................................. 11 3.2 Emission Bandwidth ............................................................................................................................. 12 3.3 Fundamental Emissions ....................................................................................................................... 14 3.4 Transmitter Radiated Unwanted Emissions ......................................................................................... 16 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 27 AP PENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR470298 SPORTON INTERNATIONAL INC. Page No. : 3 of 27 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions - FCC 15.207 N/A 3.2 15.215(c) Emission Bandwidth 20dB Bandwidth [MHz]: 0.3198 Information only Complied 3.3 15.249(a) Fundamental Emissions [dBuV/m at 3m]: 74.68 (Margin 19.32dB) average [dBuV/m at 3m]: average: 94 Complied 3.4 15.249(a)/ (d) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]:4802.00MHz 53.25 (Margin 20.75dB) - PK 50.13 (Margin 3.87dB) - AV Harmonics: 54 dBuV/m@3m Other band: 50 dB or FCC 15.209, whichever is the lesser attenuation. Complied FCC Test Report Report No. : FR470298 SPORTON INTERNATIONAL INC. Page No. : 4 of 27 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR470298 Rev. 02 Initial issue of report Oct. 17, 2014 902 MHz – 928 MHz FCC Test Report Report No. : FR470298 SPORTON INTERNATIONAL INC. Page No. : 5 of 27 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) Modulation Ch. Frequency (MHz) Channel Number Fundamental Field Strength (dBuV/m) Co-location 2400-2483.5 GFSK 2401-2480 1-80 [80] 74.68 N/A Note 1: Field strength performed average level at 3m. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) 1.1.2 Antenna Information Antenna Category Integral antenna (antenna permanently attached) Temporary RF connector provided No temporary RF connector provided Transmit chains bypass antenna and soldered temporary RF connector provided for connected measurement. In case of conducted measurements the transmitter shall be connected to the measuring equipment via a suitable attenuator and correct for all losse…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR470298 SPORTON INTERNATIONAL INC. Page No. : A1 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR470298 SPORTON INTERNATIONAL INC. Page No. : A2 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR470298 SPORTON INTERNATIONAL INC. Page No. : A3 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR470298 SPORTON INTERNATIONAL INC. Page No. : A4 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR470298 SPORTON INTERNATIONAL INC. Page No. : A5 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 EUT take a close-up
