2ACR9-TWISTFlic Twist with BLE

UserManual FlicTwist Contents Descriptionandmainfeatures 1 Gettingstarted2 ConnectingyourTwist3 Bluetoothconnection4 StickingyourTwist5 Cleaningtheadhesive6 Changingthebattery7 Factoryreset8 Problems9 Compliance9 Handlingthebattery10 Safetyusageguidelines11 Warranty12 Notice13 Descriptionandmainfeatures FlicTwistit’ssimpleandintuitive,wildlyconfigurableandcanbeplaced anywhere. PushandRotateareeasytouseandunderstand.Unlockadvancedmodes bypushingandrotatingatthesametime. MainFeatures 1.SmartDimming SmartDimmingadaptsintelligentlytovividcolorscenesordifferentvolume settings.Itadjustseachparameterindividually,maintainingtherelative differencesbetweendevices. 2.AdvancedDimming AdvancedDimmingisaflexibledimmingjourneywithcustomtriggersalong theway.Whenrotatingyoucanadjustbrightness,color,orsaturation simultaneously.Sequencethelightsandevenaddevents. 3.SceneBlender FlicTwist'sinnovativeSceneBlendermodeallowsyoutopresetupto4 differentlightscenesandblendseamlesslybetweenthem. 1 Gettingstarted Togetstartedmakesurethatyouhave: 1.AniOSorAndroiddevicewithatleastBluetooth4.0+ 2.Activeinternetconnection 3.TheFlicapp,availableontheAppStoreorGooglePlay 4.AFlicHub,FlicHubLRorFlicHubMini(“FlicHub”) 5.AFlicTwist(“Twist”) Fortheup-to-daterequirementsandfurtherinformationvisit https://flic.io/start 2 ConnectingyourTwist 1.PlugintheHubLR/Mini. 2.MakesureBluetoothisactivatedonyourphone. 3.OpentheFlicApp,createanaccountorlogin. 4.AddorconnecttoyourFlicHub 5.FollowthesetupguideintheapptoaddyourTwist. 6.Nowyouarereadytosetupyourfirstactions. 3 7. Do not held Flic Twist in hand when normal operating and please keep a separated distance at least 20cm. Bluetooth Connection WhensettingtheTwistup,makesuretoconnecttoyourFlicHubusing theFlicAppinordertobeabletoaddtheTwist. MakesurethattheFlicTwistiswithinBluetoothrangeoftheFlicHub. Therangeisupto50m(150ft),butcanvarygreatlydependingonthe environment. 4 StickingyourTwist EachTwistcomeswithareusableadhesivesticker,pre-attachedtothe back. SimplypeelofftheprotectivelayerandstickyourTwistonanyclean surface. IfyouwanttochangethepositionofyourTwist,twistthebuttontothe rightinordertoexerthorizontalforcewhichmakesiteasiertoremovethe adhesivefromthesurface. Note:considerthattheadhesiveissuperstrongbeforeyoustickittoany surface.Removingtheadhesivemightdamagethesurfaceattached. TheTwistcanalsobemountedonthewall.Usetheincludedmagnetic wallmountandscrewit. 5 Cleaningtheadhesive Iftheadhesivestartstoloseitsstickinessthenyoucancleanit. 1.Carefullywashtheadhesivewithwater. 2.Giveitarubandrepeatthewash. 3.Leaveittoair-dryanditwillreturntofullstickiness. TheTwistisnotwaterproof.Donotexposeittorinsingwater,submerge orattempttouseitunderwaterasthiswillresultinirreversibledamage thatisoutsidethescopeoftheShortcutLabsABwarranty. Donotapplysolvents,chemicals,orabrasivecleaningproductsasthis willdamagetheadhesive. 6 Changingthebattery FlicTwistcomeswithtworeplaceableAAAbatteriesthatlastupto2 years. Tochangethebatteryyouwillneedtofollowthesesteps: 1.Openthebatteryhatchbyinsertingasmall,flat-headed screwdriverintotheslotandgentlybendupwards. 2.Removetheoldbattery 3.PlacetwonewAAAbatteriesintothebatteryslots.Makesureto checkthepolaritywiththeprintinginsidethebatteryhatch.Don’tmix usedandnewbatteries. 4.Closethebatteryhatch. Note:Pleasedisposeofoldbatteriesaccordingtolocalregulations. 7 Factoryreset If,foranyreason,youmustperformafactoryreset,performthe followingsteps: 1.Removethebattery,seethepage“Changingthebattery”. 2.Insertthebattery. 3.Within5secondspushandholdthebuttonfor10seconds. ThiswillremoveallpairingsandreturntheTwisttofactory default. 8 Problems IfyouhaveanyissuessettinguporusingtheFlicproductsthatarenot answeredhere,pleasereadFAQ’sathttps://start.flic.io/faq Alternatively,youcancontactusviahttps://flic.io/support Compliance ShortcutLabsdeclarationofconformityisavailableathttps://flic.io/doc Forfullcompliance,listvisithttps://flic.io/compliance FlicTwistiscertifiedasFCC,IC,CE,AUS,R-NZandWEEE,Prop65 RoHS,REACHcompliant. 9 Handlingthebattery TheTwisthasbeendesignedwithreplaceableAAAbatteriesthatlastupto twoyears.TwistalsosupportsrechargeableAAAbatteries. TheAAAbatterycontainsacompositionofalkaline,lithiumorNi-MH. Forthisreason,improperhandlingofthebatterycouldleadtodistortion, leakage,overheating,explosionorfire,causingpersonalinjury. Pleaseobservethefollowinginstructionstopreventaccidents.Never swallow,heat,exposetoopenflame,moistureorliquid.Neverattemptto disassemble,reversethepolarityorshortcircuit.Keepawayfromchildren andpets.Neverchargenon-rechargeablebatteries. Whendisposingofusedbatteriespleaseremovethebatteryinadvance.If notpossible,thendisposeoftheentireproductinawastebinfor electronicsaspertheWEEEdirective.Batterydisposalmayberegulated bynationalorlocalregulations,assuchpleasefollowapplicable guidelines. 10 Safetyusageguidelines TheTwistisnotatoy.Itcontainssmallpartsandaccessoriesthatpresent achokinghazard.Assuchitisnotsuitableforchildrenorpets. General -Donotattempttoservicetheproduct. -Donotusetheproductintemperaturesbelow-10°Corabove+40°C. -Cleanwithadampclothonly.Donotsubmergeanddonotuse chemicalorabrasivecleaningproducts. Flicspecific -Batterylifewillbeshortenedwithheavyusageand/oruseinextreme conditions. -FlicTwistisnotwaterproof.Donotsubmergeoruseinoverlymoist environmentsasthiswillresultinirreversibledamagethatisoutsidethe scopeoftheShortcutLabsABwarranty. 11 Warranty ShortcutLabsABwarrantsthatyourFlichardwareproduct(“theproduct”) willbefreefromdefectsinmaterialsandworkmanshipforaperiodof24 monthsfromthedateofdeliverytotheoriginalretailpurchaser (“thewarrantyperiod”). Ifadefectintheproductariseswithinthewarrantyperiod,ShortcutLabs will,atitssoleoptionandsubjecttoapplicablelaws: (1)repairorreplaceitwithaneworrefurbishedproductor component;or (2)refundtheoriginalpurchasepriceuponreturnofthedefective product. Thiswarrantydoesnotapplytoproductsyoupurchasefromunauthorized resellers,orwheretheinstructionsforuseandactivationoftheproduct arenotcompliedwithorwheretheproductisdama…

Text truncated - open the document above for the full version.

1/1 JOC Australia Inc US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: JOC Australia Inc Physical U.S. Company Address: 18351 Colima Road Ste 585 Rowland Heights,California,91748 United States of America Agent contact name/Title : Benjamin. Smith / Vice President Agent Email Address: [email protected]/[email protected] Tel No.: +1(626) 217 4778 FRN No.: 0033379421 This letter is to confirm that the US Agent for Service of Process accepts responsibility to act as a local representative on behalf of (Shortcut Labs AB). The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Applicant: Company name: Shortcut Labs AB Product Description: Flic Twist with BLE Grantee code: 2ACR9 FCC ID: 2ACR9-TWIST Contact Name: Amir Sharifat Address: Drottning Kristinas Vag 41, 11428 Stockholm, Sweden Telephone No: +46 735 06 03 93 Email: [email protected] The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2023/05/22 Applicant’s Name: Amir Sharifat US Agent for Service of Process’s Name: Benjamin.Smith Title: COO Title: Vice President Signature Signature

C5266091_X24_Ed.2 1/1 Shortcut Labs AB “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Shortcut Labs AB Grantee code: 2ACR9 FCC ID: 2ACR9-TWIST Contact Name: Amir Sharifat Address: Drottning Kristinas Vag 41, 11428 Stockholm, Sweden Telephone No: +46 735 06 03 93 Fax No: / Email: [email protected] i. [Shortcut Labs AB] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Shortcut Labs AB] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Shortcut Labs AB] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment. Date: 2023/05/22 Applicant’s Name: Amir Sharifat Title: COO Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

C5266091_X8_Ed.1 1/1 Shortcut Labs AB Letter of Authorization Company: Shortcut Labs AB Address: Drottning Kristinas Vag 41, 11428 Stockholm, Sweden Product Name: Flic Twist Model Number: Flic Twist FCC Identifier: 2ACR9-TWIST We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Amir Sharifat Date: 2023/05/22 Title: COO Signature of applicant:

C5266091_X10_Ed.2 Shortcut Labs AB Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023/04/10 Subject: Request for Confidentiality FCC ID: 2ACR9-TWIST To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. NOTE 1: Long-Term Confiden 3ality may be permi;ed under special condi3ons (See II. LONG-TERM CONFIDENTIALITY, Sec3on 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confiden 3ality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description that are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitors an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. ExhibitsLong-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location Attestation Statement External PhotosYes Block DiagramYes SchematicsYes Test Report Test Setup PhotosYes User’s ManualYes Internal PhotosYes Parts List / Tune Up RF Exposure Info Operational DescriptionYes Cover Letter(s) SDR Software / Security Info 1/1 C5266091_X10_Ed.2 It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those documents will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Amir Sharifat Title: COO 1/1

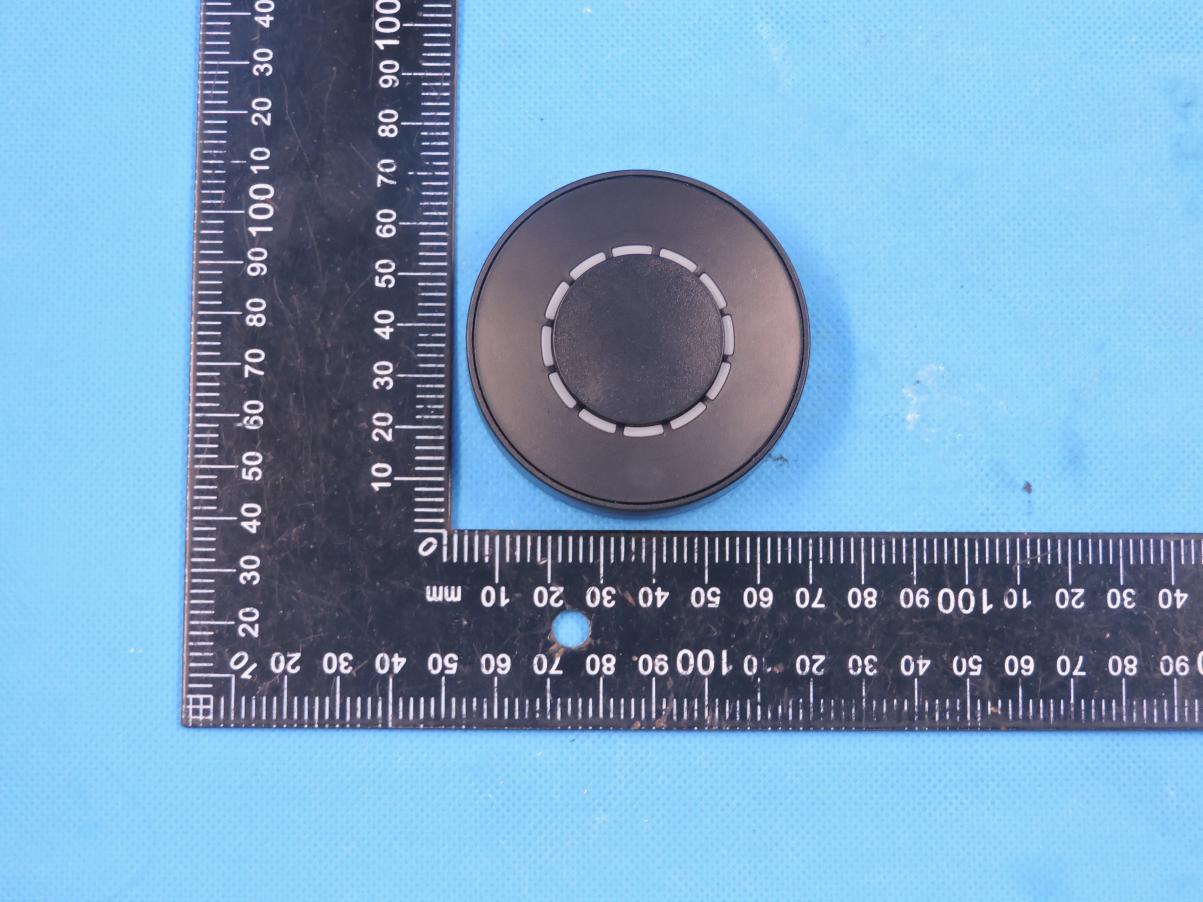

Page 1 of 3 Report No.: STS2303118 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: Flic Twist Photo 1 Photo 2 Page 2 of 3 Report No.: STS2303118 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2303118 Photo 5 Photo 6

Label 4*1cm

Page 1 of 2 Report No.: STS2303118 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: Flic Twist Photo 1 Photo 2 Page 2 of 2 Report No.: STS2303118 Photo 3 Photo 4 BLE Antenna

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS2303118H02 Issued for Shortcut Labs AB Drottning Kristinas Vag 41, 11428 Stockholm, Sweden Product Name: Flic Twist Brand: Flic Model Number: Flic Twist Series Model(s): N/A FCC ID: 2ACR9-TWIST Test Standard: FCC 47CFR §2.1091 S T L A B S Page 2 of 9 Report No.: STS2303118H02 Test Report Certification Applicant’s Name ................. : Shortcut Labs AB Address ................................. : Drottning Kristinas Vag 41, 11428 Stockholm, Sweden Manufacturer's Name .......... : Shortcut Labs AB Address ................................. : Drottning Kristinas Vag 41, 11428 Stockholm, Sweden Product Description Product Name ........................ : Flic Twist Brand ................................... : Flic Model Number ....................... : ... : Flic Twist Series Model(s) ...................... : N/A Standards ............................. : FCC 47CFR §2.1091 447498 D04 Interim General RF Exposure Guidance v01 This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date of receipt of test item ...................... : 29 Mar. 2023 Date (s) of performance of tests ............. : 29 Mar. 2023 ~ 10 Apr. 2023 Date of Issue ........................................... : 10 Apr. 2023 Test Result ............................................... : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 9 Report No.: STS2303118H02 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 5 2. FCC 47CFR §2.1091 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 9 Page 4 of 9 Report No.: STS2303118H02 Revision History Rev. Issue Date Report No. Effect Page Contents 00 10 Apr. 2023 STS2303118H02 ALL Initial Issue Page 5 of 9 Report No.: STS2303118H02 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name Flic Twist Brand Flic Model Number Flic Twist Series Model(s) N/A Model Difference N/A Product Description The EUT is Flic Twist. Operation Frequency: 2402~2480 MHz Modulation Type: GFSK Antenna gain: 1.2dBi Antenna Designation: PCB Rating Input: 3V or 2xAAA Hardware Version N/A Software Version N/A 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 6 of 9 Report No.: STS2303118H02 2. FCC 47CFR §2.1091 REQUIREMENT 2.1 TEST STANDARDS Follow the maximum permissible exposure (MPE) limits specified in 447498 D04 Interim General Radio Frequency Exposure Guidelines v01. The gain of the antenna used in the product was extracted from the supplied antenna data sheet and the maximum total power input to the antenna was also measured. Calculate the distance from the product to the MPE limit by the formula. 2.2 LIMIT For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of Part 1.1307. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: Page 7 of 9 Report No.: STS2303118H02 (C) Or using below table and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). RF Source frequency (MHz) Threshold ERP(watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . Page 8 of 9 Report No.: STS2303118H02 For multiple RF sources: Multiple RF sources are exempt if: (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). This exemption may not be used in conjunction with other exemption …

Text truncated - open the document above for the full version.

Antenna Specification Model: Flic Twist Manufacturers: Shortcut Labs AB Drottning Kristina Vag 41, 11428 Stockholm, Sweden 1. Test Conditions 2. Test Results lists Gain Frequency(MHz) Gain(dBi) 2400 ‐0.000 2410 ‐0.695 2420 1.200 2430 0.925 2440 0.322 2450 0.154 2460 ‐0.120 2470 ‐0.186 2480 ‐1.321 2490 ‐1.286 2500 ‐1.889 Antenna Size Annex A Test Setup Annex B Figures 1. 2D Radiation Pattern Phi= 0° Phi= 90° Theta= 90° 3. 3D Radiation Pattern 2400MHz 2450MHz 2500MHz

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2303118W02 Issued for Shortcut Labs AB Drottning Kristinas Vag 41, 11428 Stockholm, Sweden Product Name: Flic Twist Brand: Flic Model Number: Flic Twist Series Model(s): N/A FCC ID: 2ACR9-TWIST Test Standard: FCC Part 15.247 S T L A B S Page 2 of 55 Report No.: STS2303118W02 TEST RESULT CERTIFICATION Applicant’s Name ..................: Shortcut Labs AB Address ..................................: Drottning Kristinas Vag 41, 11428 Stockholm, Sweden Manufacturer's Name ...........: Shortcut Labs AB Address ..................................: Drottning Kristinas Vag 41, 11428 Stockholm, Sweden Product Description Product Name .........................: Flic Twist Brand ....................................: Flic Model Number ........................:... : Flic Twist Series Model(s) ......................: N/A Test Standards ......................: FCC Part15.247 Test Procedure .......................: ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date of receipt of test item ...................... : 29 Mar. 2023 Date (s) of performance of tests ............. : 29 Mar. 2023 ~ 26 May 2023 Date of Issue ........................................... : 26 May 2023 Test Result ............................................... : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 55 Report No.: STS2303118W02 Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 11 2.6 EQUIPMENTS LIST 12 3. EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.2 TEST PROCEDURE 14 3.3 TEST SETUP 14 3.4 EUT OPERATING CONDITIONS 14 3.5 TEST RESULTS 14 4. RADIATED EMISSION MEASUREMENT 15 4.1 RADIATED EMISSION LIMITS 15 4.2 TEST PROCEDURE 17 4.3 TEST SETUP 18 4.4 EUT OPERATING CONDITIONS 18 4.5 FIELD STRENGTH CALCULATION 18 4.6 TEST RESULTS 20 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 27 5.1 LIMIT 27 5.2 TEST PROCEDURE 27 5.3 TEST SETUP 27 5.4 EUT OPERATION CONDITIONS 27 5.5 TEST RESULTS 27 6. POWER SPECTRAL DENSITY TEST 28 6.1 LIMIT 28 6.2 TEST PROCEDURE 28 6.3 TEST SETUP 28 Page 4 of 55 Report No.: STS2303118W02 Table of Contents 6.4 EUT OPERATION CONDITIONS 28 6.5 TEST RESULTS 28 7. BANDWIDTH TEST 29 7.1 LIMIT 29 7.2 TEST PROCEDURE 29 7.3 TEST SETUP 29 7.4 EUT OPERATION CONDITIONS 29 7.5 TEST RESULTS 29 8. PEAK OUTPUT POWER TEST 30 8.1 LIMIT 30 8.2 TEST PROCEDURE 30 8.3 TEST SETUP 31 8.4 EUT OPERATION CONDITIONS 31 8.5 TEST RESULTS 31 9. ANTENNA REQUIREMENT 32 9.1 STANDARD REQUIREMENT 32 9.2 EUT ANTENNA 32 APPENDIX 1-TEST DATA 33 1. DUTY CYCLE 33 2. MAXIMUM AVERAGE CONDUCTED OUTPUT POWER 36 3. MAXIMUM PEAK CONDUCTED OUTPUT POWER 39 4. -6DB BANDWIDTH 42 5. MAXIMUM POWER SPECTRAL DENSITY LEVEL 45 6. BAND EDGE 48 7. CONDUCTED RF SPURIOUS EMISSION 51 APPENDIX 2- EUT TEST PHOTO 55 Page 5 of 55 Report No.: STS2303118W02 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 26 May 2023 STS2303118W02 ALL Initial Issue Page 6 of 55 Report No.: STS2303118W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 55 Report No.: STS2303118W02 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±1.197dB 2 Unwanted Emissions, conducted ±2.896dB 3 All emissions, radiated 9K-30MHz ±3.84dB 4 All emissions, radiated 30M-1GHz ±3.94dB 5 All emissions, radiated 1G-6GHz ±4.59dB 6 All emissions, radiated>6G ±5.22dB 7 Conducted Emission (9KHz-150KHz) ±2.14dB 8 Conducted Emission (150KHz-30MHz) ±2.54dB 9 Occupied Channel Bandwidth ±3.5% 10 Power Spectral Density, Conducted ±1.25 dB 11 Duty Cycle ±3.2% Page 8 of 55 Report No.: STS2303118W02 2. GENERAL IN…

Text truncated - open the document above for the full version.

Page 1 of 1 FCC ID: 2ACR9-TWIST DTS Setup photo Model name: Flic Twist DTS radiation L DTS radiation H
