Data: May 25, 2015 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: Request is hereby submitted by from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the foll of the application are to be kept permanently confidential and Asia Ltd reserves the right to discern which parties can information: Schematics Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of is subject to competition. We have invested considerable time and materials in research and development to produce the referenced prod permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leadin technology developed by us. If you have questions or need further information, please contact the undersigned. To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: _2ACRG-39857F27__ Request is hereby submitted by Echo Technologies Asia Ltd to withho from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the foll of the application are to be kept permanently confidential and Echo Technologies reserves the right to discern which parties can obtain access to these Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of Echo Technologies Asia Ltd is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leadin technology developed by us. If you have questions or need further information, please contact the undersigned. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections Echo Technologies obtain access to these Technologies Asia Ltd and it is subject to competition. We have invested considerable time and materials in uct. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge If you have questions or need further information, please contact the undersigned.

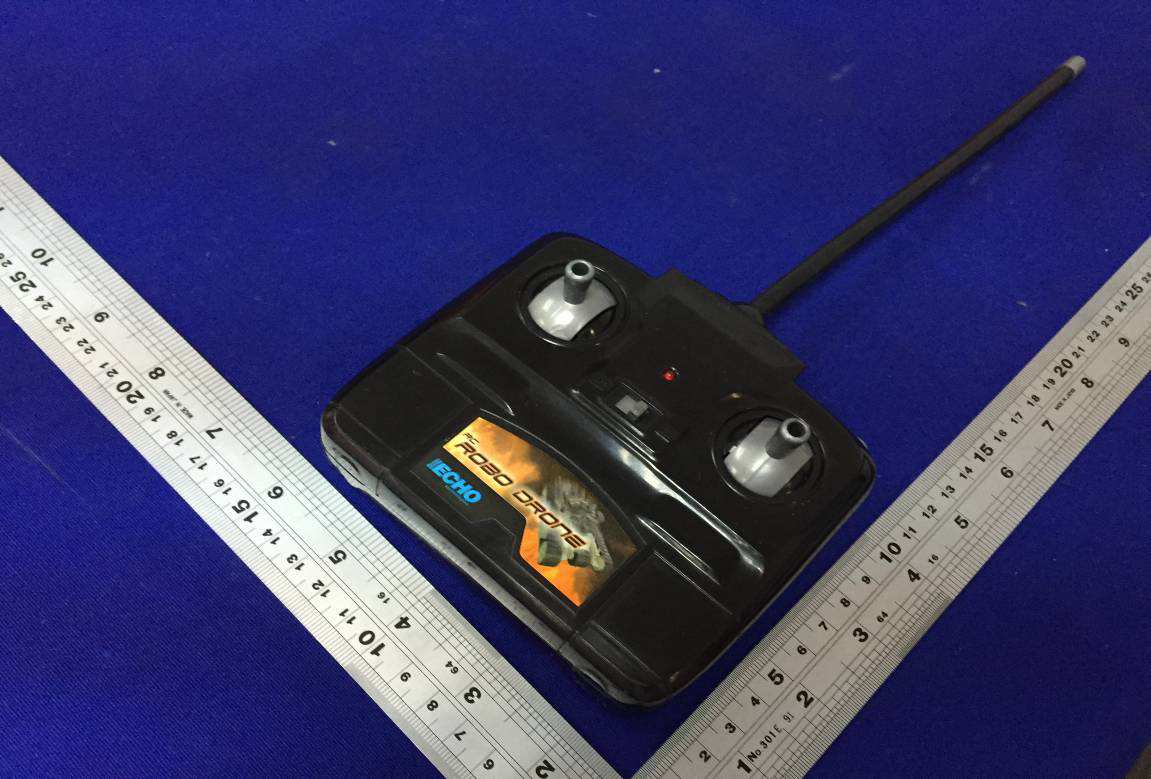

External Photos

Label Artwork and Location SIZE: 46mm (W) x 12mm (H)

Internal Photo

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a RC ROBO Drone operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by a 9.0V size 6F22 battery. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal conducted output power specified: -27.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -29.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: The worst-case peak radiated emission for the EUT is 68.2dBμV/m at 3m in the frequency 27.145MHz The EIRP = [(FS*D) ^2 / 30] mW= -27.03dBm The ERP = EIRP – 2.15 = -29.18 dBm which is within the production variation. The maximun conducted output power specified is -24dBm =0.004mW The source- based time-averaging conducted output power = 0.004* Duty Cycle mW < 0.1mW (Duty Cycle<100%) The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 371.2 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 17.9710ms Effective period of the cycle = 492.8μs x 10 + 1.5362ms x 4 = 11.0728ms DC = 11.0728ms / 17.9710 ms = 0.6161 or 61.61% FCC ID: 2ACRG-39857F27
