SensoWash ® i HEADQUARTERS Duravit AG Werderstr. 36 78132 Hornberg Germany Phone +49 7833 70 0 Fax +49 7833 70 289 [email protected] www.duravit.com www.sensowash.com 2 Contents 1. Brief overview............................................................................................. 5 1.1 Toilet unit.............................................................................................. 5 1.2 Remote control...................................................................................... 5 1.3 Functional area..................................................................................... 6 1.4 Right product side................................................................................. 6 1.5 Left product side .................................................................................. 7 2. Description of Symbols................................................................................ 8 3. For your safety............................................................................................ 8 3.1 Normal Use........................................................................................... 8 3.2 Safety instructions................................................................................ 8 4. Product information.................................................................................. 10 4.1 Seat and lid......................................................................................... 10 Auto opening and closing of seat and lid................................................. 10 4.2 Shower, warm air dryer and seat heater functions.............................. 11 Comfortwash........................................................................................... 11 Ladywash................................................................................................ 11 Warm air dryer........................................................................................ 11 Temperature............................................................................................ 11 Spray wand position................................................................................. 11 Water spray intensity............................................................................... 11 Automatic cleaning.................................................................................. 12 4.3 Flushing functions................................................................................ 12 Pre-flush.................................................................................................. 12 Full flush.................................................................................................. 12 Eco flush.................................................................................................. 12 Auto flush................................................................................................. 12 4.4 Settings................................................................................................ 12 Night light................................................................................................. 12 Confirmation tone..................................................................................... 12 Auto opening and closing of seat and lid.................................................. 13 Energy saving mode................................................................................. 13 Pre-flush.................................................................................................. 13 Odor extraction........................................................................................ 13 User profile.............................................................................................. 13 5. Basics of operation..................................................................................... 14 5.1 Buttons and their functions................................................................... 14 5.2 Status LEDs .......................................................................................... 14 6. Initial operation........................................................................................... 14 Remote control......................................................................................... 14 Power supply............................................................................................ 14 Switch SensoWash on............................................................................... 15 7. Operating................................................................................................... 15 7.1 Switching the SensoWash? on /off....................................................... 15 3 7.2 Seat and lid......................................................................................... 15 Opening and closing of seat and lid by remote control........................... 15 Opening and closing of seat and lid by „Auto opening“........................... 16 7.3 Shower functions................................................................................. 16 Activating / deactivating „Rearwash“....................................................... 16 Activating / deactivating „Ladywash“....................................................... 16 Activating / deactivating „Comfortwash“.................................................. 17 Requirement: Rearwash or Ladywash function is activated. ................... 17 Adjusting the spray wand position............................................................ 17 Adjusting the water spray intensity.......................................................... 17 Adjusting the water temperature............................................................ 18 7.4 Warm air dryer..................................................................................... 18 Activating / deactivating warm air dryer...............................................…

Text truncated - open the document above for the full version.

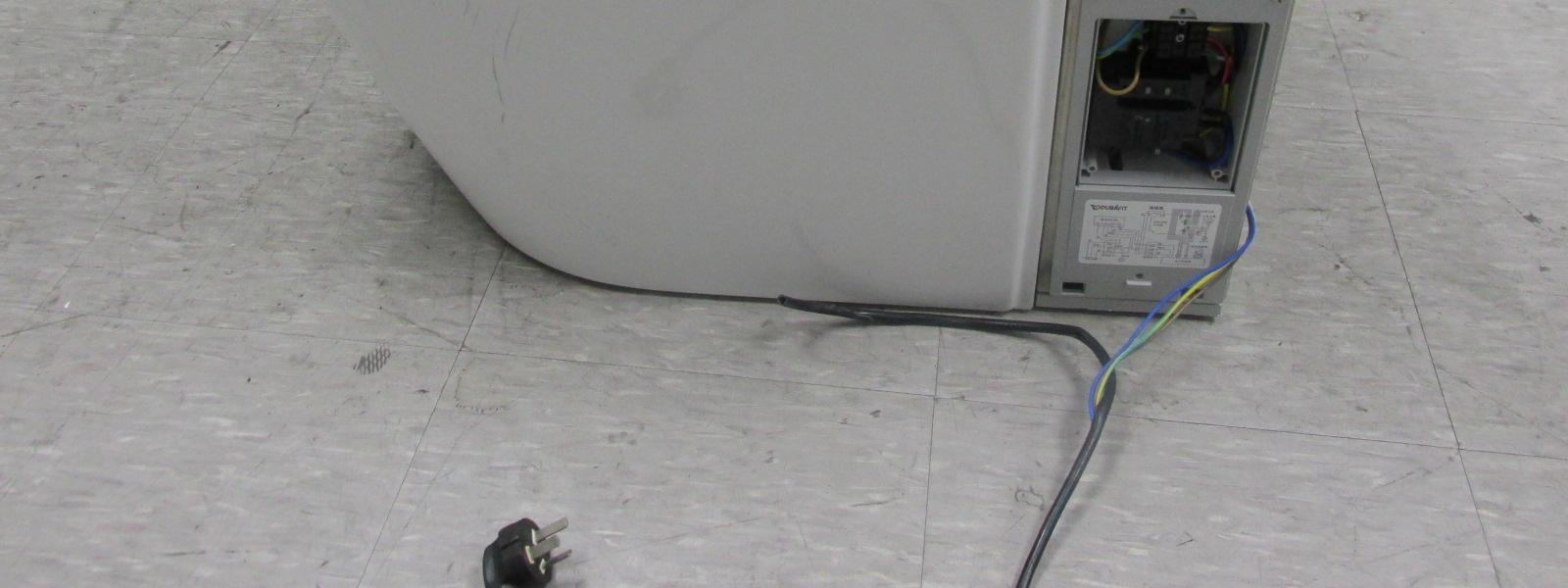

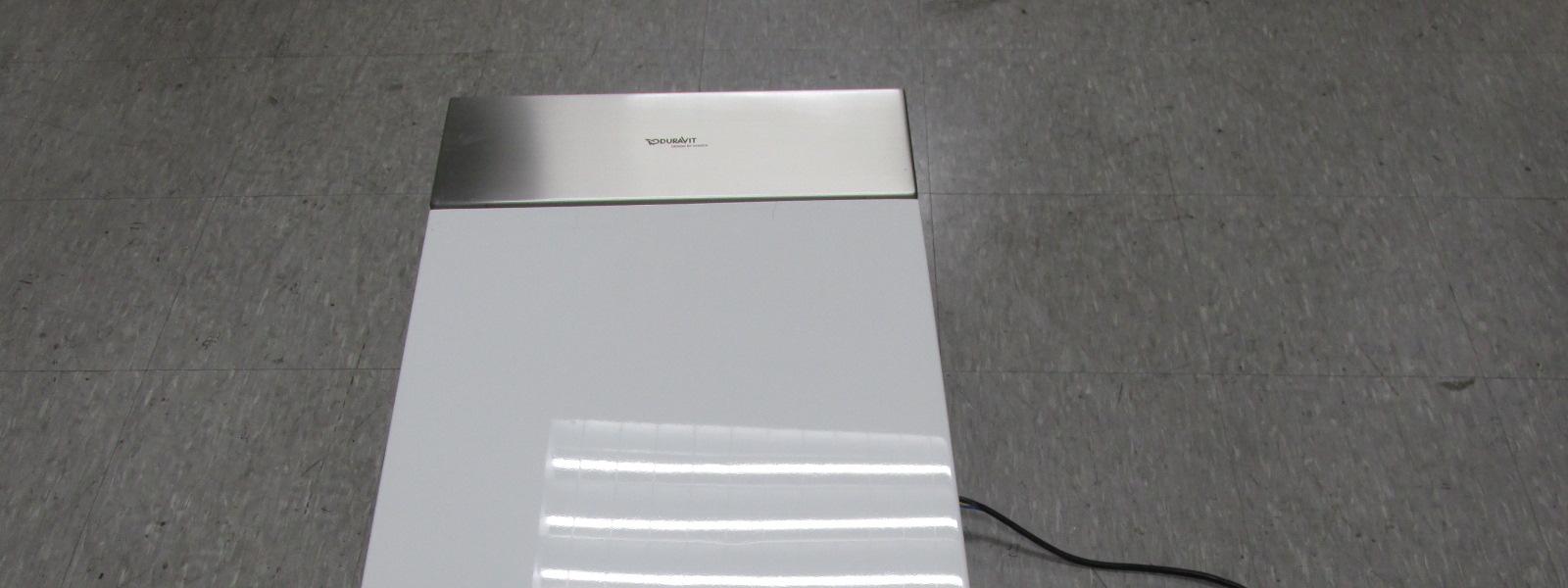

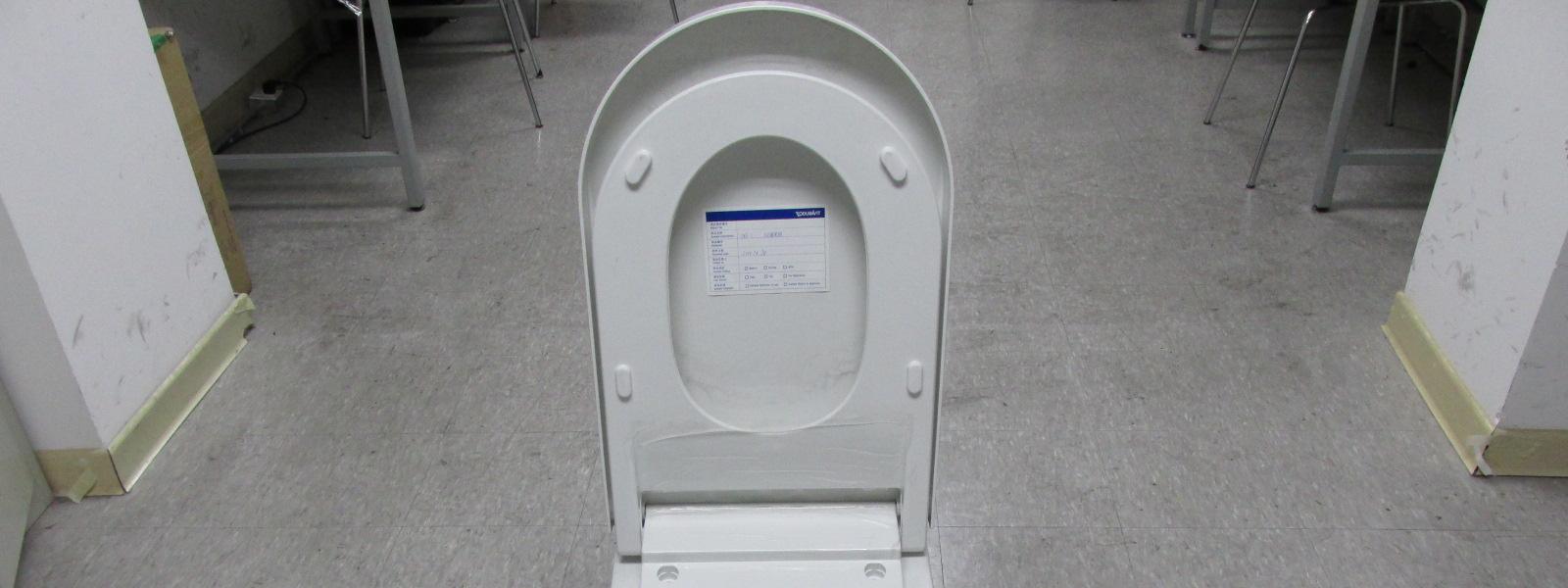

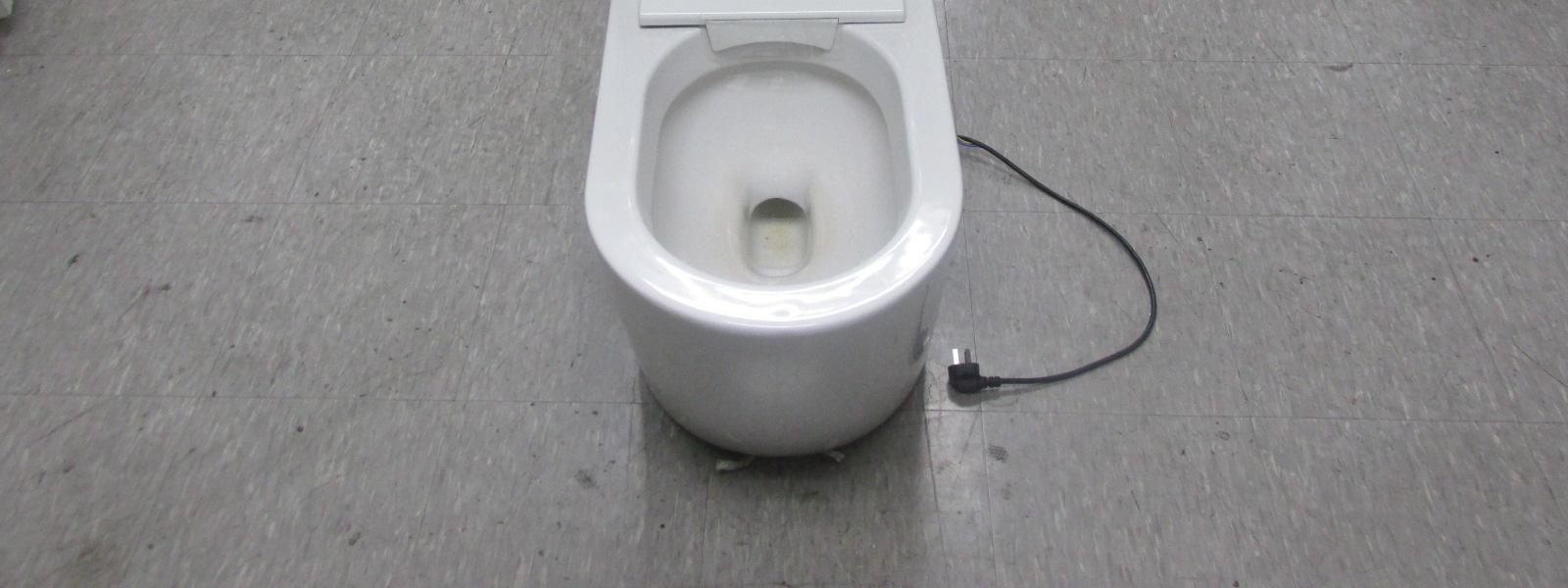

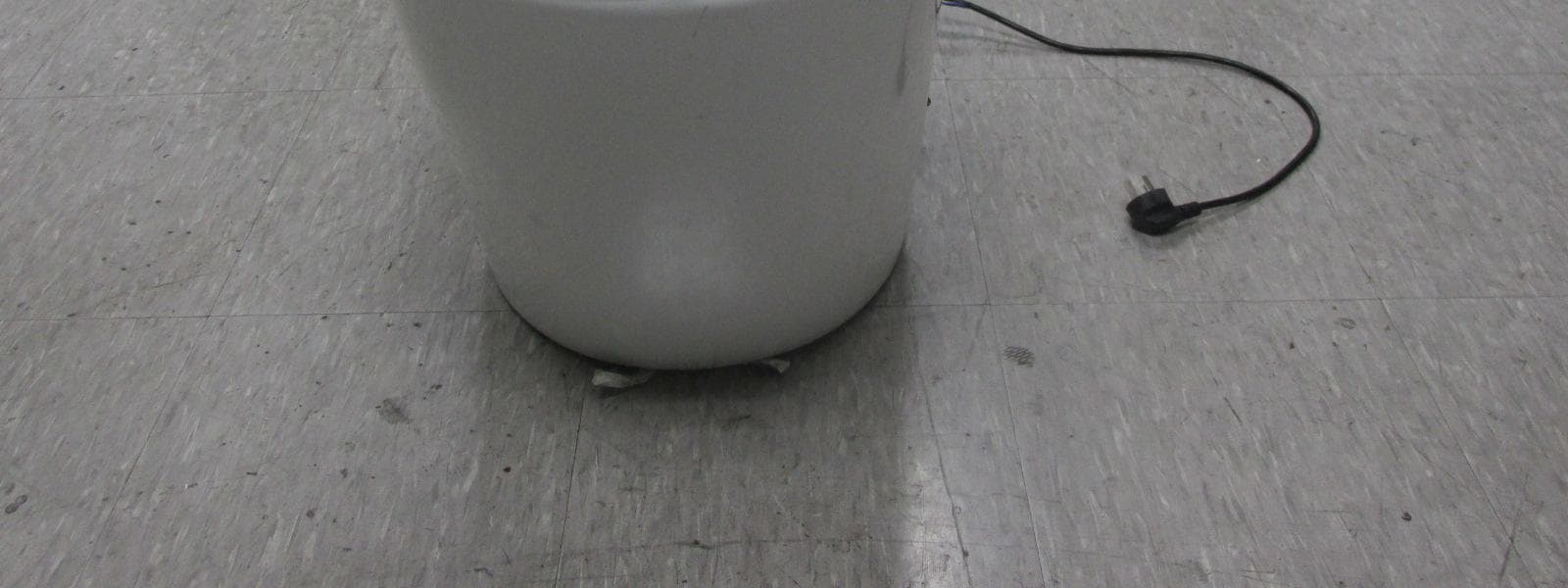

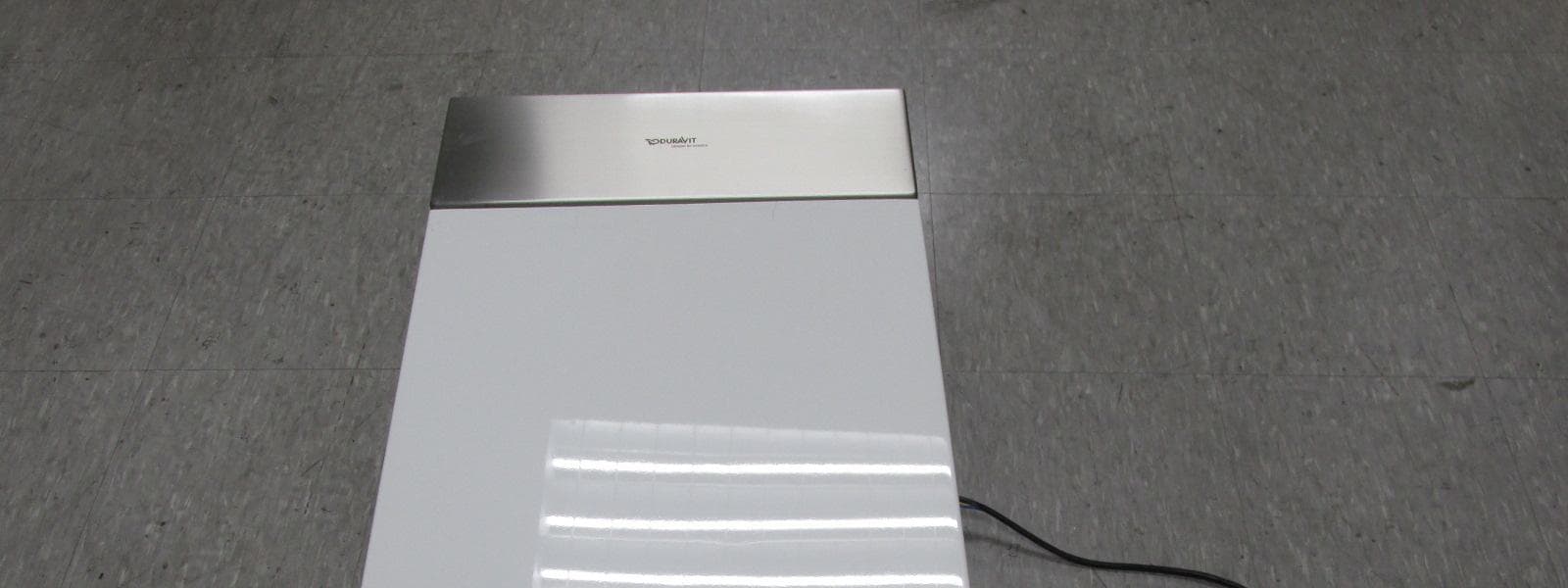

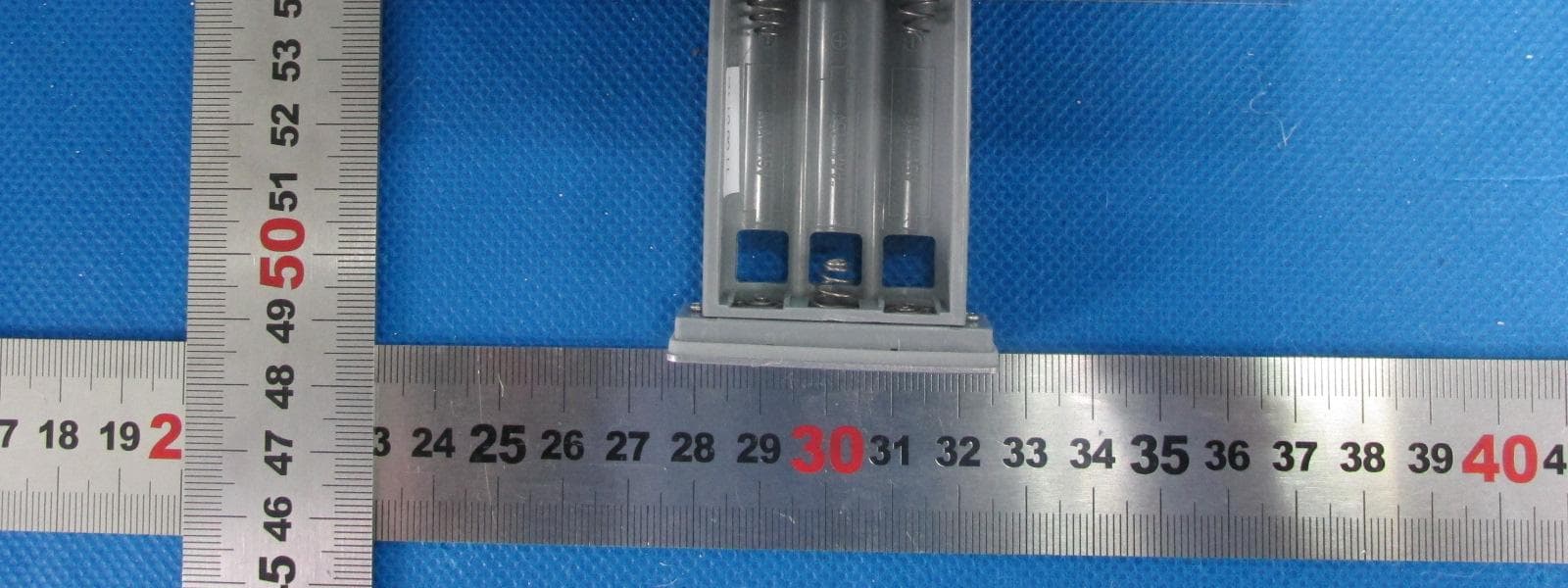

Appendix External Photos COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 1 of 5 Toilet External Photos COMMERCIAL-IN-CONFIDENCE Page 2 of 5 COMMERCIAL-IN-CONFIDENCE Page 3 of 5 COMMERCIAL-IN-CONFIDENCE Page 4 of 5 COMMERCIAL-IN-CONFIDENCE Page 5 of 5

60*20 mm 95*60 mm

Appendix Internal Photos COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 1 of 21 Toilet Internal Photos COMMERCIAL-IN-CONFIDENCE Page 2 of 21 COMMERCIAL-IN-CONFIDENCE Page 3 of 21 COMMERCIAL-IN-CONFIDENCE Page 4 of 21 COMMERCIAL-IN-CONFIDENCE Page 5 of 21 COMMERCIAL-IN-CONFIDENCE Page 6 of 21 COMMERCIAL-IN-CONFIDENCE Page 7 of 21 COMMERCIAL-IN-CONFIDENCE Page 8 of 21 COMMERCIAL-IN-CONFIDENCE Page 9 of 21 COMMERCIAL-IN-CONFIDENCE Page 10 of 21 COMMERCIAL-IN-CONFIDENCE Page 11 of 21 COMMERCIAL-IN-CONFIDENCE Page 12 of 21 COMMERCIAL-IN-CONFIDENCE Page 13 of 21 COMMERCIAL-IN-CONFIDENCE Page 14 of 21 COMMERCIAL-IN-CONFIDENCE Page 15 of 21 COMMERCIAL-IN-CONFIDENCE Page 16 of 21 COMMERCIAL-IN-CONFIDENCE Page 17 of 21 COMMERCIAL-IN-CONFIDENCE Page 18 of 21 COMMERCIAL-IN-CONFIDENCE Page 19 of 21 10.525GHz Microwave module COMMERCIAL-IN-CONFIDENCE Page 20 of 21 COMMERCIAL-IN-CONFIDENCE Page 21 of 21

RF Exposure evaluation Product Name˖Electric Toilet Model Number: 20000002002300 FCCID: 2ACSF20000002002300 1.1 RF Exposure Limit According to FCC 1.1310 table 1: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) 1.2 EUT Operating condition The EUT transmits at a single frequency and at the highest output power. 1.3 Antenna Gain The maximum Gain measured in Semi-Anechoic Chamber is 8.0 dBi or 6.310 (numeric). 1.4 Output Power into Antenna & RF Exposure value at distance 20cm: Calculations for this report are based on highest power measurement and the highest gain of the antenna. Limit for MPE (from FCC part 1.1310 table 1) is 1.0 mW/cm2 eirp = pt×gt = (E×d) 2 /30 Where: Pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 (dBuV/m)/20) /10 6 d = measurement distance in meters (m) --- 3m So Pt = (E×d) 2 /30×gt Maximum Field strength: 20000002002300: 110.340 dBuV/m @3m --10525MHz Refer to 708881474503-00 FCC Part 15C 15.245 Test Report page 13. Ant gain = 8dBi; so Ant numeric gain=6.310 So, for 20000002002300, Pt= {[(10 (110.340/20) /10 6 )×3] 2 /30×1}×1000mW =32.443 mW Highest Pout is 32.443 mW, highest antenna gain (in linear scale) is 6.310 R is 20cm, and f = 10525 MHz FCC Note: This calculation is assuming 100% duty cycle, which would not be the case in normal operation. Uncontrolled Exposures - Limit (mW/cm 2 ) = 1 Pd =0.040727mW/cm 2 Uncontrolled Margin to Limit=0.959273mW/cm 2 As originally tested, the EUT was found to be compliant to the requirements of the test standard(s). 1.5 Sample Calculation

Document 708881474503 Report 01 Issue 1August 2014 Report On FCC Testing of the Duravit AG Electric Toilet 20000002002300 In accordance with FCC CFR 47 Part 15C COMMERCIAL-IN-CONFIDENCE FCC ID: 2ACSF20000002002300 TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch No.88 Heng Tong Road, Shanghai 200070, P.R. China Tel: +86-(0)21 6141 0123. W ebsit e:www.tuv-sud.cn CO MME RCI AL-IN-CO NFI DE NCE Document 708881474503 Report 01 Issue 1Page 1 of 27 COMMERCIAL-IN-CONFIDENCE REPORT ONFCC Testing of the Duravit AG Electric Toilet 20000002002300 In accordance with FCC CFR 47 Part 15C Document708881474503Report01Issue 1 August2014 PREPARED FORDuravit AG Werderstr.36, 78132 Hornberg, Germany PREPARED BY Hui TONG Project Engineer APPROVED BY Wenwen Cheng Project Engineer DATED7August, 2014 ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47 Part 15C. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); Hui TONG Document 708881474503 Report 01 Issue 1Page 2 of 27 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE CONTENTS SectionPage No 1 REPORT SUMMARY .............................................................................................................. 3 1.1Introduction ............................................................................................................................. 4 1.2Brief Summary of Results ........................................................................................................ 5 1.3Application Form...................................................................................................................... 6 1.4Product Information ................................................................................................................. 7 1.5Test Conditions........................................................................................................................ 7 1.6Deviations from the Standard ................................................................................................... 7 1.7Modification Record ................................................................................................................. 7 2 TEST DETAILS ....................................................................................................................... 8 2.1AC Line Conducted Emissions ................................................................................................. 9 2.2Field Strength of Fundamental ............................................................................................... 12 2.3Field Strength of Spurious Emissions ..................................................................................... 14 2.4Occupied Bandwidth .............................................................................................................. 21 3 TEST EQUIPMENT USED..................................................................................................... 23 3.1Test Equipment Used ............................................................................................................ 24 3.2Measurement Uncertainty ...................................................................................................... 25 4 DISCLAIMERS AND COPYRIGHT ........................................................................................ 26 4.1Accreditation, Disclaimers and Copyright ............................................................................... 27 Document 708881474503 Report 01 Issue 1Page 3 of 27 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY Electric Toilet20000002002300 In accordance with FCC CFR 47 Part 15C FCC Testing of the Duravit AG Document 708881474503 Report 01 Issue 1Page 4 of 27 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE 1.1INTRODUCTION The information contained in this report is intended to show verification of the FCC Testing of the Duravit AG Electric Toilet 20000002002300 to the requirements of FCC CFR 47 Part 15C. Objective To perform FCC Testing to determine the Equipment Under Test's (EUT’s) compliance with the Test Specification, for the series of tests carried out. Manufacturer Duravit AG Electric Toilet Model Number(s)20000002002300 Serial Number(s)Engineering sample Number of Samples Tested1 Test Specification/Issue/Date FCC CFR 47 Part 15C (2014) Incoming Release Date Application Form 27 June 2014 Order Number Date Quote Acceptance Form 29 June 2014 Start of Test24 July 2014 Finish of Test24 July 2014 Name of Engineer(s)Hui TONG Related Document(s)ANSI C63.10: 2009 Document 708881427602 Report 02 Issue 1Page 5 of 27 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE 1.2BRIEF SUMMARY OF RESULTS A brief summary of the tests carried out in accordance with FCC CFR 47 Part 15C is shown below. SectionFCCTest DescriptionResultCom ments/ Base St andar d Short range device wireless video transmitter DCS500T 2.115.207AC Line Conducted Emissions Pass 2.215.245 (a)Field Strength of Fundamental Pass 2.315.245 (a), 15.209Field Strength of Spurious Emissions Pass Document 708881474503 Report 01 Issue 1Page 6 of 27 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE 1.3APPLICATION FORM APPLICANT'S DETAILS COMPANY NAME :Duravit AG ADDRESS : Werderstr.36, 78132 Hornberg, Germany ................................................................................. NAME FOR CONTACT PURPOSES : Sheldon He TELEPHONE NO:+86-21 5227 1278-627FAX NO: E-MAIL:[email protected] EQUIPMENT INFORMATION MANUFACTURING DESCRIPTION Electric Toilet MANUFACTURER Duravit AG TYPE 20000002002300 SERIAL NUMBER Engineering sample TRANSMITTER OPERATING RANGE 10.525GHz COUTRY OF ORIGIN China Channel Number 1 Modulation Type No modulation Antenna Gain 8dbi FCC ID 2ACSF20000002002300…

Text truncated - open the document above for the full version.

FCC ID: 2ACSF20000002002300 Duravit AG Electric Toilet 20000002002300 ”2014 Not to be reproduced, except in its entirety,Page 1 of 2 without the Permission of TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai BranchReference: 708881474503-00 PHOTOGRAPHS OF TEST SET UP Field Strength and Harmonics Test Setup FCC ID: 2ACSF20000002002300 Duravit AG Electric Toilet 20000002002300 ”2014 Not to be reproduced, except in its entirety,Page 2 of 2 without the Permission of TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch Reference: 708881474503-00 Conducted Emissions Test Setup
