2ACSF596000098001Remote Control

SensoWash ® i HEADQUARTERS Duravit AG Werderstr. 36 78132 Hornberg Germany Phone +49 7833 70 0 Fax +49 7833 70 289 [email protected] www.duravit.com www.sensowash.com 2 Contents 1. Brief overview............................................................................................. 5 1.1 Toilet unit.............................................................................................. 5 1.2 Remote control...................................................................................... 5 1.3 Functional area..................................................................................... 6 1.4 Right product side................................................................................. 6 1.5 Left product side .................................................................................. 7 2. Description of Symbols................................................................................ 8 3. For your safety............................................................................................ 8 3.1 Normal Use........................................................................................... 8 3.2 Safety instructions................................................................................ 8 4. Product information.................................................................................. 10 4.1 Seat and lid......................................................................................... 10 Auto opening and closing of seat and lid................................................. 10 4.2 Shower, warm air dryer and seat heater functions.............................. 11 Comfortwash........................................................................................... 11 Ladywash................................................................................................ 11 Warm air dryer........................................................................................ 11 Temperature............................................................................................ 11 Spray wand position................................................................................. 11 Water spray intensity............................................................................... 11 Automatic cleaning.................................................................................. 12 4.3 Flushing functions................................................................................ 12 Pre-flush.................................................................................................. 12 Full flush.................................................................................................. 12 Eco flush.................................................................................................. 12 Auto flush................................................................................................. 12 4.4 Settings................................................................................................ 12 Night light................................................................................................. 12 Confirmation tone..................................................................................... 12 Auto opening and closing of seat and lid.................................................. 13 Energy saving mode................................................................................. 13 Pre-flush.................................................................................................. 13 Odor extraction........................................................................................ 13 User profile.............................................................................................. 13 5. Basics of operation..................................................................................... 14 5.1 Buttons and their functions................................................................... 14 5.2 Status LEDs .......................................................................................... 14 6. Initial operation........................................................................................... 14 Remote control......................................................................................... 14 Power supply............................................................................................ 14 Switch SensoWash on............................................................................... 15 7. Operating................................................................................................... 15 7.1 Switching the SensoWash? on /off....................................................... 15 3 7.2 Seat and lid......................................................................................... 15 Opening and closing of seat and lid by remote control........................... 15 Opening and closing of seat and lid by „Auto opening“........................... 16 7.3 Shower functions................................................................................. 16 Activating / deactivating „Rearwash“....................................................... 16 Activating / deactivating „Ladywash“....................................................... 16 Activating / deactivating „Comfortwash“.................................................. 17 Requirement: Rearwash or Ladywash function is activated. ................... 17 Adjusting the spray wand position............................................................ 17 Adjusting the water spray intensity.......................................................... 17 Adjusting the water temperature............................................................ 18 7.4 Warm air dryer..................................................................................... 18 Activating / deactivating warm air dryer...............................................…

Text truncated - open the document above for the full version.

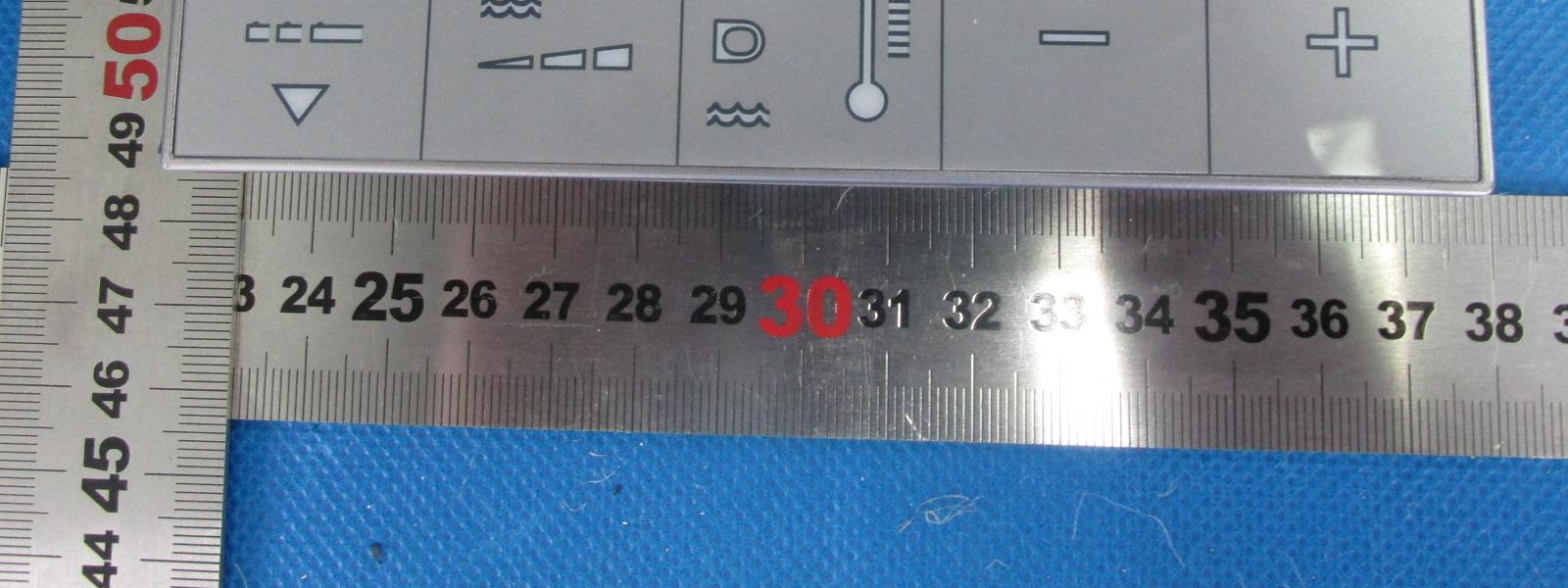

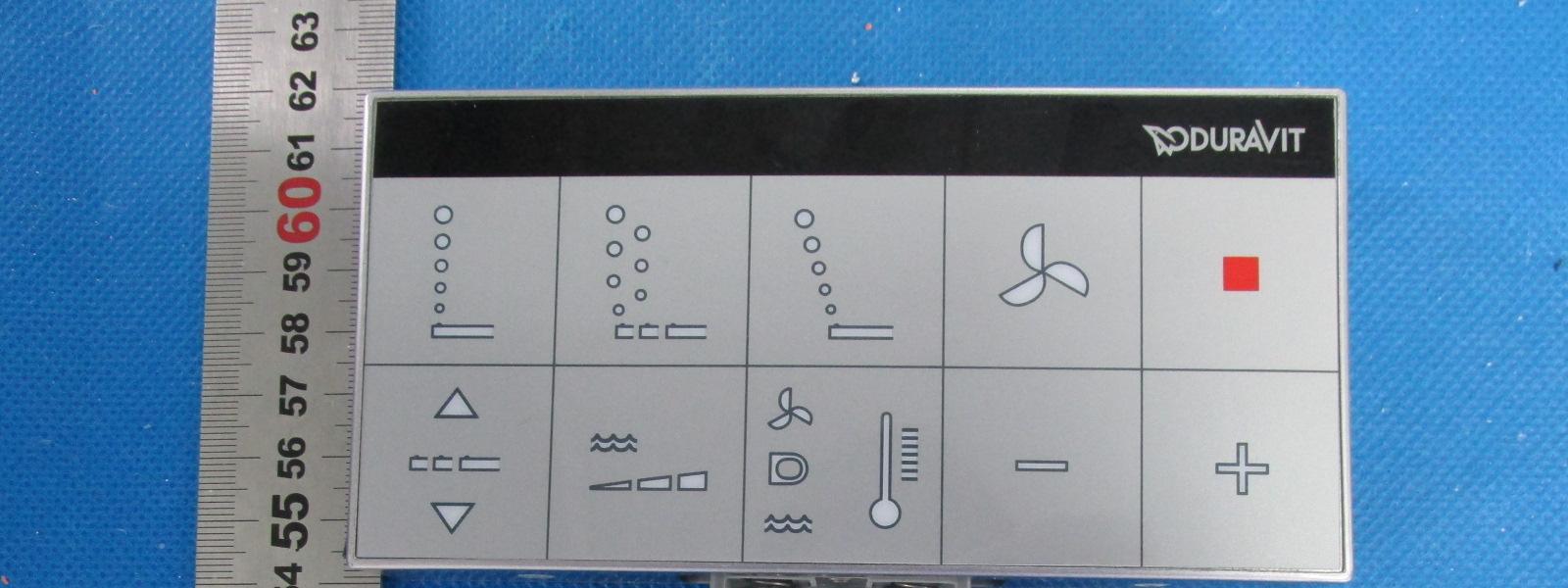

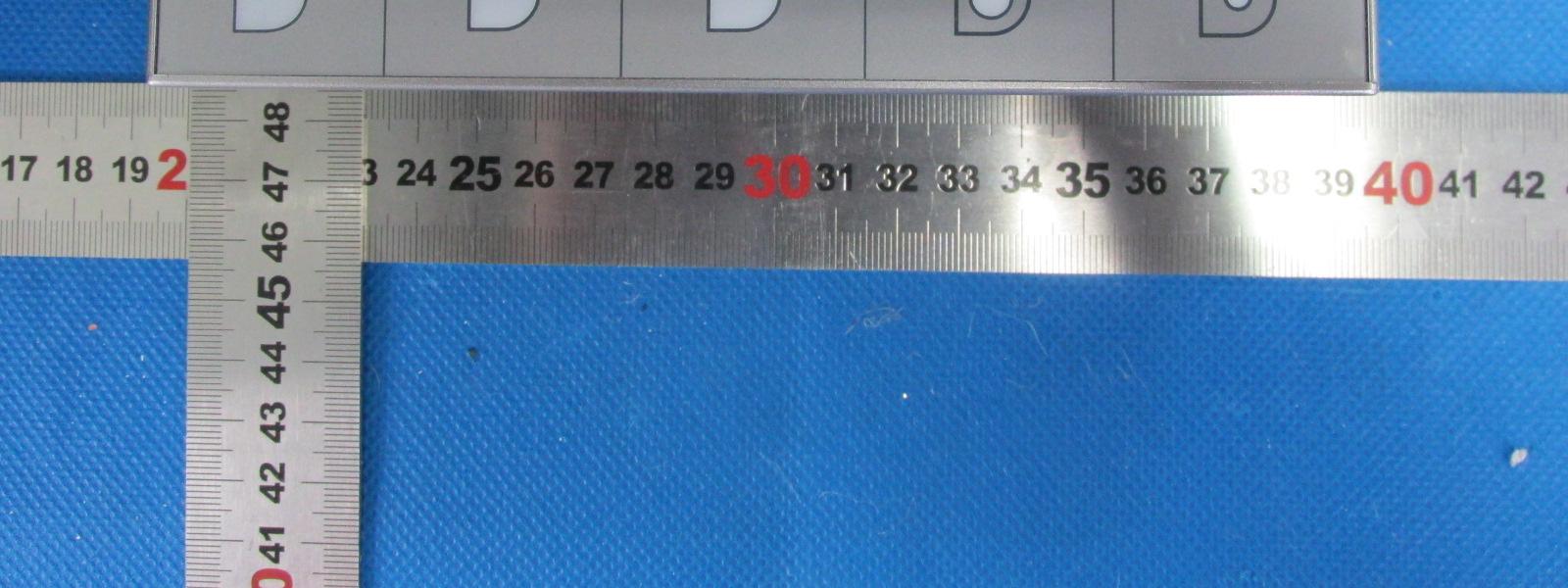

Document 708881474502 Report 00 Issue 1August 2014 Appendix External Photos COMMERCIAL-IN-CONFIDENCE FCC ID: 2ACSF596000098001 COMMERCIAL-IN-CONFIDENCE Doc Number 708881474502 Report 00 Issue 1 Page 1 of 3 COMMERCIAL-IN-CONFIDENCE Doc Number 708881474502 Report 00 Issue 1 Page 2 of 3 COMMERCIAL-IN-CONFIDENCE Doc Number 708881474502 Report 00 Issue 1 Page 3 of 3

Label Statement: 1. The FCC warning has been added to the user manual. 2. The current label size is too small to contain the warning sentence. 3. The product has no other efficient smooth room to paste other label. It can be seen clearly from the attached external photos. So the FCC warning hasn’t be shown on the product, it’s listed in the user manual.

Document 708881474502 Report 00 Issue 1August 2014 Appendix Internal Photos COMMERCIAL-IN-CONFIDENCE FCC ID: 2ACSF596000098001 COMMERCIAL-IN-CONFIDENCE Doc Number 708881474502 Report 02 Issue 1 Page 1 of 4 COMMERCIAL-IN-CONFIDENCE Doc Number 708881474502 Report 02 Issue 1 Page 2 of 4 COMMERCIAL-IN-CONFIDENCE Doc Number 708881474502 Report 02 Issue 1 Page 3 of 4 2.4 GHz TX Antenna COMMERCIAL-IN-CONFIDENCE Doc Number 708881474502 Report 02 Issue 1 Page 4 of 4

RF Exposure evaluation Product Name˖Remote Control Model Number: 596000098001 FCCID: 2ACSF596000098001 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distancesื 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[෭f(GHz)] ื 3.0 for 1-g SAR and ื 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt×gt = (E×d) 2 /30 Where: Pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 (dBuV/m)/20) /10 6 d = measurement distance in meters (m) --- 3m So Pt = (E×d) 2 /30×gt Maximum Field strength: 596000098001: 88.847 dBuV/m @3m --Channel 1:2410MHz Refer to 708881474502-00 FCC Part 15C 15.249 Test Report page 11. Ant gain = 0dBi; so Ant numeric gain=1 So, for 596000098001, Pt= {[(10 (88.847/20) /10 6 )×3] 2 /30×1}×1000mW =0.23 mW (0.23 mW/5mm)×෭2.473 =2.288 < 3 Then SAR evaluation is not required

Document 708881474502 Report 01 Issue 1August 2014 Report On FCC Testing of the Duravit AG Short Range Device Remote Control 596000098001 In accordance with FCC CFR 47 Part 15C COMMERCIAL-IN-CONFIDENCE FCC ID: 2ACSF596000098001 TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch No.88 Heng Tong Road, Shanghai 200070, P.R. China Tel: +86-(0)21 6141 0123. W ebsit e:www.tuv-sud.cn CO MME RCI AL-IN-CO NFI DE NCE Document 708881427602 Report 01 Issue 1Page 1 of 27 COMMERCIAL-IN-CONFIDENCE REPORT ONFCC Testing of the Duravit AG Short Range Device Remote Control 596000098001 In accordance with FCC CFR 47 Part 15C Document708881474502Report01Issue 1 August2014 PREPARED FORDuravit AG Werderstr.36, 78132 Hornberg, Germany PREPARED BY Hui TONG Project Engineer APPROVED BY Wenwen CHENG Project Engineer DATED5 August, 2014 ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47 Part 15C. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); Hui TONG Document 708881474502 Report 01 Issue 1Page 2 of 27 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE CONTENTS SectionPage No 1 REPORT SUMMARY .............................................................................................................. 3 1.1Introduction ............................................................................................................................. 4 1.2Brief Summary of Results ........................................................................................................ 5 1.3Application Form...................................................................................................................... 6 1.4Product Information ................................................................................................................. 7 1.5Test Conditions........................................................................................................................ 7 1.6Deviations from the Standard ................................................................................................... 7 1.7Modification Record ................................................................................................................. 7 2 TEST DETAILS ....................................................................................................................... 8 2.1AC Line Conducted Emissions ................................................................................................. 9 2.2Field Strength of Fundamental ............................................................................................... 10 2.3Field Strength of Spurious Emissions ..................................................................................... 12 3 TEST EQUIPMENT USED..................................................................................................... 23 3.1Test Equipment Used ............................................................................................................ 24 3.2Measurement Uncertainty ...................................................................................................... 25 4 DISCLAIMERS AND COPYRIGHT ........................................................................................ 26 4.1Accreditation, Disclaimers and Copyright ............................................................................... 27 Document 708881474502 Report 01 Issue 1Page 3 of 27 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY Short Range Device Remote Control 596000098001 In accordance with FCC CFR 47 Part 15C FCC Testing of the Duravit AG Document 708881474502 Report 01 Issue 1Page 4 of 27 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE 1.1INTRODUCTION The information contained in this report is intended to show verification of the FCC Testing of the Duravit AG Short Range Device Remote Control 596000098001 to the requirements of FCC CFR 47 Part 15C. Objective To perform FCC Testing to determine the Equipment Under Test's (EUT’s) compliance with the Test Specification, for the series of tests carried out. Manufacturer Duravit AG Short range device Remote Control Model Number(s)596000098001 Serial Number(s)Engineering sample Number of Samples Tested1 Test Specification/Issue/Date FCC CFR 47 Part 15C (2014) Incoming Release Date Application Form 27 June 2014 Order Number Date Quote Acceptance Form 29 June 2014 Start of Test24 July 2014 Finish of Test24 July 2014 Name of Engineer(s)Hui TONG Related Document(s)ANSI C63.10: 2009 Document 708881427602 Report 02 Issue 1Page 5 of 27 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE 1.2BRIEF SUMMARY OF RESULTS A brief summary of the tests carried out in accordance with FCC CFR 47 Part 15C is shown below. SectionFCCTest DescriptionResultCom ments/ Base St andar d Short range device wireless video transmitter DCS500T 2.115.207AC Line Conducted Emissions N/A* 2.215.249 (a)Field Strength of Fundamental Pass 2.315.249 (a)(d), 15.209Field Strength of Spurious Emissions Pass Remark:*EUT is battery operated only. Document 708881474502 Report 01 Issue 1Page 6 of 27 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE 1.3APPLICATION FORM APPLICANT'S DETAILS COMPANY NAME :Duravit AG ADDRESS : Werderstr.36, 78132 Hornberg, Germany ................................................................................. NAME FOR CONTACT PURPOSES : Sheldon He TELEPHONE NO:+86-21 5227 1278-627FAX NO: E-MAIL:[email protected] EQUIPMENT INFORMATION MANUFACTURING DESCRIPTION Short Range Device Remote Control MANUFACTURER Duravit AG TYPE 596000098001 SERIAL NUMBER Engineering sample TRANSMITTER OPERATING RANGE 2410~2473MHz COUTRY OF ORIGIN China Channel Number 316 Channels Spacing 199.951172kHz Modulation Type MSK Antenna Gain 0dbi…

Text truncated - open the document above for the full version.

FCC ID: 2ACSF596000098001 Duravit AG Short Range Device Remote Control 596000098001 ”2014 Not to be reproduced, except in its entirety,Page 1 of 1 without the Permission of TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai BranchReference: 708881474502-00 PHOTOGRAPHS OF TEST SET UP Field Strength and Harmonics Test Setup
