2ACSVHF-LPT230-0WIFI Module

HF-LPX30 Series Low Power WiFi Module User Manual Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com) - 1 - HF-LPT230 Low Power WiFi Module User Manual V 2.0 Overview of Characteristic  Support IEEE802.11b/g/n Wireless Standards  Based on Cortex-M4 SOC, 160MHz CPU, 352KB RAM for 1MB Flash Version, 384KB for 2MB Flash  Support UART Data Communication Interface  Support Work As STA/AP/AP+STA Mode  Support SmartLink V8 Function (Provide APP SDK)  Support SmartAPLink Function  Support WeChat Airkiss 2.0, MiniAPP Config  Support Wireless and Remote Firmware Upgrade Function  Support Software SDK for Develop  Support Different Antenna Option  HF-LPT230：Internal PCB or External IPEX  Small Size: HF-LPX30 Series Low Power WiFi Module User Manual Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com) - 2 -  HF-LPT230：22mm x 13.5mm x 3mm, SMT18 package  FCC/CE/SRRC/RoHS Certificated HF-LPX30 Series Low Power WiFi Module User Manual Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com) - 3 - TABLE OF CONTENTS LIST OF FIGURES ................................................................................................................................... 4 LIST OF TABLES .................................................................................................................................... 5 HISTORY .................................................................................................................................................. 6 1. PRODUCT OVERVIEW ................................................................................................................ 7 1.1. General Description ................................................................................................................. 7 1.1.1 Key Application ................................................................................................................... 7 1.1.2 Device Paremeters ............................................................................................................. 8 1.2. Hardware Introduction ............................................................................................................. 8 1.2.1. HF-LPT230 Pins Definition ................................................................................................. 9 1.2.2. Electrical Characteristics .................................................................................................. 11 1.2.3. HF-LPT230 Mechanical Size ............................................................................................ 12 HF-LPX30 Series Low Power WiFi Module User Manual Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com) - 4 - LIST OF FIGURES Figure 1. HF-LPT230-1 and HF-LPT230-0 Appearance ....................................................................... 9 Figure 2. HF-LPT230 Pins Map ............................................................................................................. 9 Figure 3. HF-LPT230 Mechanical Dimension ...................................................................................... 12 Figure 4. Suggested Module Placement Region ...................................................... 错误!未定义书签。 Figure 5. HF-LPT230 EVK ........................................................................................ 错误!未定义书签。 Figure 6. HF-LPT230 Order Information ................................................................... 错误!未定义书签。 HF-LPX30 Series Low Power WiFi Module User Manual Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com) - 5 - LIST OF TABLES Table1. HF-LPT230 Module Technical Specifications ........................................................................ 8 Table2. HF-LPT230 Pins Definition ..................................................................................................... 9 Table3. Absolute Maximum Ratings: ................................................................................................. 11 Table4. Power Supply & Power Consumption: ................................................................................. 11 HF-LPX30 Series Low Power WiFi Module User Manual Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com) - 6 - HISTORY Ed. V0.2 07-25-2017 Internal Version. Ed. V0.2 08-22-2017 Release Version Ed. V1.1 13-10-2017 Add HF-LPT130A type module Ed. V1.2 10-11-2017 Add HF-LPB130 type module Ed. V1.3 03-01-2018 Update HF-LPT230 Pin，webpage config. Ed. V1.4 03-01-2018 Add HF-LPT330 type, correct working temperature,voltage. Ed. V1.5 04-28-2018 Add HF-LPB135 type, add 4.10.14 version software function. Add AT+TMODE, AT+PING, AT+BVER, AT+HWVER, AT+SMEM and others. Ed. V1.6 06-15-2018 Delete 4MB version, add HF-LPT230-0 type Ed. V1.7 08-08-2018 Add HF-LPT230-0 size, add HF-LPT130B type and 4.12.07 firmware new function(AT+CMDPW,AT+MDCH). Ed. V1.8 10-10-2018 Add 4.12.14 version AT+SMARTAPCONFIG, AT+SMARTAPSTART, AT+BTWAIT command Ed. V1.9 12-11-2018 Add AT+WSLKO command, fix LPB130 size picture error. Ed. V2.0 04-12-2019 Add WeChat MiniAPP Config, add AT+NTPXXX command, AT+WSDNS, AT+WMAC, AT+DTIM, update AP MAC calculation, update power consumption HF-LPX30 Series Low Power WiFi Module User Manual Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com) - 7 - 1. PRODUCT OVERVIEW 1.1. General Description The HF-LPT230 is a fully self-contained small form-factor, single stream, 802.11b/g/n Wi-Fi module, which provide a wireless interface to any equipment with a Serial interface for data transfer.HF- LPT230 integrate MAC, baseband processor, RF transceiver with power amplifier in hardware and all Wi-Fi protocol and configuration functionality and networking stack, in embedded firmware to make a fully self-contained 802.11b/g/n Wi-Fi solution for a variety of applications. The HF-LPT230 employs the world's lowest power consumption embedded architecture. It has been opti…

Text truncated - open the document above for the full version.

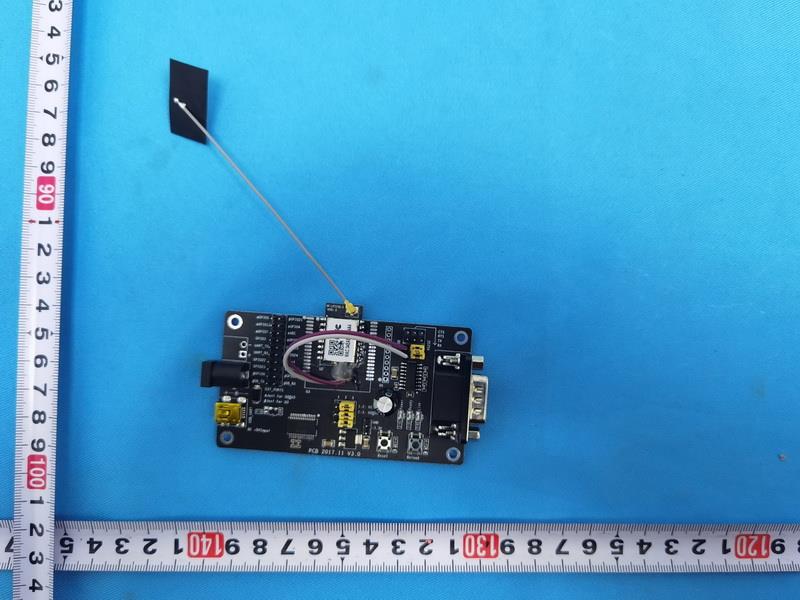

Project No.: 2012H045 Page 1 of 4 ATTACHMENT PHOTOGRAPHS OF EUT Project No.: 2012H045 Page 2 of 4

Label Label location

Project No.: 2012H045 Page 3 of 4 Project No.: 2012H045 Page 4 of 4 2.4G WIFI Ant.

Report No.: BTL-FCCP-2-2012H045 Page 1 of 3 FCC RF EXPOSURE REPORT FCC ID: 2ACSVHF-LPT230-0 Project No. : 2012H045 Equipment : WIFI Module Brand Name : HF Test Model : HF-LPT230-0 Series Model : N/A Applicant : High-Flying Electronics Technology Co., Ltd. Address : Room 1002, Building 1, No.3000, Longdong Avenue, Pudong New Area,Shanghai ,China Manufacturer : High-Flying Electronics Technology Co., Ltd. Address : Room 1002, Building 1, No.3000, Longdong Avenue, Pudong New Area,Shanghai ,China Date of Receipt : Jan. 4, 2021 Date of Test : Jan. 4, 2021~Jan. 18, 2021 Issued Date : Jan. 26, 2021 Report Version : R00 Test Sample : Engineering Sample No.: SH2020122872, SH2020122873, SH2020122874 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Maker Qi Approved by : Ryan Wang Add: No. 29, Jintang Road, Tangzhen Industry Park, Pudong New Area, Shanghai 201210,China TEL: +86-021-61765666 Web: www.newbtl.com Report No.: BTL-FCCP-2-2012H045 Page 2 of 3 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jan. 26, 2021 Report No.: BTL-FCCP-2-2012H045 Page 3 of 3 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna For 2.4G: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A FPCB N/A 1.67 Note: The antenna gain is provided by the manufacturer. 2. TEST RESULTS For 2.4GHz: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.67 1.4689 24 251.1886 0.0734 1 Complies Note: The calculated distance is 20 cm. Output power including tune up tolerance. End of Test Report

Report No.: BTL-FCCP-1-2012H045 Page 1 of 96 FCC Radio Test Report FCC ID: 2ACSVHF-LPT230-0 This report concerns: Original Grant Project No. : 2012H045 Equipment : WIFI Module Brand Name : HF Test Model : HF-LPT230-0 Series Model : N/A Applicant : High-Flying Electronics Technology Co., Ltd. Address : Room 1002, Building 1, No.3000, Longdong Avenue, Pudong New Area,Shanghai ,China Manufacturer : High-Flying Electronics Technology Co., Ltd. Address : Room 1002, Building 1, No.3000, Longdong Avenue, Pudong New Area,Shanghai ,China Date of Receipt : Jan. 4, 2021 Date of Test : Jan. 4, 2021~Jan. 18, 2021 Issued Date : Jan. 26, 2021 Report Version : R00 Test Sample : Engineering Sample No.: SH2020122872, SH2020122873, SH2020122874 Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Maker Qi Approved by : Ryan Wang Add: No. 29, Jintang Road, Tangzhen Industry Park, Pudong New Area, Shanghai 201210,China TEL: +86-021-61765666 Web: www.newbtl.com Report No.: BTL-FCCP-1-2012H045 Page 2 of 96 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2012H045 Page 3 of 96 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 8 2 . GENERAL INFORMATION 9 2.1 GENERAL DESCRIPTION OF EUT 9 2.2 DESCRIPTION OF TEST MODES 10 2.3 PARAMETERS OF TEST SOFTWARE 11 2.4 DUTY CYCLE 12 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 2.6 SUPPORT UNITS 13 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 14 3.1 LIMIT 14 3.2 TEST PROCEDURE 14 3.3 DEVIATION FROM TEST STANDARD 14 3.4 TEST SETUP 15 3.5 EUT OPERATION CONDITIONS 15 3.6 TEST RESULTS 15 4 . RADIATED EMISSIONS TEST 16 4.1 LIMIT 16 4.2 TEST PROCEDURE 17 4.3 DEVIATION FROM TEST STANDARD 17 4.4 TEST SETUP 18 4.5 EUT OPERATION CONDITIONS 19 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 19 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 19 4.8 TEST RESULTS - ABOVE 1000 MHZ 19 5 . BANDWIDTH TEST 20 5.1 LIMIT 20 5.2 TEST PROCEDURE 20 5.3 DEVIATION FROM STANDARD 20 5.4 TEST SETUP 20 Report No.: BTL-FCCP-1-2012H045 Page 4 of 96 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 20 5.6 TEST RESULTS 20 6 . MAXIMUM OUTPUT POWER TEST 21 6.1 LIMIT 21 6.2 TEST PROCEDURE 21 6.3 DEVIATION FROM STANDARD 21 6.4 TEST SETUP 21 6.5 EUT OPERATION CONDITIONS 21 6.6 TEST RESULTS 21 7 . CONDUCTED SPURIOUS EMISSIONS 22 7.1 LIMIT 22 7.2 TEST PROCEDURE 22 7.3 DEVIATION FROM STANDARD 22 7.4 TEST SETUP 22 7.5 EUT OPERATION CONDITIONS 22 7.6 TEST RESULTS 22 8 . POWER SPECTRAL DENSITY TEST 23 8.1 LIMIT 23 8.2 TEST PROCEDURE 23 8.3 DEVIATION FROM STANDARD 23 8.4 TEST SETUP 23 8.5 EUT OPERATION CONDITIONS 23 8.6 TEST RESULTS 23 9 . MEASUREMENT INSTRUMENTS LIST 24 10 . EUT TEST PHOTO 26 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 28 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 29 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 30 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 33 APPENDIX E - BANDWIDTH 82 APPENDIX F - MAXIMUM OUTPUT POWER 87 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 89 Report No.: BTL-FCCP-1-2012H045 Page 5 of 96 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 94 Report No.: BTL-FCCP-1-2012H045 Page 6 of 96 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jan. 26, 2021 Report No.: BTL-FCCP-1-2012H045 Page 7 of 96 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.247) Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A N/A ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Output Power APPENDIX F PASS ------ 15.247(d) Conducted Spurious Emissions APPENDIX G PASS ------ 15.247(e) Power Spectral Density APPENDIX H PASS ------ 15.203 Antenna Requirement ------ …

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2012H045 Page 26 of 96 10. EUT TEST PHOTO Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-1-2012H045 Page 27 of 96 Radiated Emissions Test Photos Above 1 GHz
