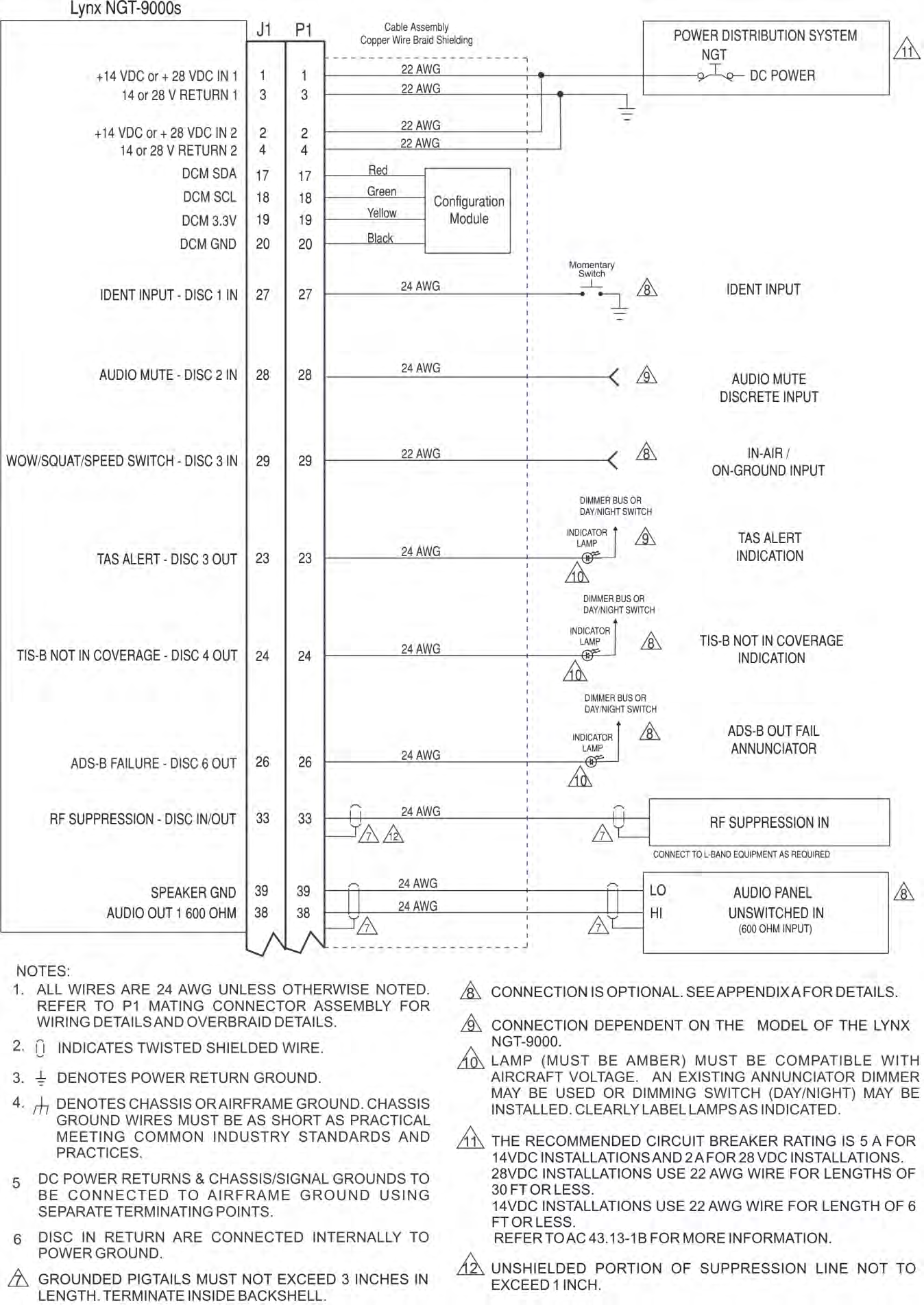

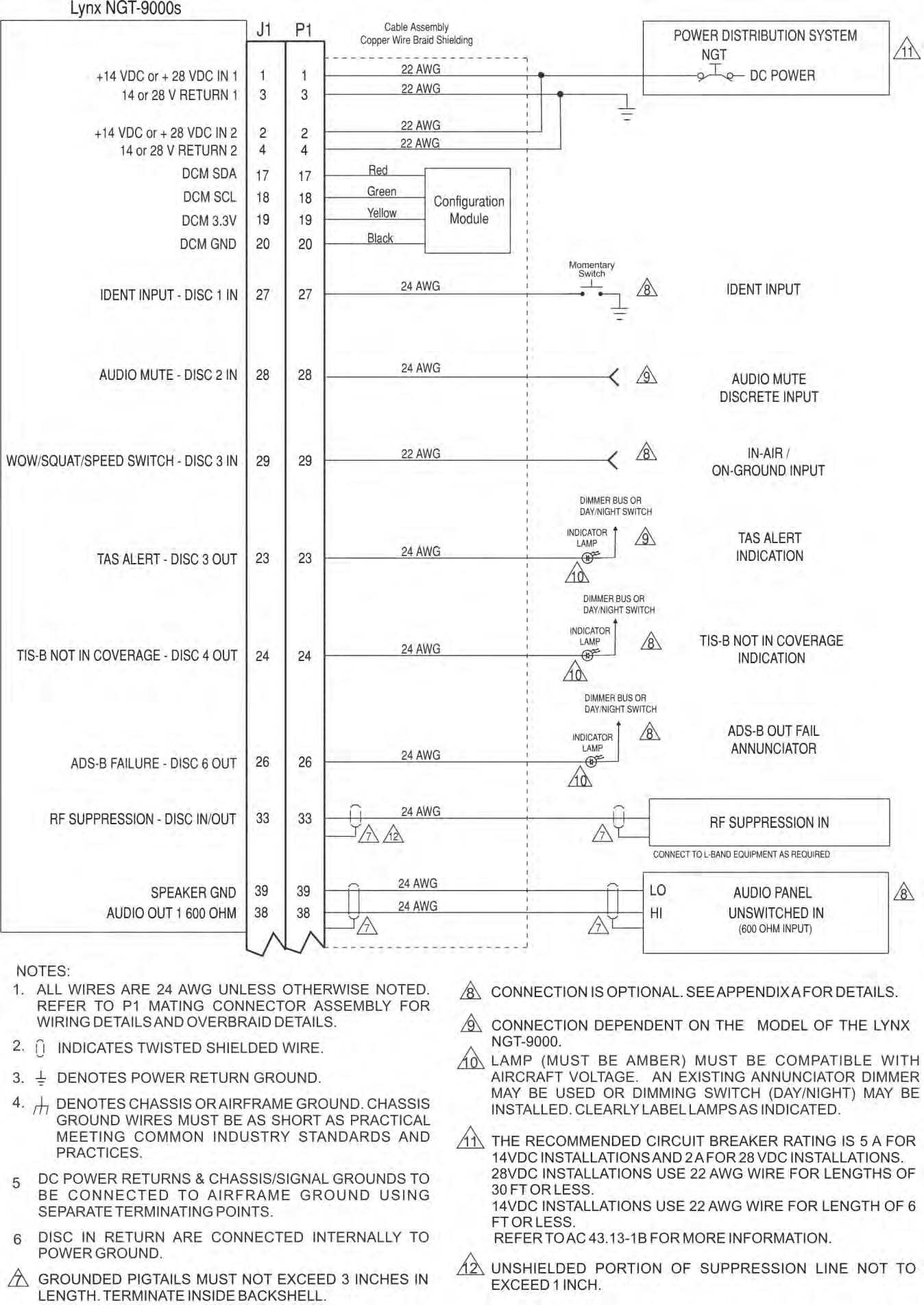

Lynx ® NGT-9000 MultiLink Surveillance System Part Number: 9029000-( ) Installation Manual This manual contains installation instructions and recommended flightline maintenance information for the Lynx NGT-9000 MultLink Surveillance System, Configuration Module, and Directional Antenna. Guidelines for external equipment necessary for installation are included. This information is supplemented and kept current by revisions, service letters and service bulletins. 0040-17001-01 (Revision A) January 15, 2015 Foreword This manual provides information intended for use by persons who, in accordance with current regulatory requirements, are qualified to install this equipment. Installation requirements may vary, depending on the particularities of each aircraft, and this manual is intended as a guideline for that purpose. This manual assumes familiarity with the setup and operation of the aircraft systems that interface with the NGT-9000. If further information is required, please contact: L- 3 Avionics Systems Attn: Field Service Engineering 5353 52 nd Street, S.E. Grand Rapids, MI USA 49512-9704 Telephone: (800) 453-0288 or (616) 949-6600 Fax: (616) 977-6898 Email: [email protected] Web: http:///www.L-3avionics.com This manual is distributed with permission by: L- 3 Avionics Systems 5353 52 nd Street, S.E. Grand Rapids, MI USA 49512-9704 Telephone: (800) 453-0288 or (616) 949-6600 Fax: (616) 977-6898 Email: [email protected] We welcome your comments concerning this manual. Although every effort has been made to keep it free of errors, some may occur. When reporting a specific problem, please describe it briefly and include the manual part number, the paragraph/figure/table number, and the page number. Send your comments to the address or email above: WARNING INFORMATION SUBJECT TO EXPORT CONTROL LAWS This technical data is controlled under the Export Administration Regulations (EAR) and may not be exported without proper authorization by the U.S. Department of Commerce.  Copyright 2015 ACSS Trademarks Lynx ® is a trademark of L-3 Avionics Systems Patent Pending Page A 0040-17001-01 January 15, 2015 Revision A Lynx NGT-9000s Installation Manual About This Manual SECTION 1 – GENERAL INFORMATION This section provides the following information: unit configurations, unit functionality, items required but not supplied with the unit, equipment specifications, installation approval/limitations and TSO approvals. SECTION 2 - INSTALLATION This section contains instructions to locate, assemble and install the Lynx NGT-9000s MultLink Surveillance System as well as information for unpacking equipment, and inspection procedure for in-shipment damage. SECTION 3 – INSTALLATION CHECKOUT This section contains instructions for post installation setup, post installation and return to service checkout. SECTION 4 – MAINTENANCE This section contains general flightline maintenance procedures. It includes periodic maintenance, troubleshooting and instructions for the return of defective components. APPENDIX A – SIGNAL AND CABLE CHARACTERISTICS This appendix defines the electrical characteristics of all input and output signals. APPENDIX B – ENVIRONMENTAL QUALIFICATION FORM This appendix provides the environmental qualification test data. APPENDIX C – CONFIGURATION AND CHECKOUT LOG This appendix provides the installer a way to record configuration options. References PUBLICATION DESCRIPTION 0040-17000-01 Pilot’s Guide for the NGT-9000 0040-17001-01 Page i Revision A January 15, 2015 Lynx NGT-9000s Installation Manual List of Effective Pages Dates of original and changed pages are: Revision A .............................. January 15, 2015 Total number of pages in this publication consists of the following: Title page Page A i thru xvi 1-1 thru 1-40 2-1 thru 2-30 3-1 thru 3-34 4-1 thru 4-32 A-1 thru A-24 B-1 thru B-4 C-1 thru C-2 Disclaimer This Installation Manual contains information that is considered relevant only at the time of distribution with the Avionics Systems product for which it is shipped. Information in this manual is subject to change without notice and will not be updated after distribution. Avionics Systems does provide a listing of all publications and directives with their current revision and change levels to insure up-to-date information. See www.as.l-3com.com, Customer Care Section, Technical Publications Page for the Publications Index to get an up-to-date listing of all Avionics Systems technical publications and directives. Contact Avionics Systems Customer Service [1-800-453-0288] to determine availability of technical publications and directives. Revision A Highlights Original release. Page ii 0040-17001-01 January 15, 2015 Revision A Lynx NGT-9000s Installation Manual This page intentionally left blank. 0040-17001-01 Page iii Revision A January 15, 2015 Lynx NGT-9000s Installation Manual Table of Contents Paragraph Page Foreword ....................................................................................................................................................... A About This Manual ......................................................................................................................................... i References ..................................................................................................................................................... i List of Effective Pages .................................................................................................................................... ii Revision A Highlights ..................................................................................................................................... ii Table of Contents .......................................................................................................................................... iv List of Illustrations ................................................................................…

Text truncated - open the document above for the full version.

1 of 2 26 February 2015 Ms. Evelyn Cherry Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality request for schematics drawings submitted in support of FCC Certification for ACSS Multilink Transponder part number 9029000-20000 (Model NGT-9000). Reference: FCC Rules Sections 0.457(d) and 0.459 as authority for confidentiality request FCC ID#: 2ACTZMSS90 Reference #:46704 731 Form #: EA604696 ACSS FRN: 0004999231 Dear Ms. Cherry: In accordance with FCC Rules Sections 0.457(d) and 0.459 as the authority, ACSS submitted a request that long-term confidentiality be granted for a number of schematic drawings under our FCC application for FCC ID# 2ACTZMSS90. If ACSS understands the request in your correspondence correctly, you are asking for a Non- Disclosure agreement between the grantee and the purchaser. To this end, ACSS wants to provide clarification on why some of the provided drawings currently have an L-3 Communications Avionics Systems logo on the front page. I hope this letter will fully address your concern because a non- disclosure agreement would not demonstrate the fact that ACSS has full rights to the subject product data/drawings. ACSS and L-3 Avionics Systems (L-3 AS) are sister companies under L-3 Communications Corporation, Aviation Products Sector. Therefore, we are jointly part of L-3 Communications. For the NGT-9000 Transponder product, ACSS owns and has full rights to the NGT-9000 product; however, because ACSS hired L-3 AS to perform some of the design for the ACSS product, some of the drawings have not yet been converted to the ACSS format. Furthermore, because ACSS was initially planning to have L-3 AS begin the manufacture of the product for ACSS (which has since changed back to ACSS production), the production drawings in particular are not yet in an ACSS format. For the sake of market timing and being able to provide a much needed product to the ADS-B market, ACSS hopes this explanation will suffice to alleviate any FCC concerns. Subject: Confidentiality request for schematics drawings submitted in support of FCC Certification for ACSS Multilink Transponder part number 9029000-20000 (Model NGT-9000). 2 of 2 Again, thank you for any assistance, and please call me with any questions if you don’t believe this correspondence will fully address your concern. Sincerely, Mark R. Krause Senior Manager, Strategic Alliances & Major Subcontracts L-3 Aviation Products Sector phone: 623 445-6939 cell: 602 384-8357 e-mail: [email protected]

Lynx ® NGT-9000 MultiLink Surveillance System Part Number: 9029000-( ) Installation Manual This manual contains installation instructions and recommended flightline maintenance information for the Lynx NGT-9000 MultLink Surveillance System, Configuration Module, and Directional Antenna. Guidelines for external equipment necessary for installation are included. This information is supplemented and kept current by revisions, service letters and service bulletins. 0040-17001-01 (Revision A) January 15, 2015 Foreword This manual provides information intended for use by persons who, in accordance with current regulatory requirements, are qualified to install this equipment. Installation requirements may vary, depending on the particularities of each aircraft, and this manual is intended as a guideline for that purpose. This manual assumes familiarity with the setup and operation of the aircraft systems that interface with the NGT-9000. If further information is required, please contact: L- 3 Avionics Systems Attn: Field Service Engineering 5353 52 nd Street, S.E. Grand Rapids, MI USA 49512-9704 Telephone: (800) 453-0288 or (616) 949-6600 Fax: (616) 977-6898 Email: [email protected] Web: http:///www.L-3avionics.com This manual is distributed with permission by: L- 3 Avionics Systems 5353 52 nd Street, S.E. Grand Rapids, MI USA 49512-9704 Telephone: (800) 453-0288 or (616) 949-6600 Fax: (616) 977-6898 Email: [email protected] We welcome your comments concerning this manual. Although every effort has been made to keep it free of errors, some may occur. When reporting a specific problem, please describe it briefly and include the manual part number, the paragraph/figure/table number, and the page number. Send your comments to the address or email above: WARNING INFORMATION SUBJECT TO EXPORT CONTROL LAWS This technical data is controlled under the Export Administration Regulations (EAR) and may not be exported without proper authorization by the U.S. Department of Commerce.  Copyright 2015 ACSS Trademarks Lynx ® is a trademark of L-3 Avionics Systems Patent Pending Page A 0040-17001-01 January 15, 2015 Revision A Lynx NGT-9000s Installation Manual About This Manual SECTION 1 – GENERAL INFORMATION This section provides the following information: unit configurations, unit functionality, items required but not supplied with the unit, equipment specifications, installation approval/limitations and TSO approvals. SECTION 2 - INSTALLATION This section contains instructions to locate, assemble and install the Lynx NGT-9000s MultLink Surveillance System as well as information for unpacking equipment, and inspection procedure for in-shipment damage. SECTION 3 – INSTALLATION CHECKOUT This section contains instructions for post installation setup, post installation and return to service checkout. SECTION 4 – MAINTENANCE This section contains general flightline maintenance procedures. It includes periodic maintenance, troubleshooting and instructions for the return of defective components. APPENDIX A – SIGNAL AND CABLE CHARACTERISTICS This appendix defines the electrical characteristics of all input and output signals. APPENDIX B – ENVIRONMENTAL QUALIFICATION FORM This appendix provides the environmental qualification test data. APPENDIX C – CONFIGURATION AND CHECKOUT LOG This appendix provides the installer a way to record configuration options. References PUBLICATION DESCRIPTION 0040-17000-01 Pilot’s Guide for the NGT-9000 0040-17001-01 Page i Revision A January 15, 2015 Lynx NGT-9000s Installation Manual List of Effective Pages Dates of original and changed pages are: Revision A .............................. January 15, 2015 Total number of pages in this publication consists of the following: Title page Page A i thru xvi 1-1 thru 1-40 2-1 thru 2-30 3-1 thru 3-34 4-1 thru 4-32 A-1 thru A-24 B-1 thru B-4 C-1 thru C-2 Disclaimer This Installation Manual contains information that is considered relevant only at the time of distribution with the Avionics Systems product for which it is shipped. Information in this manual is subject to change without notice and will not be updated after distribution. Avionics Systems does provide a listing of all publications and directives with their current revision and change levels to insure up-to-date information. See www.as.l-3com.com, Customer Care Section, Technical Publications Page for the Publications Index to get an up-to-date listing of all Avionics Systems technical publications and directives. Contact Avionics Systems Customer Service [1-800-453-0288] to determine availability of technical publications and directives. Revision A Highlights Original release. Page ii 0040-17001-01 January 15, 2015 Revision A Lynx NGT-9000s Installation Manual This page intentionally left blank. 0040-17001-01 Page iii Revision A January 15, 2015 Lynx NGT-9000s Installation Manual Table of Contents Paragraph Page Foreword ....................................................................................................................................................... A About This Manual ......................................................................................................................................... i References ..................................................................................................................................................... i List of Effective Pages .................................................................................................................................... ii Revision A Highlights ..................................................................................................................................... ii Table of Contents .......................................................................................................................................... iv List of Illustrations ................................................................................…

Text truncated - open the document above for the full version.

Lynx ® NGT-9000 MultiLink Surveillance System Part Number: 9029000-( ) Installation Manual This manual contains installation instructions and recommended flightline maintenance information for the Lynx NGT-9000 MultLink Surveillance System, Configuration Module, and Directional Antenna. Guidelines for external equipment necessary for installation are included. This information is supplemented and kept current by revisions, service letters and service bulletins. 0040-17001-01 (Revision A) January 15, 2015 Foreword This manual provides information intended for use by persons who, in accordance with current regulatory requirements, are qualified to install this equipment. Installation requirements may vary, depending on the particularities of each aircraft, and this manual is intended as a guideline for that purpose. This manual assumes familiarity with the setup and operation of the aircraft systems that interface with the NGT-9000. If further information is required, please contact: L- 3 Avionics Systems Attn: Field Service Engineering 5353 52 nd Street, S.E. Grand Rapids, MI USA 49512-9704 Telephone: (800) 453-0288 or (616) 949-6600 Fax: (616) 977-6898 Email: [email protected] Web: http:///www.L-3avionics.com This manual is distributed with permission by: L- 3 Avionics Systems 5353 52 nd Street, S.E. Grand Rapids, MI USA 49512-9704 Telephone: (800) 453-0288 or (616) 949-6600 Fax: (616) 977-6898 Email: [email protected] We welcome your comments concerning this manual. Although every effort has been made to keep it free of errors, some may occur. When reporting a specific problem, please describe it briefly and include the manual part number, the paragraph/figure/table number, and the page number. Send your comments to the address or email above: WARNING INFORMATION SUBJECT TO EXPORT CONTROL LAWS This technical data is controlled under the Export Administration Regulations (EAR) and may not be exported without proper authorization by the U.S. Department of Commerce.  Copyright 2015 ACSS Trademarks Lynx ® is a trademark of L-3 Avionics Systems Patent Pending Page A 0040-17001-01 January 15, 2015 Revision A Lynx NGT-9000s Installation Manual About This Manual SECTION 1 – GENERAL INFORMATION This section provides the following information: unit configurations, unit functionality, items required but not supplied with the unit, equipment specifications, installation approval/limitations and TSO approvals. SECTION 2 - INSTALLATION This section contains instructions to locate, assemble and install the Lynx NGT-9000s MultLink Surveillance System as well as information for unpacking equipment, and inspection procedure for in-shipment damage. SECTION 3 – INSTALLATION CHECKOUT This section contains instructions for post installation setup, post installation and return to service checkout. SECTION 4 – MAINTENANCE This section contains general flightline maintenance procedures. It includes periodic maintenance, troubleshooting and instructions for the return of defective components. APPENDIX A – SIGNAL AND CABLE CHARACTERISTICS This appendix defines the electrical characteristics of all input and output signals. APPENDIX B – ENVIRONMENTAL QUALIFICATION FORM This appendix provides the environmental qualification test data. APPENDIX C – CONFIGURATION AND CHECKOUT LOG This appendix provides the installer a way to record configuration options. References PUBLICATION DESCRIPTION 0040-17000-01 Pilot’s Guide for the NGT-9000 0040-17001-01 Page i Revision A January 15, 2015 Lynx NGT-9000s Installation Manual List of Effective Pages Dates of original and changed pages are: Revision A .............................. January 15, 2015 Total number of pages in this publication consists of the following: Title page Page A i thru xvi 1-1 thru 1-40 2-1 thru 2-30 3-1 thru 3-34 4-1 thru 4-32 A-1 thru A-24 B-1 thru B-4 C-1 thru C-2 Disclaimer This Installation Manual contains information that is considered relevant only at the time of distribution with the Avionics Systems product for which it is shipped. Information in this manual is subject to change without notice and will not be updated after distribution. Avionics Systems does provide a listing of all publications and directives with their current revision and change levels to insure up-to-date information. See www.as.l-3com.com, Customer Care Section, Technical Publications Page for the Publications Index to get an up-to-date listing of all Avionics Systems technical publications and directives. Contact Avionics Systems Customer Service [1-800-453-0288] to determine availability of technical publications and directives. Revision A Highlights Original release. Page ii 0040-17001-01 January 15, 2015 Revision A Lynx NGT-9000s Installation Manual This page intentionally left blank. 0040-17001-01 Page iii Revision A January 15, 2015 Lynx NGT-9000s Installation Manual Table of Contents Paragraph Page Foreword ....................................................................................................................................................... A About This Manual ......................................................................................................................................... i References ..................................................................................................................................................... i List of Effective Pages .................................................................................................................................... ii Revision A Highlights ..................................................................................................................................... ii Table of Contents .......................................................................................................................................... iv List of Illustrations ................................................................................…

Text truncated - open the document above for the full version.

Aviation Communication and Surveillance Systems NGT-9000D FCC TEST PROCEDURES AND RESULTS CAGE Code 1WYD3 Initial Release Date 26-Jan-2015 Revision Date N/A Document Number 8020133-001 Revision - Proprietary Notice This document and the information disclosed herein are proprietary data of Aviation Communication & Surveillance Systems, LLC. Neither this document nor the information contained herein shall be reproduced, used, or disclosed to others without the written authorization of Aviation Communication & Surveillance Systems, LLC. Notice Freedom of Information Act (5 USC 552) and Disclosure of Confidential Information Generally (18 USC 1905) This document is being furnished in confidence by Aviation Communication & Surveillance Systems, LLC. The information disclosed herein falls within exemption (b) (4) of 5 USC 552 and the prohibitions of 18 USC 1905. Export Notice This technical data is controlled under the Export Administration Regulations (EAR) and may not be exported to a Foreign Person, either in the U.S. or abroad, without proper authorization by the U.S. Department of Commerce. Copyright 2015 Aviation Communication & Surveillance Systems, LLC. All Rights Reserved. Document Number 8020133-001 NGT-9000D FCC Test Procedures and Results Revision - ACSS Proprietary Use or disclosure of the information on this sheet is subject to the proprietary notice on the title page. RR-1 Record of Revisions Rev Date Authorization Description of Change - 26-JAN-2015 ECR014656 Initial Release Document Number 8020133-001 NGT-9000D FCC Test Procedures and Results Revision - ACSS Proprietary Use or disclosure of the information on this sheet is subject to the proprietary notice on the title page. TC-1 Table of Contents 1 INTRODUCTION ................................................................................................................................... 1 1.1 Purpose .......................................................................................................................................... 1 1.2 Scope .............................................................................................................................................. 1 1.3 References ..................................................................................................................................... 1 1.4 Acronyms and Abbreviations .......................................................................................................... 3 2 GENERAL INFORMATION ................................................................................................................... 5 2.1 Type Designation ............................................................................................................................ 5 2.2 Service and Rule for Intended Operation ....................................................................................... 5 2.3 Description of Equipment ............................................................................................................... 5 2.3.1 NGT-9000D Functionality .......................................................................................................... 5 2.3.1.1 Type of Emission ............................................................................................................... 6 2.3.1.2 Frequency Range .............................................................................................................. 6 2.3.1.3 Power Rating ..................................................................................................................... 6 2.3.1.4 Final Power Amplifier ........................................................................................................ 6 2.3.1.5 Active Device Functions .................................................................................................... 7 2.3.2 Circuit Diagram .......................................................................................................................... 7 2.3.3 Instruction Book......................................................................................................................... 7 2.3.4 Tune-up Procedure ................................................................................................................... 7 2.3.5 Oscillator Circuit ........................................................................................................................ 7 2.3.6 LO Source Circuitry ................................................................................................................... 7 2.3.7 Frequency Stabilization ............................................................................................................. 8 2.3.8 Modulation Limiting ................................................................................................................... 8 2.3.9 Radiated Interference Suppression........................................................................................... 8 3 MODULATION DETAILS ..................................................................................................................... 10 3.1 ATCRBS Interrogations ................................................................................................................ 10 3.2 ATCRBS Replies .......................................................................................................................... 11 3.3 Mode S Replies ............................................................................................................................ 13 4 DRAWINGS AND PHOTOGRAPHS ................................................................................................... 14 4.1 Drawings ....................................................................................................................................... 14 4.2 Photographs .....................................................................................................…

Text truncated - open the document above for the full version.

FCC Part 2, Part 15, Part 87 Test Report for the Diversity Mode-S Transponder Model # NGT-9000 Test Report Number RV58044-001 Prepared For: ACSS, an L-3 Communications & Thales Company 19810 N. 7th Avenue Phoenix, AZ 85027 Prepared by: DNB Engineering, Inc. 5969 Robinson Avenue Riverside, CA 92503 5969 Robinson Ave Riverside, CA 92503 (951) 637-2630 FAX (951) 637-2704 www.dnbenginc.com 13 Jan 2015 RV58044-001 2 TABLE OF CONTENTS DOCUMENT HISTORY ............................................................................................................. 3 CERTIFICATION OF TEST DATA .......................................................................................... 4 1.0 INTRODUCTION............................................................................................................. 6 2.0 DEVIATIONS ................................................................................................................... 6 3.0 TEST SITE AND EQUIPMENT ..................................................................................... 7 4.0 TEST DESCRIPTION...................................................................................................... 7 5.0 CONCLUSIONS ............................................................................................................... 9 APPENDIX A .............................................................................................................................. 10 APPENDIX B .............................................................................................................................. 12 APPENDIX C .............................................................................................................................. 18 5969 Robinson Ave Riverside, CA 92503 (951) 637-2630 FAX (951) 637-2704 www.dnbenginc.com 13 Jan 2015 RV58044-001 3 DOCUMENT HISTORY Revision Number of Pages Revised Pages Description Date -001 All All Report Release 13 Jan 2015 5969 Robinson Ave Riverside, CA 92503 (951) 637-2630 FAX (951) 637-2704 www.dnbenginc.com 13 Jan 2015 RV58044-001 4 CERTIFICATION OF TEST DATA This report, containing electromagnetic immunity and emissions test data and evaluations, has been prepared by an independent electromagnetic compatibility laboratory, DNB ENGINEERING, in accordance with the applicable specifications and instructions required per the Introduction. DNB Engineering has received accreditation to perform these tests by the following authorizations: NEMKO EMC Laboratory Authorization No. ELA 115A NIST / NVLAP: Lab Code No: 200851-0 FCC Registration No. 99985 The data evaluation and equipment configuration presented herein are a true and accurate representation of the measurements of the test sample’s electromagnetic immunity and emissions characteristics as of the dates and at the times of the test under the conditions herein specified. This report shall not be reproduced, except in full, without the written approval of DNB ENGINEERING, INC. Results contained in this report relate only to the item tested. Disclaimer: This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Report Prepared By: Maridee Winans 13 Jan 2015 Administrative Assistant Date Report Reviewed by: Thomas Elders 13 Jan 2015 Facility Manager Date 5969 Robinson Ave Riverside, CA 92503 (951) 637-…

Text truncated - open the document above for the full version.
