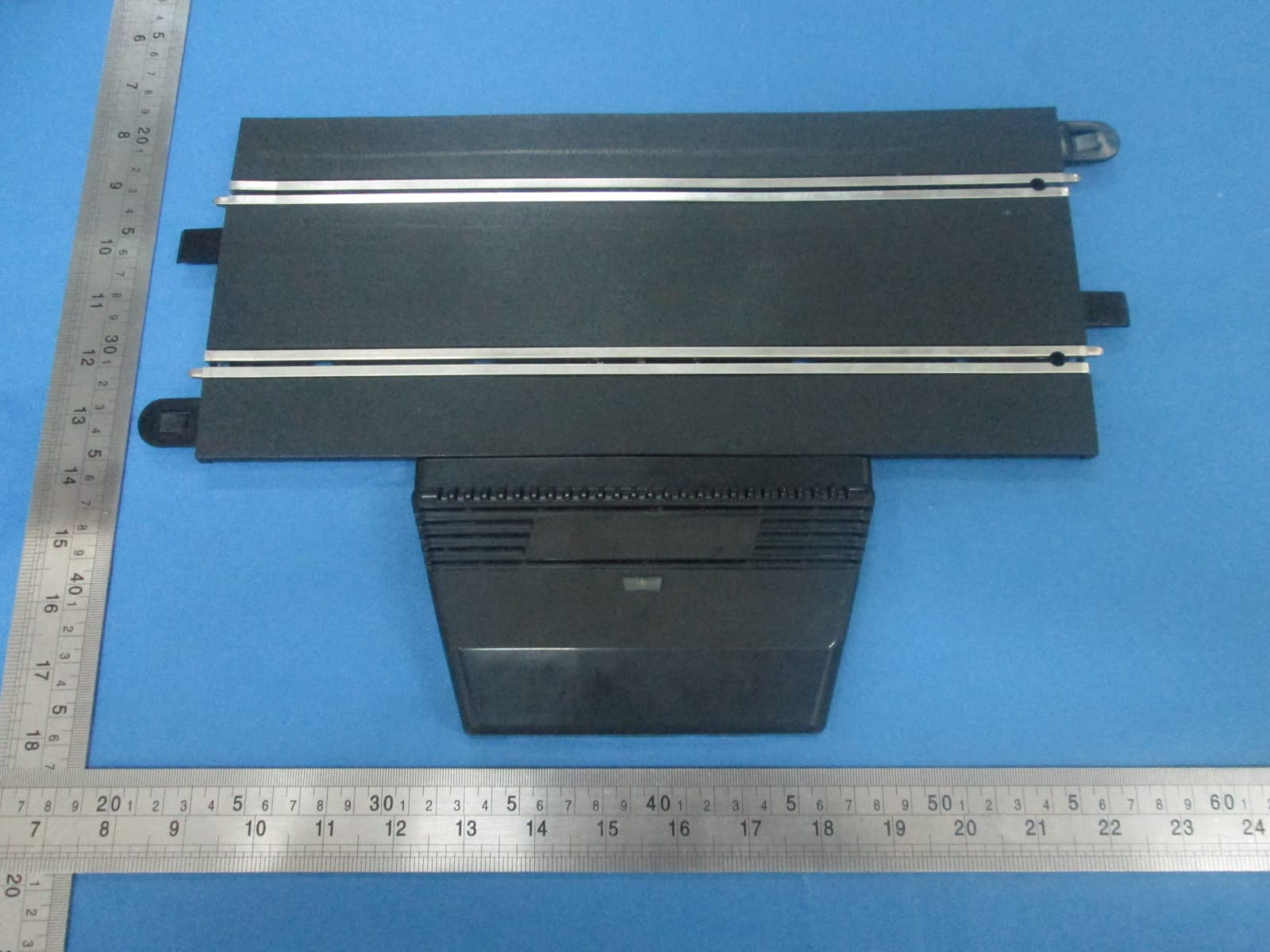

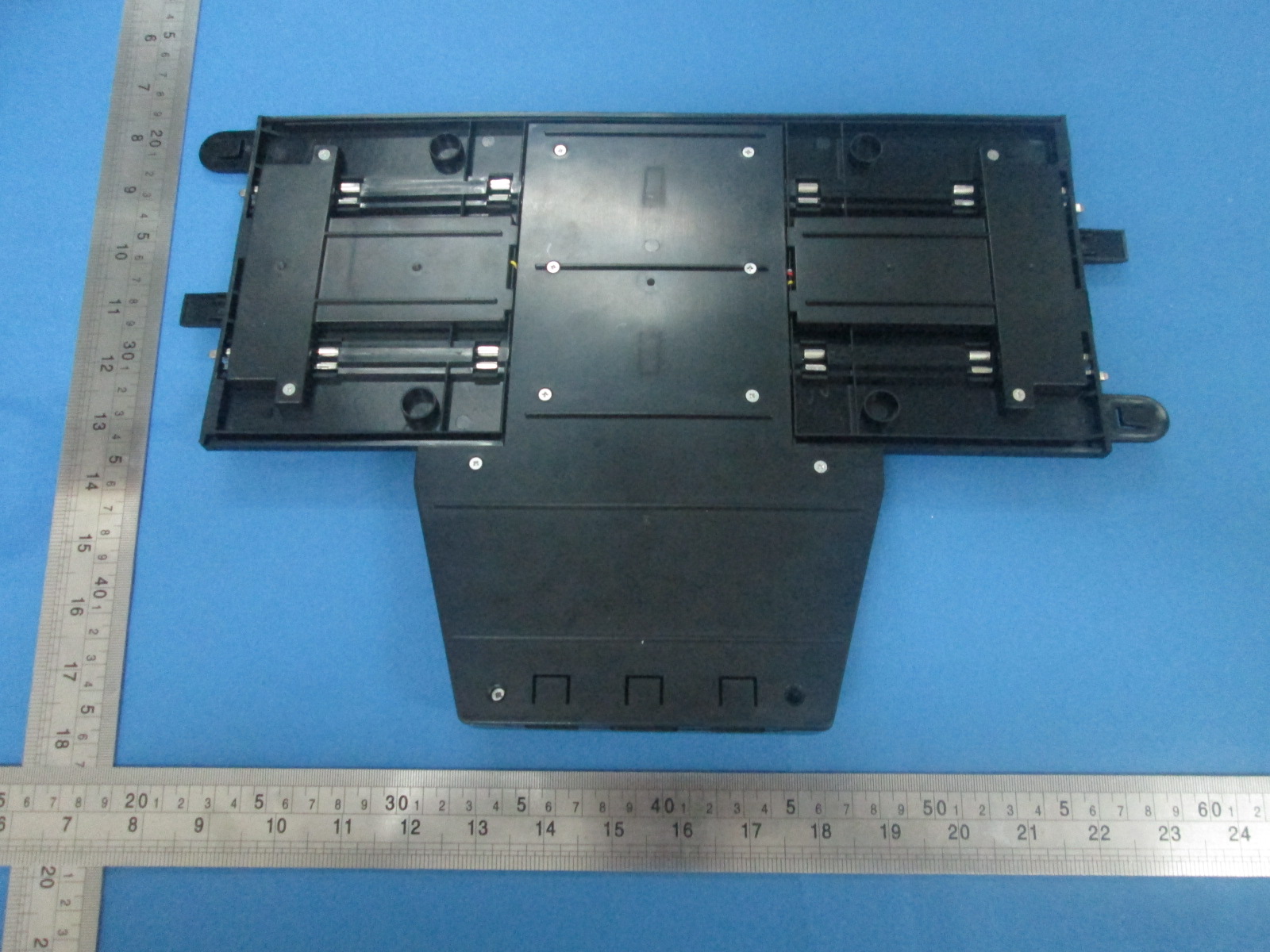

2ACUF-C8433Scalextric ARC C8433 APP RACE CONTROL POWER BASE

QUICK START GUIDE IN-RACE APP GUIDE PIT LANE GUIDE POWERBASE GUIDE CONTROLLER GUIDE QUICK START GUIDE: STAGE 1 - DOWNLOAD APP STAGE 2 - CONNECT POWER STAGE 3A - CONNECT CONTROLLER STAGE 3B - CONNECT CONTROLLER STAGE 3C - CONNECT CONTROLLER STAGE 4 - CONNECT APP FEATURE LIST LED BEHAVIOUR TROUBLESHOOTING Hornby Hobbies Limited Westwood MARGATE Kent CT9 4JX United Kingdom Tel. +44 (0) 1843233525 [email protected] www.scalextric.com 4 5 6 8 9 10 11 12 13 14 15 18 19 ........................................................... ........................... ....................................... ...................................................................... ........................... ........................................................... .................................................................. ................................................................. ........................... ............................................ ...................................... ............................................................ ............................................................ 3 - CONTENTS IN-RACE APP GUIDE - 4 DRIVER ICON Pre-selected driver icon Incident on track, pit-stop required Displays your fastest lap Displays your previous lap When activated KERS will build up and can be used as a speed boost When tyre wear is activated the grip levels will fall until you have a blow- out, slowing your car FULLLOWEMPTY Number of laps completed Race Timer Length of time for the pit stop Number of laps behind leader When activated fuel load will decrease each lap 100% 100% GRIP <30% <30% GRIP <10% <10% GRIP On-Track: In the pits: PREVIOUS LAPS DRIVER NAME DRIVER COLOUR DRIVER PLAQUE KERS TYRES FUEL LAP & TIMES • • • • • • • • EMPTY (FLASHES) ZERO (FLASHES) KEY: Start behind this line Lane 1 Pit Box Lane 2 Pit Box Timing Sensors Car ID Sensor (RCS PRO only) Please note: It is important that you start behind the line shown at This will ensure that the sensors are not triggered before the start, which could cause incorrect false start penalties. Race Direction Race Direction A C B D E A A A E D D D D D D D D C C B B 5 - PIT LANE GUIDE POWERBASE GUIDE - 6 KEY: Power & Bluetooth LED USB Socket Rectangular Power Socket (RCS ONE & RCS AIR only) Power Jack Sockets (RCS PRO only) Controller Sockets (RCS ONE only) Binding Buttons (RCS AIR & RCS PRO only) Binding Indicators (RCS AIR & RCS PRO only) 7 A A A A C C C B B B B D D E E E G G G F F F - POWERBASE GUIDE CONTROLLER GUIDE - 8 KEY: Power Switch Power/ Bluetooth LED Trigger Battery Screw Battery Door Lanyard Loop Lane-Change Button (RCS PRO only) Brake Button (RCS PRO only) Download and install the App from Google Play or the iTunes App Store. Enable Bluetooth on your device. Follow the track layout instructions (provided in your set). QUICK START GUIDE 1 2 3 1 2 3 A A A C C C B B B D D D E E E G H H G F F F 9 - DOWNLOAD APP 1 STAGE

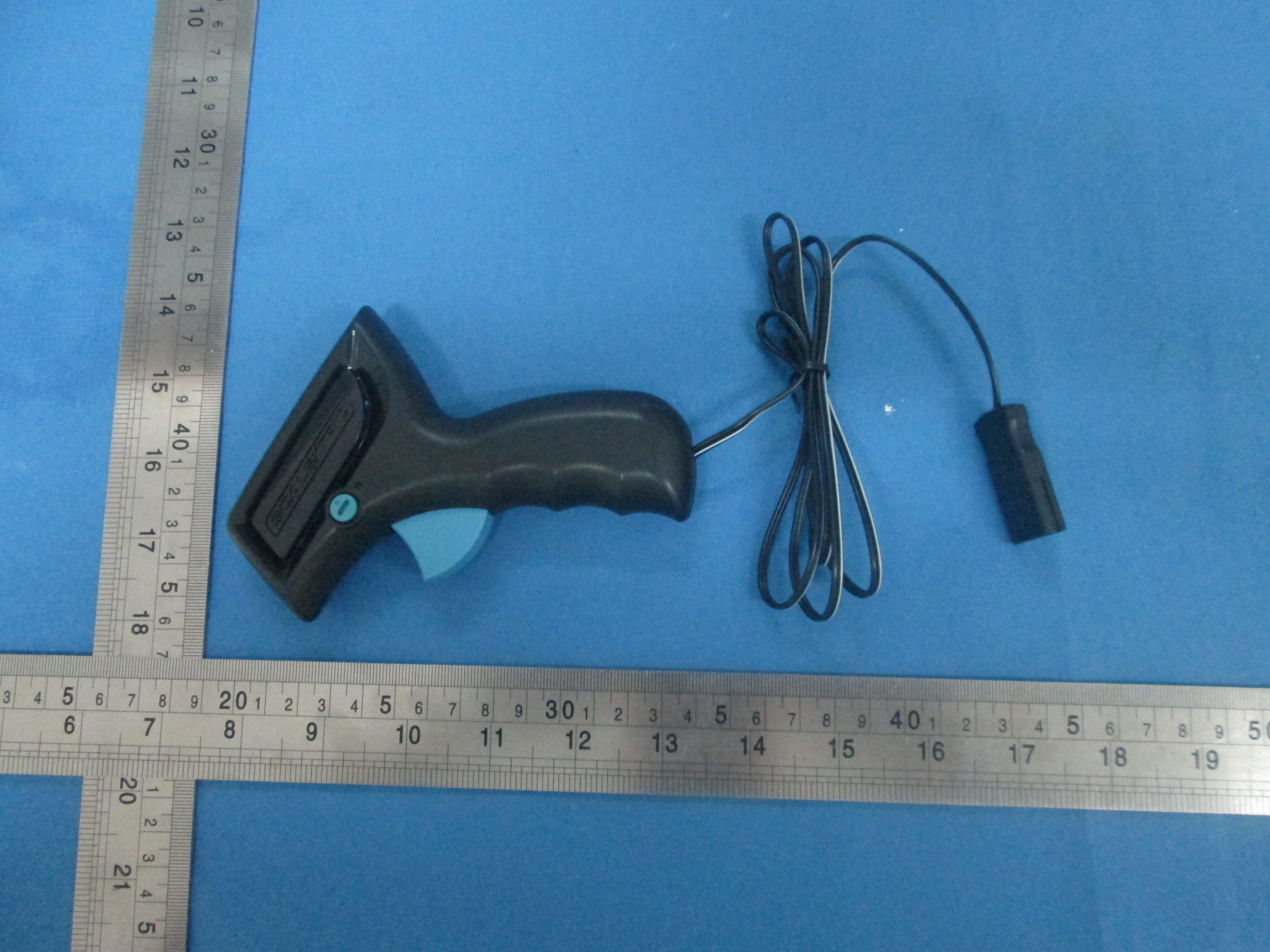

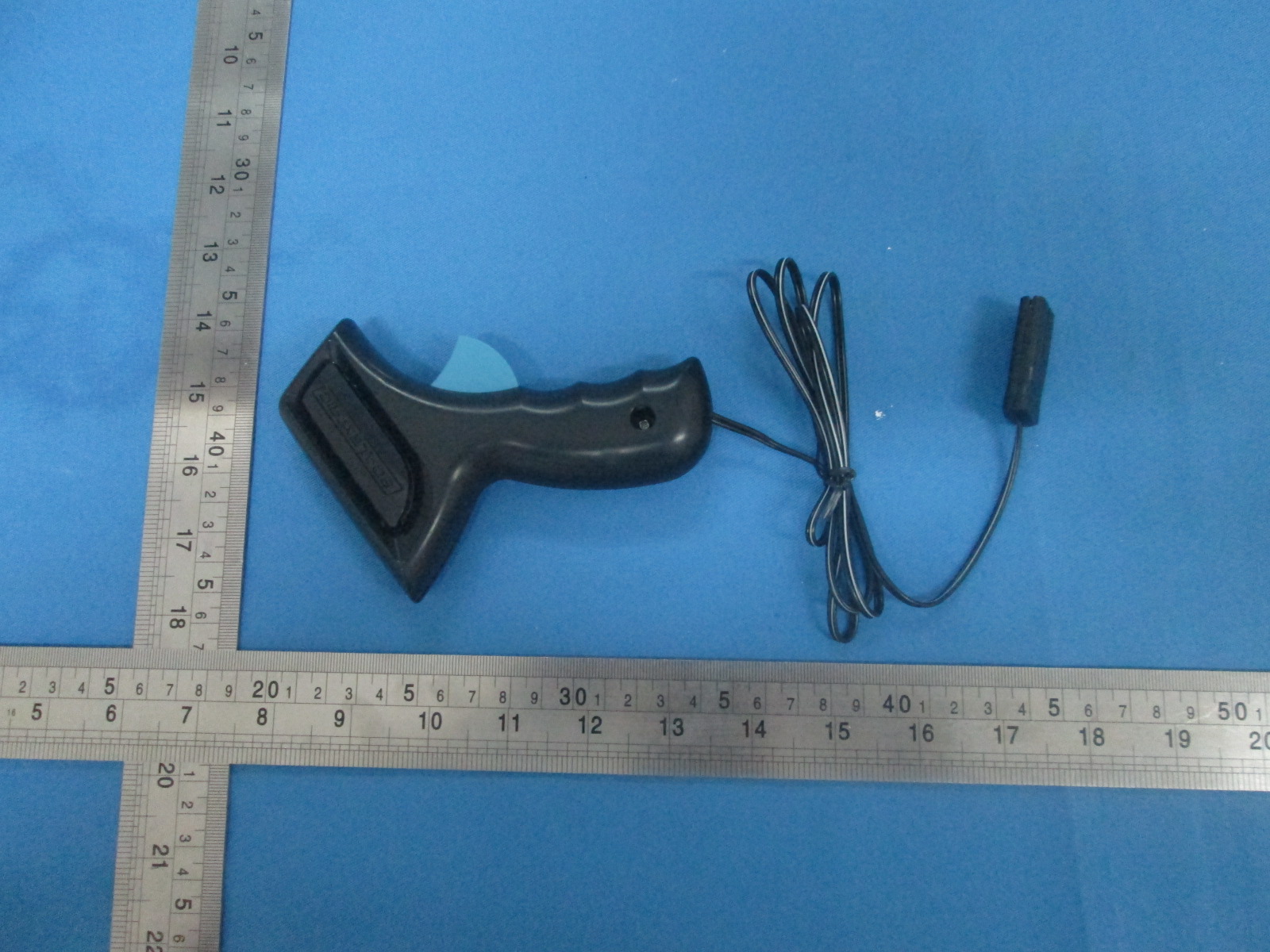

Insert the rectangular plug or jack plug(s) into the Powerbase. Plug the transformer(s) into the wall and turn on. The powerbase power / Bluetooth LED will flash orange. CONNECT POWER - 2 STAGE 1 2 3 10 Wired Controllers 1 1 2 Plug both controllers into the ports on the Powerbase. Test you have control of your cars by pressing the trigger. 2 11 - CONNECT CONTROLLER 3A STAGE Insert batteries (2 x AA) and check the hand controller powers on (green LED will flash when turned on for the first time). Turn off the controllers. Place only the car you want to assign to this controller on the track. Press binding button on the powerbase for the port you wish to connect to – LED will flash green to indicate binding mode. CONNECT CONTROLLER - 3B STAGE 12 1 2 3 3 4 4 Wireless Controllers Fully depress and hold the trigger. Continue to hold the trigger, turn on the hand controller (LED will flash green) Continue to hold the trigger until LEDs on both devices go solid green. Release trigger and test you have control of your car. 5 6 7 8 67 5 6 7 8 Wireless Controllers 13 - CONNECT CONTROLLER 3C STAGE Open the App on your smart device and follow the on-screen instructions. When the power/bluetooth LED on the powerbase goes solid green, you are ready to race. CONNECT APP - 4 STAGE 14 1 2 1 2 App Functionality Quick start mode Race start Yellow flag mode Jump start Start reaction times Arcade mode Qualifying Tournament Grand Prix Endurance Pursuit game Practice Drag racing ONEAIRPRO                                         Racing modes In-race gameplay 15 - FEATURE LIST Lap counting 

App Functionality Lane Changing Set selection Car selection Multi-device display Proximity sound Pit lane pit stop Fuel usage Tyre wear In-race damage Weather conditions Kinetic Energy Recovery System (KERS) Practice Top speed ONEAIRPRO                                     In-race gameplay continued Pre-race Confirguration FEATURE LIST - 16 App Functionality Track Layout selector Post-race statistics Post-race statistics graph Hand throttle mapping Twitter race statistics update Facebook race statistics update Maximum power limiter ONEAIRPRO                    Pre-race configuration continued Social media 17 - FEATURE LIST State State State Meaning: Meaning: Meaning: No power connected. No controller connected Power off or controller in Sleep mode. Power on, no bluetooth connection. Channel is in binding mode. Controller is in binding mode. Power on, Bluetooth connected. Channel is connected to a Controller. Controller is connected to a channel on the Powerbase. Power on, Bluetooth connected. Off Off Off Orange Flashing Green Flashing Green Flashing Green Solid Green Solid Green Solid Red Flashing Powerbase- Power/Bluetooth LED Controller- Indicator LED Powerbase- Binding LED Device Hand controller Hand controller Powerbase/App The LED on my hand controller does not light up when i turn it on. My hand controller has gone to sleep. The cars are not being sensed when passing through the powerbase straight. Check you have correctly installed the batteries, and try new ones. To restart your hand controller you must turn it off and back on again. Unplug the power to the powerbase and abort your race. Now power up the Powerbase and try again. SymptonResolution 19 - TROUBLESHOOTING LED BEHVIOUR - 18 You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. FCC ID: 2ACUF-C8433 IC: 12075A-C8433

DATE : Jun. 18, 2014 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint _ Christy Chen of Centre Testing International (Shenzhen) Corporation / Hongwei Industrial Zone, 70 Area, Bao’an District, Shenzhen, Guangdong, China , to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with _ Hornby Hobbies Ltd./ Enterprise Road Westwood Industrial Estate CT9 4JX United Kingdom. Dated this Agency agreement expiration date: Jun. 18, 2014 to Jun. 17, 2015 By: Darren Nye Signature Printed Title: Manager On behalf of : Hornby Hobbies Ltd Telephone: +44 (0)1843 233500

DATE : Jun. 18, 2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ACUF-C8433 Product Name: Scalextric ARC C8433 APP Race control power base Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Agency agreement expiration date: Jun. 18, 2014 to Jun. 17, 2015 By: Darren Nye Signature Printed Title: Mana ger On behalf of : Hornby Hobbies Ltd Telephone: +44 (0)1843 233500

Designed by Hornby Hobbies LTD in the UK. Made in China Model: SSA-00184 FCC ID: 2ACUF-C8433 IC: 12075A-C8433 30 mm 58 mm 17 mm This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.2A DC

According to KDB 447498, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where z f(GHz) is the RF channel transmit frequency in GHz z Power and distance are rounded to the nearest mW and mm before calculation z The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 3. EUT RF Exposure The Max Conducted Peak Output Power is-1.03dBm (0.79mW) in lowest channel and the Max Conducted Average Output Power is less than 0.79mW. The best case gain of the antenna is 0dBi. 0.79/5*√2.402=0.24 ≤3.0 Conclusion: No SAR is required.

Report No. : EESZG05070029-1 Page 1 of 40 TEST REPORT Product : Scalextric ARC C8433 APP Race control power base Trade mark : Item/Lot No. : C8433 Model/Type reference : SSA-00184 Serial number : N/A Ratings : AC ADAPTOR: Input:120V~, 60Hz, Output: 15V , 1,2A Scalextric ARC C8433 APP Race control power base: 15V, 1,2A, IPX0, Class III IC : 12075A-C8433 FCC ID : 2ACKC-C8433 Report number : EESZG05070029-1 Date : Jun. 11, 2014 Regulations : See below Test Standards Results RSS-210 Issue 8 RSS-Gen Issue 3 47 CFR FCC Part 15 Subpart C 15.247:2013 PASS PASS PASS Prepared for: Hornby Hobbies Ltd Enterprise Road Westwood Industrial Estate CT9 4JX United Kingdom Prepared by: Centre Testing International (Shenzhen) Corporation Hongwei Industrial Zone, 70 Area, Bao’an District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Tested by: Reviewed by: Approved by: Date: Jun. 11, 2014 Jimmy Li Lab manager Check No.: 1022596274 2ACUF-C8433 Report No. : EESZG05070029-1 Page 2 of 40 TABLE OF CONTENTS 1.CERTIFICATION INFORMATION .................................................................................. 4 2.TEST SUMMARY ........................................................................................................... 4 3.MEASUREMENT UNCERTAINTY ................................................................................. 5 4.PRODUCT INFORMATION ............................................................................................ 5 5.TEST EQUIPMENT LIST ............................................................................................... 5 6.SUPPORT EQUIPMENT LIST ....................................................................................... 5 7.99% BANDWIDTH MEASUREMENT ............................................................................ 6 7.1.LIMITS ..................................................................................................................... 6 7.2.BLOCK DIAGRAM OF TEST SETUP ...................................................................... 6 7.3.TEST PROCEDURE ................................................................................................ 6 7.4.TEST RESULT ........................................................................................................ 6 8.6DB BANDWIDTH MEASUREMENT ............................................................................ 9 8.1.LIMITS ..................................................................................................................... 9 8.2.BLOCK DIAGRAM OF TEST SETUP ...................................................................... 9 8.3.TEST PROCEDURE ................................................................................................ 9 8.4.TEST RESULT ........................................................................................................ 9 9.POWER SPECTRAL DENSITY ................................................................................... 12 9.1.LIMITS ................................................................................................................... 12 9.2.BLOCK DIAGRAM OF TEST SETUP .................................................................... 12 9.3.TEST PROCEDURE .............................................................................................. 12 9.4.TEST RESULT ...................................................................................................... 12 10.MAXIMUM PEAK CONDUCTED OUTPUT POWER MEASUREMENT ................... 15 10.1.LIMITS ................................................................................................................... 15 10.2.BLOCK DIAGRAM OF TEST SETUP .................................................................... 15 10.3.TEST PROCEDURE .............................................................................................. 15 10.4.TEST RESULT ...................................................................................................... 15 11.CONDUCTED BANDEDGE EMISSION MEASUREMENT .......................................... 18 11.1.LIMITS ................................................................................................................... 18 Report No. : EESZG05070029-1 Page 3 of 40 11.2.BLOCK DIAGRAM OF TEST SETUP .................................................................... 18 11.3.TEST PROCEDURE .............................................................................................. 18 11.4.TEST RESULT ...................................................................................................... 18 12.CONDUCTED SPURIOUS EMISSION MEASUREMENT ........................................ 20 12.1.LIMITS ................................................................................................................... 20 12.2.BLOCK DIAGRAM OF TEST SETUP .................................................................... 20 12.3.TEST PROCEDURE .............................................................................................. 20 12.4.TEST RESULT ...................................................................................................... 20 13.RADIATED BANDEDGE EMISSION / RADIATED SPURIOUS EMISSION MEASUREMENT ................................................................................................................. 23 13.1.LIMITS ................................................................................................................... 23 13.2.BLOCK DIAGRAM OF TEST SETUP .................................................................... 23 13.3.TEST PROCEDURE .............................................................................................. 24 13.4.TEST RESULT ...................................................................................................... 25 14.AC CONDUCTED EMISSION TEST ......................…
