2ACUF-HM6010BLE model accessory controller

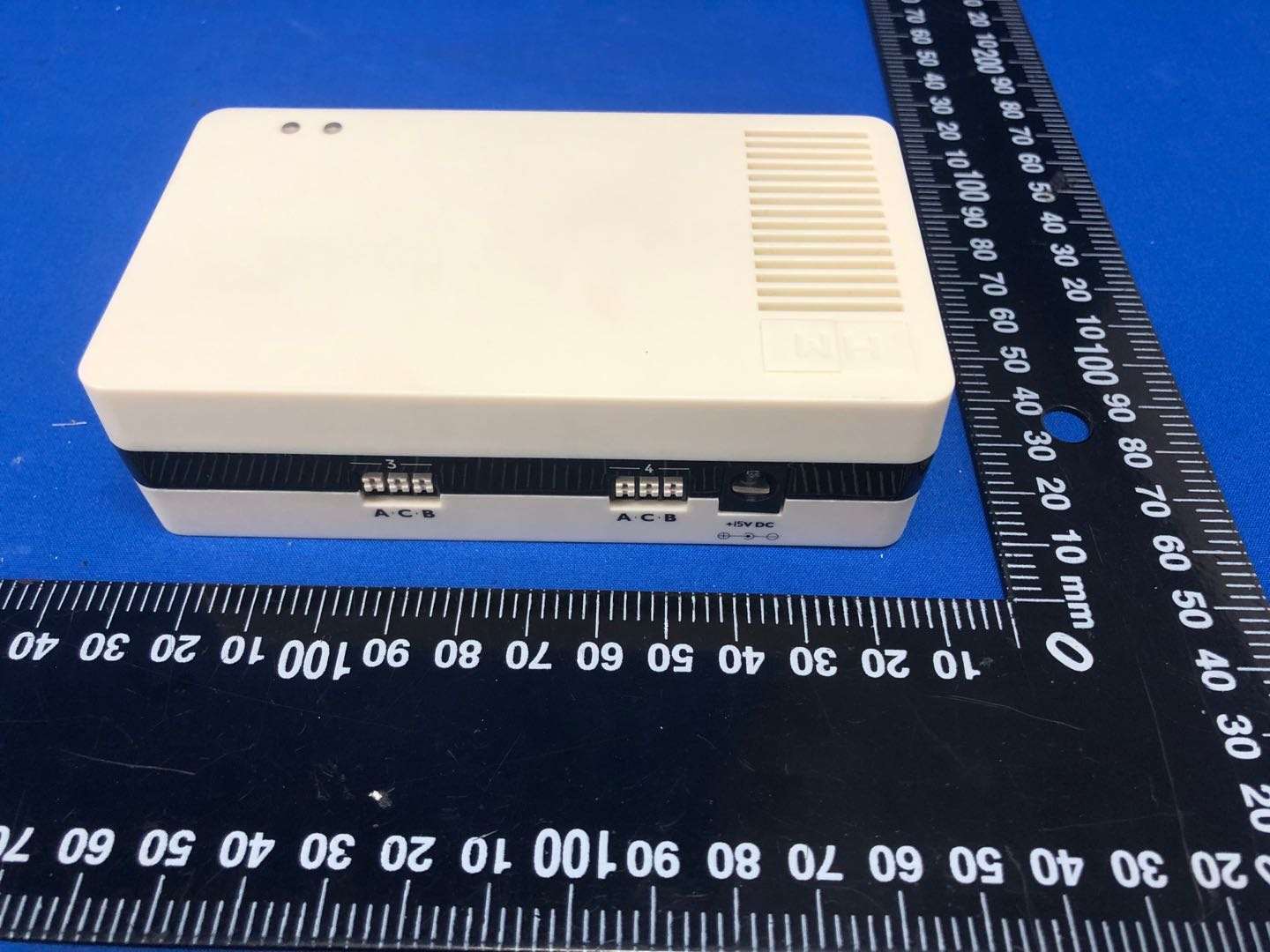

Screw fixing points Points d'accrochage aux vis Power LED LED de l'alimentation Bluetooth connection LED D'alimentation LED de connexion Bluetooth Front Face avant Getting to know the HM6010 Se familiariser avec le HM6010 Your new Bluetooth accessory controller. Votre nouveau contrôleur d'accessoires Bluetooth. 2 Connect your HM6010 to the DC mains or a DCC (digital) circuit. Connectez votre HM6010 à l’alimentation DC ou à un circuit DCC (digital). Power port Port d'alimentation DC jack Connecteur DC / Jack DC Transformer lead Cordon du transformateur Push terminal tool Outil pour terminal à enfichage Underside Face inférieure Channel ‘4’ Canal « 4 » Channel ‘3’ Canal « 3 » Reset Button Bouton de réinitialisation Reverse Envers Channel ‘1’ Canal « 1 » Channel ‘2’ Canal « 2 » For DC (analogue), connect the transformer jack to the DC port Pour DC (analogique), branchez la fiche jack du transformateur au port DC DC For DCC (digital), connect ‘A’ & ‘B’ with wiring into a R8241 Digital Power Track Pour DCC (digital), branchez « A » & « B » avec les fils à un R8241 Piste de puissance numérique DCC 1 B D Initial setup Configuration initiale Your quick step guide Guide de prise en main Firstly, ensure there is no power to the device and the ‘ Red’ and ‘Blue’ LED’s are off. Next, pick the ‘Push terminal tool’ out from the underside of the HM6010 (A). Line up the push terminal tool with the white ‘+’ of the terminal (B). Following the diagram in (C), delicately push in the white ‘+’ with the tool and feed the wire into the open slot of the terminal. Vérifiez d'abord que le dispositif n’est pas alimenté et que les LED rouge et bleue sont éteintes. Ensuite, décrochez l’outil pour terminal à enfichage de la face inférieure du HM6010 (1). Alignez l’outil pour terminal à enfichage avec le « + » blanc du terminal (2). Suivez le schéma (3) et enfoncez délicatement le « + », blanc au moyen de l’outil puis mettez le fil dans la fente ouverte du terminal. A C Once the wire is in place, take the pressure off the terminal and remove the push terminal tool. Lastly, give the wire a very light tug to ensure it is in place. Repeat steps (A) - (C) to connect your given accessories (D). Une fois le fil mis en place, relâchez la pression sur le terminal et enlevez l'outil pour terminal à enfichage. Enfin, tirez très doucement sur le fil pour vérifier qu’il est bien en place. Répétez les étapes (1) - (3) pour connecter vos accessoires (4). Track power input Entrée d’alimentation de voie P9103 (US/CA) sold separately P9103 vendu séparément Transformer Tra nsfor mateur In DCC operation, the wiring can be connected any way round En fonctionnement DCC, le câblage peut être connecté de n’importe quelle manière 4 Connect your HM6010 to HM | DC. Connectez votre HM6010 à HM | DC. 3 Download the HM | DC application. Téléchargez l’application HM | DC A. Ensure your Power LED is solid ‘Red’, if not refer to Step [2] of ‘Initial setup’. Vérifiez que la LED d'alimentation est rouge et ne clignote pas. Si ce n’est pas le cas, consultez l’étape 2 de « Configuration initiale ». B. On your compatible device you wish to use, ensure that your Bluetooth is turned on. Sur l’appareil compatible que vous souhaitez utiliser, vérifiez que Bluetooth est activé. C. Open the application and follow the initial setup process, ensuring you allow HM | DC to access and use Bluetooth on your device. Ouvrez l’application et suivez la phase de configuration initiale en veillant bien à autoriser HM | DC à accéder et utiliser Bluetooth sur votre appareil. D. Once initial setup is complete, the Bluetooth connection LED should be solid ‘ Blue’. Quand la configuration initiale est terminée, la LED de connexion Bluetooth doit devenir bleue et ne pas clignoter. A. D. C. B. A. Scan the QR code with a compatible Android or IOS device. Flashez le code QR avec un appareil Android ou IOS compatible. B. On the Hornby website, touch on the relevant app store button. Sur le site web Hornby Hobbies, touchez le bouton pertinent dans l’app store. C. Touch on ‘GET’ or ‘Install’ next to the HM | DC app icon and follow the on-screen instructions. Touchez « OBTENIR » ou « Installer » en face de l'icône de l’application HM | DC et suivez les instructions à l’écran. D. Open the HM | DC application on your device to get started. Ouvrez l’application HM | DC sur votre appareil pour démarrer. A. B. C. D. Power LED LED de l'alimentation Bluetooth connection LED D'alimentation LED de connexion Bluetooth Quick Start Guide Guide de prise en main 60mm / 2.362” Screw Fixing Points Points d'accrochage aux vis This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the r…

Text truncated - open the document above for the full version.

Date: 5/10/2020 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (BLE model accessory controller/ HM6010 FCC ID: 2ACUF-HM6010 ) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagrams, Schematics, Operational Descriptions) required to be submitted with this application be permanently withheld from public review. SPECIFY REASON FOR REQUEST (i.e. the above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely, Signature: Name: Nye, Darren Applicant: Hornby Hobbies Ltd Address: Enterprise Road Westwood Industrial Estate ,United Kingdom TEL: +44 (0)1843 233512

Date: 5/10/2020 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Nye, Darren Applicant: Hornby Hobbies Ltd Address: Enterprise Road Westwood Industrial Estate, United Kingdom TEL: +44 (0)1843 233512

Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 1 of 3 Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 2 of 3 Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 3 of 3

Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 1 of 2 Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 2 of 2 END Bluetooth Antenna

Eurofins Electrical Testing Service(Shenzhen)Co.,Ltd 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 RF EXPOSURE EXEMPT REPORT APPLICANT : Hornby Hobbies Limited PRODUCT NAME : BLE model accessory controller MODEL NAME : HM6010 BRAND NAME : Hornby FCC ID : 2ACUF-HM6010 STANDARD(S) : FCC §15.247 (i), §2.1091 RECEIPT DATE : 2020-07-14 TEST DATE : 2020-07-14 ISSUE DATE : 2020-09-11 Eurofins Electrical Testing Service(Shenzhen)Co.,Ltd 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Equipment Under Test (EUT) Description EUT Type: BLE model accessory controller Hardware Version: N/A Software Version: N/A Frequency Bands: 2402MHz ~ 2480MHz Modulation Mode: GFSK Antenna Type: PCB Antenna Antenna Gain: -3.0 dBi Eurofins Electrical Testing Service(Shenzhen)Co.,Ltd 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm2) Averaging Time |E|2,|H|2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100000 1.0 30 Note: f = frequency in MHz *= Plane-wave equivalent power density Eurofins Electrical Testing Service(Shenzhen)Co.,Ltd 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m Tune up produce power BLE0.5 24803.49 4 2.232.510.00220.00251 Limit (mW/cm²) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequency (MHz) Max Output Power to Antenna (dBm) Max Output Power to Antenna (mW) Max Power Density (mW/cm²) Max Tune up Power to Antenna (dBm) Max Tune up Power to Antenna (mW) Max Tune up Power Density (mW/cm²) Antenna gain: -3 dBi (gain of antenna in linear scale=0.5) Mode BLE Detector Peak BLE 3±1dBm

Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 1 of 24 Appendix A: 6dB Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_BT4.0 Ant1 2402 0.700 2401.676 2402.376 ≧0.5 PASS 2440 0.716 2439.664 2440.380 ≧0.5 PASS 2480 0.680 2479.688 2480.368 ≧0.5 PASS Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 2 of 24 Test Graphs BLE_BT4.0_Ant1_2402 BLE_BT4.0_Ant1_2440 Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 3 of 24 BLE_BT4.0_Ant1_2480 Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 4 of 24 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_BT4.0 Ant1 2402 1.0187 2401.511 2402.529 --- PASS 2440 1.0418 2439.497 2440.539 --- PASS 2480 1.0254 2479.512 2480.538 --- PASS Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 5 of 24 Test Graphs BLE_BT4.0_Ant1_2402 BLE_BT4.0_Ant1_2440 Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 6 of 24 BLE_BT4.0_Ant1_2480 Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 7 of 24 Appendix C: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_BT4.0 Ant1 2402 2.32 ≦30 PASS 2440 2.99 ≦30 PASS 2480 3.49 ≦30 PASS TestMode Antenna Channel e.i.r.p Result[dBm] e.i.r.p Limit[dBm] Verdict BLE_BT4.0 Ant1 2402 -0.68 ≦36 PASS 2440 -0.01 ≦36 PASS 2480 0.49 ≦36 PASS Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 8 of 24 Test Graphs BLE_BT4.0_Ant1_2402 BLE_BT4.0_Ant1_2440 Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 9 of 24 BLE_BT4.0_Ant1_2480 Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 10 of 24 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_BT4.0 Ant1 2402 -3.44 ≦8 PASS 2440 -3.07 ≦8 PASS 2480 -3.97 ≦8 PASS Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 11 of 24 Test Graphs BLE_BT4.0_Ant1_2402 BLE_BT4.0_Ant1_2440 Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 12 of 24 BLE_BT4.0_Ant1_2480 Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 13 of 24 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_BT4.0 Ant1 Low 2402 1.90 -50.14 ≦-18.11 PASS High 2480 3.01 -49.46 ≦-16.99 PASS Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 14 of 24 Test Graphs BLE_BT4.0_Ant1_Low_2402 BLE_BT4.0_Ant1_High_2480 Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 15 of 24 Appen…

Text truncated - open the document above for the full version.

Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 1 of 35 EUROFINS ELECTRICAL TESTING SERVICE (SHENZHEN) CO., LTD. RADIO TEST - REPORT FCC&IC Compliance Test Report for Product name: BLE model accessory controller Model name: HM6010 FCC ID: 2ACUF-HM6010 IC: 12075A-HM6010 Test Report Number: EFGX20070125-IE-03-E01 Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 2 of 35 1 General Information 3 1.1 Notes 3 1.2 Testing laboratory 4 1.3 Details of applicant (FCC) 4 1.4 Details of applicant (IC) 4 1.5 Details of manufacturer 4 1.6 Application details 5 1.7 Test item 5 1.8 Test standards 5 2 Technical test 6 2.1 Summary of test results 6 2.2 Test environment 6 2.3 Measurement uncertainty 6 2.4 Test mode 7 2.5 Test equipment utilized 8 2.6 Auxiliary Equipment Used during Test: 8 2.7 Test software information: 8 2.8 Test setup- ac line conducted 9 2.9 Setup diagram for conducted tests 9 2.10 Setup diagram for radiated tests below 30MHz 9 2.11 Setup diagram for radiated tests below 1GHz 10 2.12 Setup diagram for radiated tests above 1GHz 10 2.13 Test results 11 3 Technical Requirement 12 3.1 Conducted emission AC power port 12 3.2 Duty cycle 15 3.3 6dB bandwidth 16 3.4 99% Occupied Bandwidth 17 3.5 Frequency Stability 18 3.6 Conducted Peak output power 19 3.7 Power spectral density 20 3.8 Conducted Spurious Emissions 21 3.9 Band edge 22 3.10 Spurious radiated emissions for transmitter 25 Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 4 of 35 1.2 Testing laboratory Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone : +86-755-82911867 Fax : +86-755-82910749 The Laboratory has passed the Accreditation by the American Association for Laboratory Accrediation (A2LA). The Accreditation number is 5376.01 The Laboratory has been listed by industry Canada to perform electromagnetic emission measurements, The CAB identifier is CN0088 1.3 Details of applicant (FCC) Name : Hornby Hobbies Ltd Address : Enterprise Road Westwood Industrial Estate CT9 4JX United Kingdom Telephone : +44 (0) 1843 233500 ext 3701 Fax : N/A 1.4 Details of applicant (IC) Name : Hornby Hobbies Ltd Address : Enterprise Road Westwood Industrial Estate Margate, Kent CT9 4JX United Kingdom Of Great Britain And Northern Ireland Telephone : +44 (0) 1843 233500 ext 3701 Fax : N/A 1.5 Details of manufacturer Name : Refined manufacturing Limited Address : 7/F. Sun King Factory Building, 1-7, Shing Chuen Road, Shatin, N.T. Hong Kong Telephone : +86 755 28022111 ext 931 Fax : N/A Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 5 of 35 1.6 Application details Date of receipt of application : 2020-07-14 Date of receipt of test item : 2020-07-14 Date of test : 2020-07-14-2020-11-04 Date of issue 2020-11-04 1.7 Test item Product type : BLE model accessory controller Model name : HM6010 Brand : Hornby Serial number : N/A Ratings : Input: 15Vdc. Output: 15V 150mA for 3 channels, 12V 500mA for 1 channel. Test voltage : 15Vdc FCC ID : 2ACUF-HM6010 IC : 12075A-HM6010 PMN : BLE model accessory controller HVIN : HM6010 Additional information : N/A RadioTechnical data Frequency range : 2402MHz – 2480MHz Radio Tech. : Bluetooth Low Energy Frequency channel : 40 Channels Modulation : GFSK Antenna type : PCB antenna Antenna gain : -3.0 dBi Radio module Type : Bluetooth 5 Model : TLSR8253F512 Manufacturer : Telink 1.8 Test standards Test Standards FCC Part 15 Subpart C August 26, 2020 PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators RSS-247 Issue 2 February 2017 RSS-247 — Digital Transmission Systems (DTSs), Frequency Hop- ping Systems (FHSs) and Licence-Exempt Local Area Network (LE- LAN) Devices RSS-GEN Issue 5 March 2019 RSS-Gen — General Requirements for Compliance of Radio Appa- ratus Test Method 1: ANSI C63.4-2014, American National Standard for Methods of Measurement of Radio-Noise Emis- sions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2: ANSI C63.10-2013, American National Standard for Testing Unlicensed Wireless Devices. 3: KDB558074 D01 15.247 Meas Guidance v05r02 Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 6 of 35 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. or The deviations as specified were ascertained in the course of the tests performed. 2.2 Test environment Ac line conducted Enviroment Parameter Temperature Relative Humidity 100.9Kpa 25.4 57.6% RF Conducted Enviroment Parameter Temperature Relative Humidity 100.9Kpa 24.6 62.6% Radiated Enviroment Parameter Temperature Relative Humidity 100.8Kpa 23.7 51.7% 2.3 Measurement uncertainty The uncertainty is calculated using…

Text truncated - open the document above for the full version.

Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 1 of 2 Conducted Emission Radiated Emission test below 1GHz Test Report No.: EFGX20070125-IE-03-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 2 of 2 Radiated Emission test Above 1GHz
