2ACUT-4820150012047R/C Car Series

connected

27.145MHz Transmitter Block Diagram IC ANTENNA

SHANTOU CHENGHAI GUANHUA IMPORT AND EXPORT TRADE CO.,LTD. Address: RM.202-204, BLOCK 2, YAQIAN, ZHONGSHAN ROAD SOUTH, CHENGHAI, SHANTOU CITY, GUANGDONG, CHINA 2014-06-30 To whom it may concern, Letter of Agency I, an officer of SHANTOU CHENGHAI GUANHUA IMPORT AND EXPORT TRADE CO., LTD. do hereby authorize Intertek Testing Services (Mr. Shawn Xing / Billy Li) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, David Wu MANAGER

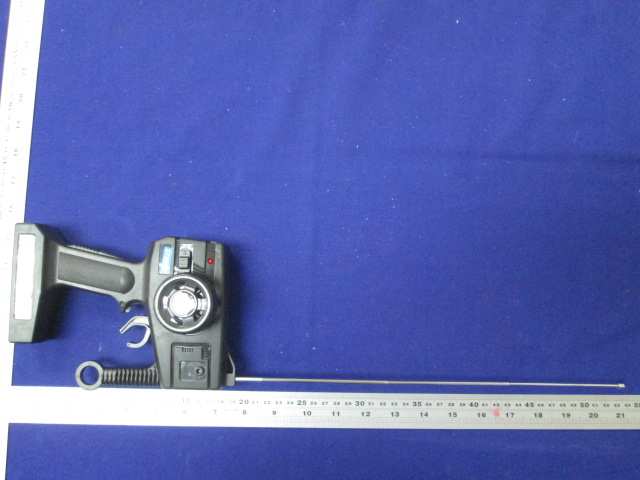

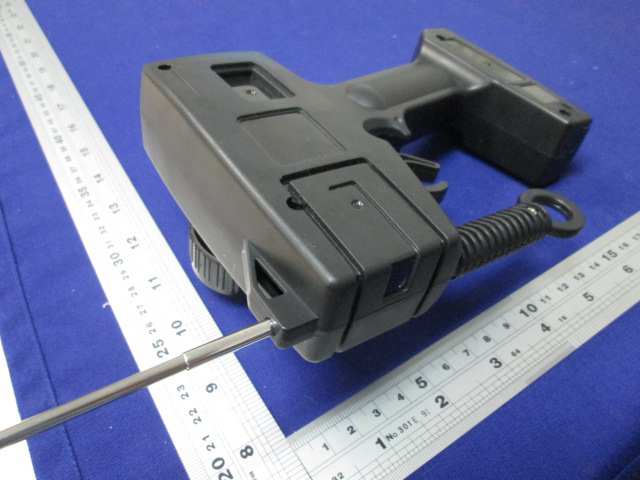

External Photos

Label Artwork and Location Size: 50mm (W) x 35mm (H) FCC ID: 2ACUT-4820150012047 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANTENNA Filter Suppression of spurious emissions L1, C7, C8, C9 RF IC Generate code signal to modulator IC Oscillator Generate 27.145 MHz carrier XT, Q1 RF power amplifier and modulator Modulate the carrier and amplify the modulated RF signal Q2 Antenna Type: telescope antenna with unique antenna connector Antenna Gain: 0dBi Modulation Type: Pulse modulation The nominal conducted output power specified: -39.00dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -41.15dBm (+/- 3dB)

Transmitter Circuit Diagram 27.145MHz

Start 26.96MHz 32KHz/ Stop 27.28MHz
