2ACVQ57930RPIR CHIME WITH WIRELESS RECEIVER

1. Insert 3AA batteries in rear compartment of Receiver and 1 9V battery in rear compartment of Sensor. 2. Volume Control. There 4 levels of sound (off, low, medium, loud) which is adjusted one level at a time at (A) upper switch on side of Receiver. 3. Ring Tones. There are 32 ring tones, which are set at (B) lower part of switch on side of Receiver. The ring tones may be changed one at a time by pressing the switch. The LED light (C) on the front of the Receiver will flash when the ring tones are playing. 4. Screw Mounting Bracket into wall. Slide opposite end of ball-looking part into rear lower section (D) of Sensor. Press ball into Mounting Bracket and adjust angle as needed. Note: The Sensor works at an angle of about 100 degrees and with a motion-detection range of about 20 feet. If sensor is detecting more movement than you wish, cover part of Sensor with opaque tape or paper to narrow sensing angle. 5. Place Receiver where needed. Note that the fewer walls that separate the Sensor from the Receiver the longer the distance that the Receiver can be placed. Over time, the batteries will weaken and may need to be replaced. 6. Adjust On/Off switch (E) on side of Sensor as needed. INSTRUCTIONS FOR USE E D C A B RECEIVERSENSOR FCC STATEMENT 1.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. 2.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/ TV technician for help. 10

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] FCC Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Tatco Products, Inc. FCC Confidentiality Request Letter Aug 22, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACVQ57930R We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Client’s signature: Client’s name / title: Jeff Dworetz / President Contact address: 6750-B Jones MIII Court Norcross, GEORGIA 30092, USA

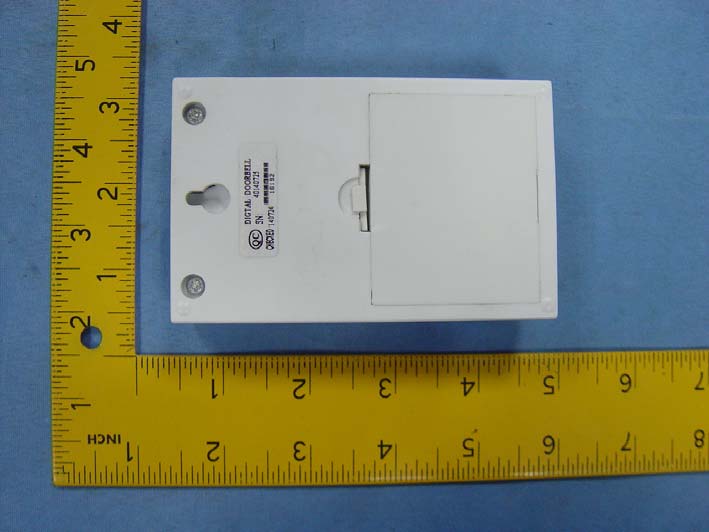

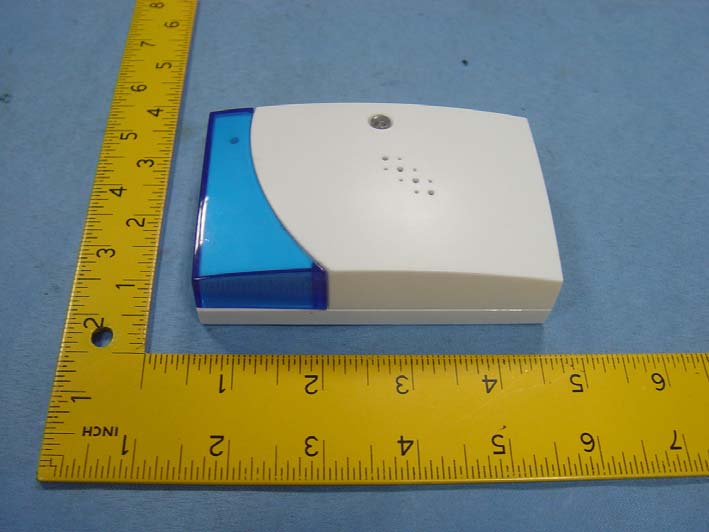

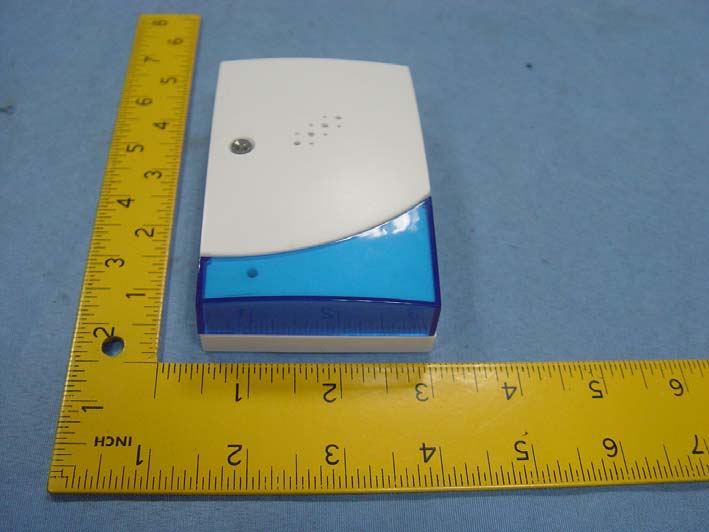

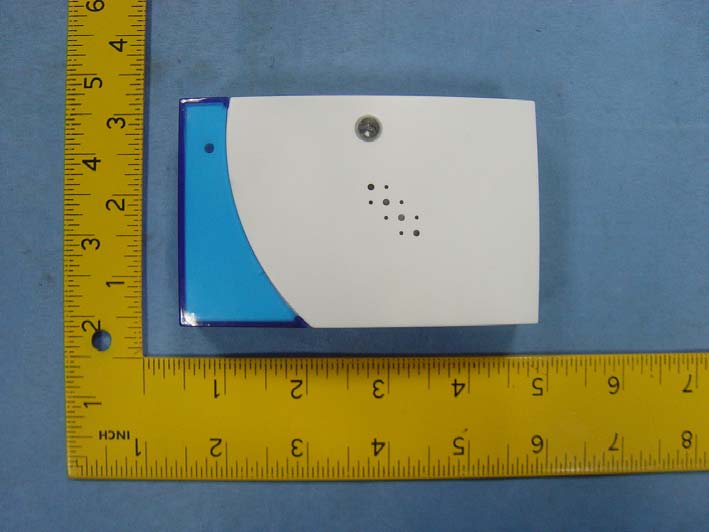

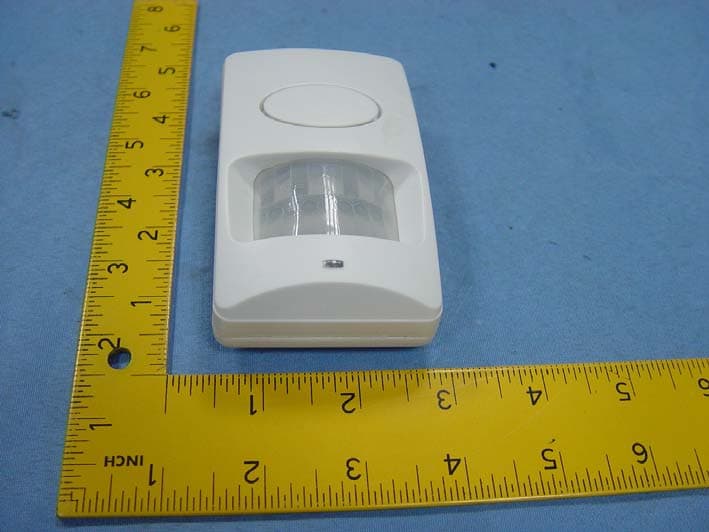

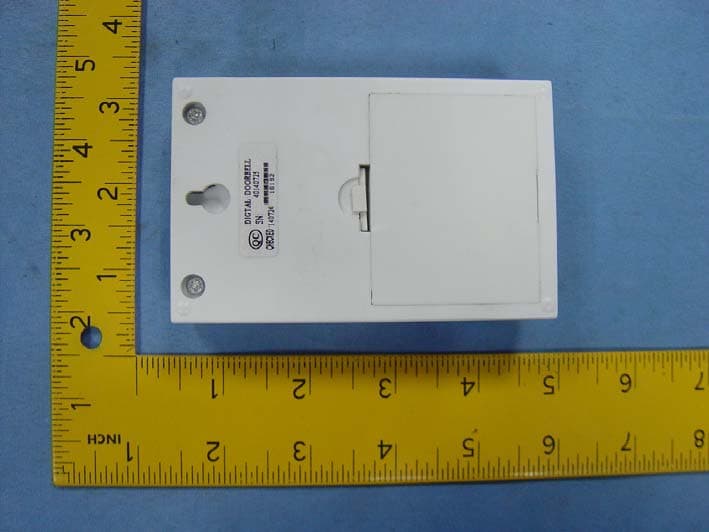

External photos

Internal photos Antenna

Report No.: ATE20141452 Page 1 of 16 Accurate Technology Co., Ltd. Address: F1, Bldg. A&D, Changyuan New Material Port, Keyuan Rd., Science & Industry Park, Nanshan District, Shenzhen 518057 , P. R. China Tel: +86-755-26503290 Fax: +86-755-26503396 E-mail: [email protected] Http://www.atc-lab.com APPLICATION FOR VERIFICATION On Behalf of Tatco Products, Inc. PIR CHIME WITH WIRELESS RECEIVER Model No.: 57930-R FCC ID: 2ACVQ57930R Prepared for : Tatco Products, Inc. Address : 6750-B Jones MIII Court Norcross, GEORGIA 30092, USA Prepared by : Accurate Technology Co., Ltd. Address : F1, Bldg. A&D, Changyuan New Material Port, Keyuan Rd., Science & Industry Park, Nanshan District, Shenzhen 518057, P.R. China Tel: +86-755-26503290 Fax: +86-755-26503396 Report No. : ATE20141452 Date of Test : July 26, 2014-Aug 20, 2014 Date of Report : Aug 20, 2014 Report No.: ATE20141452 Page 2 of 16 Accurate Technology Co., Ltd. Address: F1, Bldg. A&D, Changyuan New Material Port, Keyuan Rd., Science & Industry Park, Nanshan District, Shenzhen 518057 , P. R. China Tel: +86-755-26503290 Fax: +86-755-26503396 E-mail: [email protected] Http://www.atc-lab.com TABLE OF CONTENTS Description Page Test Report Declaration 1. TEST RESULTS SUMMARY......................................................................................................... 4 2. GENERAL INFORMATION............................................................................................................ 5 2.1. Product of Device (EUT).......................................................................................................................5 2.2. Accessory and Auxiliary Equipment....................................................................................................5 2.3. Description of Test Facility...................................................................................................................6 2.4. Measurement Uncertainty.....................................................................................................................6 3. POWER LINE CONDUCTED MEASUREMENT......................................................................... 7 3.1. For Power Line Conducted Emission..................................................................................................7 3.2. Power Line Conducted Emission Measurement Limits (Class B)..................................................7 3.3. Power Line Conducted Emission Measurement Results.................................................................7 4. RADIATED EMISSION MEASUREMENT................................................................................... 8 4.1. For Radiated Emission Measurement .......................................................................................................8 4.2. TEST CONFIGURATION .......................................................................................................................8 4.3. Block Diagram of Test Setup...............................................................................................................9 4.4. Radiated Emission Limit (Class B)......................................................................................................9 4.5. EUT Configuration on Measurement..................................................................................................9 4.6. Operating Condition of EUT...............................................................................................................10 4.7. Test Procedure.....................................................................................................................................10 4.8. Radiated Emission Noise Measurement Result..............................................................................11 5. PHOTOGRAPHS............................................................................................................................ 16 5.1. Photos of Radiated Measurement.....................................................................................................16 Report No.: ATE20141452 Page 3 of 16 Accurate Technology Co., Ltd. Address: F1, Bldg. A&D, Changyuan New Material Port, Keyuan Rd., Science & Industry Park, Nanshan District, Shenzhen 518057 , P. R. China Tel: +86-755-26503290 Fax: +86-755-26503396 E-mail: [email protected] Http://www.atc-lab.com Test Report Declaration Applicant& address : Tatco Products, Inc. 6750-B Jones MIII Court Norcross, GEORGIA 30092, USA Manufacturer& address : Zhongshan J-Xing Electrical Co., Ltd Block K, Yong An Industrial Park, Yong An Road, Dongfeng Town, Zhongshan City, Guangdong, China 528425 Product : PIR CHIME WITH WIRELESS RECEIVER Model No. : 57930-R Trade name : Measurement Procedure Used: FCC Rules and Regulations Part 15 Subpart B Class B & ANSI C63.4: 2009 The device described above is tested by Accurate Technology Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart B Class B limits both radiated and conducted emissions. The measurement results are contained in this test report and Accurate Technology Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the Equipment Under Test (EUT) is to be technically compliant with the FCC requirements. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Accurate Technology Co., Ltd. Date of Test : July 26, 2014-Aug 20, 2014 Prepared by : (Tim.zhang, Engineer) Approved & Authorized Signer : ( Sean, Manager) Report No.: ATE20141452 Page 4 of 16 Accurate Technology Co., Ltd. Address: F1, Bldg. A&D, Changyuan New Material Port, Keyuan Rd., Science & Industry Park, Nanshan District, Shenzhen 518057 , P. R. China Tel: +86-755-26503290 Fax: +86-755-26503396 E-mail: [email protected] Http://www.atc-lab.com 1. TEST…
