2ACVZ-BOW-EXPANTEXPANT

EXPANT Wireless Module manual Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. Dimension：H31mm*W26mm*D6mm﹝8-pin connector included﹞ Input Voltage：DC 5V+/-5% Indroduction： EXPANT is a 2.4GHz wireless module. It can be designed to fit MCU base circuit for 2.4GHz wireless communication with another unit. 8-pin connector Function： P1：GND—Signal and power input common pin. P2：+5V—DC 5V power input pin. P3：RST—CYRF6936 RST pin. P4：SS--CYRF6936 SS pin. P5：IRQ--CYRF6936 IRQ pin. P6：SDO--CYRF6936 MOSI pin. P7：SDI--CYRF6936 MISO pin. P8：SCK--CYRF6936 SCK pin. RF channel：2415MHz~2472MHz for FCC. CYRF6936 Specification：Please visit http://www.cypress.com to get CYRF6936 datasheet. THIS DEVICE COMPLIES WITH PART 15 OF THE FCCRULES. OPERATIONS IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: ( 1 ) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND ( 2 ) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFEERENCE THAT MAY CAUSE UNDESRIED OPERATION If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2ACVZ-BOW-EXPANT” When the module is installed inside another device, the user manual of this device must contain below warning statements; 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

BOW Technology Co., Ltd. http://www.bow.com.tw http://www.twrc.com.tw No. 10-12, Lane 468, Wufu Road, Wufeng Dist., Taichung City, Taiwan, R.O.C. TEL: 886-4-23396721 FAX: 886-4-23303601 DATE : 2014-09-05 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ACVZ-BOW- EXPANT Product Name: EXPANT Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2014-09-05 By: Ovid Wang Signature Printed Title: Vice President On behalf of : BOW Technology Co., Ltd. Telephone: 886-4-23396721

Limited Modular approval Declaration letter Applicant / Grantee BOW Technology Co. Ltd. FCC ID: 2ACVZ-BOW-EXPANT Model: EXPANT We BOW Technology Co. Ltd. apply limited modular approval for Product : EXPANT FCC ID 2ACVZ-BOW-EXPANT According to KDB 996369 D01 Module Equip Auth Guide v01r04 and 15.212 requirement: Modular approval requirement EUT Condition Comply (a) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; No shielding for both side NO (b) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal； All inputs to the modules are buffered through logic or microprocessor inputs. Yes (c) The modular transmitter must have its own power supply regulation； The modular transmitter has its own power supply regulation by regulator RT9161-33GX See the schematic for detail. Yes (d) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); The antenna is a permanently attached - integral PCB type, fulfilling the requirements 15.203 and 15.204. See EUT photos for detail. Yes (e) The module must demonstrate compliance in a stand-alone configuration；  At least 10cm distance between modular and all other auxiliary equipment is keep during all test ，See the setup photo Yes (f) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); The modular has a permanent fixed label, and below statement was listed in the Users Manual;The host device must be labelled to display the FCC ID of the module ‘Contains FCC ID: 2ACVZ-BOW-EXPANT’ Yes (g) The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . Yes (h) The module must comply with RF exposure requirements. Transmitter meets MPE calculation of 47 CFR 1.1307 and KDB 447498 D01. Refer to RF exposure reports and refer to modular installation manual The modular comply with RF exposure requirement for Portable use configuration . Yes By: Ovid Wang Signature Printed Title: Vice President Company: BOW Technology Co. Ltd.

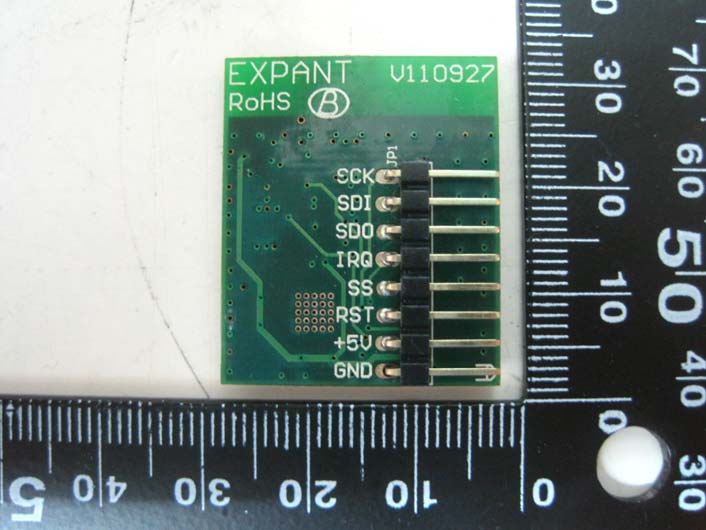

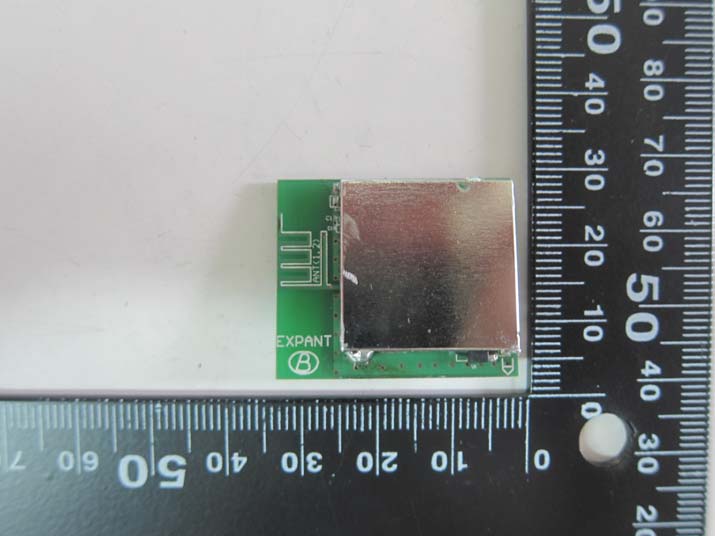

HongAn TECHNOLOGY CO., LTD. Report No.: HA140504-FID FCC Test Report Page 38 of 40 8 Photographs of the EUT Front View of the EUT Front view of the PCB HongAn TECHNOLOGY CO., LTD. Report No.: HA140504-FID FCC Test Report Page 39 of 40 Rear View of the PCB Front View of the Supporting Equipment

BOW Technology Co., Ltd. http://www.bow.com.tw http://www.twrc.com.tw No. 10-12, Lane 468, Wufu Road, Wufeng Dist., Taichung City, Taiwan, R.O.C. TEL: 886-4-23396721FAX: 886-4-23303601 Date: Jul. 21, 2014 Model: EXPANT FCC ID. : 2ACVZ-BOW-EXPANT 25mm 6mm LABEL

HongAn TECHNOLOGY CO., LTD. Report No.: HA140504-FID FCC Test Report Page 38 of 40 8 Photographs of the EUT Front View of the EUT Front view of the PCB HongAn TECHNOLOGY CO., LTD. Report No.: HA140504-FID FCC Test Report Page 39 of 40 Rear View of the PCB Front View of the Supporting Equipment

BOW Technology Co., Ltd. No. 10-12, Ln. 468, Wufu Rd., Wufeng Dist., Taichung City, Taiwan, R.O.C. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Applicant’s declaration concerning RF Radiation Exposure We hereby indicate that the product Product description: EXPANT Model No: EXPANT FCC ID: 2ACVZ-BOW-EXPANT The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The integral antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within the host device. A safety statement concerning minimum separation distances from enclosure of the Product : EXPANT will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate information can be drawn from the test report no: HA140504-FID and the accompanying calculations: According to KDB 447498 D01 General RF Exposure Guidance v05r02, the 1-g SAR test exclusion thresholds for 100MHz to 6GHz at test separation distances of 50mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]*[√f(GHz)]≦3.0 for 1-g SAR, where Field Strength : 90.17 dBuV/m Ant. Gain : 1.16 dBi; Ant Numeric Gain : 1.306171. max. power of channel, including tune-up tolerance: { [10 (Field Strength/20) /10 6 x3] 2 /30 x Ant Numeric Gain }x1000 mW = 0.238848 mW min. test separation distance: 5 mm Frequency: 2.415 GHz (0.238848 mW/5mm)x √2.415GHz= 0.074235 <3 Result of Calculation: The result of calculation is far below 3 . Therefore, SAR test is not required. Company: BOW Technology Co., Ltd. Address: No. 10-12, Ln. 468, Wufu Rd., Wufeng Dist., Taichung City, Taiwan, R.O.C. Date: Sep. 05, 2014 By:

HongAn TECHNOLOGY CO., LTD. Report No.: HA140504-FID FCC Test Report Page 1 of 44 FCC COMPLIANCE TEST REPORT Technical Statement of Conformity in accordance with 47 CFR Part 15 Subpart C The product Equipment Under Test ： EXPANT Model Number ： EXPANT Product Series ： N/A Report Number ： HA140504-FID Issue Date ： 29-Aug-2014 Test Result ： Compliance is produced by BOW Technology Co., Ltd. No. 10-12, Ln. 468, Wufu Rd., Wufeng Dist., Taichung City, Taiwan, R.O.C. HongAn TECHNOLOGY CO., LTD. NO.15-1, CWEISHUH KENG, CWEIPIN VILLAGE, LINKOU, TAIPEI COUNTY, TAIWAN, R. O. C. TEL: +886-2-26030362 FAX: +886-2-26019259 E-mail: [email protected] BSMI Registration No.: SL2-IN-E-0023, SL2-A1-E-0023, FCC Designation No.: TW1071 SL2-IS-E-0023, SL2-R1-E-0023, TAF Accreditation No.: 1163 SL2-R2-E-0023, SL2-L1-E-0023 VCCI Registration No.: R-2156, C-2329, T-219 HongAn TECHNOLOGY CO., LTD. Report No.: HA140504-FID FCC Test Report Page 2 of 44 Contents 1 General Description 6 1.1 Description of EUT 6 1.2 Test Instruments 7 1.3 Auxiliary Equipments 8 1.4 EUT SETUP 8 1.5 Identifying the Final Test Mode 8 1.6 Final Test Mode (Worst Case) 9 1.7 Condition of Power Supply 9 1.8 EUT Configuration 9 1.9 Test Methodology 9 1.10 General Test Procedures 9 1.11 Modification 9 1.12 FCC Part 15.205 restricted bands of operations 10 1.13 Qualification of Test Facility 10 2 Power line Conducted Emission Measurement 11 2.1 Test Instruments 11 2.2 Test Arrangement and Procedure 11 2.3 Limit (§ 15.207) 11 2.4 Test Result 11 3 20 dB Bandwidth of the Emission 14 3.1 Test Instruments 14 3.2 Test Arrangement and Procedure 14 3.3 Test Result 14 4 Radiated Emission Test 18 4.1 Test Instruments 18 4.2 Test Arrangement and Procedure 18 4.3 Limit of Field Strength of Fundamental (§ 15.249) 19 4.4 Limit of Spurious Emission (§ 15.209) 19 4.5 Test Result 19 5 Out of Band Emission Test 34 5.1 Test Instruments 34 5.2 Test Arrangement and Procedure 34 5.3 Limit of Field Strength of Fundamental (§ 15.249(d)) 34 5.4 Test Result 34 HongAn TECHNOLOGY CO., LTD. Report No.: HA140504-FID FCC Test Report Page 3 of 44 6 Antenna requirement 39 6.1 Limit (§ 15.203) 39 6.2 Test Result 39 7 Photographs of the Tests 40 7.1 Radiated Disturbances Emission Test (Below 1G) 40 7.2 Radiated Disturbances Emission Test (Above 1G) 40 7.3 Power Line Conducted Emission Test 41 8 Photographs of the EUT 42 HongAn TECHNOLOGY CO., LTD. Report No.: HA140504-FID FCC Test Report Page 4 of 44 Test Result Certification Applicant ： BOW Technology Co., Ltd. Address of Applicant ： No. 10-12, Ln. 468, Wufu Rd., Wufeng Dist., Taichung City, Taiwan, R.O.C. Manufacturer ： GEWISE INDUSTRIAL INC. Address of Manufacturer ： No. 7, Road 24, Taichung Industrial Park, Taichung City, Taiwan, R.O.C. Trade Name ： N/A Equipment Under Test ： EXPANT Model Number ： EXPANT Product Series ： N/A FCC ID ： 2ACVZ-BOW-EXPANT Filing Type ： Certification Sample Received Date ： 21-JUL-2014 Test Standard ： FCC Part 15 Subpart C §15.249 Deviations from standard test methods & any other specifications : NONE Remark: 1. This report details the results of the test carried out on one sample. 2. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.203, 15.207, 15.209, 15.249. 3. This report applies to the above sample only and shall not be reproduced in part without written approval of HongAn Technology Co., Ltd.. Documented by: Kay Wang/ ADM. Dept Staff 2014-08-29 Tested by: Eason Hsieh/ ENG. Dept. Staff 2014-08-18 Approved by: Date: 2014-08-29 Peter Chin / Section Manager HongAn TECHNOLOGY CO., LTD. Report No.: HA140504-FID FCC Test Report Page 5 of 44 Summary of Test Result Test Item Applicable Standard Test Result 1 Antenna Requirement FCC part 15 subpart C §203 Compliance 2 Conducted limits FCC part 15 subpart C §207 Compliance 3 Radiated emission limits FCC part 15 subpart C §209 Compliance 4 Field Strength FCC part 15 subpart C §249(a) Compliance 5 Band-edge measurement FCC part 15 subpart C §249(d) Compliance 6 20dB Bandwidth FCC part 15 subpart C §215 Compliance HongAn TECHNOLOGY CO., LTD. Report No.: HA140504-FID FCC Test Report Page 6 of 44 1 General Description 1.1 Description of EUT Equipment Under Test : EXPANT Model Number of EUT : EXPANT Product Series : N/A Power Supply : DC 5 V Frequency Range : 2415~2472 MHz Number of Channels : 20 Channels Carrier Frequency of Each Channel : 2415 MHz, 2418 MHz, 2421 MHz, 2424 MHz, 2427 MHz, 2430 MHz, 2433 MHz, 2436 MHz, 2439 MHz, 2442 MHz, 2445 MHz, 2448 MHz, 2451 MHz, 2454 MHz, 2457 MHz, 2460 MHz, 2463 MHz, 2466 MHz, 2469 MHz, 2472 MHz Antenna Specification : Printed Antenna/ Gain: 1.16 dBi Modulation Technique : GFSK Specification : Dimensions : 30 mm (L) X25 mm (W) X 5 mm (H) Weight : 10 g Function：The EUT is a 2.4GHz wireless module. ※For more detail specification, please refer to the User Manual. HongAn TECHNOLOGY CO., LTD. Report No.: HA140504-FID FCC Test Report Page 7 of 44 1.2 Test Instruments 1.2.1. Instruments Used for Measurement HA1 Instrument Name Manufacture Mode Model Number Serial NumberLast Cal. Date Next Cal. Date RF Amplifier AR 15S1G3 306578 11-AUG-2014 11-AUG-2015 EMI Receiver R&S ESCI 100615 03-MAR-2014 03-MAR-2015 Spectrum Analyzer R&S FSL6 100323 11-JUN-2014 11-JUN-2015 Spectrum Analyzer Advantest R3172 101202158 24-JUN-2014 24-JUN-2015 Preamplifier WIRELESS FPA-6592G 060009 09-JUL-2014 09-JUL-2015 Preamplifier HD HD17187 004 04-AUG-2014 04-AUG-2015 Bilog Antenna TESEQ CBL6111D 25769 03-MAR-2014 03-MAR-2015 Bilog Antenna Schaffner CBL6112B 2860 12-AUG-2014 12-AUG-2015 Double-Ridged Waveguide Horn EMCO 3115 9912-5992 04-MAY-2014 04-MAY-2015 Te m p . & Humidity Chamber Giant Force GTH-150-20-SP -AR MMA0907-01222-JUL-2014 22-JUL-2015 Horn Antenna (18-40GHz) Com-Power AH-840 101042 03-…

Text truncated - open the document above for the full version.

HongAn TECHNOLOGY CO., LTD. Report No.: HA140504-FID FCC Test Report Page 36 of 40 7 Photographs of the Tests 7.1 Radiated Disturbances Emission Test (Below 1G) Front View 7.2 Radiated Disturbances Emission Test (Above 1G) Front View HongAn TECHNOLOGY CO., LTD. Report No.: HA140504-FID FCC Test Report Page 37 of 40 7.3 Power Line Conducted Emission Test Front View Rear View
