TJMATE Wireless Controller manual Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. Dimension：H6 0mm*W98mm*D17mm﹝Charger Base is not included﹞ Charger Power：AC 100~240V 50/60Hz Indroduction： TJMATE is a 2.4GHz Wireless controller can be setup in bathroom. It is water proof. Built in battery automatical maintaining function let user can long time charge the TJMATE. Buttons Function： 【Power】 ：Hold 0.5 second to turn ON/OFF TJMATE wireless controller power. 【CONN】：Click to wake up TJMATE for wireless communication. Hold 2 seconds to control TAYJYI machine. 【C/F/▲】：Under Standby mode, click to change ﹝°C﹞/﹝°F﹞. Hold 2 seconds to force starting EM Valves in TAYJYI machine. Under Setup mode, increase setup value. 【D/T/▼】：Under Standby mode, click to change﹝°C/°F﹞/clock﹝XX：XX﹞. Hold 2 seconds to force closing EM Valves in TAYJYI machine. Under Setup mode, decrease setup value. Display symbols： Electrical Specification RF channel：2415MHz~2472MHz, 20 channels for each 3MHz, automatically avoid noisy channel. AC Power adaptor specification： Input：100~240V, 50/60Hz. Output：DC5V/1A, 3.5X1.3X9.5.

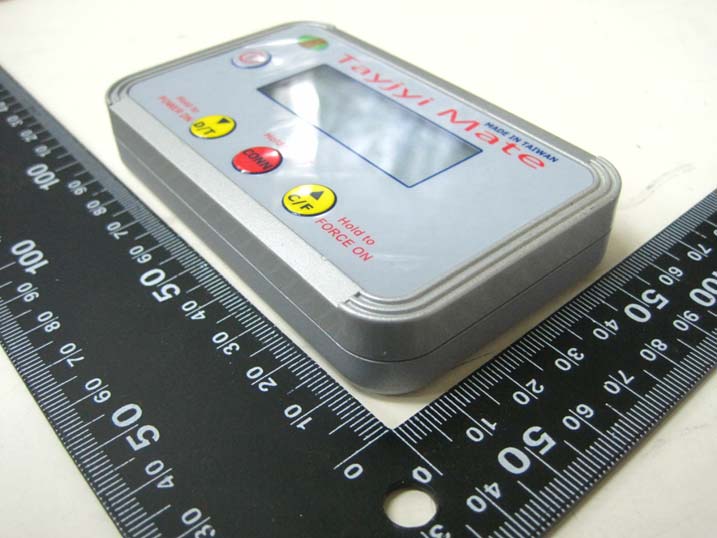

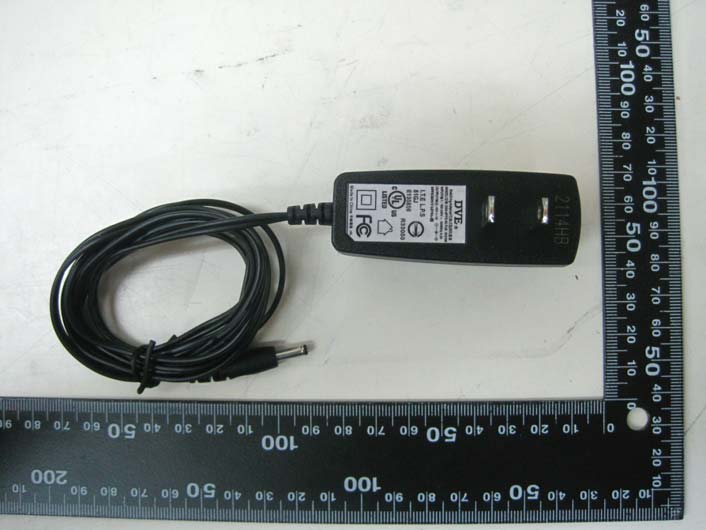

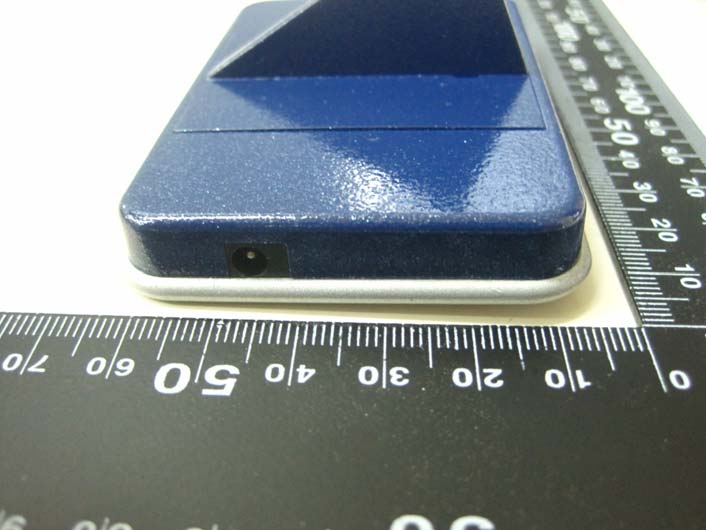

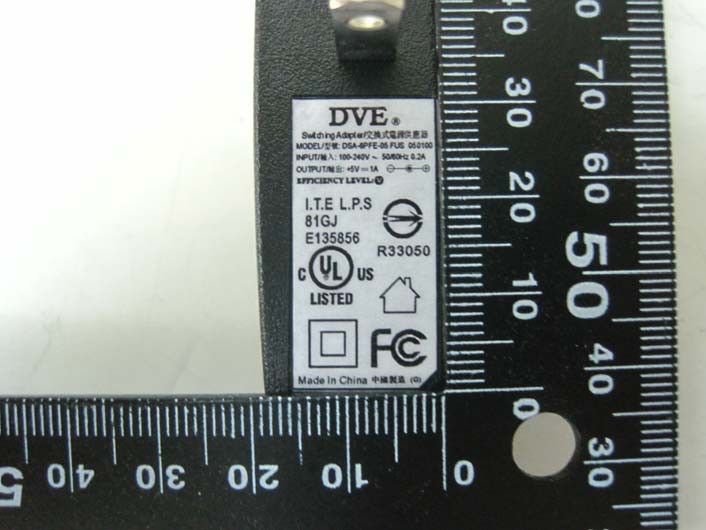

HongAn TECHNOLOGY CO., LTD. Report No.: HA140502-FID FCC Test Report Page 33 of 40 8 Photographs of the EUT Front View of the EUT Rear View of the EUT HongAn TECHNOLOGY CO., LTD. Report No.: HA140502-FID FCC Test Report Page 34 of 40 Side View of the EUT -1 Side View of the EUT -2 HongAn TECHNOLOGY CO., LTD. Report No.: HA140502-FID FCC Test Report Page 37 of 40 Front View of the Cradle Rear View of the Cradle HongAn TECHNOLOGY CO., LTD. Report No.: HA140502-FID FCC Test Report Page 38 of 40 Side View of the Cradle Inside View of the Cradle HongAn TECHNOLOGY CO., LTD. Report No.: HA140502-FID FCC Test Report Page 39 of 40 Side View of the Adaptor Front View of the Cradle HongAn TECHNOLOGY CO., LTD. Report No.: HA140502-FID FCC Test Report Page 40 of 40 Close View of the Label

BOW Technology Co., Ltd. http://www.bow.com.tw http://www.twrc.com.tw No. 10-12, Lane 468, Wufu Road, Wufeng Dist., Taichung City, Taiwan, R.O.C. TEL: 886-4-23396721 FAX: 886-4-23303601 Date: Jul. 29, 2014 Model: TJMATE FCC ID. : 2ACVZ-BOW-TJMATE THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATIONS IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: ( 1 ) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND ( 2 ) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFEERENCE THAT MAY CAUSE UNDESRIED OPERATION 50mm 15mm LABEL

HongAn TECHNOLOGY CO., LTD. Report No.: HA140502-FID FCC Test Report Page 35 of 40 Inside View of the EUT Front View of the EUT’s PCB HongAn TECHNOLOGY CO., LTD. Report No.: HA140502-FID FCC Test Report Page 36 of 40 Front View of the EUT’s PCB (Without LED panel) Rear View of the EUT’s PCB

BOW Technology Co., Ltd. No. 10-12, Ln. 468, Wufu Rd., Wufeng Dist., Taichung City, Taiwan, R.O.C. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Applicant’s declaration concerning RF Radiation Exposure We hereby indicate that the product Product description: TJMATE Model No: TJMATE The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The integral antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within the host device. A safety statement concerning minimum separation distances from enclosure of the Product : TJMATE will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate information can be drawn from the test report no: HA140502-FID and the accompanying calculations: According to KDB 447498 D01 General RF Exposure Guidance v05r02, the 1-g SAR test exclusion thresholds for 100MHz to 6GHz at test separation distances of 50mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]*[√f(GHz)]≦3.0 for 1-g SAR, where Field Strength : 86.10 dBuV/m Ant. Gain : 1.16 dBi; Ant Numeric Gain : 1.306171. max. power of channel, including tune-up tolerance: { [10 (Field Strength/20) /10 6 x3] 2 /30 x Ant Numeric Gain }x1000 mW = 0.093567 mW FCC ID: 2ACVZ-BOW-TJMATE

HongAn TECHNOLOGY CO., LTD. Report No.: HA140502-FID FCC Test Report Page 1 of 46 FCC COMPLIANCE TEST REPORT Technical Statement of Conformity in accordance with 47 CFR Part 15 Subpart C The product Equipment Under Test ： TJMATE Model Number ： TJMATE Product Series ： N/A Report Number ： HA140502-FID Issue Date ： 21-Jul-2014 Test Result ： Compliance is produced by BOW Technology Co., Ltd. No. 10-12, Ln. 468, Wufu Rd., Wufeng Dist., Taichung City, Taiwan, R.O.C. HongAn TECHNOLOGY CO., LTD. NO.15-1, CWEISHUH KENG, CWEIPIN VILLAGE, LINKOU, TAIPEI COUNTY, TAIWAN, R. O. C. TEL: +886-2-26030362 FAX: +886-2-26019259 E-mail: [email protected] BSMI Registration No.: SL2-IN-E-0023, SL2-A1-E-0023, FCC Designation No.: TW1071 SL2-IS-E-0023, SL2-R1-E-0023, TAF Accreditation No.: 1163 SL2-R2-E-0023, SL2-L1-E-0023 VCCI Registration No.: R-2156, C-2329, T-219 HongAn TECHNOLOGY CO., LTD. Report No.: HA140502-FID FCC Test Report Page 2 of 46 Contents 1 General Description 6 1.1 Description of EUT 6 1.2 Test Instruments 7 1.3 Auxiliary Equipments 8 1.4 EUT SETUP 8 1.5 Identifying the Final Test Mode 8 1.6 Final Test Mode (Worst Case) 9 1.7 Condition of Power Supply 9 1.8 EUT Configuration 9 1.9 Test Methodology 9 1.10 General Test Procedures 9 1.11 Modification 9 1.12 FCC Part 15.205 restricted bands of operations 10 1.13 Qualification of Test Facility 10 2 Power line Conducted Emission Measurement 11 2.1 Test Instruments 11 2.2 Test Arrangement and Procedure 11 2.3 Limit (§ 15.207) 11 2.4 Test Result 11 3 20 dB Bandwidth of the Emission 14 3.1 Test Instruments 14 3.2 Test Arrangement and Procedure 14 3.3 Test Result 14 4 Radiated Emission Test 18 4.1 Test Instruments 18 4.2 Test Arrangement and Procedure 18 4.3 Limit of Field Strength of Fundamental (§ 15.249) 19 4.4 Limit of Spurious Emission (§ 15.209) 19 4.5 Test Result 19 5 Out of Band Emission Test 30 5.1 Test Instruments 30 5.2 Test Arrangement and Procedure 30 5.3 Limit of Field Strength of Fundamental (§ 15.249(d)) 30 5.4 Test Result 30 HongAn TECHNOLOGY CO., LTD. Report No.: HA140502-FID FCC Test Report Page 3 of 46 6 Antenna requirement 35 6.1 Limit (§ 15.203) 35 6.2 Test Result 35 7 Photographs of the Tests 36 7.1 Radiated Disturbances Emission Test (Below 1G) 36 7.2 Radiated Disturbances Emission Test (Above 1G) 37 7.3 Power Line Conducted Emission Test 38 8 Photographs of the EUT 39 HongAn TECHNOLOGY CO., LTD. Report No.: HA140502-FID FCC Test Report Page 4 of 46 Test Result Certification Applicant ： BOW Technology Co., Ltd. Address of Applicant ： No. 10-12, Ln. 468, Wufu Rd., Wufeng Dist., Taichung City, Taiwan, R.O.C. Manufacturer ： GEWISE INDUSTRIAL INC. Address of Manufacturer ： No. 7, Road 24, Taichung Industrial Park, Taichung City, Taiwan, R.O.C. Trade Name ： N/A Equipment Under Test ： TJMATE Model Number ： TJMATE Product Series ： N/A FCC ID ： 2ACVZ-BOW-TJMATE Filing Type ： Certification Sample Received Date ： 11-Jul-2014 Test Standard ： FCC Part 15 Subpart C §15.249 Deviations from standard test methods & any other specifications : NONE Remark: 1. This report details the results of the test carried out on one sample. 2. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.203, 15.207, 15.209, 15.249. 3. This report applies to the above sample only and shall not be reproduced in part without written approval of HongAn Technology Co., Ltd.. Documented by: Kay Wang/ ADM. Dept Staff 2014-07-21 Tested by: Eason Hsieh/ ENG. Dept. Staff 2014-07-17 Approved by: Date: 2014-07-21 Peter Chin / Section Manager HongAn TECHNOLOGY CO., LTD. Report No.: HA140502-FID FCC Test Report Page 5 of 46 Summary of Test Result Test Item Applicable Standard Test Result 1 Antenna Requirement FCC part 15 subpart C §203 Compliance 2 Conducted limits FCC part 15 subpart C §207 Compliance 3 Radiated emission limits FCC part 15 subpart C §209 Compliance 4 Field Strength FCC part 15 subpart C §249(a) Compliance 5 Band-edge measurement FCC part 15 subpart C §249(d) Compliance 6 20dB Bandwidth FCC part 15 subpart C §215 Compliance HongAn TECHNOLOGY CO., LTD. Report No.: HA140502-FID FCC Test Report Page 6 of 46 1 General Description 1.1 Description of EUT Equipment Under Test : TJMATE Model Number of EUT : TJMATE Product Series : N/A Power Supply : Switching adaptor Manufacturer : DVE Model Number : DSA-6PFE-05FUS050100 Input : AC 100-240 V, 0.2A, 50/60 Hz Output : DC 5V, 1A Power cord: Shielded Non-Shielded Detachable , 1.5mUn-detachable w/o ferrite core Frequency Range : 2415~2472 MHz Number of Channels : 20 Channels Carrier Frequency of Each Channel : 2415 MHz, 2418 MHz, 2421 MHz, 2424 MHz, 2427 MHz, 2430 MHz, 2433 MHz, 2436 MHz, 2439 MHz, 2442 MHz, 2445 MHz, 2448 MHz, 2451 MHz, 2454 MHz, 2457 MHz, 2460 MHz, 2463 MHz, 2466 MHz, 2469 MHz, 2472 MHz Antenna Specification : Printed Antenna/ Gain: 1.16 dBi Modulation Technique : GFSK Specification : Dimensions : 17 mm (L) X 98 mm (W) X 60 mm (H) Weight : 90 g Function：The EUT is a wireless transmitter. ※For more detail specification, please refer to the User Manual. HongAn TECHNOLOGY CO., LTD. Report No.: HA140502-FID FCC Test Report Page 7 of 46 1.2 Test Instruments 1.2.1. Instruments Used for Measurement HA1 Instrument Name Manufacture Mode Model Number Serial NumberLast Cal. Date Next Cal. Date RF Amplifier AR 15S1G3 306578 11-AUG-2013 11-AUG-2014 EMI Receiver R&S ESCI 100615 03-MAR-2014 03-MAR-2015 Spectrum Analyzer R&S FSL6 100323 11-JUN-2014 11-JUN-2015 Spectrum Analyzer Advantest R3172 101202158 24-JUN-2014 24-JUN-2015 Preamplifier WIRELESS FPA-6592G 060009 09-JUL-2014 09-JUL-2015 Preamplifier HD HD17187 004 04-AUG-2013 04-AUG-2014 Bilog Antenna TESEQ CBL6111D 25769 03-MAR-2014 03-MAR-2015 Bilog Antenna Schaffner CBL6112B 2860 12-AUG-2013 12-AUG-2014 Double-Ridged…
