2ACWITC65CX420LCD TV

Model No. TC-65CX400U TC-65CX420U Owner’s Manual 65" Class 4K2K LED UHD TV (64.5 inches measured diagonally) For assistance (U.S.A./Puerto Rico), please call: 1-844-246-0582 www.shop.panasonic.com/support Register online at www.panasonic.com/register (U.S. customers only) 2 This product incorporates the following software: (1) the software developed independently by or for Panasonic Corporation, (2) the software owned by third party and licensed to Panasonic Corporation, (3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0), (4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL V2.1), and/or (5) open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1. The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed terms and conditions thereof [shown in the Player Settings menu.] 1 displayed by selecting [Setup] > [Tablet Information] > [Legal Information] > [Open Source License] from the Home screen 2 shown in the Player Settings menu At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL V2.1 or the other licenses with the obligation to do so, as well as the respective copyright notice thereof. Contact Information: HYPERLINK "mailto:[email protected]" [email protected]. com The source code and the copyright notice are also available for free in our website below. http://panasonic.net/avc/oss/index.html "PlayReady" is a trademark registered by Microsoft. Please be aware of the following. (a) This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft. (b) Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/ or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade. 3 Contents Safety Precautions ························ ·········4 Accessories/Optional Accessories ·············8 Connections ········································11 Identifying Controls ·······························15 First Time Setup ···································17 Customizing TV Settings ······· ·· ·· ··· ····18 Frequently Asked Questions (FAQ) ··········27 Care and Cleaning ·······························28 Specifications ······································29 Limited Warranty (for U.S.A. )······································30 The terms HDMI and HDMI High-Definition Multimedia Interface,and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. 4 Safety Precautions Note to CATV System Installer This reminder is provided to direct the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. Secure Ventilation Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to ensure reliable operation of the LCD TV and to protect it from overheating. These openings must not be blocked or covered. There should be at least 4 inches (10 cm) of space around the TV. The openings should never be blocked by placing the LCD TV on a bed, sofa, rug or other similar surface. This LCD TV should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided. Important Safety Instructions (TV set) 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments / accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus d…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Shenyang Tongfang Multimedia Technology Co., Limited (2015-09-24) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Shenyang Tongfang Multimedia Technology Co., Limited hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product: LCD TV M/N: TC-65CX400, TC-65CX420, TC-65CX420U, TC-65CX400U FCC ID: 2ACWITC65CX420 Sincerely, Yu Li Engineer Shenyang Tongfang Multimedia Technology Co., Limited No.10 Nanping East Road Hunnan New District Shenyang, Liaoning Province P.R .China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Shenyang Tongfang Multimedia Technology Co., Limited (2015-9-24) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACWITC65CX420 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Yu Li Engineer Shenyang Tongfang Multimedia Technology Co., Limited No.10 Nanping East Road Hunnan New District Shenyang, Liaoning Province P.R .China

Shenyang Tongfang Multimedia Technology Co., Limited WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID: 2ACWITC65CX420 Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. Others Pls explain detail here. Yu Li Engineer Shenyang Tongfang Multimedia Technology Co., Limited No.10 Nanping East Road HunNan New District Shenyang, LiaoNing Province P.R .China Telephone: 86-755-33010881 E-mail: [email protected]

Date: 2015-09-24 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: 2ACWITC65CX420 To Whom It May Concern: This letter is to ascertain that Shenyang Tongfang Multimedia Technology Co., Limited Product LCD TV has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Yu Li Engineer Shenyang Tongfang Multimedia Technology Co., Limited No.10 Nanping East Road Hunnan New District Shenyang, Liaoning Province P.R .China

Declaration on model difference Page 1 of 1 We the undersigned hereby confirm that these models are identical, and all models have the same RF module and antenna, except for decorative parts in front panels, color of enclosures and design of signal input/output terminals in secondary circuits. „ Productio n name Trade name FCC ID INPUT Model no. LCD TV THTF, Fluid, Westinghouse, Seiki, Element, Panasonic 2ACWITC65CX420 AC 100- 240V, 50/60Hz OR 120V~, 60Hz TC-65CX400, TC-65CX420, TC-65CX420U, TC-65CX400U Confirmed by: Yu Li Engineer 2015-09-24 Shenyang Tongfang Multimedia Technology Co., Limited No.10 Nanping East Road Hunnan New District Shenyang, Liaoning Province P.R .China

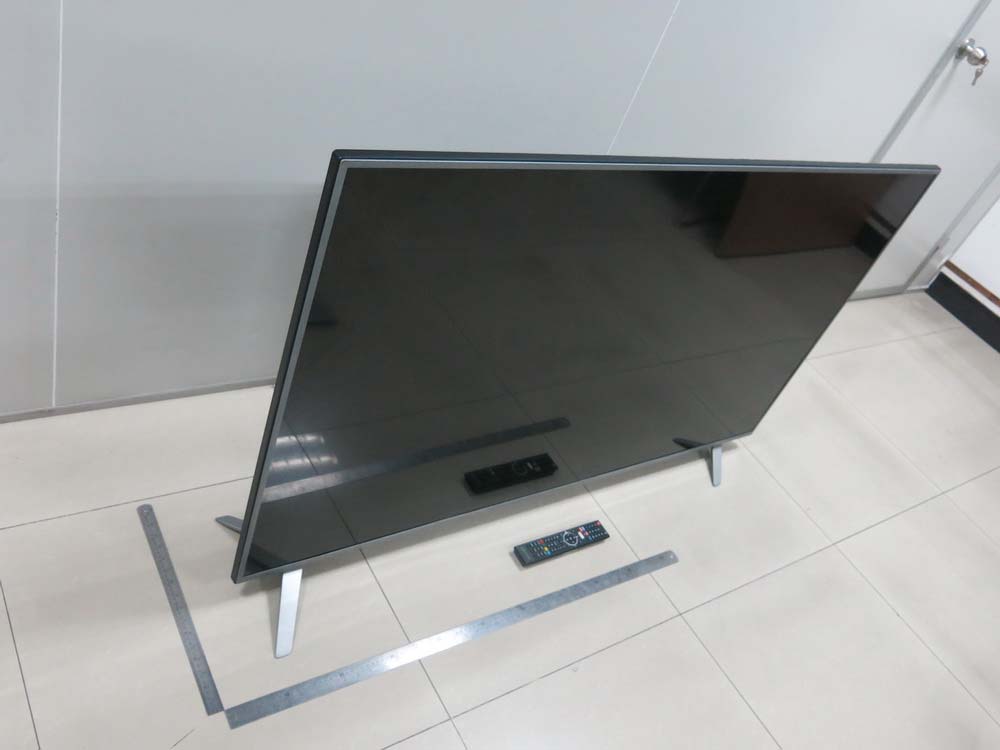

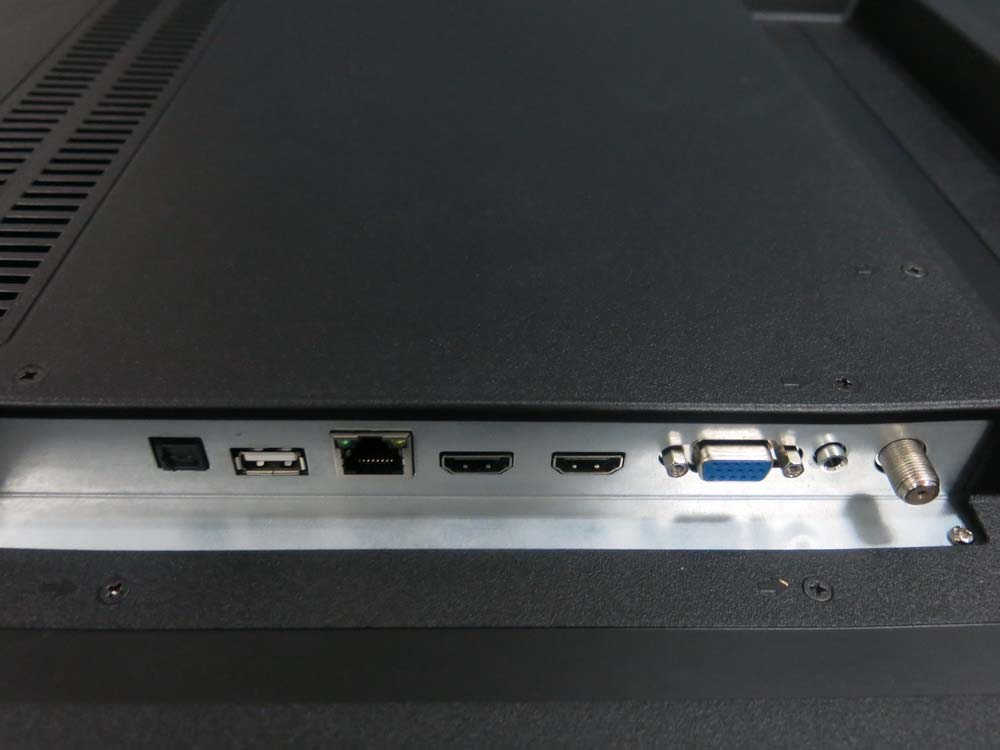

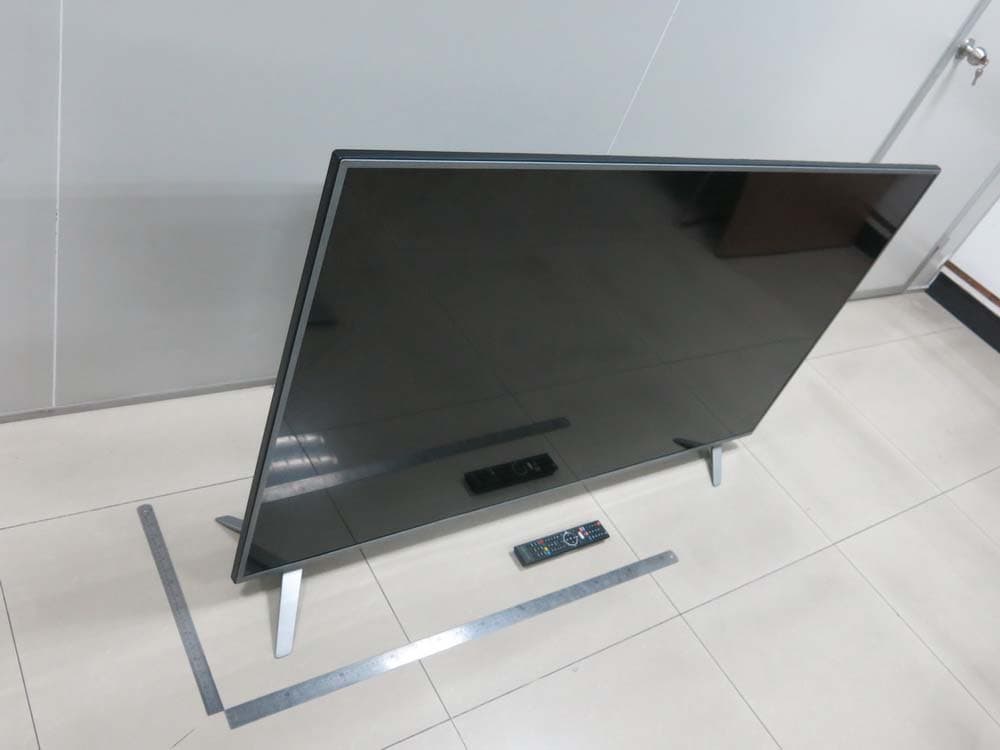

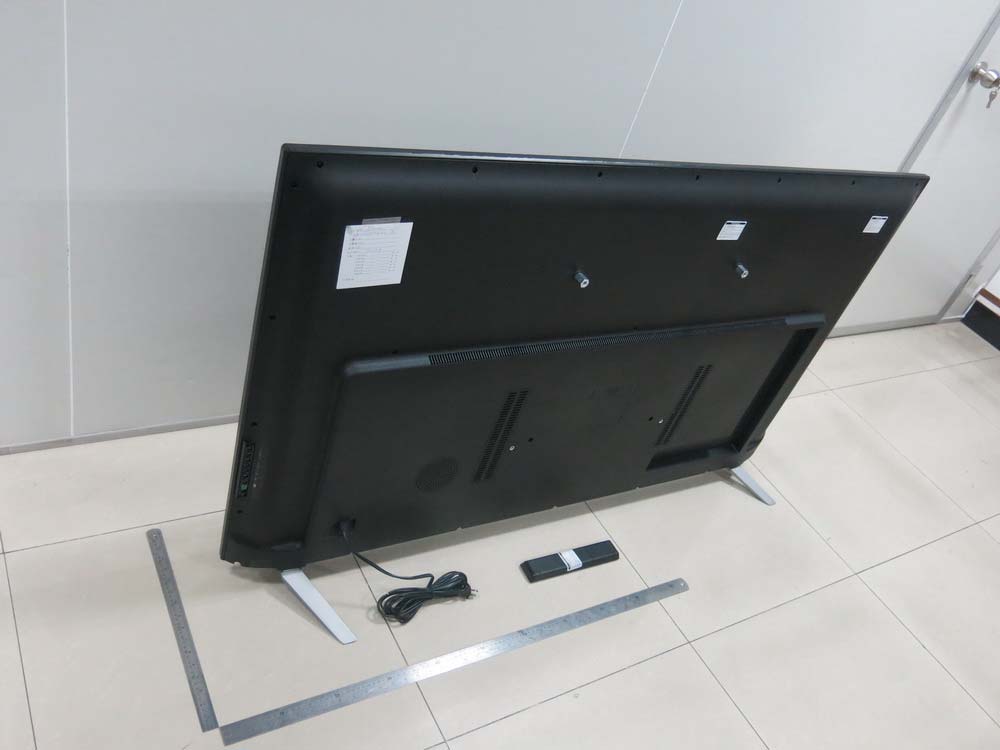

Label Location on EUT

5mm S/N: 5mm 5mm

Antenna

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID：2ACWITC65CX420 EUT Specification EUT LCD TV Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 13.25dBm for 802.11b; 13.23dBm for 802.11g; 13.18Bm for 802.11n(HT20); 12.15dBm for 802.11n(HT40); Antenna gain (Max) 2.0dBi ( for per antenna port Max) 5.01dBi for MIMO(Ant1+Ant2 Directional Gain) Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 , Pout=output power to antenna in Mw G= gain of antenna in linear scale, Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Operation Mode Channel Number Channel Frequency (MHz) Measurement Level (dBm) Limit (dBm) Verdict Ant1 Ant2 Sum 802.11b 1 2412 12.62 13.15-- 30 PASS 6 2437 12.89 12.98-- 30 PASS 11 2462 13.25 13.01-- 30 PASS 802.11g 1 2412 12.01 12.12-- 30 PASS 6 2437 11.79 11.88-- 30 PASS 11 2462 12.15 13.23-- 30 PASS 802.11n (HT20) 1 2412 10.23 10.1113.18 30 PASS 6 2437 10.05 9.87 12.97 30 PASS 11 2462 9.96 10.0113.00 30 PASS 802.11n (HT40) 3 2422 9.12 9.15 12.15 30 PASS 6 2437 9.01 8.98 12.01 30 PASS 9 2452 9.25 8.96 12.12 30 PASS Antenna 1 Operating Mode Test Channel Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (nume ric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 802.11b 1 13±1 14 25.119 2 1.585 0.007920 1 6 13±1 14 25.119 2 1.585 0.007920 1 11 13±1 14 25.119 2 1.585 0.007920 1 802.11g 1 12±1 13 19.95 2 1.585 0.006291 1 6 12±1 13 19.95 2 1.585 0.006291 1 11 12±1 13 19.95 2 1.585 0.007920 1 802.11n (H20) 1 10±1 11 12.59 2 1.585 0.003969 1 6 10±1 11 12.59 2 1.585 0.003969 1 11 10±1 11 12.59 2 1.585 0.003969 1 802.11n (H40) 3 9±1 10 10.00 2 1.585 0.003153 1 6 9±1 10 10.00 2 1.585 0.003153 1 9 9±1 10 10.00 2 1.585 0.003153 1 Antenna 2: Operating Mode Test Channel Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 802.11b 1 13±1 14 25.119 2 1.585 0.007920 1 6 13±1 14 25.119 2 1.585 0.007920 1 11 13±1 14 25.119 2 1.585 0.007920 1 802.11g 1 12±1 13 19.95 2 1.585 0.006291 1 6 12±1 13 19.95 2 1.585 0.006291 1 11 13±1 14 25.12 2 1.585 0.007920 1 802.11n (HT20) 1 10±1 11 12.59 2 1.585 0.003969 1 6 10±1 11 12.59 2 1.585 0.003969 1 11 10±1 11 12.59 2 1.585 0.003969 1 802.11n (HT40) 3 9±1 10 10.00 2 1.585 0.003153 1 6 9±1 10 10.00 2 1.585 0.003153 1 9 9±1 10 10.00 2 1.585 0.003153 1 MPE Result: Operation Mode Channel Number Channel Frequency (MHz) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) Verdict Ant1 Ant2 Sum 802.11b 1 2412 0.007920 0.007920 -- 1 PASS 6 2437 0.007920 0.007920 -- 1 PASS 11 2462 0.007920 0.007920 -- 1 PASS 802.11g 1 2412 0.006291 0.006291 -- 1 PASS 6 2437 0.006291 0.006291 -- 1 PASS 11 2462 0.007920 0.007920 -- 1 PASS 802.11n (HT20) 1 2412 0.003969 0.003969 0.007938 1 PASS 6 2437 0.003969 0.003969 0.007938 1 PASS 11 2462 0.003969 0.003969 0.007938 1 PASS 802.11n (HT40) 3 2422 0.003153 0.003153 0.006306 1 PASS 6 2437 0.003153 0.003153 0.006306 1 PASS 9 2452 0.003153 0.003153 0.006306 1 PASS Signature: Print: Sam Lv Title: Manager Date: 2015-10-27

TRF No: FCC 15.247/A Page 1 of 93 Report No.: ED150826013E Ver.1.0 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF LCD TV Model No.: TC-65CX400, TC-65CX420, TC-65CX420U, TC-65CX400U FCC ID: 2ACWITC65CX420 Trademark: THTF, Fluid, Westinghouse, Seiki, Element, Panasonic Report No.: ED150826013E Issue Date: October 28, 2015 Prepared for Shenyang Tongfang Multimedia Technology Co., Limited No.10 Nanping East Road HunNan New District Shenyang, LiaoNing Province P.R .China Prepared by DONGGUAN EMTEK CO., LTD. No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 This report shall not be reproduced, except in full, without the written approval of DONGGUAN EMTEK CO., LTD. TRF No: FCC 15.247/A Page 2 of 93 Report No.: ED150826013E Ver.1.0 VERIFICATION OF COMPLIANCE Applicant: Shenyang Tongfang Multimedia Technology Co., Limited No.10 Nanping East Road Hunnan New District Shenyang, Liaoning Province P.R .China Manufacturer: Shenyang Tongfang Multimedia Technology Co., Limited No.10 Nanping East Road Hunnan New District Shenyang, Liaoning Province P.R .China Product Description: LCD TV Model Number: TC-65CX400, TC-65CX420, TC-65CX420U, TC-65CX400U (Notes: these models are identical except for decorative parts in front panels, color of enclosures and design of signal input/output terminals in secondary circuits.) Input Rating: AC 100-240V, 50/60Hz OR 120V~, 60Hz We hereby certify that: The above equipment was tested by DONGGUAN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10-2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247(2015). Date of Test : August 26, 2015 to September 24, 2015 Prepared by : Mary Jiang/Editor Reviewer : Alan He/Supervisor Approved & Authorized Signer : Sam Lv/Manager TRF No: FCC 15.247/A Page 3 of 93 Report No.: ED150826013E Ver.1.0 Modified Information Version Summary Revision Date Report No. Ver.1.0 Original Report / ED150826013E TRF No: FCC 15.247/A Page 4 of 93 Report No.: ED150826013E Ver.1.0 Table of Contents 1. GENERAL INFORMATION .......................................................................................................................... 6 1.1 PRODUCT DESCRIPTION ............................................................................................................................ 6 2. SYSTEM TEST CONFIGURATION ............................................................................................................. 7 2.1 EUT CONFIGURATION ............................................................................................................................... 7 2.2 EUT EXERCISE ......................................................................................................................................... 7 2.3 TEST PROCEDURE .................................................................................................................................... 7 2.4 CONFIGURATION OF TESTED SYSTEM ......................................................................................................... 7 3. DESCRIPTION OF TEST MODES .............................................................................................................. 8 4. SUMMARY OF TEST RESULTS ................................................................................................................. 9 5. TEST METHODOLOGY ............................................................................................................................... 9 6. TEST FACILITY ........................................................................................................................................... 9 7. TEST SYSTEM UNCERTAINTY ................................................................................................................ 10 8. CONDUCTED EMISSIONS TEST ............................................................................................................. 11 8.1 MEASUREMENT PROCEDURE ................................................................................................................... 11 8.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .............................................................................. 11 8.3 MEASUREMENT EQUIPMENT USED ........................................................................................................... 11 8.4 CONDUCTED EMISSION LIMIT ................................................................................................................... 11 8.5 MEASUREMENT RESULT .......................................................................................................................... 11 9. RADIATED EMISSION TEST .................................................................................................................... 16 9.1 MEASUREMENT PROCEDURE ................................................................................................................... 16 9.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .............................................................................. 17 9.3 MEASUREMENT EQUIPMENT USED ........................................................................................................... 18 9.4 RADIATED EMISSION LIMIT ....................................................................................................................... 19 9.5 MEASUREMENT RESULT .......................................................................................................................... 20 10. 6DB BANDWIDTH TEST ......................................................................................................................... 29 10.1 MEASUREME…
