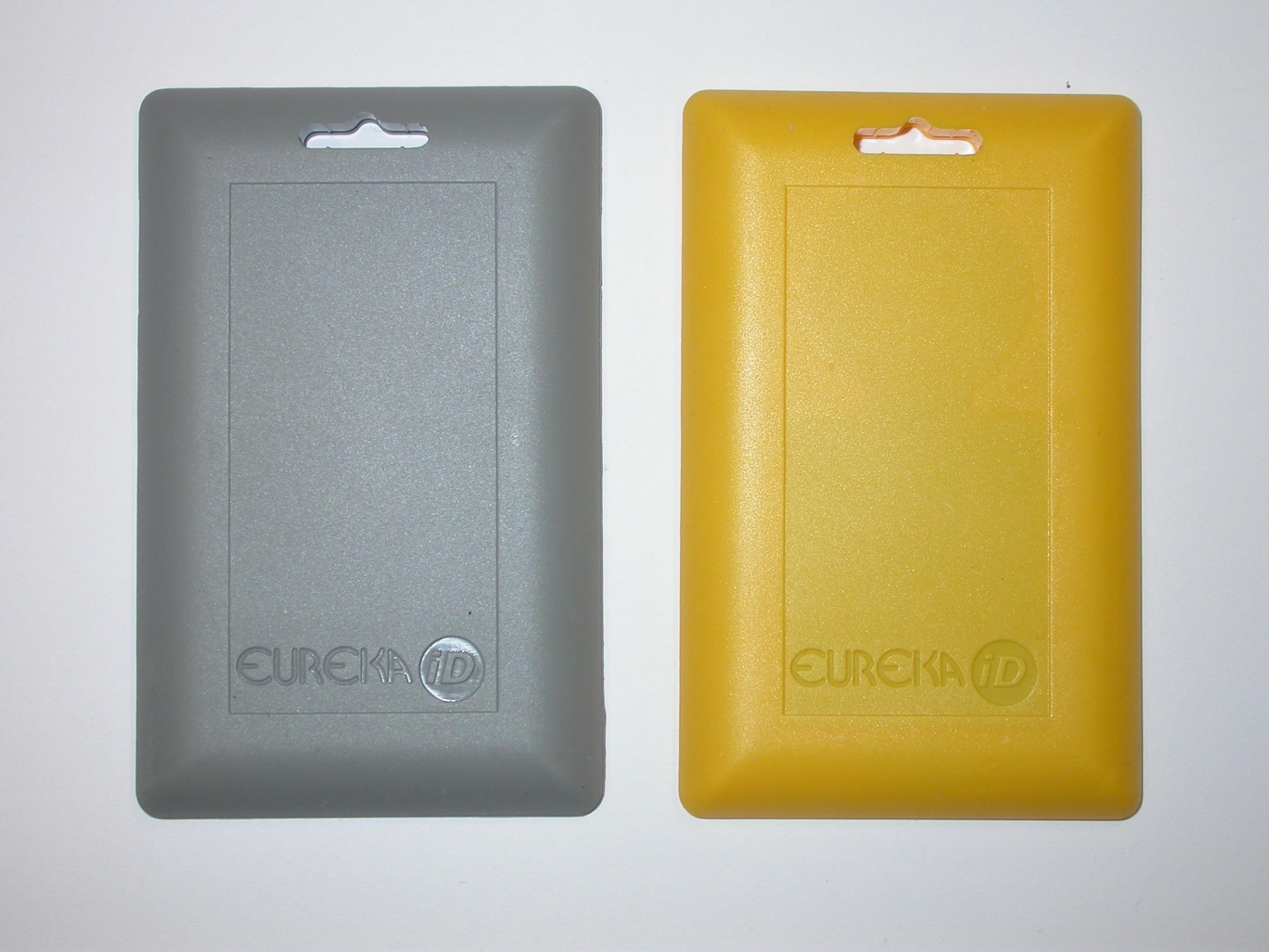

2ACWNZS6277Transponder Tag

ZoneSafe™ Transponder User Guide ZoneSafe ™ System Transponder User Guide Avonwood Developments Limited Knoll Technology Centre, Stapehill Road Wimborne, Dorset, BH21 7ND Tel: +44 (0) 1202 868000 Fax: +44 (0) 1202 868001 Email: [email protected] www.avonwood.co.uk ZoneSafe™ Transponder User Guide 146280A © 2011 Copyright Avonwood Developments Limited Page | 2 Document Name ZoneSafe ™ System Installation & Operation Manual Document Number 14/6280 Original Issue Date 22-09-2014 Record of Changes Issue No. Date of Issue Detail of Change 1 22/09/2014 Original Information in this document is subject to change without notice. You do not have permission to reproduce, publish or share any part of this document either electronically or printed in part or full without prior written consent from Avonwood Developments Ltd. ZoneSafe™ Transponder User Guide 146280A © 2011 Copyright Avonwood Developments Limited Page | 3 Contents 1 Introduction 5 2 How the System Works 5 3 Operation overview 6 3.1 Transponder 6 3.2 Driver Transponder 6 3.3 Correct wear 6 4 Technical Information 7 5 WEEE Directive 8 6 FCC Compliance Information 8 7 Disclaimer 9 ZoneSafe™ Transponder User Guide 146280A © 2011 Copyright Avonwood Developments Limited Page | 4 This page is intentionally blank ZoneSafe™ Transponder User Guide 146280A © 2011 Copyright Avonwood Developments Limited Page | 5 1 Introduction ZoneSafe™ is a proximity warning system that produces an invisible detection zone around any machine or area it is fitted to. The system detects transponders worn by personnel or fitted to other objects that are within its proximity and provides an audible/visual warning. ZoneSafe™ systems are supplied as audible and/or visual warning systems, which provide an aid to safety only. ZoneSafe™ should not be used to replace proper job site organisation, safeguards, operator training and the application of relevant vision standards that addresses safety and the safety of people on job sites. 2 How the System Works ZoneSafe™ is based on proven radio frequency technology. The driver of the vehicle places an Authorized driver transponder in to the control unit. Completing this ensures the drivers transponder does not set off the detection alarm. If no Authorized Driver Transponder is placed in the Control Unit a constant alarm will sound. The system produces a user configurable detection zone around a machine or area between 3m to 9m which interacts with transponders worn by personnel or other hazards. When a ZoneSafe™ transponder is within the proximity of, or enters the detection zone of a ZoneSafe™ enabled object, a visual and/or audible indication is provided to the machine operator. The ZoneSafe™ system comprises a control unit with display, antenna units and transponders. Each installed system has its own unique identification code, as do each of the transponders used with the system. The Control Unit can optionally contain an LCD which can indicate the location of the detected transponder in the zone The system’s main control unit has a real time clock and built in memory for storing an audit trail of up to 7000 proximity detection events and system configuration settings. Event logs and system settings can be viewed for each control unit using the ZoneSafe™ software or ZoneSafe Android APP ZoneSafe™ Manager software provides an easy to use interface for downloading, viewing, analysing and exporting event data. NOTE: Detection accuracy will depend on environmental and installation factors . NOTE: The ZoneSafe™ proximity warning system is supplied as an audible and/or visual alert system only. It is not a protective device, it does not initiate or perform safety related functions and it does not provide control to reduce risk but and audible/visual alert to the operator of the risk. . ZoneSafe™ Transponder User Guide 146280A © 2011 Copyright Avonwood Developments Limited Page | 6 3 Operation overview 3.1 Transponder All ZoneSafe™ Transponders are worn by all personnel or fitted to other hazards. When a transponder enters a detection zone a visual and/or audible indication is provided to warn the machine operator. Each transponder is factory configured with a unique ID and can be used on any ZoneSafe™ enabled job site. Transponders within the proximity of a detection zone will be logged by the control unit. The data logged from the transponder includes its unique ID, date/time and battery status. 3.2 Driver Transponder A ZoneSafe™ Driver Transponder is required for the driver of the vehicle. The Transponder is placed into the Control Unit and allows for correct system operation. When the vehicle is in operation and a Driver Transponder is not present the alarm will emit a constant tone. With correct installation the system will emit a constant tone if the transponder is left in the Control Unit when the ignition is switched off. 3.3 Correct wear Transponders must be worn or attached vertically to ensure best detection range. Transponders can be worn using a lanyard, armband or integrated into PPE such as a high visibility vest. All personnel on the job site must wear an operational transponder. NOTE: It is essential that all personnel on the job site must wear a transponder. . ZoneSafe™ Transponder User Guide 146280A © 2011 Copyright Avonwood Developments Limited Page | 7 4 Technical Information ZoneSafe™ Transponder (all) Electrical Voltage 3V (Lithium Coin Cell) Life typ 2million reads or 2years Mechanical Dimension 85mm x 54mm x 7mm Material ABS (Grey) Weight 22.5 grams Environment Ingress Protection IP67 Temperature - 10C to + 55C Radio RX Frequency 125kHz TX Frequency 868-960MHz Modulation GFSK Output Power <10dBm Range RX: typ 9m (Wakeup) TX: typ 50m (Transmit) Read Time Less Than 250ms ZoneSafe™ Transponder User Guide 146280A © 2011 Copyright Avonwood Developments Limited Page | 8 5 WEEE Directive The Waste Electrical and Electronic Equipment Directive (WEEE Directive) was introduced into UK law in January 2007 by the…
