2ACYPRF603CWireless Flash Trigger

SHENZHEN YONGNUO PHOTOGRAPHIC EQUIPMENT CO., LTD

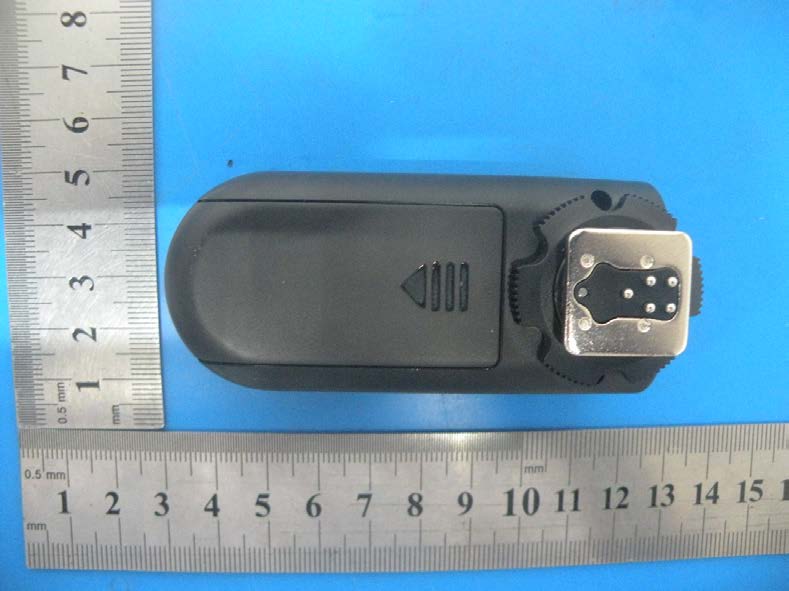

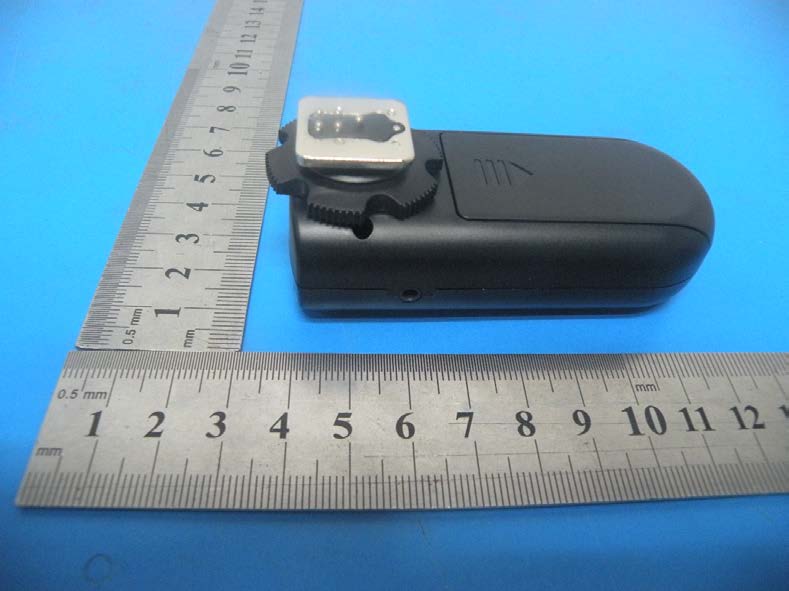

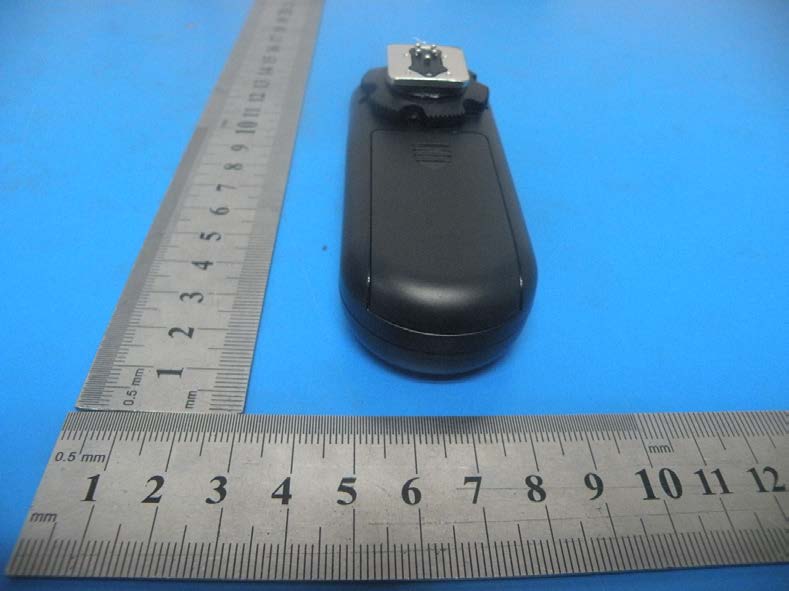

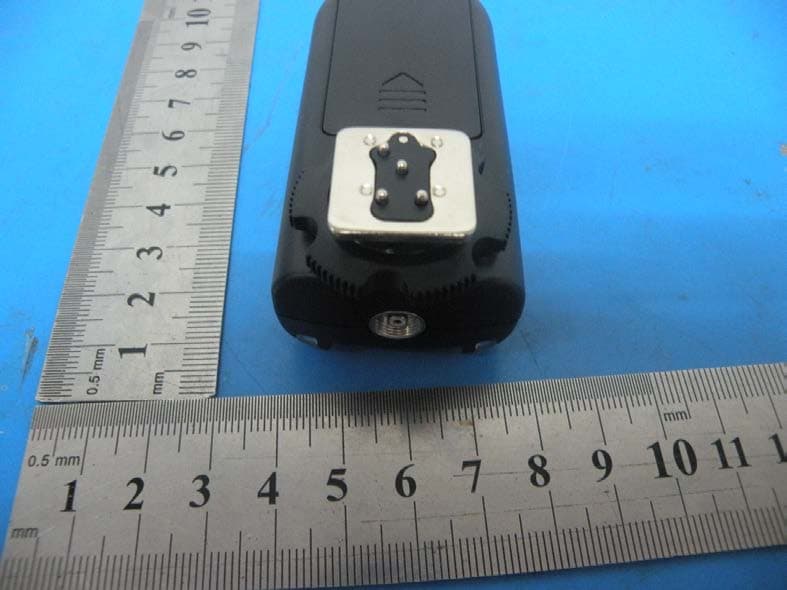

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Aug 20, 2014
Application Purpose: Original Equipment
Date of Application: Aug 20, 2014
Equipment Note: Wireless Flash Trigger
Frequency Range: 2402.50000000 - 2457.50000000
Company: SHENZHEN YONGNUO PHOTOGRAPHIC EQUIPMENT CO., LTD
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Wireless Flash Trigger 无线引闪器 User Manual 使用手册 Thank you for purchasing YongNuo products in advance. Please read this user manual carefully and learn how to use camera and flash before. This product is a wireless transceiver integrated design, for the convenience of description, the product will named “transmitter” when mounted on the camera hot shoe in some cases, while named “receiver” when mounted or connected to the flash. Contents General description..........................................1 Cautions...................................................2 The name of each part for RF603 II..............................4 Preparation before using....................................5-7 Wireless flash trigger awaken & testing..........................8 Wired/wireless remote shutter release...........................9 Function extend.........................................10-11 Troubleshooting............................................12 Specification..............................................13 Include items/Optional Accessories ............................3 General description RF603 II adopts a global free FSK 2.4GHz wireless channel which can be suitable in many countries. RF603 II with FSK system, can be more effective to guarantee speed, distance and stability. Within capacious areas, the remote control distance may reach to 100m, and suitable for RF603I. RF603 II wireless flash trigger kit is formed by two same transceivers. It can be set to single transmit state (TX), which will be more convenient for testing flash, and can be set to transceiver state (TRX), automatically switch transmit and receive state, adopts focus and shutter function in “TX” and “TRX” state respectively. Transmitter supports single contact triggering, supports wireless wakening up and triggering the flash through the camera hot shoe, with PC sync cable (optional) can be trigger studio lights, with specially camera shutter connecting cable can realize wired / wireless shutter release remote control, supports controlling multiple cameras and flashes at the same time. The highest flash sync speed up to 1/320 second (some of models may only reach to 1/250s or less, difference combination of models of flash and camera using may achieved difference flash sync speed). 2 levers button design , it will realize the awakening, flash testing, 1 Cautions 1.As this is an electronic product accessory, some of the environment causes may affect the working. However this is hardly ever to get this situation, don't worry. 2.Do not pull the wires and turn off the camera when connecting. 3.For a long time non-use, please turn the transceiver off and remove the batteries. 4.Do not put it in high temperature, such as a closed car under direct sunlight, the control panel and other high temperature areas. 5.Keep dry, do not use wet hands contact with the product, the product must not be immersed in water or exposed to rain, and this may and this may lead to not work properly. 6.Do not used in the flammable occasion in violation of this warning may cause an explosion or fire. 7.Owing to this product include battery, please operate it strictly according to related rules, otherwise maybe cause explosion, fire or physical injury. 8.Do not trigger the flash close to a person's eyes, it may impair the person's vision. 2 2.The LS-2.5 series shutter connecting cable 1.The LS-PC series flash cable C1 Canon60D/350D/450D/ 500D/550D/600D/650D /700D Pentax Series C3 Canon 1D/5D/7D/10D/20D/ 30D/40D/50D N1 Nikon D1/D2/D3/D4 Series D200/D300 D700/D800 N2 Nikon D70/D70S/D80 N3 Nikon D90/D600 D3000/D5000 Series D7000 Series Include items/Optional Accessories 3 Include items: RF603C II or RF603N II..X2 LS-2.5 Shutter Cable*..X1 User Manual.......X1 *Shutter Cable shown according to the packaging. Optional Accessories: LS-PC635 LS-PC/PC You can additionally purchase the shutter cable or PC sync cable if needed. LS-2.5/C1... The name of each parts of RF-603 II The RF603C II is more suitable for Canon cameras. The RF603N II is more suitable for Nikon cameras. 4 A:Focusing indicator light (green) / Shutter indicator light (red) B:2.5mm shutter remote cable socket C: Hot shoe / Hot shoe contacts D:PC socket(output) E: Awakening indicator light (green) / Flash trigger indicator light (red) F:Multifunction button G:Power switch-1.TX 2.TRX(transmit-receive ) H:Locking ring I:Hot shoe mounting foot J: Contacts K:Channel setting switch L:Battery room M:Battery door (transmit) Preparation before using 1.Channel Setting: Use the channel setting switch to set the transceivers to the same code, total 32 channels. 2.Battery Installation: Slide to open the battery room, install two AAA batteries(not include) for two transceiver according to the "+/-" marks shown. 3.Fix the transceiver on the camera hot shoe: Mount the transceiver on the hot shoe of the camera by hot shoe mounting foot, then tight the locking screw. Support installing the flash on the transceiver (The On-Top Flash,as the picture shown). 5 Preparation before using 4.Fix the transceiver on light stand or flash bracket : Mount the transceiver on the mini stand of the flash attached or other fixed device (not included), and tight the locking screw. 5.Fix the flash on transceiver: Install the flash on the hot shoe of the transceiver, lock the flash and ensure all links are fixed well. 6.Use the PC port to connect other type of flashes : To realize the function you need to additionally purchase the LS-PC series cable according to the different interface. 1.Inset the PC cable with the end of nutsert to PC socket of the transceiver, and tight the nutsert. 2.Inset another end of the cable to the synchronous socket of the the flash. The PC port just used as output to connect the flash. 6 Preparation before using 7 . P o w e r S w i t c h a n d T r a n s m i t - r e c e i v e S t a t e Settings: Set the power switch on TX (single transmit) or TRX (transmit-receive automatic switch) state according to dif…
