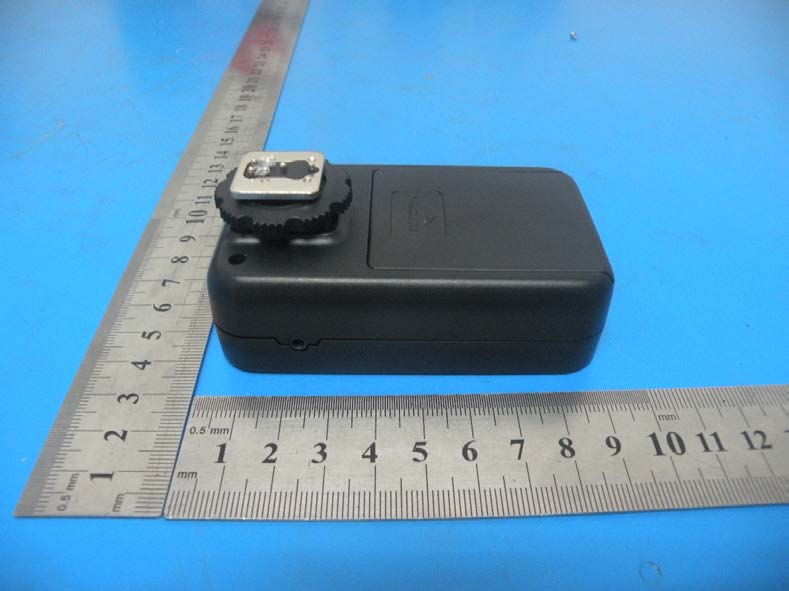

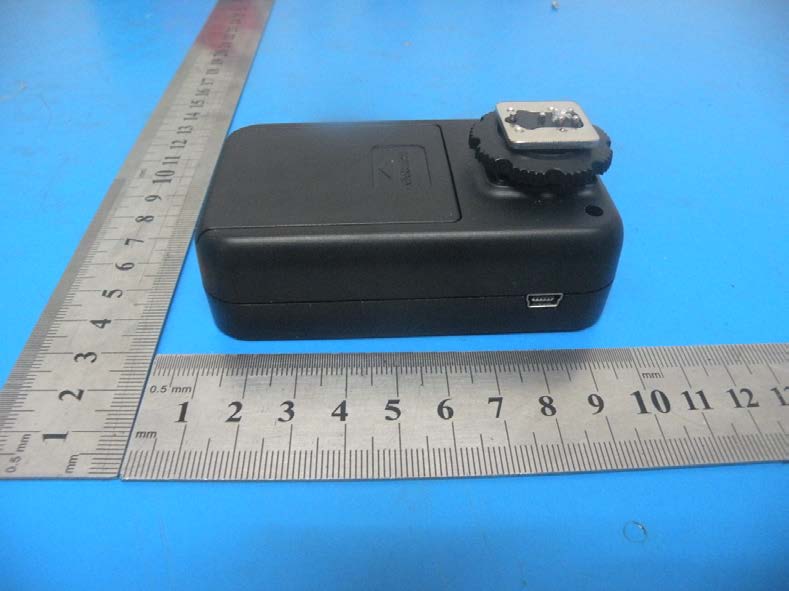

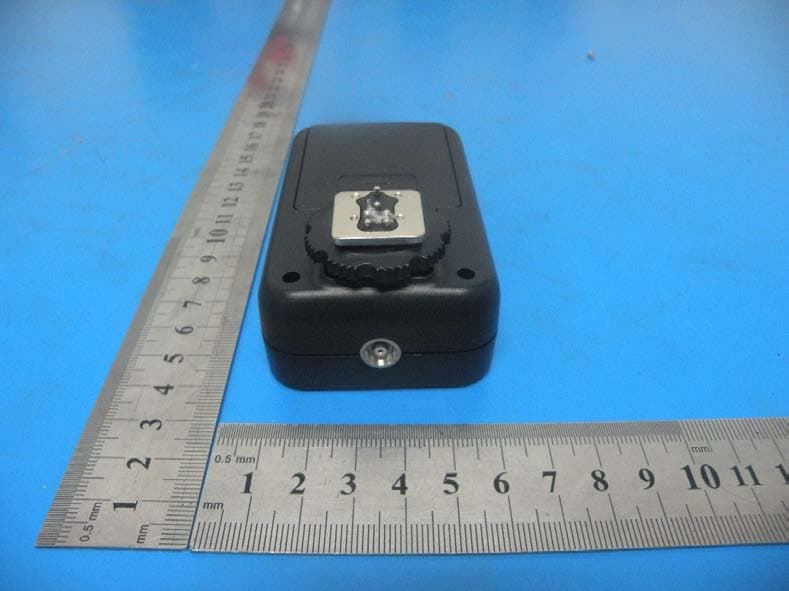

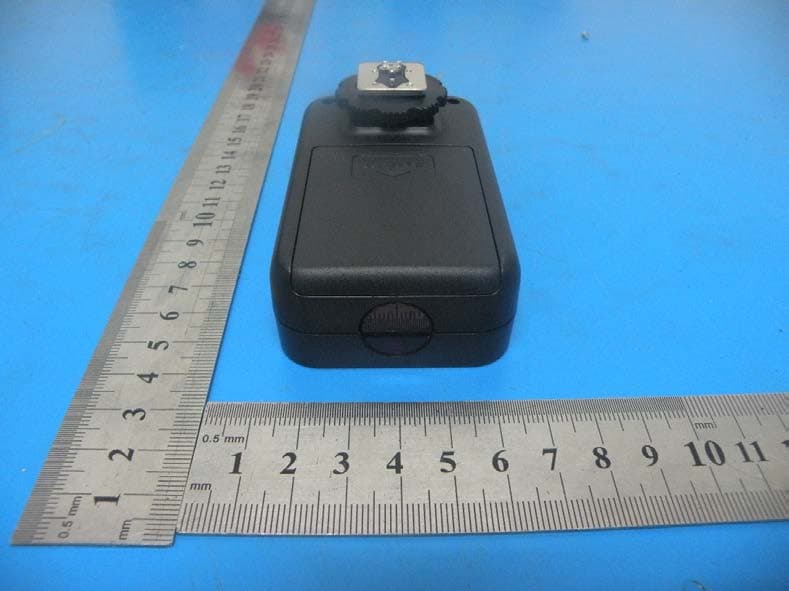

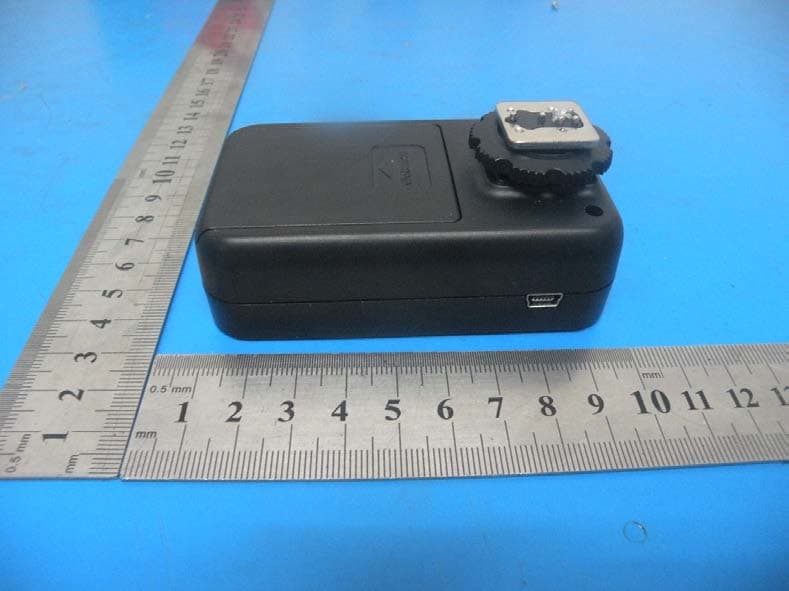

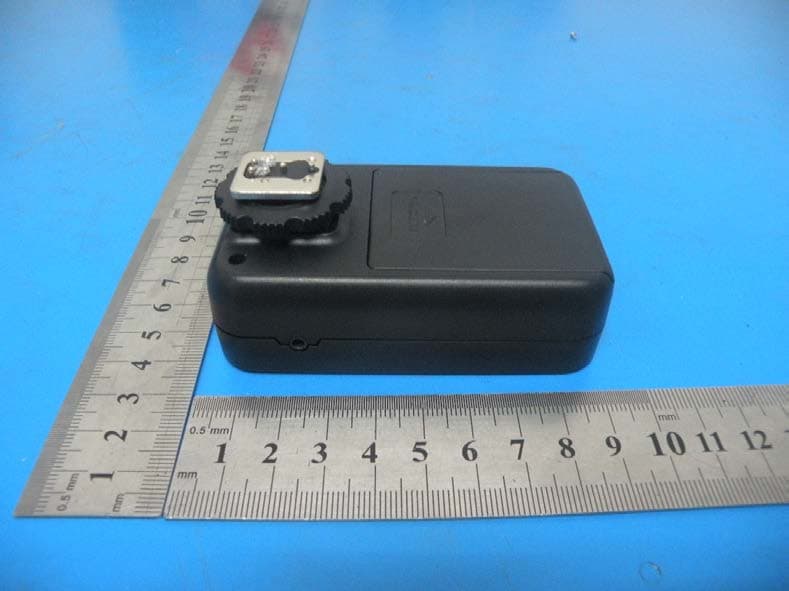

2ACYPYN622C-TXE-TTL Wireless Flash Controller

User Manual 用户手册 Wireless Flash Controller YN622C-TX HCZMOO ŸPlease turn off power supplies of all equipment when connecting or installing the product. ŸPlease keep it dry. Be sure not to use wet hand to touch the product. It is also not allowed to immerse the product into water or make it be exposed in the rain. Otherwise it may not work normally or even be damaged. ŸDo not use it in explosive situations. Violating this warning may cause an explosion or fire. ŸThis product involves battery, please be in strict accordance with the relevant provisions on the use of the battery. Otherwise it would cause property damage or personal injury. Contents/Cautions General Description.................1 Conventions Used in the Manual..........2 Supported Functions List...............3 Name of Parts/Quick Start Guide...........4-5 Preparation Before Use..............6 Settings.....................7-11 Flash Awaking and Triggering...........12 Control from Camera’s Menu Screen.........13 C.FN: Custom Function Settings..........14 Other Trigger Modes..............15 Shutter Release Function............16 Reference...................17-19 Troubleshooting..................20 Specifications...................21 Thank you for choosing products of YONGNUO. ŸYN622C-TX E-TTL wireless flash controller is for supporting the use of YN622C E-TTL wireless flash trigger transceiver. ŸThis product adopts flexible LCD menu control, supports mixed use of E-TTL(II) mode, manual mode, or super sync flash mode of group A/B/C flash. Supports multi flash, supports E-TTL ratio. It can be adjusted the exposure compensation or flash output of each group. In addition, it supports setting different focal length(zoom)of the three groups of flash, the remote controlled distance up to 100M, supports 7 wireless channels and three groups A/B/C , and is equipped with AF-assist beam emitter. Supports firmware upgrade via USB . General Description Compatible camera : Canon EOS series DSLR LS-2.5/C1: 60D/70D/400Dseries/500D series/600D series/1000D series LS-2.5/C3: 40D/50D/7D/1D series/5D series Cameras compatible with the shutter release cable (parts): ŸThis manual to assume using compatible camera/flash and YN622C transceiver in the same channel. The features/functions supported by the product depend on the camera and flash used. For the operation of camera, flash ant the YN622C transceiver, please refer to relevant user manuals. ŸFor the user manual and firmware of the latest version, please visit the official website of YONGNUO: www.hkyongnuo.com. Refers to short press the button. Refers to long press(hold down) the button. YN622C-TX YN622C Conventions Used in the Manual ŸIcon used in this manual: ŸLCD screen display, and multi-buttons for quick operation ŸThe firmware can be upgraded through the USB interface ŸSupports wireless shutter release function ŸThe focal length(zoom)of the A/B/C three group flash can be adjusted separately ŸSupports TTL Ratio A:B / A:B C ŸAF-assist beam emitter function ŸFlash mode: GR(grouping flash)/E-TTL(II)/Multi flash ŸSupports mixed use of E-TTL(II) mode, manual flash mode or super sync(SS) of A/B/C group flash. ŸThe exposure compensation or flash output of A/B/C three groups of flashes can be adjusted separately ŸShutter Sync: 1st-curtain sync, 2nd-curtain sync and high-speed sync, the highest sync speed is 1/8000s ŸSupports FEC, FEB, FEL ŸSupports modeling flash ŸSupports the flash zooming (auto, manual) ŸSuper Sync (SS) time delay adjustment, for higher x-sync speed than the camera allows ŸSettings saved automatically ŸThe flash sync signal can be input through the PC port ŸSupports the basic flash trigger (max sync speed is 1/250s) of standard hot shoe (non Canon body) *The above functions need to be used with the YN622C transceiver. Parts of functions may refer to the manufacturer of the camera and flash(FEL,Modeling Flash ). (can be disabled) Supported Functions List E-TTL Ratio FEB Multi ※The protective film can be torn out. LCD High speed sync ZOOM Flash parameter area Battery electricity Channel AF assist beam emitter 2nd curtain Sync Name of Parts/Quick Start Guide HCZMOO Name of Parts/Quick Start Guide A-LCD: Display all the settings of controller. B-2.5MM Shutter release interface: Wireless shutter release function(P.16). C-AF assist beam emitter: (P.14) D-PC interface: Input the flash sync signal(P.15). E-USB interface: Connected to the computer to update the firmware (P.19). F- button: Flash mode setting. G-GR/* button: Short press to move the arrow to set flash group or other parameters; Long press to get different functions int different modes. H-TEST button: Long press to wake the flash up, loosen to test the flash(P.12). I-Select/Set button group: Multifunction button group, including the [UP] [DOWN] [LEFT] [RIGHT] and [OK] buttons. J-SYNC/FN button: Short press for flash shutter sync mode setting(P.11), long press for C.FN setting (P.14). K-ZOOM/CH button: short press for zoom setting (P.11), long press for channel setting(P.7) . L-Power switch: Slide to ON for power on. M-Status indicator : The green light will bright when in communication; while the red light will bright when in triggering (or shutter releasing). N-Locking ring and locking pin O-Hot shoe Mounting foot and contacts P-Battery compartment and battery cover Preparation Before Use 2.YN622C-TX Controller Settings: (excluded). 2).Installing the Controller on the Camera . 3).Power on when the power switch slides to [ON]. 1).Installing the 2 AA （1.5V）batteries 4).Channel Setting: Long press the [ZOOM/CH] button, then press the select/set button group to the same channel as the YN622C transceiver. HCZMOO Ch7Ch6Ch5Ch4Ch3Ch2Ch1 Ch1 1.YN622C Transceiver Settings: Set the receiving group transceiver (refer to the user manual of the YN622C). and channel of the ŸLong press the [ ] button to switch the flash mode GR/TTL/Multi. ŸIn GR mode, short press the [ ] button to switch the current group the arrow pointing to; in TTL/Multi…
