2ACZ4BTLC-200SMART LED CONTROLLER

FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected. • Consult the dealer or an experienced radio/TV technician for help. Caution Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation IMPORTANT NOTE: FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The antennas used for this transmitter must be installed to provide a separation distance of at least 25 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this equipment near water. 6) Do not using near any heat sources such as radiators, heat resisters, stove, or other equipment that produce heat. European CE notice to users and product statements This product is CE marked according to the provisions of the R&TTE Directive(99/5/EC). Hereby, GB solutions Inc. declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information, please contact http:// www. gb-solutions.org GB solutions Inc. A-203#, 29, Gonghang-daero 61-gil, Gangseo-gu, Seoul, Korea Tel: +82-2-717-9901 / Fax: +82-2-943-9901 URL: www. gb-solutions.org CONTACT INFORMATION Manufacturer Address : A-203#, 29, Gonghang-daero 61-gil, Gangseo-gu, Seoul, Korea To locate in-country GB solutions Inc., distributors of the SMART LED CONTROLLER please refer to the GB solutions Inc. Website http://www. gb-solutions.org These distributor(s) represent local contacts for this product. CORPORATE HEADQUARTERS: GB solutions Inc. A-203#, 29, Gonghang-daero 61-gil, Gangseo-gu, Seoul, Korea Tel: +82-2-717-9901 Fax: +82-2-943-9901 Web: http://www. gb-solutions.org This device complies with Industry Canada license-exempt RSS standard(s). Operation is Subject to the following two condition: (1) this device may not cause interference ,and (2) this device must accept any interference, including interference that may cause undesired operation of the device. EUROPEAN UNION “DECLARATION OF CONFORMITY” DECLARATION OF CONFORMITY GB solutions Inc. A-203#, 29, Gonghang-daero 61-gil, Gangseo-gu, Seoul, Korea declare under our sole responsibility that the product(s) SMART LED CONTROLLER – BTLC-200 to which this declaration relate(s) is in conformance with the following standards: EN 301 489-1 V1.9.2:2011 EN 301 489-17 V2.2.1:2012 EN 60950-1:2006/A2:2013 EN 300 328 V1.7.1:2006 following the provisions of the 1999/5/EC Directives.

GB solutions Inc. A-203#, 29, Gonghang-daero 61-gil, Gangseo-gu, Seoul, Korea Tel: +82-2-717-9901, Fax: +82-2-943-9901 www. gb-solutions.org LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize Standard Engineering Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: 2ACZ4BTLC-200. including signing of all documents relating to these matters. Any and all acts carried out by Standard Engineering Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from GB solutions Inc. Standard Engineering Co., Ltd. (Contact Person) Contact name: Soon Ho, Kim Position: Manager Phone: 82-41-663-9436 E-mail: [email protected] Date : September 02, 2014 Sincerely, jong kuk Park/ Senior Research Engineer Company name: MU Solvers Co.,Ltd. Phone: +82-2-717-9901 Fax: +82-2-943-9901 E-mail: [email protected]

FCC, Request for non-disclosure Date: September 02, 2014 Page 1 of 1 GB solutions Inc. A-203#, 29, Gonghang-daero 61-gil, Gangseo-gu, Seoul, Korea Subject: Request for confidentiality FCC ID: 2ACZ4BTLC-200 Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of information accompanying this application as outlined below: ☑ Block Diagrams ☑ Operational Description ☑ Schematic Diagrams the above materials contain trade secrets and pr oprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. <Date> September 02, 2014 <City> Seoul <Name and signature of applicant> jong kuk Park / Senior Research Engineer

GB solutions Inc. A-203#, 29, Gonghang-daero 61-gil, Gangseo-gu, Seoul, Korea September 02, 2014 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: 2ACZ4BTLC-200, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Test Laboratory : Standard Engineering Co. Ltd. 145, Hwanggeumteo-gil, Eumam-myeon, Seosan-si, Chungcheongnam-do, Republic of Korea 356-844 Regards, Signature: Name/Title: jong kuk Park / Senior Research Engineer Company Name: GB solutions Inc. Brand Name : N/A Address: A-203#, 29, Gonghang-daero 61-gil, Gangseo-gu, Seoul, Korea TEL : +82-2-717-9901 FAX : +82-2-943-9901 Email : [email protected]

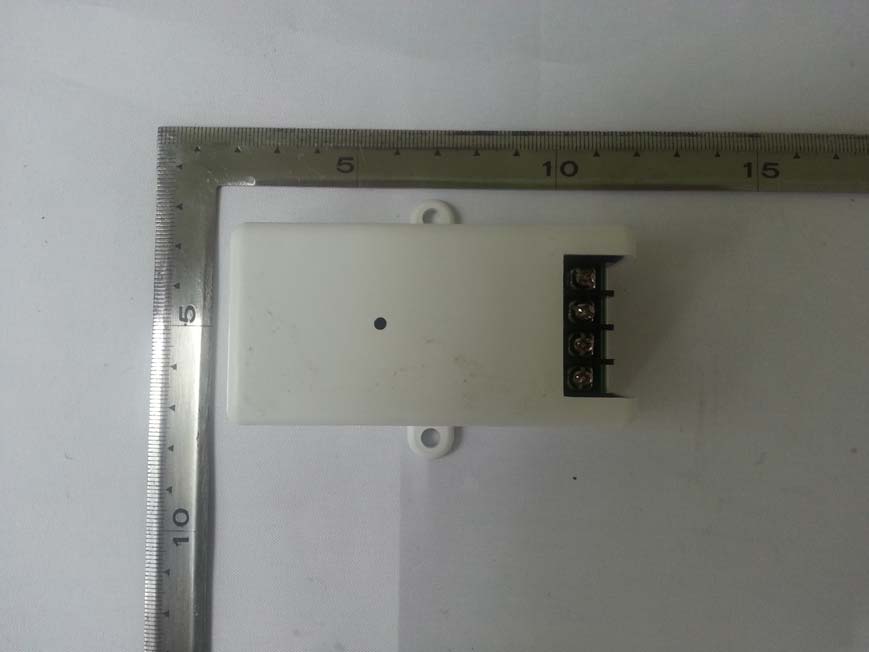

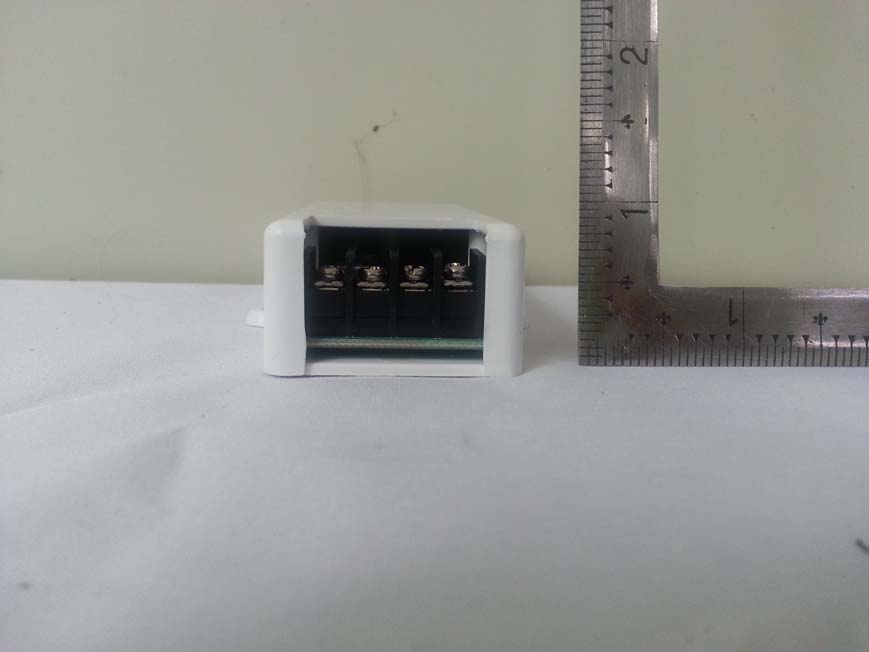

Photo 1: Exterior Photographs Top Bottom Side 1 Side 2 Side 3 Side 4

Label Information 1. Label Location 2. Label Drawing Label position

Interior view of EUT Internal Photos View of Main PCB(Top) View of Main PCB(Bottom)

Dielectric Chip Antenna - 1 - - Application Frequency Band[MHz] Bluetooth / WiFi/Zigbee 2400 ~ 2485 S-DMB2630 ~ 2655 Wibro 2300 ~ 2390 band1 : 2300 ~ 2327 band2 : 2331.5 ~ 2358.5 bnad3 : 2363 ~ 2390 Original Design Chip Antenna Data Sheet - P/N : SDBTPTR3015 - Dielectric Chip Antenna - 2 - ■ SDBTPTR3015 Dimension ParameterLWTABCDE Value[mm] 3.0 ±0.1 1.5 ±0.1 1.2 ±0.1 1.00.550.41.10.65 Unless Specified tolerances are ± 0.05 mm Dielectric Chip Antenna - 3 - ■ Antenna Marking System ◀S3 ①②③ ITEMDESCRIPTION ① Input Signal Input Signal ② Serial SDBTPTR3015 ③ Month ■ Antenna PAD Information 3 12 4 Via No Ground Region 1005 series 1005 series Ground Region 0.5mm feed line 123456 JanuaryFebruaryMarchAprilMayJune 789ABC JulyAugustSeptemberOctoberNovemberDecember ◀ S3 Dielectric Chip Antenna - 4 - ■ PCB Drawing Top View Case #1 <Default> 12 3 4 Case #2 12 3 4 Case #3 12 3 4 Case #4 12 3 4 Bottom View <Equivalent Circuit> Dielectric Chip Antenna - 5 - ■ Change of Antenna Position 3 1 2 4 Via No Ground Region 1005 series 1005 series Ground Region 0.5mm feed line ◀ S ○ Antenna Position Feeding Position LeftDown DownRight 2 4 3 1 Via No Ground Region 1005 series 1005 series Ground Region 0.5mm feed line ◀ S ○ Antenna Position Feeding Position LeftUp UpRight Antenna Position Feeding Position RightDown DownLeft 3 4 2 1 Via No Ground Region 1005 series 1005 series Ground Region 0.5mm feed line ◀ S ○ Antenna Position Feeding Position RightUp UpLeft 3 1 2 4 Via No Ground Region 1005 series 1005 series Ground Region 0.5mm feed line ◀ S ○ Dielectric Chip Antenna - 6 - ■ Matching Value Band (MHz) Matching Value (Default) Bluetooth / WiFi / Zigbee (2400 ~ 2485) Connector N/C Ant. 100pF 1.8pF 100 pF N/C S-DMB ( 2630 ~ 2655) Connector N/C Ant. 100pF 1.0pF 100 pF N/C Wibro (2300 ~ 2390) band1:2300~2327 band2:2331.5~2358.5 bnad3:2363~2390 Connector N/C Ant. 100pF 2.0pF 100 pF N/C Dielectric Chip Antenna - 7 - - 3D Passive Gain For Bluetooth / WiFi / Zigbee ■ Test Result for Ver 0.0 SWR & Smith chart3D Peak [dBi] Average [dBi] Efficiency [%] 2400MHz1.96-0.9780.18 2425MHz1.99-0.6685.92 2445MHz1.74-0.8582.42 2465MHz1.27-1.2575.12 2485MHz0.86-1.6468.59 ■ Radiation PatternVer 0.0 3D Passive Dielectric Chip Antenna - 8 - - 3D Passive Gain For S-DMB ■ Test Result for Ver 0.0 SWR & Smith chart3D Peak [dBi] Average [dBi] Efficiency [%] 2627MHz4.33-0.3891.80 2642MHz4.67-0.3692.06 2657MHz4.71-0.5688.02 ■ Radiation PatternVer 0.0 3D Passive Dielectric Chip Antenna - 9 - - 3D Passive Gain For Wibro ■ Test Result for Ver 0.0 SWR & Smith chart3D Peak [dBi] Average [dBi] Efficiency [%] 2300MHz2.51-0.8482.52 2322.5MHz2.68-0.7883.71 2345MHz3.15-0.4590.20 2367.5MHz3.02-0.7883.76 2390MHz3.09-0.8682.12 ■ Radiation PatternVer 0.0 3D Passive Dielectric Chip Antenna - 10 - ■ AutoCAD Drawing of Reference PCB Design for SDBTPTR3015 Product 41 2 3

Reference 구분 Footprint 개수 C4,C5 C 1005 2 C1,C3,C6,C8 C 1005 4 C7,C2 C 1005 2 C9 C 1005 1 C10 C 1005 1 L1 L 1005 1 R2,R3 R 1005 2 R1 R 1005 1 U1 MBL402E IC 8 x 8 x 1.2mm(T) 1 U2 Filter 1.25 x 2 x 0.8mm(T) 1 U3 X-Tal 25 x 20 x 0.56mm(T) 1 U4 Falsh Memory 4.0 x 6.0 x 0.63mm(T) 1 SHIELD COVER 10.2 x 12.7 x 1.88 mm(T) 1 PCB 10.4 x 12.9 x 0.6mm(T) 1 BTLC-200(Rev_2.1)_BOM(지비솔루션즈 Revised: Thursday, June 05, 2014 Revision: Bill Of Materials July 9,2014 11:20:51 Page1 Item Quantity Reference Part ______________________________________________ 1 1 ANT2 SDBTPTR3015 2 1 BT2 BATTERY (3.0V) 3 1 CON2 YMW025-04 4 4 C16,C22,C28,C29 104 5 2 C17,C19 100P 6 1 C18 1.8P 7 2 C20,C21 NC 8 3 C23,C24,C27 22uF 9 2 C25,C26 5P 10 1 C30 47uF 20V 11 1 C31 50V 100uF 12 1 C32 16V 330uF 13 1 D5 1N4005 14 1 D6 LINK 15 1 D7 NC 16 2 D8,D9 PMEG2005EH,115 17 1 D10 SS14 18 1 J5 B2S 19 2 J6,J7 CON1 20 1 J8 CON5 21 1 L1 330uH 22 2 Q3,Q4 IPB034N06L3 G 23 1 R9 2.2K 24 2 R10,R15 1K (3225) 25 2 R11,R16 100K 26 2 R12,R14 10K 27 1 R13 1K 28 6 TP7,TP8,TP9,TP10,TP11, TP TP12 29 1 U6 LM2576-5.0 30 1 U7 LDO, 3.3V (AP1117D33LA) 31 1 U8 MBL0402E 32 1 U9 PIC16F690 20-SSOP 33 1 U10 HT1381 34 1 Y2 32.768-KHz 1 페이지

STANDARD ENGINEERING FCC ID : 2ACZ4BTLC-200 Report Number : STD-FCC-14042 Page 1/67 1. Applicant Name : GB solutions Inc. Brand Name : N/A Address : A-203#, 29, Gonghang-daero 61-gil, Gangseo-gu, Seoul, Korea FCC ID : 2ACZ4BTLC-200 2. Products Name : SMART LED CONTROLLER Model No. : BTLC-200 Variant Model No. : N/A Manufacturer GB solutions Inc. Address A-203#, 29, Gonghang-daero 61-gil, Gangseo-gu, Seoul, Korea 3. Test Standard: 47 CFR Part 15, Subpart C 4. Test Method: ANSI C63.10-2009 5. Test Result: PASS 6. Dates of Test: September 03, 2014 to September 05, 2014 7. Date of Issue: September 15, 2014 8. Test Laboratory: Standard Engineering Co. Ltd. FCC Designation Number : 624439 TEST REPORT Tested by Approved by SoonHo, Kim / Test Engineer SeongSeok, Seo / Compliance Engineer This report may not be reproduced without the full written consent of Standard Engineering Laboratory. Standard Engineering Co. Ltd. 145, Hwanggeumteo-gil, Eumam-myeon, Seosan-si, Chungcheongnam-do 356-844, Republic of Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 www.stdeng.com STANDARD ENGINEERING FCC ID : 2ACZ4BTLC-200 Report Number : STD-FCC-14042 Page 2/67 1. Test Summary TestTest RequirementTest methodResult Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PASS Occupied Bandwidth FCC PART 15 C section 15.247 (a)(1) ANSI C63.10: Clause 6.9.1 PASS Carrier Frequencies Separated FCC PART 15 C section 15.247(a)(1) ANSI C63.10: Clause 7.7.2 PASS Hopping Channel Number FCC PART 15 C section 15.247(a)(1)(iii) ANSI C63.10: Clause 7.7.3 PASS Dwell Time FCC PART 15 C section 15.247(a)(1)(iii) ANSI C63.10: Clause 7.7.4 PASS Pseudorandom frequency-hopping sequence FCC PART 15 C section 15.247(a)(1) ANSI C63.10: Clause 7.7.5 PASS Maximum Peak Output Power FCC PART 15 C section 15.247(b)(1) ANSI C63.10: Clause 6.10.1 PASS Conducted Spurious Emission FCC PART 15 C section 15.247(d) ANSI C63.10: Clause 6.7 PASS Radiated Spurious Emission FCC PART 15 C section 15.247(d) ANSI C63.10: Clause 6.4, 6.5 and 6.6 PASS Band Edges Measurement FCC PART 15 C section 15.247 (d) &15.205 ANSI C63.10: Clause 6.9.1 PASS Conducted Emissions at Mains Terminals FCC PART 15 C section 15.207 ANSI C63.10: Clause 6.2 PASS Radio Frequency Exposure Procedures FCC PART 15 C section 15.247 (i) &1.1307(b) -PASS Remark: N/A: not applicable. Refer to the relative section for the details. EUT: In this whole report EUT means Equipment Under Test. Tx: In this whole report Tx (or tx) means Transmitter. Rx: In this whole report Rx (or rx) means Receiver. RF: In this whole report RF means Radio Frequency. ANSI C63.10: the detail version is ANSI C63.10:2009 in the whole report. DA 00-705 was used as a guideline in preparing this Test Report. STANDARD ENGINEERING FCC ID : 2ACZ4BTLC-200 Report Number : STD-FCC-14042 Page 3/67 2. TABLE OF CONTENTS 2. Table of Contents....................................................................................................................................................3 3. General Information...............................................................................................................................................4 3.1 Client Information............................................................................................................................................4 3.2 General Description of E.U.T........................................................................................................................4 3.3 Details of E.U.T.s...............................................................................................................................................4 3.4 Modulation configure....................................................................................................................................5 3.5 Description of Support Units ....................................................................................................................5 3.6 Abnormalities from Standard Conditions.............................................................................................5 3.7 Other Information Requested by the Customer..................................................................................5 3.8 Test Location.....................................................................................................................................................5 4. Equipment Used during Test..............................................................................................................................6 5. Test Results................................................................................................................................................................7 5.1 E.U.T. test conditions......................................................................................................................................7 5.2 Antenna Requirement....................................................................................................................................9 5.3 Occupied Bandwidth....................................................................................................................................10 5.4 Carrier Frequencies Separated.................................................................................................................14 5.5 Hopping Channel Number........................................................................................................................18 5.6 Dwell Time........................................................................................................................................................20 5.7 Pseudorandom Frequency Hopping Sequence.................................................................................31 5.7.1 Standard requirement.....................................................................................................…
