2ACZPSA1000SHARP ALIGN

SA-1000 user's manual Ver. 1.0 Overview: On/O Switch Micro USB Charging Port LED Power Indicator LED Bluetooth Indicator Features Technical Specication: Displays steering angle in real time Interactive on-screen instructions guide you through the process Get measurements in minutes Bluetooth automatically connects when Sharp Align app is open Detailed reports saved Easy to compare data in list view Add photos and notes to each report Live camber reading screen Steering Angle (S.A.) Minimum Steering±18° Accuracy±1.5° , S.A. <45° Camber Range±25° Resolution0.1° Accuracy ±0.2° , S.A. <15° ±0.3° , S.A. <25° Caster Range±25° Resolution0.1° Accuracy±1.5° Temperature Operation0°C~50°C Storage-10°C~60°C Battery Battery Type AAA x2 Chargeable or Primary Consumption123mW, (operation) Communication Bluetooth LEV4.0 Range10M / 30ft. Dimensions Sensor Dimensions4.33” x 2.48” x .78” Operation 2.1 Connecting the sensor to your smart device 2.2 Fixture Assembly 1. Download App 4 0 ° 3 0 ° 2 0 ° 1 0 ° 0 ° 1 0 ° 2 0 ° 3 0 ° 4 0 ° race version Look for and download the Sharp Align Angle Sensor App on your smart device If your Bluetooth is turned on, search for the Sharp Align sensor and connect. When the yellow light on the sensor is steady on, your device has connected. Operation 3.1 New Measurement 3.1.2 Allow Sharp Align to calibrate. Once calibrated, a Camber reading will show. Follow the interactive on-screen instruction to obtain your camber caster reading. 3. Open Sharp Align App / Main Menu New Measurement: Starts the measurement process to get a caster and camber on the left and right wheel. Live Camber Angle:Reads a real-time camber angle for fast viewing. Report:View a list of previously saved reports Settings:Allows you to select a device and calibrate the sensor. 3.1 3.2 3.3 3.4 Operation 3.1.3 3.1.4 Follow the on-screen instructions. Turn wheel to the left (>18°) and HOLD When instructed, turn the wheel to the right (>18°) and HOLD. When measurement is complete, a Caster reading will show. Repeat the process on the Right by selecting the “Right Wheel” tab at the top Operation 3.1.5 3.1.6 Add photo to report Current LocationWeather Delete Report Save Report Date/Time of Measurement View Report Measurement Complete. You can let your steering wheel go back to 0°. Select the “Report” tab to view the report Select the “Restart” button to restart the measurement Operation 3.2 Live Camber Angle Reads a real-time camber angle for fast viewing. Operation 3.4 Settings 3.4.1 Select Device 3.4.2 Calibration 3.3 Reports View a list of previously saved reports. Select a report to see more details. Sharp Align Universal Fixture Parts List 5 1 2 2 2 3 3 3 4 5 6 7 8 6 1 Center Base11 2Center Base Extension Rod12 3Spacer13 4Tire Holding Bracket14 5Tire Holding Arm15 6Holding Arm Adjusting Knob16 7Knob17 8Sharp Align Sensor18 919 1020 Sharp Align Universal Fixture Environmental Protection Warranty Limited One (1) Year Warranty Jackco Transnational Inc. warrants “Sharp Align” branded products to the original purchaser against any manufacturing defect in material or worksmanship for a period of one (1) year from the original date of purchase. If the defective product is determined to be covered under this warranty, it shall be repaired or replaced at manufacturer’s discretion without charge. Provided that the product must be returned with proof of purchase and freight prepaid when returned to the manufacturer. This warranty shall not apply to damage due to accident, negligent use, lack of maintenance, abuse or applications other than the specic function the product is designed for. No other w arranties, expressed or implied, including those of merchantability or tness for particular purpose shall be applicable to Jackco except as specically stated herein. In no event shall Jackco be liable to any party for any special, dir ect, indirect, consequential, punitive damage of any nature caused by the sale or use of the equipment, tool, or product. Note: This warranty gives the original purchaser specific legal rights which may vary from state to state. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and…

Text truncated - open the document above for the full version.

Jackco Transnational Inc. 642 S. Duggan Ave. Azusa, CA.91702 SDoC Attestation Letter Date: 2020/1/2 We Jackco Transnational Inc., as the grantee of this project (FCC ID: 2ACZPSA1000 / Brand Name: JACKCO / Model No.: SA-1000), would like to declare that the composite portion has been authorized under the Supplier's Declaration of Conformity procedures (Sporton report No.: FD9Nl110, FCC designation number: TW1096). The final product shall consequently comply with the FCC rule applied for SDoC Procedure. Regards, Sincerely, Applicant's company name Applicant's company address Signature Name E-Mail Tel Fax Jackco Transnational Inc. 642 S. Duggan Ave. Azusa, CA.91702 J uang"""'-- ~___.,;;- [email protected] 626-582-8055 626-582-8057

Jackco Transnational Inc. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID : 2ACZPSA1000 To Whom It May Concern: Long Term Confidentiality 642 S. Duggan Ave. Azusa, CA.91702 Confidential Letter Date: 2020/1/2 Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: • Block Diagrams • Schematics • Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Short Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby respectfully request short-term confidential treatment of information accompanying this application as outlined below until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: • External Photos • Internal Photos • Test Setup photos • Users Manuals Sincerely, Applicant's company name Applicant's company address Signature Name E-Mail Tel Fax Jackco Transnational Inc. 642 S. Duggan Ave. Azusa, CA.91702 626-582-8055 626-582-8057 .---

Jackco Transnational Inc. 642 S. Duggan Ave. Azusa, CA.91702 Power of Attorney Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address Name Job Title e-mail No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Leo Huang Manager [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: JACKCO / SA-1000 FCCID:2ACZPSA1000 Sincerely, Applicant's company name Applicant's company address Signature Name E-Mail Tel Fax Jackco Transnational Inc. 642 S. Duggan Ave. Azusa, CA.91702 [email protected] 626-582-8055 626-582-8057 Date: 2020/1/2

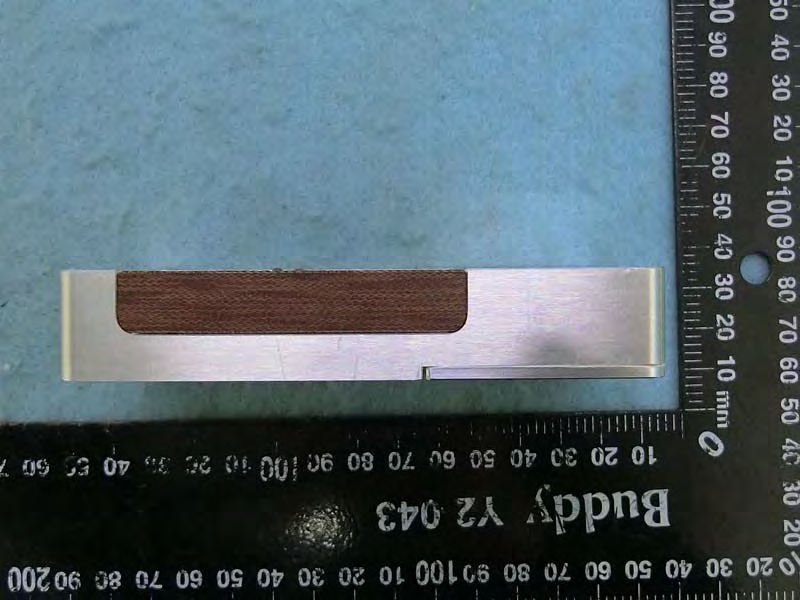

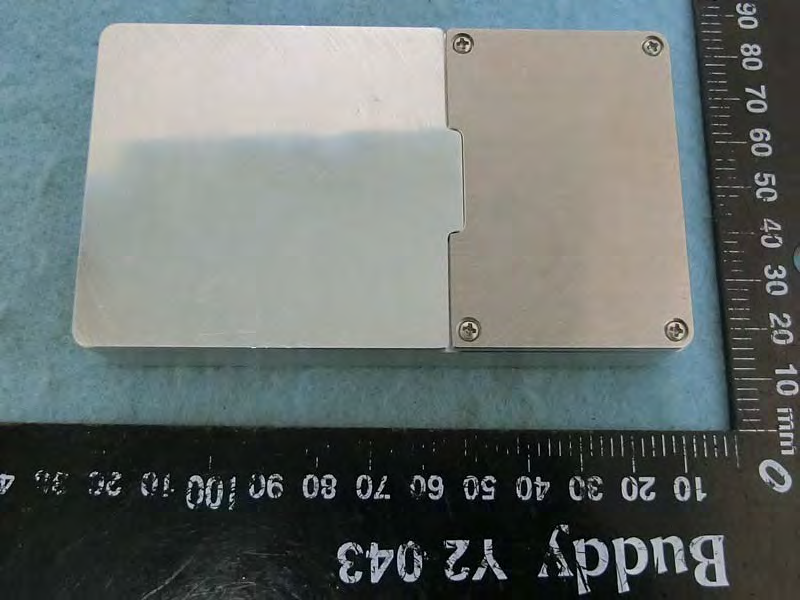

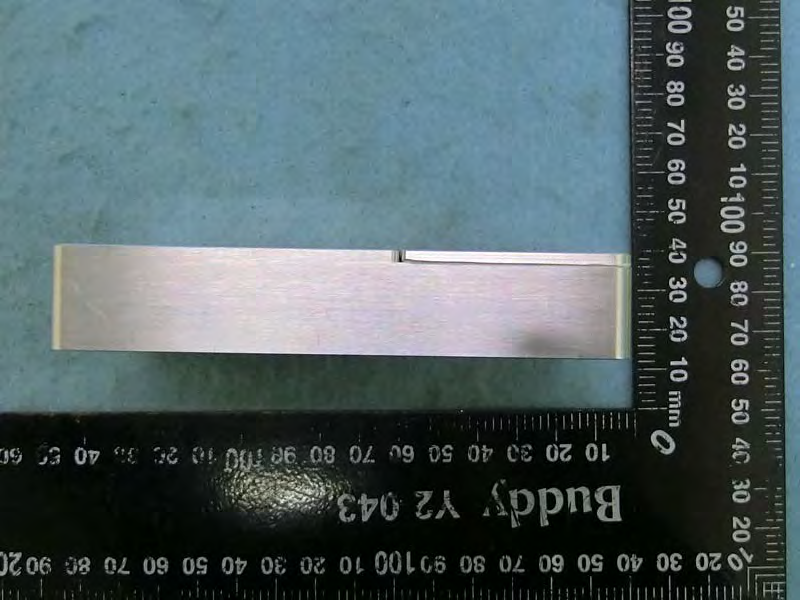

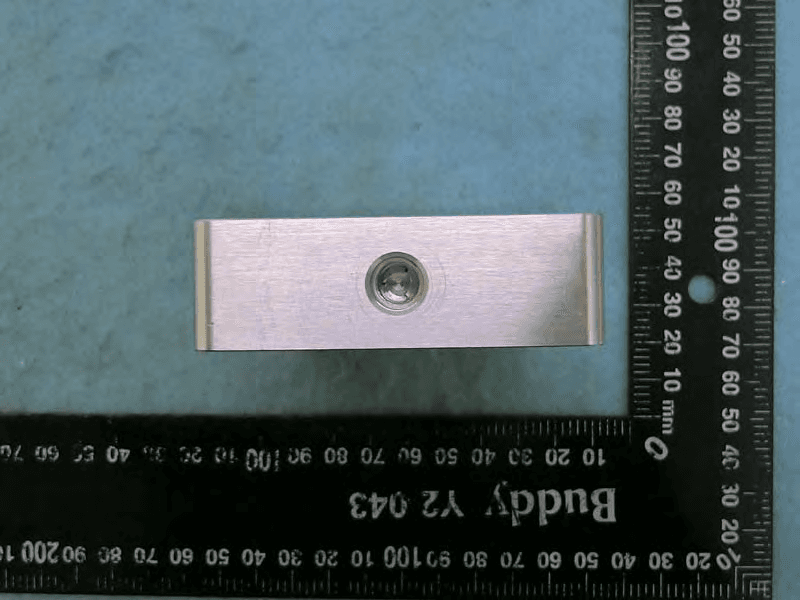

PHOTOGRAPHS OF EUT Report No. : EP9N1110 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 3 TEL : 886-3-656-9065 Issued Date : Feb. 26, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: JACKCO Model Name: SA-1000 PHOTOGRAPHS OF EUT Report No. : EP9N1110 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 3 TEL : 886-3-656-9065 Issued Date : Feb. 26, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP9N1110 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 3 TEL : 886-3-656-9065 Issued Date : Feb. 26, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP
