2AD3Q-VPEG05Virtual Reality 3D glasses

www.volfoni.com model VPEG-05010 User Guide Manuel d’utilisation 3 SUMMARY 1. PRODUCT OVERVIEW 4. 1.1 DESCRIPTION 5. 1.2 SET UP OF ARMS 6. 1.3 PACKAGING COMPOSITION 6. 2. EDGE TM VR FEATURES 6. 2.1 GENERAL SPECIFICATIONS 6. 2.2 TECHNICAL SPECIFICATION 7. 3. REQUIREMENTS 7. 3.1 INFRA-RED SYNCHRONISATION 7. 3.2 IR COMPATIBLE PROTOCOLS 8. 3.3 ACTIVHUB TM RF50 OVERVIEW 9. 3.4 RADIO FREQUENCY SYNCHRONISATION 10. 4. USING YOUR EDGE TM VR 11. 4.1 ON/OFF AND AUTO OFF 11. 4.2 SWITCH BUTTON 12. 4.3 BATTERY 12. 4.3.1 BATTERY LEVEL 12. 4.3.1 BATTERY CHARGE 13. 4.3.1 WIRELESS BATTERY MONITORING 13. 5. SOFTWARE UPDATES 13. 6. VOLFONI LOADER - PARAMETERS 14. 7. TROUBLESHOOTING 17. 8. IMPORTANT SAFETY RECOMMENDATIONS 18. 9. WARRANTY 19. 10. REGULATIONS 19. 11. MORE INFORMATION AND CONTACTS 20. 4 1. PRODUCT OVERVIEW 1.1 Description EDGE TM VR are active 3D glasses that use either radio frequency or infra-red (IR) technology. These glasses can synchronize with the RF signal of Volfoni’s ActivHub TM RF brand of emitters, or with most all IR signals currently available. As a result of Volfoni’s long experience in managing the world’s largest stock of active 3D glasses, the EDGE TM line of glasses showcase the latest in 3D technical innovations, with unmatched comfort and ease-of-use. The quality: - These glasses use ultra-fast-response liquid crystal lenses, which create the best image quality - No silver screen required, high image quality preserved at all seating positions - Bright images and natural colors The comfort: - Volfoni’s ergonomic design - Weighs only 56g - Rubberized nosepiece and 3 sizes of adjustable arms The efficiency: - Superior head-tracking integration thanks to RF synchronization and custom-built targets - RF-link allows wireless battery level monitoring - Best-in-class lenses with high contrast and light efficiency - Programmable electronics with rechargeable battery 5 1. ON/OFF button 2. Programmable 3-positions switch 3. MicroUSB (μUSB) connection (recharging and updating) 4. Electronic component (with RF receiver) 5. Liquid crystal lenses (STN) 6. LED light 7. Interchangeable arms 8. Rubberized nosepiece and 3-functions button - Universal IR mode compatible with most industry standard IR protocols 4-6 8 5 1 2 7 3 6 2. EDGE TM VR FEATURES 2.1 General Specifications - Stylish, ergonomic design - Rubber nosepiece provides universal comfort - Unbeatable luminosity and natural colors - Wide receiving angle and extremely stable range - Rechargeable battery (with μUSB/USB cable) - Optimal circuit layout - ON/OFF button - 3 available sizes of removable arms (S, M, L) - Battery monitoring (please refer to ActivHub TM RF50 user manual for more information) 1.3 Packaging composition - EDGE™ VR (x1) - MicroUSB cable (x1) - Removable arms, S, M, L (x3) - User guide (x1) - Microfiber cleaning wipe (x1) 1.2 Set up of arms 7 3. REQUIREMENTS 3.1 Infra-red synchronization - When using an IR emitter not provided by Volfoni, please refer to the user guide of the system. When the 3D display or the projector you are using emits the IR signal, the EDGE TM VR will automatically synchronize with it. - When using an ActivHub TM IR emitter from Volfoni, please see below the 3D set-up overview. 2.2 Technical Specifications - Sync operation: Radio-Frequency or infrared - Frequency: 2.4Ghz - Compatible with all refresh-rates up to 220Hz (including 96, 120, 144 and 192Hz) - Optic Transmission: 38% - Residual light: 18.5% - Contrast: > 940:1 (no ghosting) - Chromaticity: Color correction not mandatory - Weight: 56 grams - Autonomy: 40 hours in use, auto OFF - Range with an ActivHub TM : 30 meters maximum - Operating Temperature: 0°C ~ +40°C (32F-104F) - Storage Temperature: -10°C ~ +50°C (14F-122F) - CE certified 8 If you need more information on how to connect an ActivHub TM IR emitter to your projector, all user guides are available on the Volfoni website : www.volfoni.com 3.2 IR compatible protocols The EDGE TM VR 3D glasses are compatible with all infra- red 3D sync protocols currently available: KONKA® ARCELIK® SHARP® SONY® (*) PANASONIC® (*) LG® MITSUBISHI® SAMSUNG® (*) NuVisionXPAND® (unencrypted) HI-SENSE® NVIDIA® (including “light boost”) * Bluetooth® and Full HD3D TM not supported New IR protocols entering the market will be available on the Volfoni website via software update. Please refer to part 5 of this user guide for updating the software of the EDGE TM VR glasses. 9 3.3 ActivHub TM RF50 overview ActivHub TM RF is a transmitter used to synchronize the EDGE TM VR 3D glasses with the protocols currently used. 1. USB connector 2. Jack 3.5 connector 3. IR & DLP-Link TM reception window 4. RF emission window 5. Function selector with the rotary wheel (12 positions) 6. Power and Function LED 3.4 Radio frequency synchronization - Choose a compatible source: IR, DLP-Link TM or VESA - Depending on the type of synchronization used, connect the ActivHub TM RF as follows : 1 2 3 4 5 6 10 The ActivHub TM can transmit RF synchronization when connected to a VESA or BNC cable The ActivHub TM can transmit RF synchronization when receiving a DLP-Link 3D signal. The ActivHub TM can transmit RF synchronization when receiving an IR 3D signal. 3D Content Movie, sports... Active 3D display RF glasses ActivHUB 3D Player Computer, Blu-Ray... In=Wire, Out=RF 3D Content Movie, sports... RF glasses ActivHUB In=DLP, Out=RF 3D Content Movie, sports... Active 3D display RF glasses ActivHUB 3D Player Computer, Blu-Ray... In=Wire, Out=RF 11 4. USING YOUR EDGE TM VR 4.1 ON/OFF and Auto OFF ON : Turn the glasses ON with just a short press of the ON/OFF button. When switched ON, the lenses will alternately flash one time (left and right) to indicate to the user that the glasses are powered ON. OFF : Turning the glasses OFF is possible by holding down the ON/OFF the button. The glasses will turn off automatically in the following cases: - Loss of IR/RF synchronization after 10 minutes. - The ActivHub TM RF has several modes of operat…

Text truncated - open the document above for the full version.

VOLFONI R&D EURL au capital de 10.000€ 29, Rue Jean-Jacques Rousseau – 75001 Paris – France RCS Paris 513.362.129 – TVA FR 36.513.362.129 – SIRET 513.362.129.000.35 www.volfoni.com Date: 2014-08-18 Volfoni R&D 29 Rue Jean-Jacques Rousseau 75001 PARIS FRANCE Dear Sirs, Re.: Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. Mr. KC Lee as agent for VOLFONI R&D, 29 Rue Jean-Jacques Rousseau, 75001 Paris, FRANCE to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of VOLFONI R&D. Product name : EDGE VR 3D glasses IR + RF Model : VPEG-05010 This authorization will expire one year from the date of this letter. _________________________ Denis DANE System engineer

Page 1 Date : 2015-02-03 FCC ID: 2AD3Q-VPEG05 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Specifically, “VOLFONI R&D” requests that the following materials be withheld from public inspection under 47CFR 0.459 because they are confidential trade secrets and technical data which would be guarded from competitors. (1) detailed circuit schematic of unit under test (2) parts list (3) block diagram (4) Circuit Description Therefore, in accordance with 47CFR Sections 0.457 and 0.459 we request that the above listed materials, copies of which are attached here, be withheld from public inspection. Sincerely, Denis DANE System engineer VOLFONI R&D EURL au capital de 10.000€ 29, Rue Jean-Jacques Rousseau – 75001 Paris – France RCS Paris 513.362.129 – TVA FR 36.513.362.129 – SIRET 513.362.129.000.35 www.volfoni.com

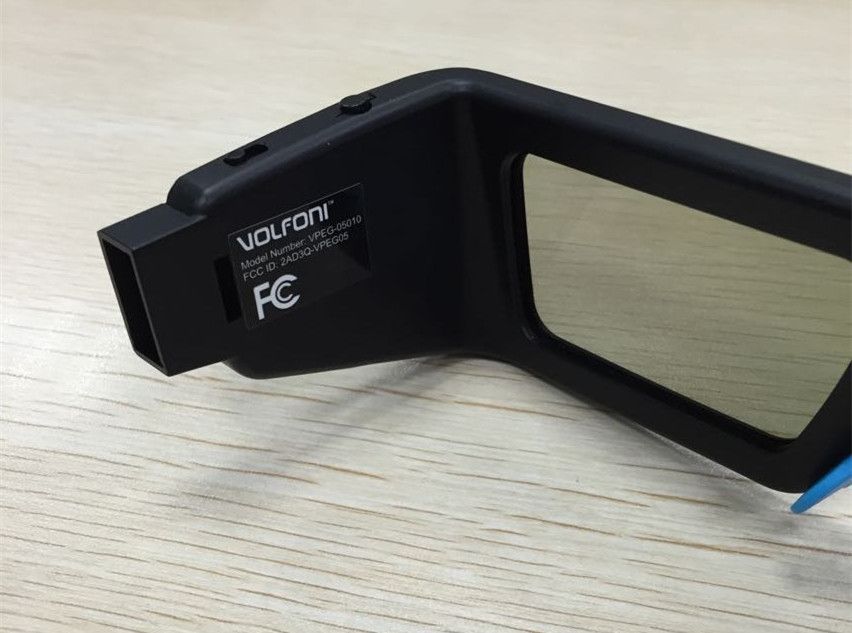

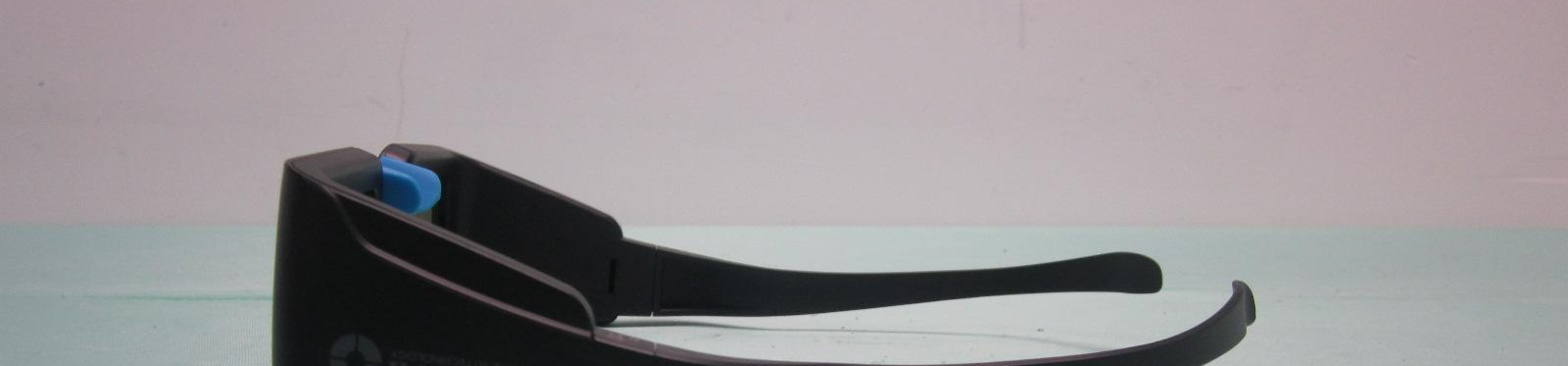

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT

STC Test Report Date: 2015-01-07 Page 1 of 32 No.: DM116515 Applicant: VOLFONI R&D 29 rue Jean Jacques Rousseau, 75001 Paris, France Manufacturer: VOLFONI R&D 29 rue Jean Jacques Rousseau, 75001 Paris, France Description of Sample(s): Submitted sample(s) said to be Product: EDGE VR 3D glasses IR + RF Brand Name: Volfoni Model Number: VPEG-05010 FCC ID: 2AD3Q-VPEG05 Date Sample(s) Received: 2014-08-12 Date Tested: 2014-12-24 to 2014-12-26 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 and ANSI C63.4: 2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- LONG Yun Jian, Along Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of STC (Dongguan) Company Limited STC Test Report Date: 2015-01-07 Page 2 of 32 No.: DM116515 CONTENT: Cover Page 1 of 32 Content Page 2 of 32 1.0 General Details 1.1 Equipment Under Test [EUT] Page 3 of 32 1.2 Description of EUT Operation Page 3 of 32 1.3 Date of Order Page 3 of 32 1.4 Submitted Sample Page 3 of 32 1.5 Test Duration Page 3 of 32 1.6 Country of Origin Page 3 of 32 2.0 Technical Details 2.1 Investigations Requested Page 4 of 32 2.2 Test Standards and Results Summary Page 4 of 32 3.0 Test Results 3.1 Emission Page 5-21 of 32 3.2 Bandwidth Measurement Page 22-28 of 32 Appendix A List of Measurement Equipment Page 29 of 32 Appendix B Photographs Page 30-32 of 32 STC Test Report Date: 2015-01-07 Page 3 of 32 No.: DM116515 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Product: EDGE VR 3D glasses IR + RF Manufacturer: VOLFONI R&D Brand Name: Volfoni Model Number: VPEG-05010 Rating: 5.0Vd.c. (Powered by PC USB port) / Li-ion rechargeable battery x1 = 3.7Vd.c 1.2 Description of EUT Operation The Equipment Under Test (EUT) is a EDGE VR 3D glasses IR + RF of VOLFONI R&D. The transceiver operating in the 2.4GHz ISM frequency band. The RF signal was modulated by IC, the type of modulation used is FSK. 1.3 Date of Order 2014-08-12 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2014-12-24 to 2014-12-26 1.6 Country of Origin China STC Test Report Date: 2015-01-07 Page 4 of 32 No.: DM116515 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 Regulations and ANSI C63.4:2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Field Strength of Fundamental & Harmonics Emissions FCC 47CFR 15.249 ANSI C63.4:2009 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2009 N/A AC Mains Conducted Emissions FCC 47CFR 15.207 ANSI C63.4:2009 N/A Note: N/A - Not Applicable STC Test Report Date: 2015-01-07 Page 5 of 32 No.: DM116515 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions Test Requirement: FCC 47CFR 15.249 & FCC 47CFR 15.209 Test Method: ANSI C63.4:2009 Test Date: 2014-12-26 Mode of Operation: Charge mode/ Communication mode Test Method: The sample was placed 0.8m above the ground plane of semi-anechoic Chamber*. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *: Semi-anechoic chamber located on the STC (Dongguan) Company Ltd. 68 Fumin Nan Road, Dalang, Dongguan, Guangdong, PRC with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 629686. STC Test Report Date: 2015-01-07 Page 6 of 32 No.: DM116515 Absorbers Spectrum Analyzer Setting: 9KHz – 30MHz (Pk & Av) RBW: 10kHz VBW: 30kHz Sweep: Auto Span: Fully capture the emissions being measured Trace: Max. hold 30MHz – 1GHz (QP) RBW: 120kHz VBW: 120kHz Sweep: Auto Span: Fully capture the emissions being measured Trace: Max. hold Above 1GHz (Pk & Av) RBW: 3MHz VBW: 3MHz Sweep: Auto Span: Fully capture the emissions being measured Trace: Max. hold Test Setup: Measurement Receiver Computer Ground Plane - Absorbers placed on top of the ground plane are for measurements above 1000MHz only. - Measurements between 30MHz to 1000MHz made with Bi-log antennas, above 1000MHz horn antennas are used, 9kHz to 30MHz loop antennas are used. Turn-table Distance = 3m Semi-Anechoic Chamber EUT STC Test Report Date: 2015-01-07 Page 7 of 32 No.: DM116515 Limits for Field Strength of Fundamental & Harmonics Emissions [FCC 47CFR 15.249]: Frequency Range of Fundamental Field Strength of Fundamental Emission Field Strength of Harmonics Emission [MHz] [microvolts/meter] [microvolts/meter] 902-928 500,000 [Quasi-Peak] 500 [Average] 2400-2483.5 50,000 [Average] 500 [Average] Results of Tx mode (Lowest Frequency Channel): Pass CorrectionLimit @3mE-Field FactorPolarity 2401.5058.736.495.156,885.3500,000Horizontal Field Strength of Fundamental Emissions Peak Value FrequencyMeasured Level @3m Field Strength MHz Field Strength CorrectionLimit @3mE-Field FactorPolarity 2401.5046.636.483.014,125.450,000Horizontal MHz Field Strength Field Strength of Fundamental Emissions Average Value FrequencyMeasured Level @3m Field Strength CorrectionLimit @3mE-Field FactorPolarity 4803.013.641.555.1568.95,000Vertical 4803.012.342.454.7543.35,000Horizontal 7204.510.345.155.4588.85,000Vertical 7204.58.946.255.1568.95,000Horizontal 9606.07.248.055.2575.45,00…
