2AD4XCR4BTCR5BTMULTIMEDIA MONITORS w/ BLUETOOTH

QUICK START GUIDE Multimedia Monitors with Bluetooth ® CR4BT • CR5BT ENESFRDE 2 23456789610265065043855  Multimedia Monitors with Bluetooth ® 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. This apparatus shall not be exposed to dripping or splashing, and no object filled with liquids, such as vases or beer glasses, shall be placed on the apparatus. 16. Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 17. This apparatus has been equipped with a rocker-style AC mains power switch. This switch is located on the rear panel and should remain readily accessible to the user. 18. The MAINS plug or an appliance coupler is used as the disconnect device, so the disconnect device shall remain readily operable. PORTABLE CART WARNING CAUTION The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the prescence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of significant magnitude to constitute a risk of electric shock to persons. RISK OF ELECTRIC SHOCK! DO NOT OPEN! CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. The exclamation point within an equilateral triangle is intended to alert the user of the prescence of important operating and maintaining (servicing) instructions in the literature accompanying the appliance. WARNING — To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Laite on liitettävä suojakoskettimilla varustettuun pistorasiaan. Apparatet må tilkoples jordet stikkontakt. Apparaten skall anslutas till jordat uttag. 19. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications to this device not expressly approved by LOUD Technologies Inc. could void the user's authority to operate the equipment under FCC rules. 20. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator & your body. 21. This apparatus does not exceed the Class A/Class B (whichever is applicable) limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of the Canadian Department of Communications. ATTENTION — Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant las limites applicables aux appareils numériques de class A/de class B (selon le cas) prescrites dans le réglement sur le brouillage radioélectrique édicté par les ministere des communications du Canada. 22. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Loud Technologies Inc. 16220 Wood-Red Rd. NE ,Woodinville,WA 98072,USA 2015-8-17 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Loud Technologies Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: 2AD4XCR4BTCR5BT Model: CR4BT,CR5BT Product name: MULTIMEDIA MONITORS w/ BLUETOOTH Sincerely, signature : name / title: Case Kuehn / Chief Financial Officer address: 16220 Wood-Red Rd. NE ,Woodinville,WA 98072,USA

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 Loud Technologies Inc. 2015-08-26 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AD4XCR4BTCR5BT We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name & title : Case Kuehn & Chief Financial Officer Contact information / address: 16220 Wood-Red Rd. NE ,Woodinville,WA 98072,USA

Updated on 2005/02/07 by Kally Chan Loud Technologies Inc. 16220 Wood-Red Rd. NE ,Woodinville,WA 98072,USA FCC ID ： 2AD4XCR4BTCR5BT Hereby we: Loud Technologies Inc. (Name of Manufacturer) Basic Model Number: CR4BT Basic Brand Name: / Basic Product Name: MULTIMEDIA MONITORS w/ BLUETOOTH Declare the Circuit, PCB Layout, shape of enclosure and Electrical Parts of the following product(s) are identical to the basic model: New /Additional Model Number(s): CR5BT New /Additional Brand Name(s): / Except the following(s) : Model numbers,Appearance size Signature with Company Chop : Printed Name : Case Kuehn DATE: 2015-8-17

CR4BT CR5BT

CR4BT Label location Model：CR4BT FCC ID: 2AD4XCR4BTCR5BT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CR5BT Label location Model：CR5BT FCC ID: 2AD4XCR4BTCR5BT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

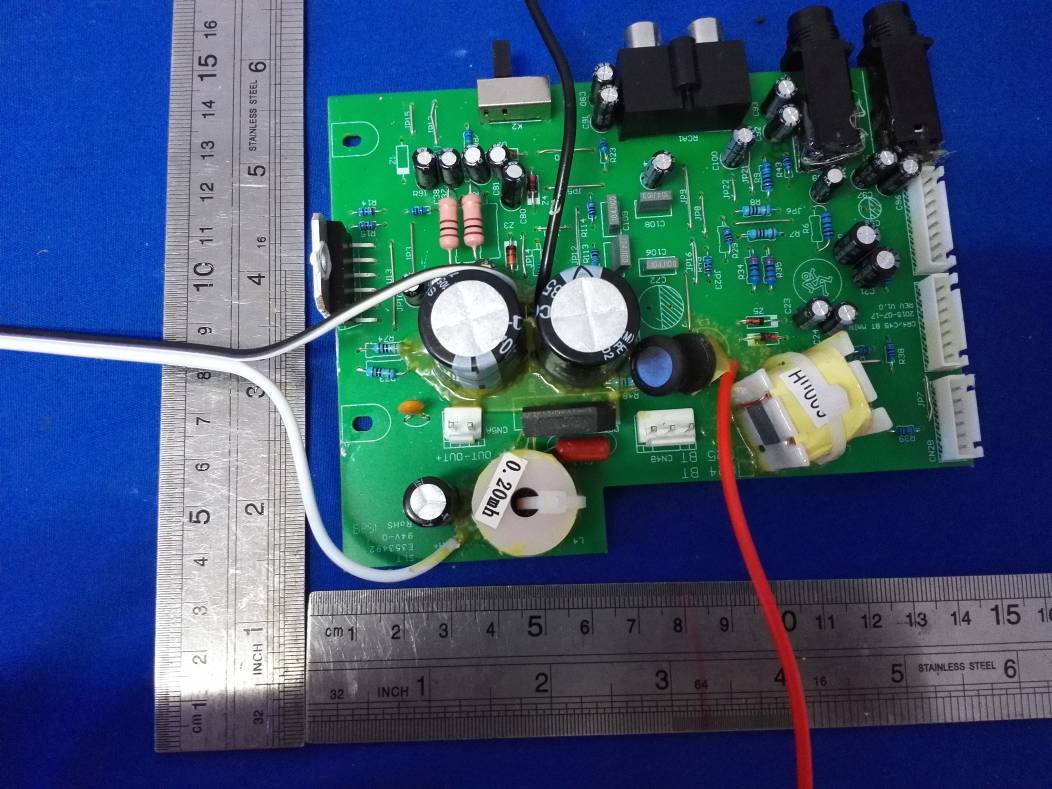

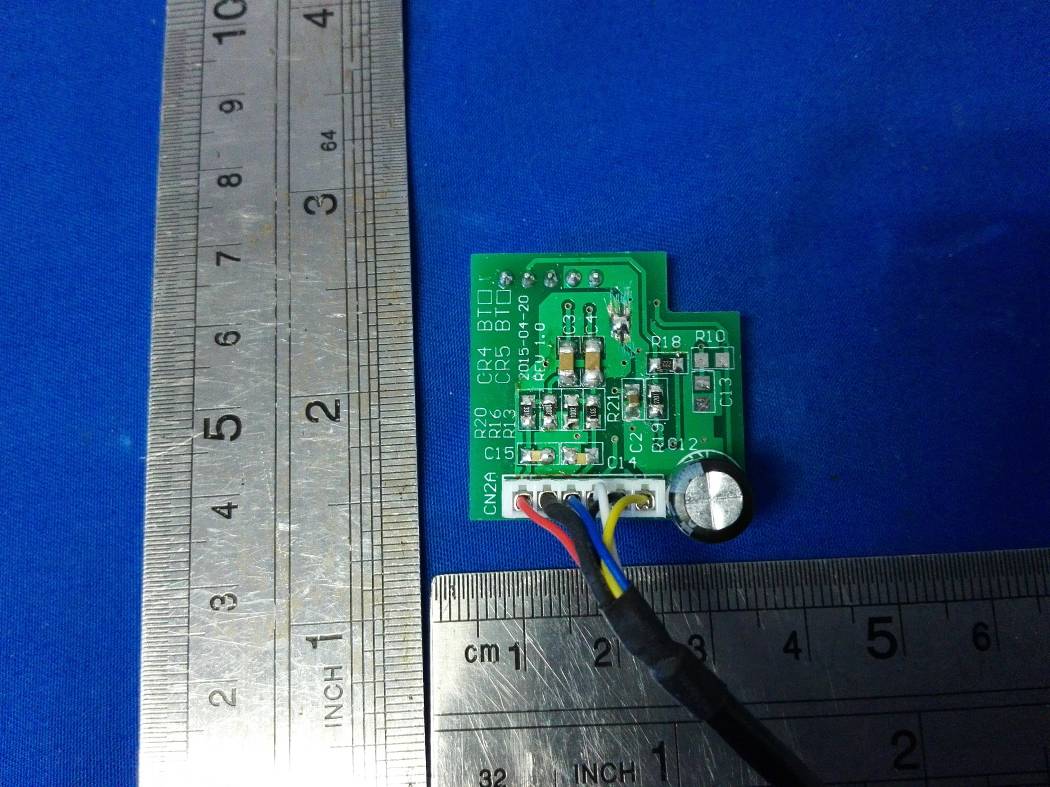

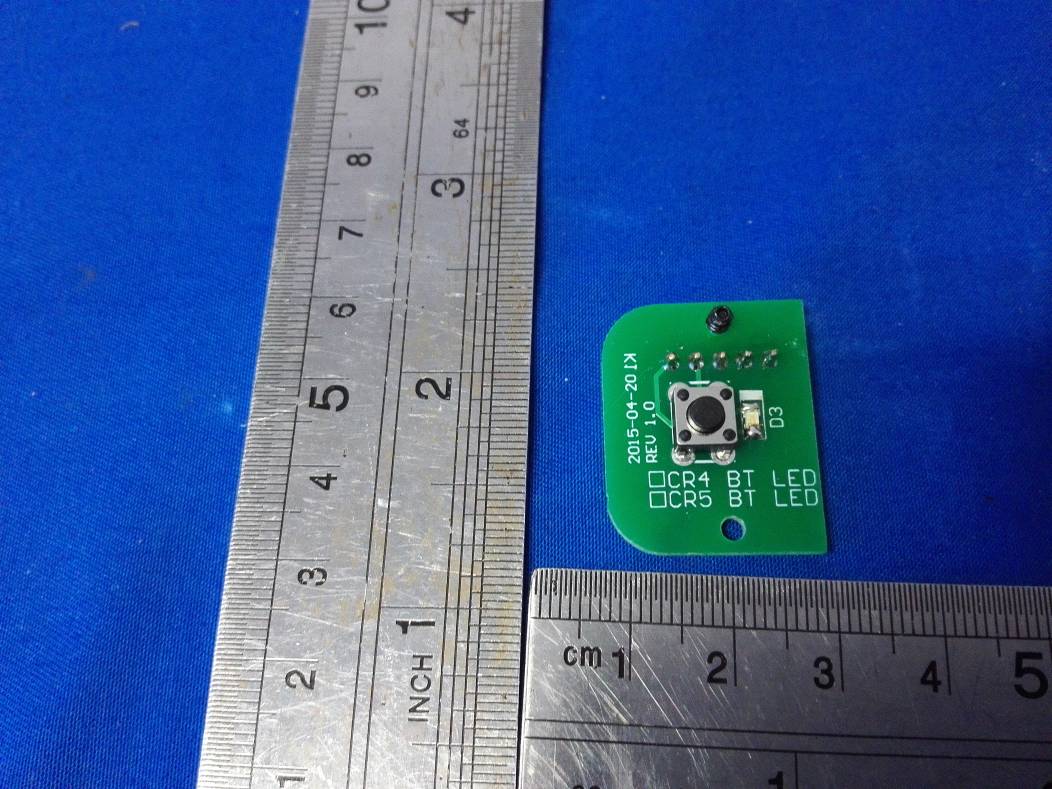

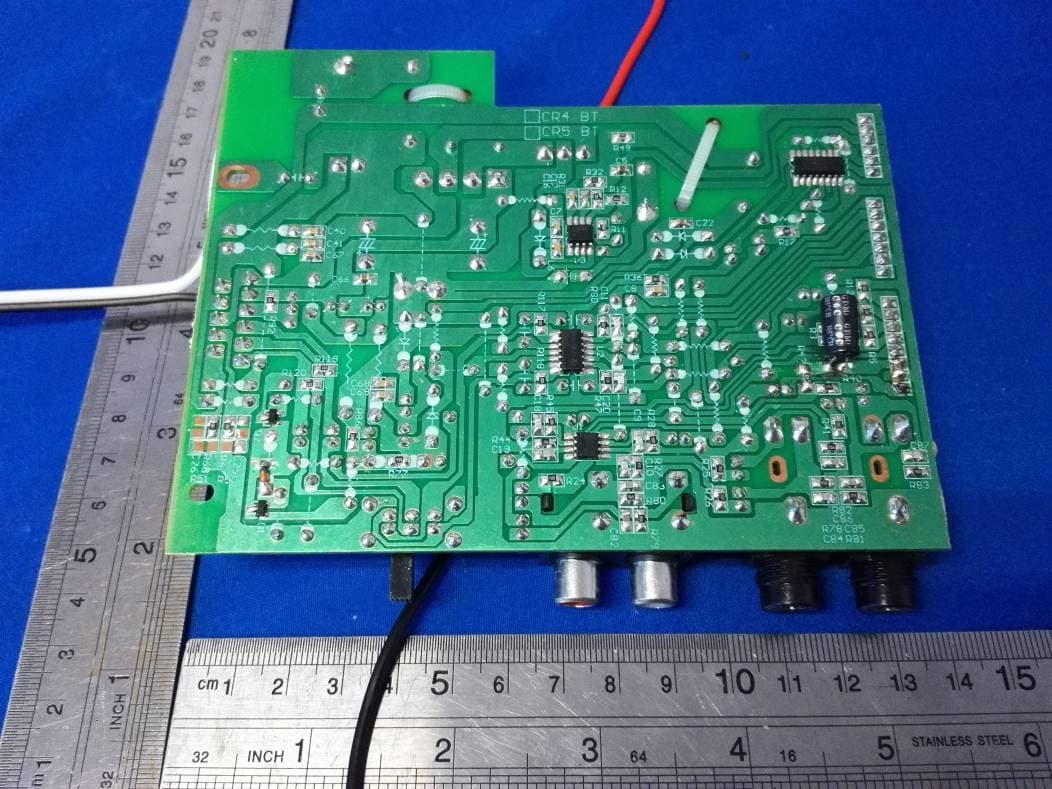

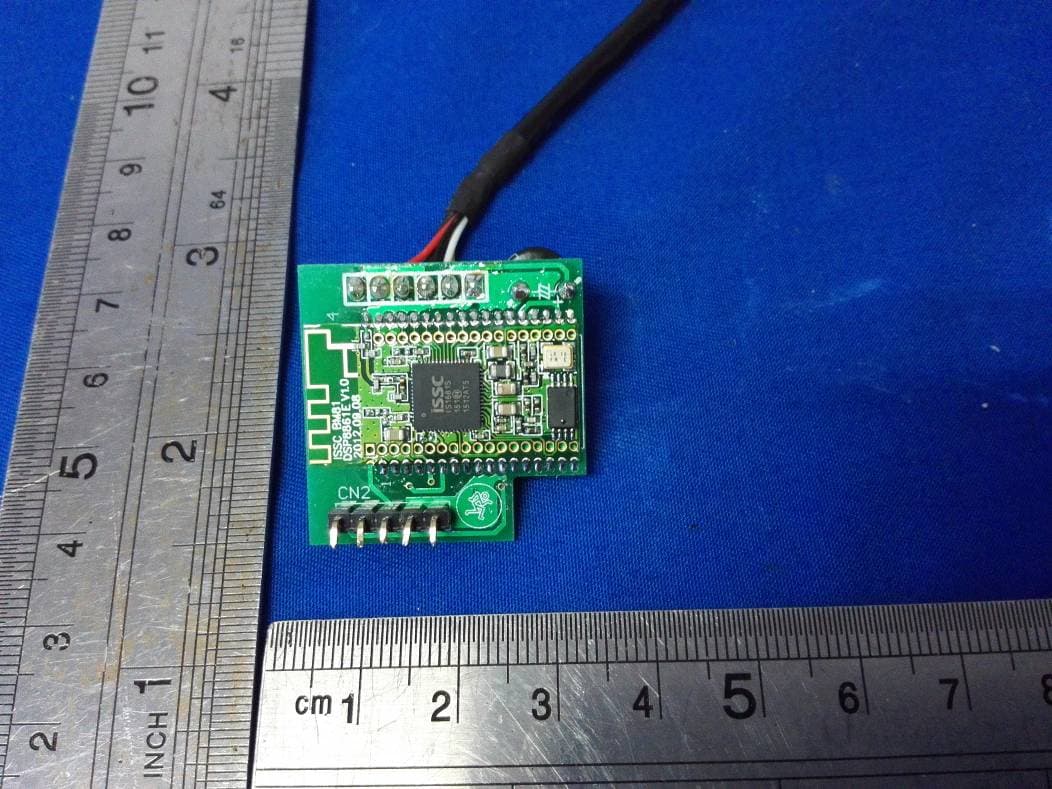

ANT

FCC ID:2AD4XCR4BTCR5BT 1. RF EXPOSURE EVALUATION 1.1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. FCC ID:2AD4XCR4BTCR5BT 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.3. Test Result of RF Exposure Evaluation Channel Frequen cy (MHz) Output power to antenna (mW) Target power W/ tolerance (dBm) Max tune up power tolerance (dBm) Power Density at R=20cm (mW/cm 2 ) Limit (mW/c m 2 ) Result 2402 1.41 1 ±1.0 2 0.00040 1.0 Pass 2441 1.52 1 ±1.0 2 0.00043 1.0 Pass GFSK 2480 1.69 1 ±1.0 2 0.00048 1.0 Pass 2402 1.18 1 ±1.0 2 0.00033 1.0 Pass 2441 1.21 1 ±1.0 2 0.00034 1.0 Pass Pi/4DQP SK 2480 1.25 1 ±1.0 2 0.00035 1.0 Pass 2402 1.12 1 ±1.0 2 0.00031 1.0 Pass 2441 1.15 1 ±1.0 2 0.00033 1.0 Pass 8-QPSK 2480 1.19 1 ±1.0 2 0.00034 1.0 Pass

FCC ID: 2AD4XCR4BTCR5BT IC: 12714A-CR4BTCR5BT Keyway Testing Technology Co., Ltd. Report No. 15KW082919F Page 1 of 59 FCC TEST REPORT(Bluetooth) for Loud Technologies Inc. MULTIMEDIA MONITORS w/ BLUETOOTH Model Number: CR4BT Serial Model: CR5BT FCC ID: 2AD4XCR4BTCR5BT IC: 12714A-CR4BTCR5BT Prepared for : Loud Technologies Inc. Address : 16220 Wood-Red Rd. NE ,Woodinville,WA 98072,USA Prepared by : Keyway Testing Technology Co., Ltd. Address : Building 1, Baishun Industrial Zone, Zhangmutou Town, Dongguan, Guangdong, China Tel: 86-769-8718 2258 Fax: 86-769-8718 1058 Report No. : 15KWE082919F Date of Test : Aug.17-25, 2015 Date of Report : Aug.26, 2015 FCC ID: 2AD4XCR4BTCR5BT IC: 12714A-CR4BTCR5BT Keyway Testing Technology Co., Ltd. Report No. 15KW082919F Page 2 of 59 TABLE OF CONTENTS Test Report Declaration Page 1. TEST SUMMARY..........................................................................................................................4 2. GENERAL PRODUCT INFORMATION....................................................................................5 2.1. Product Function.............................................................................................................................. 5 2.2. Description of Device (EUT).......................................................................................................... 5 2.3. Difference between Model Numbers............................................................................................... 5 2.4. Independent Operation Modes......................................................................................................... 5 2.5. Test Supporting System.................................................................................................................... 5 2.6. Product Version.................................................................................................................................. 5 2.7. Test Facilities...................................................................................................................................... 6 2.8. List of Test and Measurement Instruments.................................................................................... 7 3. TEST SET-UP AND OPERATION MODES..............................................................................8 3.1. Principle of Configuration Selection................................................................................................. 8 3.2. Block Diagram of Test Set-up........................................................................................................... 8 3.3. Test Operation Mode and Test Software........................................................................................ 8 3.4. Special Accessories and Auxiliary Equipment............................................................................... 8 3.5. Countermeasures to Achieve EMC Compliance........................................................................... 8 3.6. Test Environment:.............................................................................................................................. 8 4. MAXIMUM PEAK OUTPUT POWER.........................................................................................9 4.1. Limits.................................................................................................................................................... 9 4.2. Test setup............................................................................................................................................ 9 5. EMISSION TEST RESULTS.....................................................................................................10 5.1. Conducted Emission at the Mains Terminals Test...................................................................... 10 5.2. Radiated Emission Test................................................................................................................... 13 6. 20DB & 99% OCCUPY BANDWIDTH.....................................................................................20 6.1. Limits.................................................................................................................................................. 20 6.2. Test setup.......................................................................................................................................... 20 7. FREQUENCY SEPARATION....................................................................................................26 7.1. Limits.................................................................................................................................................. 26 7.2. Test setup.......................................................................................................................................... 26 8. NUMBER OF HOPPING FREQUENCY..................................................................................33 8.1. Limits.................................................................................................................................................. 33 8.2. Test setup.......................................................................................................................................... 33 9. DWELL TIME...............................................................................................................................35 9.1. Limits.................................................................................................................................................. 35 9.2. Test setup.......................................................................................................................................... 35 10. BAND EDGE COMPLIANCE TEST.....................................................................................41 10.1. Limits..........................................................................................…

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emission
