2AD4XFREEPLAYPersonal PA

QUICK START GUIDE Personal PA FreePlay ENESFRDE FreePlay Personal PA 2 234456789543107695 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 10. Only use attachments/accessories specified by the manufacturer. 11. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 12. Unplug this apparatus during lightning storms or when unused for long periods of time. 13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 14. This apparatus shall not be exposed to dripping or splashing, and no object filled with liquids, such as vases or beer glasses, shall be placed on the apparatus. 15. Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 16. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications to this device not expressly approved by LOUD Technologies Inc. could void the user's authority to operate the equipment under FCC rules. PORTABLE CART WARNING CAUTION The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the prescence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of significant magnitude to constitute a risk of electric shock to persons. RISK OF ELECTRIC SHOCK! DO NOT OPEN! CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. The exclamation point within an equilateral triangle is intended to alert the user of the prescence of important operating and maintaining (servicing) instructions in the literature accompanying the appliance. 17. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator & your body. 18. This apparatus does not exceed the Class A/Class B (whichever is applicable) limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of the Canadian Department of Communications. ATTENTION — Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant las limites applicables aux appareils numériques de class A/de class B (selon le cas) prescrites dans le réglement sur le brouillage radioélectrique édicté par les ministere des communications du Canada. 19. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. 20. Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a period of time. The U.S. Government’s Occupational Safety and Health Administration (OSHA) has specified the permissible noise level exposures shown in the following chart. According to OSHA, any exposure in excess of these permissible limits could result in some hearing loss. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels use hearing protectors while the equipment is in operation. Ear plugs or protectors in the ear canals or over the ears must be worn when operating the equipment in order to prevent permanent hearing loss if exposure is in excess of the l…

Text truncated - open the document above for the full version.

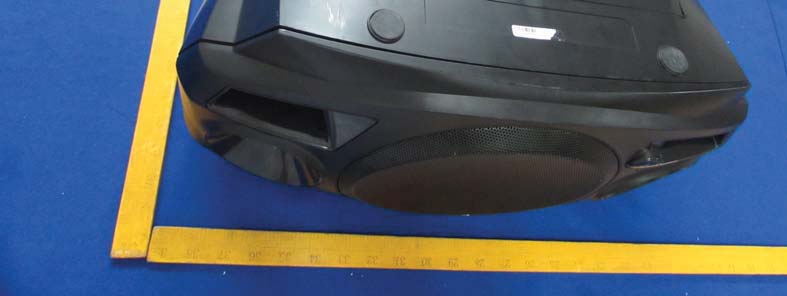

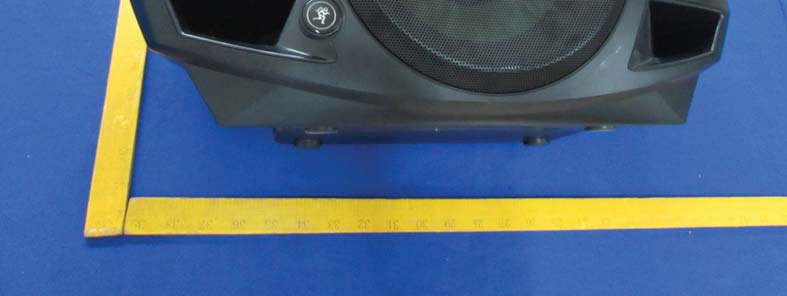

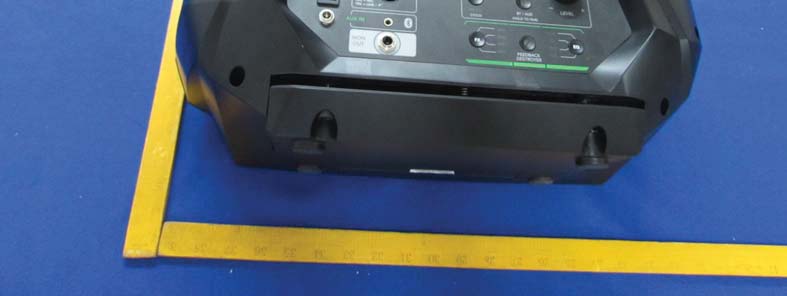

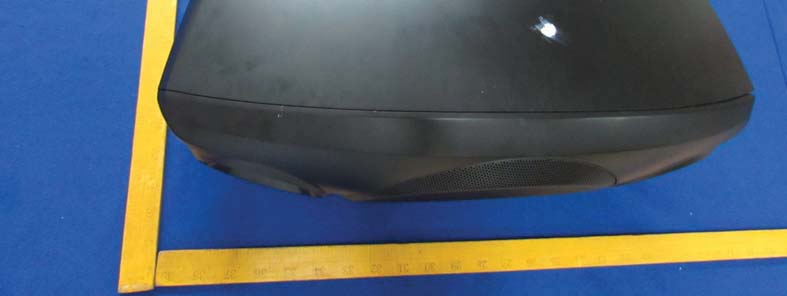

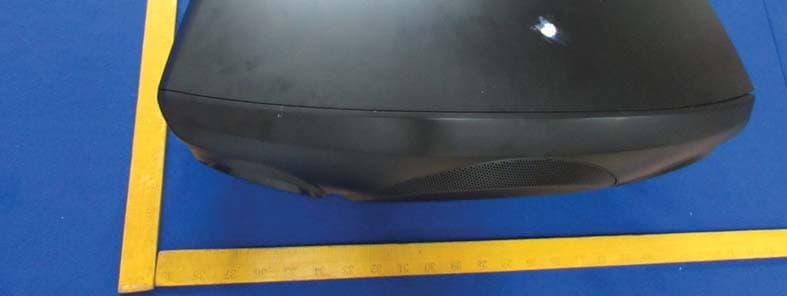

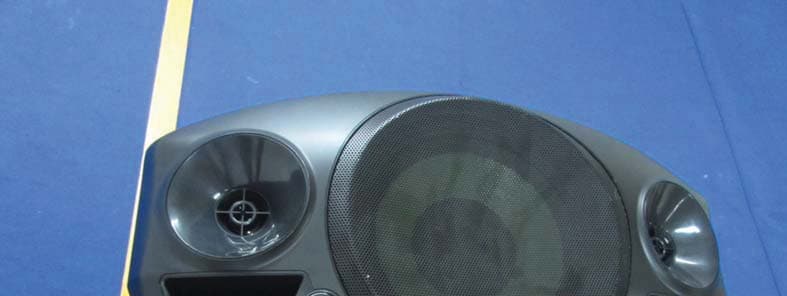

External Photos M/N: FreePlay External Photos M/N: FreePlay External Photos M/N: FreePlay

Ann.He 2015.03.05 Ann.He DLM BOOM Black background silkscreen GREY600(PANTONE 429C)/GREY600(PANTONE 429C) YLBA19236-0001 ANMABOOM0-IF10/11 g±5% PC sheet,texture+3M 9448A tape,T=0.3mm(including tape) PC sheet,+3M 9448AT=0.3mm( 149.3±0.2 24.3±0.15 5.5 5.5 Model: FreePlay Input:20.0V 3.25A CAN ICES-3 (B)/NMB-3 (B) FCC ID: 2AD4XFREEPLAY IC: 12714A-FREEPLAY Manufacturer: LOUD Technologies Inc. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 208-XXXXXX Made in China

Label Location

Internal Photos M/N: FreePlay Internal Photos M/N: FreePlay Internal Photos M/N: FreePlay Internal Photos M/N: FreePlay Bluetooth Antenna Internal Photos M/N: FreePlay Battery Internal Photos Battery Internal Photos

FCC ID: 2AD4XFREEPLAY EST Technology Co.,Ltd Report No. ESTE-R1503041 Page 1 of 3 FCC 47 CFR MPE REPORT Loud Technologies Inc. Personal PA Model Number: FreePlay FCC ID: 2AD4XFREEPLAY Prepared for : Loud Technologies Inc. 6220 Wood-Red Road NE, Woodinville, Washington 98072, USA Prepared By : EST Technology Co., Ltd. Santun(guantai Road), Houjie Town, DongGuan City, GuangDong, China. Report Number: ESTE-R1504041 Date of Test : January 22~March 20, 2015 Date of Report : March 28, 201 FCC ID: 2AD4XFREEPLAY EST Technology Co.,Ltd Report No. ESTE-R1503041 Page 2 of 3 Maximum Permissible Exposure 1ǃApplicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) ǃLimits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging TimesΊEΊ 2 , ΊHΊ2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b)ǃLimits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging TimesΊEΊ 2 , ΊHΊ2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density 2 ǃMPE Calculation Method E (V/m) = (30*P*G) 0.5/d Power Density: Pd (W/m2) = E2/377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d2) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2AD4XFREEPLAY EST Technology Co.,Ltd Report No. ESTE-R1503041 Page 3 of 3 3ǃCalculated Result and Limit Antenna gain Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power ΰdBmα (dBi) (Linear) Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result 2402 1.763 1.50 0̈́2 2.131.64 0.00052 1 Compiles 2441 2.707 1.87 1̈́2 2.131.64 0.00065 1 Compiles GFSK 2480 2.169 1.65 1̈́2 2.131.64 0.00065 1 Compiles 2402 0.600 1.15 0̈́2 2.131.64 0.00052 1 Compiles 2441 1.260 1.34 0̈́2 2.131.64 0.00052 1 Compiles 8-DPSK 2480 1.002 1.26 0̈́2 2.131.64 0.00052 1 Compiles

FCC ID: 2AD4XFREEPLAY EST Technology Co.,Ltd Report No.ESTE-R1503040 Page 1 of 96 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Loud Technologies Inc. Personal PA Model Number: FreePlay FCC ID: 2AD4XFREEPLAY Prepared for : Loud Technologies Inc. 16220 Wood-Red Road NE, Woodinville, Washington 98072, USA Prepared By : EST Technology Co., Ltd. Santun(guantai Road), Houjie Town, DongGuan City, GuangDong, China. Report Number: ESTE-R1503040 Date of Test : January 22~March 20, 2015 Date of Report : March 28, 2015 FCC ID: 2AD4XFREEPLAY EST Technology Co.,Ltd Report No.ESTE-R1503040 Page 2 of 96 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION..........................................................................................................3 1. GENERAL INFORMATION...................................................................................................5 1.1. Description of Device (EUT) ........................................................................................... 5 2. SUMMARY OF TEST...........................................................................................................6 2.1. Summary of test result ...................................................................................................... 6 2.2. Test Facilities.................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................... 8 2.5. Block Diagram..................................................................................................................8 2.6. Test mode ......................................................................................................................... 9 2.7. Channel List for Bluetooth ............................................................................................... 9 2.8. Test Equipment............................................................................................................... 10 3. MAXIMUM PEAK OUTPUT POWER...................................................................................11 3.1. Limit ............................................................................................................................... 11 3.2. Test Procedure ................................................................................................................ 11 3.3. Test Result ...................................................................................................................... 11 3.4. Test Data......................................................................................................................... 12 4. 20 DB BANDWIDTH.........................................................................................................16 4.1. Limit ............................................................................................................................... 16 4.2. Test Procedure ................................................................................................................ 16 4.3. Test Result ...................................................................................................................... 16 4.4. Test Data......................................................................................................................... 17 5. CARRIER FREQUENCY SEPARATION................................................................................21 5.1. Limit ............................................................................................................................... 21 5.2. Test Procedure ................................................................................................................ 21 5.3. Test Result ...................................................................................................................... 21 5.4. Test Data......................................................................................................................... 22 6. NUMBER OF HOPPING CHANNEL....................................................................................26 6.1. Limit ............................................................................................................................... 26 6.2. Test Procedure ................................................................................................................ 26 6.3. Test Result ...................................................................................................................... 26 6.4. Test Data......................................................................................................................... 27 7. DWELL TIME...................................................................................................................29 7.1. Limit ............................................................................................................................... 29 7.2. Test Result ...................................................................................................................... 29 7.3. Test Data......................................................................................................................... 30 8. RADIATED EMISSIONS.....................................................................................................36 8.1. Limit ............................................................................................................................... 36 8.2. Block Diagram of Test setup .......................................................................................... 37 8.3. Test Procedure ................................................................................................................ 38 8.4. Test R…

Text truncated - open the document above for the full version.

Conducted Test Radiated Test (30-1000 MHz) Radiated Test (1000-25000 MHz)
