2AD56HLK-L06-915LoRa Module

Shenzhen Hi-Link Electronic Co.,Ltd HLK-L06-915 UserManual Version：V1.03Date: March 18th.2023Copyright@Shenzhen Hi-link Electronic Co.,Ltd Contents 1. Product Introduction ................................................................................................................ 1 1.1. Overview .......................................................................................................................1 1.2. Product Features ........................................................................................................... 1 1.3. Technical specifications ................................................................................................1 1.4. Pin introduction .............................................................................................................3 1.5. Product package ............................................................................................................4 1.6. Block Diagram ..............................................................................................................4 1.7. Bottom plate description ...............................................................................................5 1.8. Indicator light description .............................................................................................5 2. Functional description ..............................................................................................................5 2.1. One-to-one communication .......................................................................................... 6 2.2. One-to-many communication ....................................................................................... 6 3. AT command description ......................................................................................................... 7 3.1. Version query: at+ver ....................................................................................................7 3.2. Set serial port mode: at+mode ...................................................................................... 8 3.3. Set serial port parameters: at+uart ................................................................................ 8 3.4. Restore factory settings: at+default .............................................................................. 9 3.5. Restart command: at+reboot .........................................................................................9 3.6. Set the module transmit power level: at+power ........................................................... 9 3.7. Set the air baud rate level of the module: at+rf_baud .................................................10 3.8. Set the working channel of the module: at+rf_channel .............................................. 11 3.9. Set the module work ID: at+pid ..................................................................................11 4. Test Demo ..............................................................................................................................12 1 / 15 1. Product Introduction 1.1. Overview HLK-L06-915 uses Lora chip as wireless communication to realize data transparent transmission from serial port to Lora wireless radio frequency. It has the characteristics of long transmission distance, low power consumption, strong anti-interference ability, and easy to use. 1.2. Product Features Support serial port to Lora RF data conversion The main frequency supports 32MHz The main control uses PY32F003 as the main control Lora uses LLCC68 for communication, 903-927Mhz communication frequency, long transmission distance Working voltage 3.0-3.6V, typical value 3.3v Compatible with B36 module package, external antenna Support the configuration transmission rate and power of at command Maximum transmit power14.29dBm Support LoRa modulation mode Supports one-to-one and one-to-many communication 2 / 15 1.3. Technical Specifications Table 1 Product Specification Rem ark Modu le ModelHLK-L06-915 enc apsulation DIP /SMD Wireless parameters ModulationLoRa Frequency Range903-927Mhz tran smit power Max imum14.29dBm Programmable adjustment Receiver sensitivity-129dBm Antenna formExternal: I-PEX connector Hard ware parameters hardware interfaceUART Ope rating Voltage 3.3V ( 3.0- 3.6v ) Comm unication rate LoRamodulation method: 1.11 ~ 18.23 Kbps Working current Under continuous transmission : ~ 12 0mA, the maximum transmission power In receive mode : 5 mA Operating temperature -40 °C ~ 85 °C Serial transparent transmission Tran smission rate 9600 - 115200 bps user configurationAT+ command set 3 / 15 1.4. Pin Introduction Table 2 Module pin interface PinNetwork nameTypeIllustrate 1RESETIChip reset pin, low level reset 2SWD IO I/OSWD IO 3SWCLKSWCLK 4BOOT0IBOOT0 ( keep Hanging) 5PB6I/O ES0, enter at command mode/restore factory settings, please pull up if not in use 6PB7I/OPB7 ( keep Hanging) 7NCI/ONC 83.3 V P3.3 V power supply 9GNDPGND 1 0I/O 1 1I/O 1 2NCI/ONC 1 3RX1I/ORX0 14TX1I/OTX0, log print 15RX2I/O UART 1, command setting and transparent transmission 16TX2I/O UART 1, command setting and transparent transmission NC NC NC NC 4 / 15 1.5. Product Packaging Figur e 1 HLK-L06-915 package size 1.6. Block Diagram Figure 2 HLK-L06-915 module architecture diagram UAR T GPIO SWD RES ET 3.3V 32MHz HLK-L06-915 FLASH(48K) 1IPEX Connector Unit: mm 5 / 15 1.7. Bottom Plate Description Figure 3 Bottom plate illustration Reset button: reset and restart the module ES0 button: Short press to enter command mode, long press for more than 6 seconds will automatically restore to the default configuration 1.8. Indicator Light Description Description of the running indicator light: The LED light flashes at intervals of three flashes and one off, indicating that the program is running Power indicator light: always on after power on When the module is tested on the test board, there is an LED indicator light, and the module itself has no LED light. 2. Function…

Text truncated - open the document above for the full version.

Shenzhen Hi-Link Electronic co., Ltd. Address: 1705, 1706, 1709A, Building E, Xinghe WORLD, Minle Community, Minzhi Street, Longhua District, Shenzhen, China Tel.: (86) 755-23152658 E-mail: [email protected] Date: 2023-06-09 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Shenzhen Hi-Link Electronic co., Ltd. hereby authorize Shenzhen Accurate Technology Co. to act as a laboratory for testing and test report generation for the following project(s): (Product description: LoRa Module; Model: HLK-L06-915; FCC ID: 2AD56HLK-L06-915) For marketing purpose, this product only support/enable DTS 500kHz mode, other functions have been shielded by manufacturer in the software, the end user have no capability to activate them. Sincerely, Signature: Contact person: Jacky Gong Title: Manager

Shenzhen Hi-Link Electronic co., Ltd. Address: 1705, 1706, 1709A, Building E, Xinghe WORLD, Minle Community, Minzhi Street, Longhua District, Shenzhen, China Tel.: (86) 755-23152658 Fax: (86) 755-83575196 E-mail: [email protected] Modular Approval Letter Date: 2023-06-09 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Application Examiner, We, Shenzhen Hi-Link Electronic co., Ltd. is submitting this application for certification of product named as Product Name: LoRa Module; Model: HLK-L06-915; FCC ID: 2AD56HLK-L06-915. It is seeking modular approval. The radio meets the requirements for modular approval as detailed in FCC 15.247. Compliance to each of the requirements is described below: 1. “The modular transmitter must have its own RF shielding.” Yes, it is fulfilled. The radio portion of the module has its own RF shielding. The shielding is installed at the factory. Please see the EUT photos. 2. “The modular transmitter must have buffered modulation/data inputs.” The modular transmitter has buffered modulation/data inputs, Buffered data inputsstage has been integrated in chip (Model: LLCC68). 3. “The modular transmitter must have its own power supply regulation.” Yes, it is fulfilled. The EUT has its own power supply regulation to insure compliance, please refer to the Block Diagram 4. “The modular transmitter must comply with the antenna requirements of Section 15.203” Yes. The EUT has a unique antenna port arrangement for Module, which was employed the antenna maximum gain is 3.85 dBi. 5. “The modular transmitter must be tested in a stand-alone configuration.” Yes, it is fulfilled. The EUT was tested in a stand-alone configuration, please refer to test photos exhibit for details. 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes, it is fulfilled. The module will be labeled with its own FCC ID number. Please see FCC ID label & location exhibit. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” Yes, it is fulfilled. The necessary explanation to be complied with this requirement is contained in the user manual, and please refer to the User manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. If the device built into a host as a portable usage, the additional RF exposure evaluation may be required as specified by§2.1093. Please contact me if you have additional questions. Your attention to this matter is greatly appreciated. Sincerely Yours, Signature: Name: Jacky Gong Title: Manager

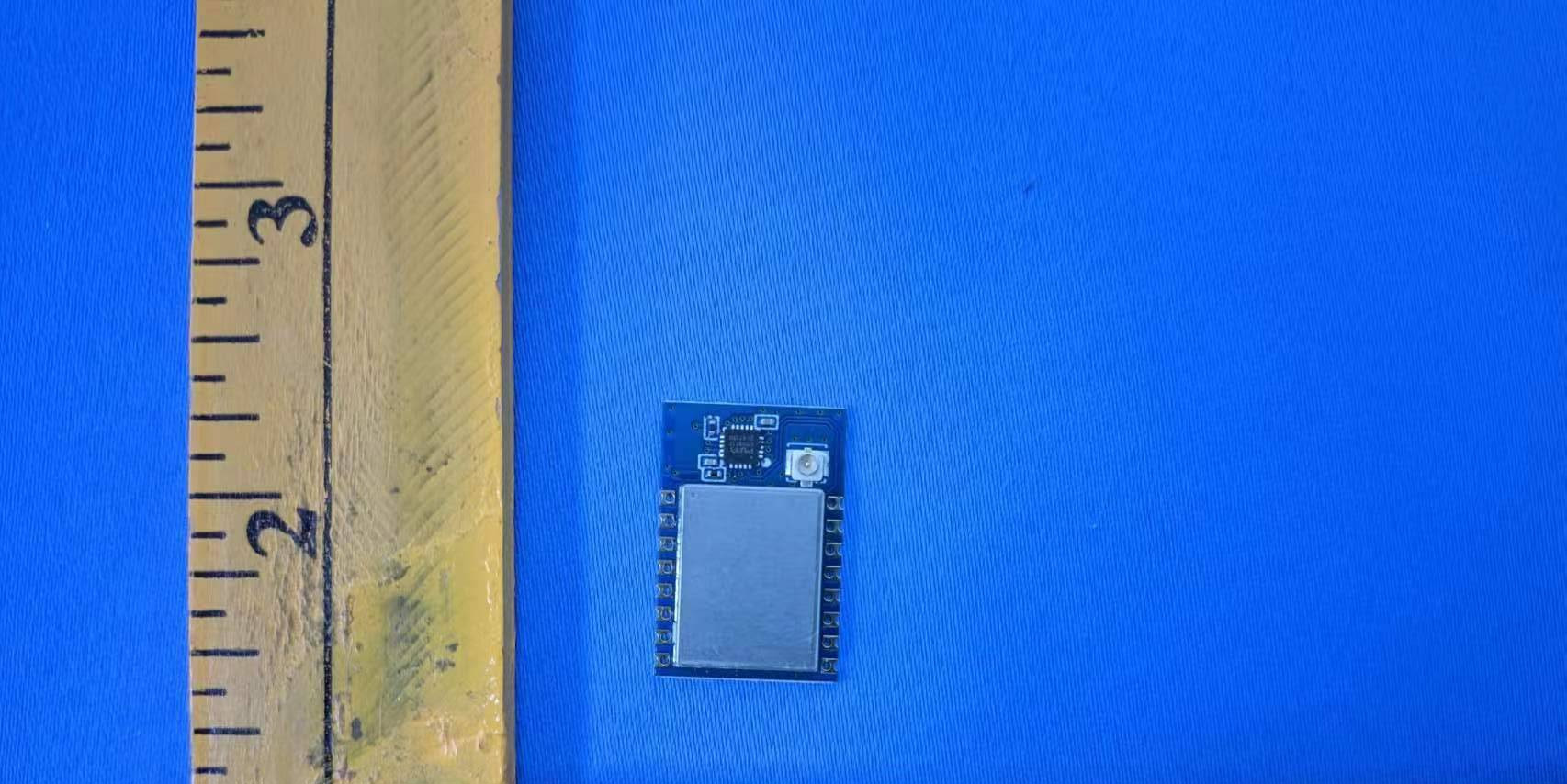

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230426-22448E-RF External Photos Page 1 of 4 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA230426-22448E-RF External Photos Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230426-22448E-RF External Photos Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230426-22448E-RF External Photos Page 4 of 4 ANT

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230426-22448E-RF Internal Photos Page 1 of 2 Internal Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA230426-22448E-RF Internal Photos Page 2 of 2

Shenzhen Accurate Technology Co., Ltd. Report No.: RA230426-22448E-RF Version 12: 2023-01-30 Page 11 of 48 FCC-RF FCC §1.1307(b) –RF EXPOSURE Applicable Standard According to KDB 447498 D04 Interim General RF Exposure Guidance v01, clause 2.1.4 –MPE-Based Exemption: An alternative to the SAR-based exemption is provided in § 1.1307(b)(3)(i)(C), for a much wider frequency range, from 300 kHz to 100 GHz, applicable for separation distances greater or equal to λ/2π, where λ is the free-space operating wavelength in meters. The MPE-based test exemption condition is in terms of ERP, defined as the product of the maximum antenna gain and the delivered maximum time-averaged power. For this case, a RF source is an RF exempt device if its ERP (watts) is no more than a frequency-dependent value, as detailed tabular form in Appendix B. These limits have been derived based on the basic specifications on Maximum Permissible Exposure (MPE) considered for the FCC rules in § 1.1310(e)(1). Table to § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation f = frequency in MHz; R = minimum separation distance from the body of a nearby person (appropriate units, e.g., m); Test result For worst case: Frequency Range (MHz) Tune-up Output Power Antenna Gain ERP Evaluation Distance (cm) MPE-based exemption Limit (mW) (dBm) (mW) (dBi) (dBd) (dBm) (mW) 903-927 14.5 28.18 3.85 1.7 16.2 41.69 20 462 Note 1: The tune-up power was declared by the applicant. Note 2: 0dBd=2.15dBi. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliant.

® 深圳市海凌科电子有限公司 SHEN ZHEN Hi-LinK ELECTRICAL CO, LTD MT-22-008 REV1.0 Customer ： Product Name ： 915Mhz 3.85dbi SMA Antenna Productcode：HLK-TX-915M Customer code ： Sample date ： 2023-2-14 HLK Confirm ： Approval Quality Engineer Signature DavidHenrylisa Customer Confirm ： Approval Quality Engineer Signature Confirm result ：□ PASS □ NG □ Others ® 深圳市海凌科电子有限公司 SHEN ZHEN Hi-LinK ELECTRICAL CO, LTD MT-22-008 REV1.0 SPECIFICATION ITEM ItemDescription 1.............................................SPEC 2.............................................SPEC ITEM 3.............................................Engineer drawing 4.............................................Performance ® 深圳市海凌科电子有限公司 SHEN ZHEN Hi-LinK ELECTRICAL CO, LTD MT-22-008 REV1.0 RF Antenna Cable Assembly Specification 1. Electrical Properties 1.1 Frequency Range........................915Mhz 1.2 Impedance.................................50 Ω Nominal 1.3 VSWR..........................................1.92:1MAX 1.4 Return Loss.................................-14dB Max 1.5 Gain(peak).................................3.85dBi 1.6 Cable loss....................................0.3dBi Max 1.7 Polarization.................................Omnidirectional 1.8 Cable..........................................RG-178 1.9 Conn.......................................... SMA 2. Physical Properties: 2.1 Antenna Material.................................Cu 2.4 Operating Temp..............................-20°C- +65°C 2.5 Storage Temp.................................-30°C- +75°C 2.6 Color............................................. BLACK ® 深圳市海凌科电子有限公司 SHEN ZHEN Hi-LinK ELECTRICAL CO, LTD MT-22-008 REV1.0 RFAntennaAssembly SPEC: 915Mhz ® 深圳市海凌科电子有限公司 SHEN ZHEN Hi-LinK ELECTRICAL CO, LTD MT-22-008 REV1.0 RFAntennaTestEquipment: Address ： 403A, Building 2, Jingji Yujing Times Building, Huangge Keng Community, Longcheng Street, Longgang District, Shenzhen Contact: Kevin.Xu Tel:135-7081-0988 ® 深圳市海凌科电子有限公司 SHEN ZHEN Hi-LinK ELECTRICAL CO, LTD MT-22-008 REV1.0 915Mhz Performance data: V.S.W.R: ® 深圳市海凌科电子有限公司 SHEN ZHEN Hi-LinK ELECTRICAL CO, LTD MT-22-008 REV1.0 Return loss: ® 深圳市海凌科电子有限公司 SHEN ZHEN Hi-LinK ELECTRICAL CO, LTD MT-22-008 REV1.0 ~报告结束~ ~THE END~ FrequencyEfficiency(%)Peak GAIN(dBi) 915Mhz65.113.85

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503290 Web: www.atc-lab.com Version 12: 2023-01-30 Page 1 of 48 FCC-RF TEST REPORT Applicant Name : Shenzhen Hi-Link Electronic co., Ltd. Address : 1705, 1706, 1709A, Building E, Xinghe WORLD, Minle Community, Minzhi Street, Longhua District, Shenzhen, China Report Number : RA230426-22448E-RF FCC ID: 2AD56HLK-L06-915 Test Standard (s) FCC PART 15.247 Sample Description Product Type: LoRa Module Model No.: HLK-L06-915 Trade Mark: Hi-link Date Received: 2023-04 -26 Date of Test: 2023- 05 -14 to 2023 -07 -13 Report Date: 2023- 07 -13 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Roger.Ling Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: RA230426-22448E-RF Version 12: 2023-01-30 Page 2 of 48 FCC-RF TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 DUTY CYCLE ................................................................................................................................................................ 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC §1.1307(b) –RF EXPOSURE ............................................................................................................................. 11 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 13 TEST PROCEDURE ...................................................................................................................................................... 13 CALCULATION ........................................................................................................................................................... 14 TEST DATA ................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230426-22448E-RF Test Photos Page 1 of 2 Photo of Power Line Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. Project No.: RA230426-22448E-RF Test Photos Page 2 of 2 Radiated Spurious Emissions Test View (Below 1GHz) Radiated Spurious Emissions Test View (Above 1GHz)
