2AD66-CC68-C1LoRa Wireless Module

- 1 - LoRa Wireless Module CC68-C1-915 Product specification www.nicerf.com CC68-C1 NiceRF Wireless Technology Co., Ltd. Rev 3.0 [email protected] - 2 - Catalogue 1.Overview .................................................................................................................................................................. - 3 - 2.Features ..................................................................................................................................................................... - 3 - 3.Applications .............................................................................................................................................................. - 3 - 4.Electrical Characteristics(@Vcc=3.3v ANT connected to 50 ohm load) ................................................................. - 3 - 5.Typical application circuit ........................................................................................................................................ - 4 - 6.Module performance index ....................................................................................................................................... - 4 - 7.Pin definition ............................................................................................................................................................ - 6 - 8. Communication Antenna ......................................................................................................................................... - 6 - 9.Mechanical Dimensions(Unit:mm)........................................................................................................................... - 7 - 10.Product order information ....................................................................................................................................... - 7 - 11.Common problem ................................................................................................................................................... - 8 - Appendix 1:SMD Reflow Chart .................................................................................................................................. - 8 - Appendix 2:Demo Board ............................................................................................................................................. - 9 - Note: Revision History Revision Date Comment www.nicerf.com CC68-C1 NiceRF Wireless Technology Co., Ltd. Rev 3.0 [email protected] - 3 - 1.Overview The CC68-C1 wireless module uses Semtech's LLCC68 device, ultra-low receive current and sleep current, and sensitivity of -129dBm. Built-in 64KHz crystal oscillator can wake up the microcontroller periodically under low power consumption. The module antenna switch is integrated and controlled by the chip, which saves the resources of the external MCU. The compact size and 22dBm (160mW) output power have great advantages in IoT and battery-powered applications. CC68-C1 comply with lead-free craft in production and testing and meets RoHS and Reach standards. Module Chip Frequency Band Crystal CC68-C1-868 LLCC68 Center 868 MHz 10ppm Industrial grade crystal oscillator CC68-C1-915 LLCC68 Center 915 MHz 10ppm Industrial grade crystal oscillator 2.Features  Frequency Range：868/915 MHz  Sensitivity：-129dBm @LoRa  Maximum output power：22 dBm（160mW）  Industrial grade high precision crystal oscillator  LoRa,(G)FSK  255 bytes FiFo  Data transfer rate： 0.6-300 Kbps @FSK 1.76-62.5 Kbps @Lora 3.Applications  Industrial meter reading  Parking lot sensor management  Industrial automation  Agricultural sensor  Smart city  Remote control  Street lights  Logistics management  Environmental sensor  Health products  Security products  Warehouse management 4.Electrical Characteristics(@Vcc=3.3v ANT connected to 50 ohm load) ★Note: The default shipment is ordinary crystal oscillator version. If needs, the TCXO crystal oscillator version can also be customized. www.nicerf.com CC68-C1 NiceRF Wireless Technology Co., Ltd. Rev 1.0 [email protected] - 4 - Parameter Min. Typ. Max. Unit Condition Operation Condition Working voltage 1.8 3.3 3.7 V Temperature range -40 25 85 °C Current Consumption RX current < 5 mA @ crystal oscillator TX current < 130 mA @868MHz @915MHz < 110 mA @433MHz @490MHz Sleep current 1.9 uA OFF mode (SLEEP mode with cold start) All blocks off 2.3 uA SLEEP mode (SLEEP mode with warm start) Configuration retained 2.9 uA SLEEP mode (SLEEP mode with warm start) Configuration retained + RC64k 0.56 mA STDBY_RC mode ， RC13M, XOSC OFF 2.35 mA STDBY_XOSC mode ， XOSC ON RF Parameter 848 868 888 MHz @868MHz 900 915 940 MHz @915MHz Output power -15 22 dBm Receiving sensitivity -129 dBm @LoRa BW=250KHz_SF = 10_CR=4/5 5.Typical application circuit 6.Module performance index www.nicerf.com CC68-C1 NiceRF Wireless Technology Co., Ltd. Rev 1.0 [email protected] - 5 - Frequency band Power level Current (mA) Power (dBm) Register value CC68-C1 @ 868MHz @ 915MHz 9 123.5 21.2 22 8 110.5 18.03 19 7 102.2 14.67 16 6 88.7 11.79 13 5 74.2 9.15 10 4 62.9 6.6 7 3 53.6 3.5 4 2 44.2 0.53 1 1 36.8 -2.15 -2 0 31.7 -4.8 -5 www.nicerf.com CC68-C1 NiceRF Wireless Technology Co., Ltd. Rev 1.0 [email protected] - 6 - 7.Pin definition Pin NO. Pin name Description 1 GND Power ground 2 MISO SPI Output for SPI data 3 MOSI SPI Input for SPI data 4 SCK Serial clock for SPI interface 5 NSS SPI enable 6 NRESET Reset input 7、12、14 NC Empty 8 GND Power ground 9 ANT Connect with 50 ohm coaxial antenna 10 GND Power ground 11 DIO3 Digital I/O 13 VCC Connected power supply（default3.3V） 15 DIO1 Digital I/O 16 BUSY Used for status indication, see datasheet for details. 8. Communication Antenna Antenna is very important for RF communication, its performance will affect the communication directly. Module needs antenna in 50ohm.SMA can also be used to transfer straight/elbow/folded rod. Users can order accordingly. To ensure module in the best performance, w…

Text truncated - open the document above for the full version.

NiceRF Wireless Technology LTD. Date:2022/07/28 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: NiceRF Wireless Technology LTD., the undersigned, hereby authorizes Mrs. Wendy Zhan from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the NiceRF Wireless Technology LTD. solely in matters relating to the application for an FCC equipment authorization for FCC ID: 2AD66-CC68-C1 including the signing of documents in connection with this Application. Necessary acts carried out Shenzhen Morlab Communications Technology Co., Ltd. on our behalf of the NiceRF Wireless Technology LTD. in connection with the Application shall have the same effect as acts of the NiceRF Wireless Technology LTD.. NiceRF Wireless Technology LTD. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Thank you for your attention to this matter. Yours Sincerely, Signatory: NiceRF Wireless Technology LTD. Contact name: GH. Song Tel: 0755-27838582 Email: [email protected] Company name: NiceRF Wireless Technology LTD.

NiceRF Wireless Technology LTD. Date: 2022/07/28 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Request of Confidentiality for FCC ID: 2AD66-CC68-C1 To Whom it may concern: Pursuant to sections 0.457 and 0.459 of Commission’s Rules (CFR 47), and Section 552(b)(4) of the Freedom of Information Act, NiceRF Wireless Technology LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days from grant date as outlined in Public Notice DA04-1705. This provision will give NiceRF Wireless Technology LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 BOM SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. NiceRF Wireless Technology LTD. Signatory： Contact name: GH. Song Tel: 0755-27838582 Email: [email protected] Company name: NiceRF Wireless Technology LTD.

NiceRF Wireless Technology LTD. version01 Modular Approval Request Letter Date: 2022-08-04 FCC ID: 2AD66-CC68-C1 IC: Type of Equipment: Wireless Module The following requirements according to FCC Part 15.212 are met: i RF shielding The radio portion has no shielding (see external photos). ii Buffered modulation/data inputs It has been integrated in the chipset. iii Power supply regulation It is integrated in circuits of U2/U3. iv Antenna requirements section 15.203, 15.204 b and 15.204 c The module comes with two permanently attached antennas. The spurious emission requirements are fulfilled( see attached test report) v Stand alone test configuration Please referring to test set up configuration photo. vi Labelling The module has its own label. The instruction of labelling rules for the host device has been stated in the user manual. vii Compliance on specific rule or operating requirements The required FCC rules has been fulfilled and all instructions of maintaining compliance are clearly stated in the user manual. viii RF Exposure RF exposure requirements are fulfilled for mobile configuration. The installation of the module is restricted to mobile host devices what is clearly stated in the installation instruction of the user manual. For portable applications, OEM integrators need SAR evaluation and an own FCC ID. Contact name: GH. Song Tel: 0755-27838582 Email: [email protected] Company name: NiceRF Wireless Technology LTD.

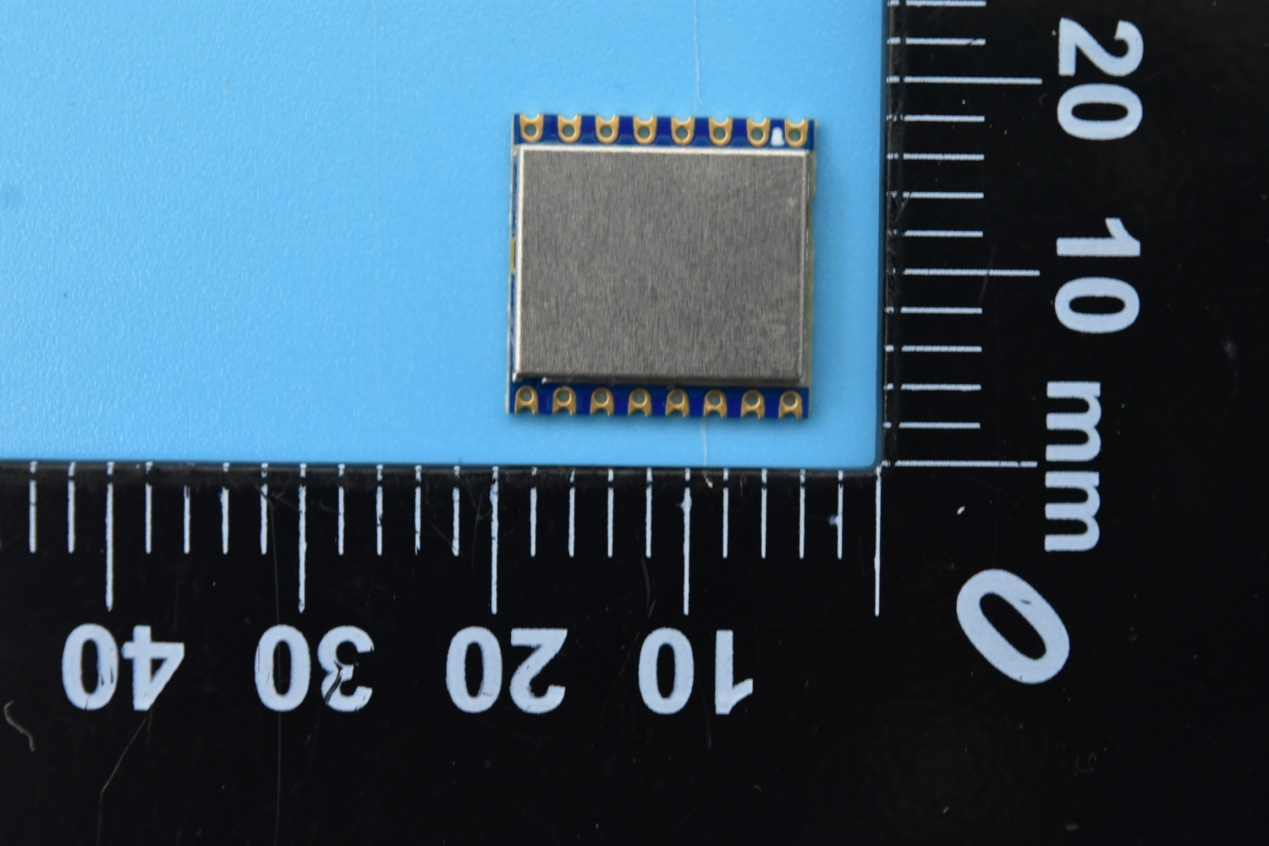

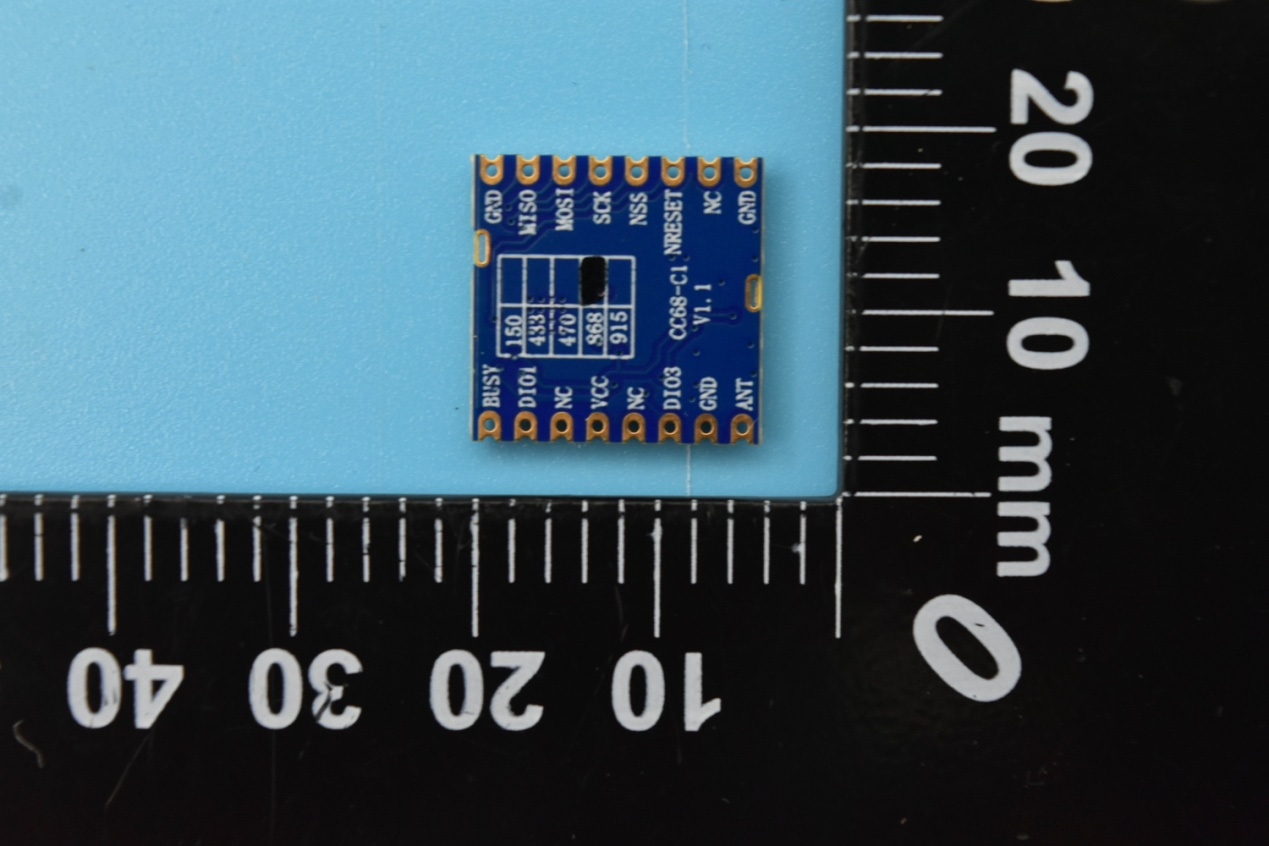

FCC ID: 2AD66-CC68-C1 External Photos 1. EUT top view 2. EUT bottom view 3. Accessories

Label &Location

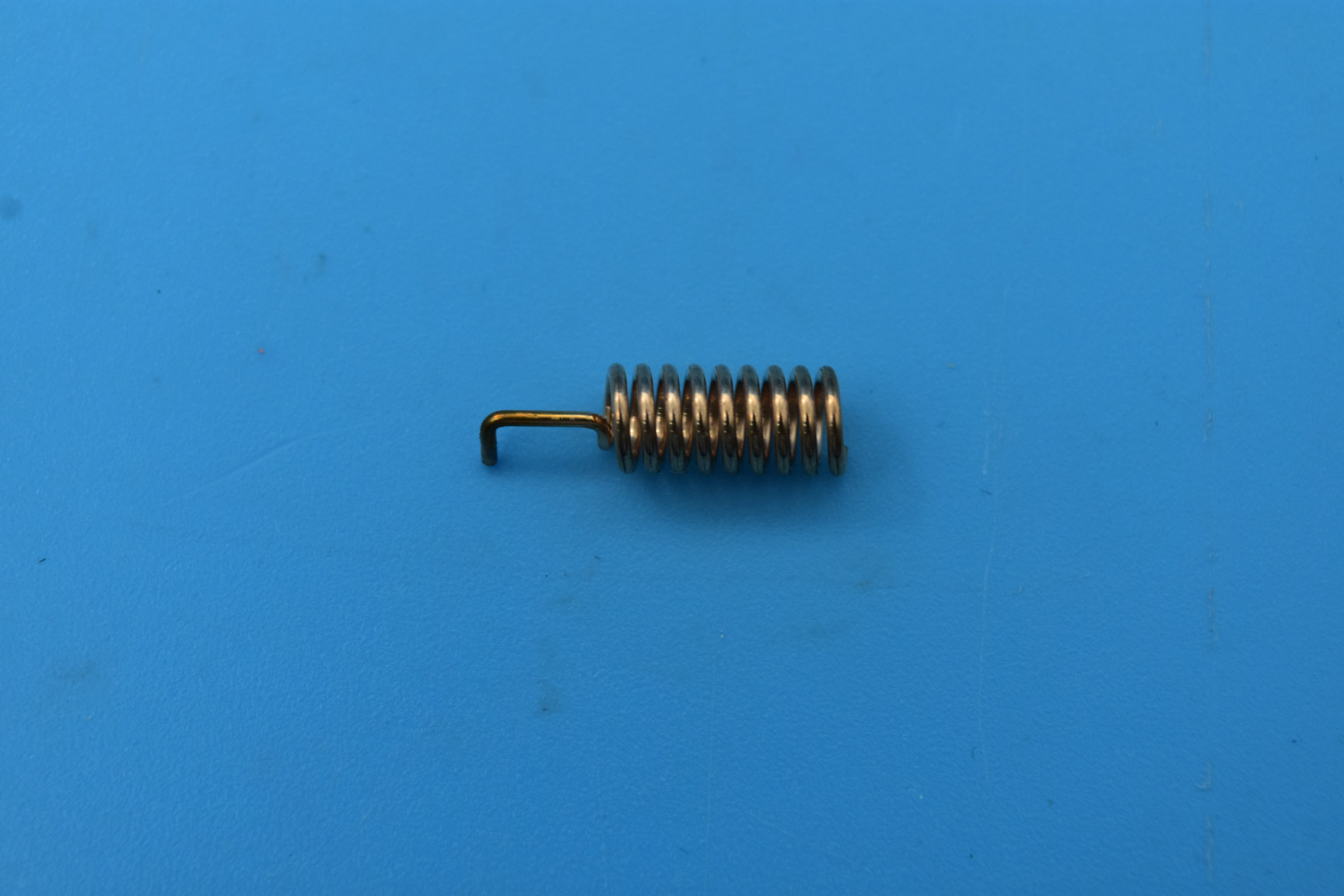

FCC ID: 2AD66-CC68-C1 Internal Photos 1. EUT uncover view 2. Antenna view LoRa Antenna

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 8 REPORT No.：SZ22070025S01 RF EXPOSURE EVALUATION REPORT APPLICANT : NiceRF Wireless Technology LTD. PRODUCT NAME : LoRa Wireless Module MODEL NAME :CC68-C1-915 BRAND NAME : G-NiceRF FCC ID : 2AD66-CC68-C1 STANDARD(S) : 47 CFR Part 2(2.1091) RECEIPT DATE : 2022-07-04 TEST DATE :2022-07-06 to 2022-07-19 ISSUE DATE :2022-07-29 Edited by: Zeng Xiaoying (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22070025S01 Page 2of 8 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.1 Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.2 Equipment under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.3 Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2. Device Category and RF Exposure Limit ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 3. RF Output Power ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 4. RF Exposure Assessment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 Annex A Testing Laboratory Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 8 Change History Version Date Reason for change 1.0 2022-07-29 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22070025S01 Page 3of 8 1. Technical Information Note: Provide by applicant. 1.1 Applicant and Manufacturer Information Applicant: NiceRF Wireless Technology LTD. Applicant Address: 309-314, Bldg A,Hongdu business building, Xin'an street, Zone 43, Baoan Dist, Shenzhen 518101, China Manufacturer: NiceRF Wireless Technology LTD. Manufacturer Address: 309-314, Bldg A,Hongdu business building, Xin'an street, Zone 43, Baoan Dist, Shenzhen 518101, China 1.2 Equipment under Test (EUT) Description Product Name: LoRa Wireless Module Sample No.: 1# Hardware Version: v1.0 Software Version: v1.0 Modulation Technology: GFSK Equipment Type: LoRa Operating Frequency Range: 902.8MHz–927.3MHz Antenna Type: ANT1: Wire Antenna; ANT2: Loop Antenna Antenna Gain: ANT1: 2.0dBi; ANT2: 2.0dBi MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22070025S01 Page 4of 8 1.3 Applied Reference Documents Leading reference documents for testing: Identity Document Title Method determination /Remark 47 CFR Part 2(2.1091) Radio Frequency Radiation Exposure Assessment: mobile devices No deviation KDB 447498 D01v06 General RF Exposure Guidance No deviation Note 1: Additions to, deviation, or exclusions from the method shall be judged in the "method determination" column of add, deviate or exclude from the specific method shall be explained in the "Remark" of the above table. Note 2: When the test result is a critical value, we will use the measurement uncertainty give the judgment result based on the 95% confidence intervals. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22070025S01 Page 5of 8 2. Device Category and RF Exposure Limit Per user manual, based on 47 CFR 2.1091, this device belongs to mobile device category with General Population/Uncontrolled exposure. Mobile Devices: 47 CFR 2.1091(b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 centimeter separation requirement. General Population/Uncontrolled Exposure: The general population/uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may…
