SMARTWATCH LADIES VITALITY FC-286 USER MANUAL GET STARTED 01 01. GET THE APP Download the FREDERIQUE CONSTANT SMARTWATCH app for iPhone ® or Android. 02. ACTIVATE BLUETOOTH ON YOUR PHONE 03. LAUNCH THE APP AND FOLLOW THE INSTRUCTIONS You will first be invited to create your own profile, then to pair your watch with the app and finally to set your own goals. 04. YOU ARE NOW READY TO USE YOUR SMARTWATCH VITALITY GET STARTED USER MANUAL • SMARTWATCH LADIES VITALITY • FC-286 NAVIGATE 02 By pressing the crown pusher, you can scroll through your watch’s different functions. NAVIGATE ON THE SMARTWATCH VITALITY’S DIGITAL SCREEN USER MANUAL • SMARTWATCH LADIES VITALITY • FC-286 FUNCTIONS 03 ACTIVITY TRACKING WORKOUT DYNAMIC COACH CHRONOGRAPH GET-ACTIVE ALERTS HEART RATE MONITORING HEART RATE NOTIFICATIONS BREATHING EXERCISE SLEEP MONITORING SMART SLEEP ALARMS MESSAGES REVIEW NOTIFICATIONS WEATHER WORLDTIMER LOCAL TIME ALWAYS ON-TIME FUNCTIONSSPECIFICITIES CLOUD BACKUP & RESTORE RECHARGEABLE BATTERY ALWAYS ON-TIME You won’t ever need to set a time, day and date - traveling across time zones, the watch picks-up the time from your smartphone and displays the current time automatically. FUNCTIONS USER MANUAL • SMARTWATCH LADIES VITALITY • FC-286 WORLDTIMER You can choose to display a second time zone on your watch. A feature particularly useful when travelling in order to keep track of your time at home. FUNCTIONS USER MANUAL • SMARTWATCH LADIES VITALITY • FC-286 LOCAL TIME For regular business travelers and globe dwellers, the local time function will help you to keep track of the time wherever you are. The perfect addition to your second time zone indicator. FUNCTIONS USER MANUAL • SMARTWATCH LADIES VITALITY • FC-286 CHRONOGRAPH The chronograph can be started and stopped by a single tap on the watch’s dial. While exercising, the digital screen will then show the passing seconds and minutes. On top of that, the minute hand will show the chronograph’s seconds, while the hour hand will show the minutes – this will ensure visibility when using the function in broad daylight. To pause the chronograph, press the crown pusher at any time. To stop the time measurement, simply tap once on the watch’s screen. Once stopped, the digital screen will switch to the next function. FUNCTIONS USER MANUAL • SMARTWATCH LADIES VITALITY • FC-286 HEART RATE MONITORING Your watch has an integrated optical heart rate measuring system provided by electronics expert Philips. Philips being the leading provider of optical heart rate solutions, the sensor will provide accurate monitoring for cardiac, activity, health and fitness metrics. It offers an algorithm that extracts and processes the sensor’s data, factoring out body motion, pigmentation and ambient light to produce highly accurate results. The watch measures your Heart Rate throughout the day and night. FUNCTIONS USER MANUAL • SMARTWATCH LADIES VITALITY • FC-286 HEART RATE NOTIFICATIONS Should your heart rate measure be too low or too high, you will get notified by your watch with a vibration and visual alert. If your Heart Rate gets too low, an alarm can be triggered. If your Heart Rate is too high 10 minutes after resting, then alert can be triggered (not when active, only at rest). FUNCTIONS USER MANUAL • SMARTWATCH LADIES VITALITY • FC-286 ACTIVITY TRACKING Keep track of your daily steps, calories burnt and total distance travelled. The companion app’s charts will help you to get an overview of your results per week as well as compare your results to people of your age worldwide thanks to a benchmarking tool. FUNCTIONS USER MANUAL • SMARTWATCH LADIES VITALITY • FC-286 SLEEP MONITORING Wear your watch at night or put it under your pillow to record your sleep. You can set your favorite mode in the app. The sleep monitoring function provides details on your sleeping pattern, including how much time you have spent in deep sleep, light sleep, or awake. It will also provide you with insights and tips on how to improve your sleep. FUNCTIONS USER MANUAL • SMARTWATCH LADIES VITALITY • FC-286 SMART SLEEP ALARMS Set a smart sleep alarm that will help you to wake up at the best time based on your sleep cycle in order to feel rested and refreshed. You can easily activate and disactivate the Smart Sleep Alarms via your watch’s digital screen or within the companion App. FUNCTIONS USER MANUAL • SMARTWATCH LADIES VITALITY • FC-286 WEATHER Local weather forecast including the maximum and minimum temperature are displayed on your watch’s digital screen and in the companion app. FUNCTIONS USER MANUAL • SMARTWATCH LADIES VITALITY • FC-286 BREATHING EXERCISE The Breathe function allows you to regulate your breathing and lower your stress level thanks to a quick and easy exercise. FUNCTIONS USER MANUAL • SMARTWATCH LADIES VITALITY • FC-286 MESSAGES REVIEW Firstly, via the app, you will need to select the various applications for which you wish to receive notifications. You will be able to see the last five messages received on your watch screen based on the above service/app selection. For example, the following apps can be selected amongst others: Mail, Messages, Facebook, Twitter, WhatsAapp, Instagram, Snapchat, LinkedIn, WeChat, Viber, Uber, KakaoTalk, Pinterest, Spotify etc. FUNCTIONS USER MANUAL • SMARTWATCH LADIES VITALITY • FC-286 NOTIFICATIONS Never miss a call, email or text message! Customize your notifications and alerts directly from the app. FUNCTIONS USER MANUAL • SMARTWATCH LADIES VITALITY • FC-286 GET-ACTIVE ALERTS Set an alert to remind you to move if you’ve been idle for a set amount of time. Customize your Get-Active alert in the companion app. FUNCTIONS USER MANUAL • SMARTWATCH LADIES VITALITY • FC-286 WORKOUT The workout function can be launched directly on your watch’s digital screen. Go to the workout function using the crown pusher. 01. Tap on your watch’s digital screen to start the workout session 02. Tap on your watch’s digital screen to stop the workout sessi…

Text truncated - open the document above for the full version.

Date 07/05/2020 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, Frederique Constant SA with addrese at Chemin du Champs des Filles, 32 CH-1228 Plan-les-Ouates, Geneva, Switzerland, hereby authorize Wenqiang LU from TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151 Heng Tong Road Shanghai 201108 P.R. China to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 31/12/2020. Sincerely, Company Officer: Peter Stas Telephone Number: +41 22 860 04 40 Email: [email protected]

Date 07/0 5/2020 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2AD7G0006/ 2AD7G0007/ 2AD7G0008 / 2AD7G0009 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Frederique Constant SA hereby requests permanent confidential treatment of information accompanying thi s application as outli ned below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The publi c disclosure of these matter s might be harmful to the Applicant and provide unjustified benefits to it s competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made befor e the date of the Grant for this A pplication. Yours sincerely, Company Officer: Peter Stas Telephone Number: +41 22 860 04 40 Email: [email protected]

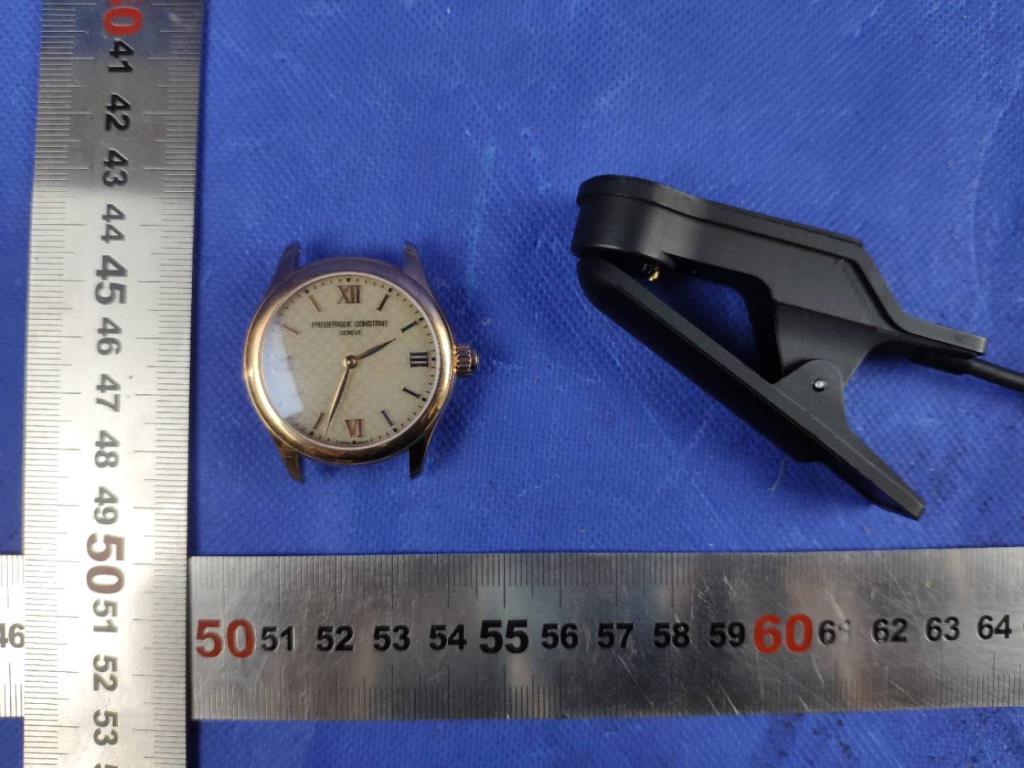

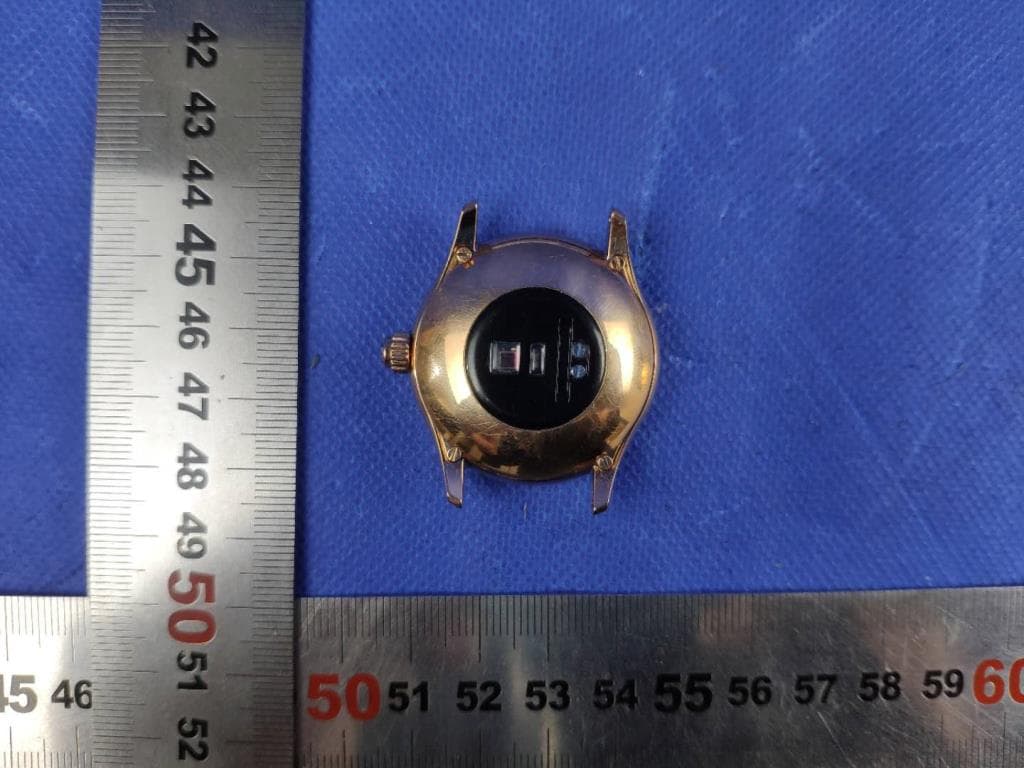

External Photos Documentation Manufacturer: FREDERIQUE CONSTANT SA Page 1 of 2 Product: Smartwatch with BT module FCC ID: 2AD7G0006 External Photos Documentation Manufacturer: FREDERIQUE CONSTANT SA Page 2 of 2 Product: Smartwatch with BT module FCC ID: 2AD7G0006

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

Internal Photos Documentation Manufacturer: FREDERIQUE CONSTANT SA Page 1 of 3 Product: Smartwatch with BT module FCC ID: 2AD7G0006 Antenna Internal Photos Documentation Manufacturer: FREDERIQUE CONSTANT SA Page 2 of 3 Product: Smartwatch with BT module FCC ID: 2AD7G0006 Internal Photos Documentation Manufacturer: FREDERIQUE CONSTANT SA Page 3 of 3 Product: Smartwatch with BT module FCC ID: 2AD7G0006

708882044103-00A TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 RF exposure Estimation 1. Introduction Product: Smartwatch with BT module Model no.: FC-286X3B2/4/6 FCC ID: 2AD7G0006 The EUT is a Smartwatch with BT module, which contain Bluetooth function inside. 2. Limit and Guidelines on Exposure to Electromagnetic Fields According to§15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 Mobile Portable RF Exposure v05r02, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. 3. Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 Conducted Power + tune up tolerance =-3.41dBm= 0.456mW Distance = 5 mm f = 2.480 GHz [0.456/5] * SQRT (2.480) =0.144 0.144≤ 3.0 Therefore, excluded from SAR testing. - TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch Reviewed by: Prepared by: Tested by: _____________________ _____________________ ______________________ Hui TONG Wenqiang LU Jiaxi XU EMC Section Manager EMC Project Engineer EMC Test Engineer Date: 2020-05-28 Date: 2020-05-28 Date: 2020-05-28

Report Number: 708882044103-00 EMC_SHA_F_R_02.05E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 1 of 36 Rev. 20.00 FCC/IC- TEST REPORT Report Number : 708882044103-00 Date of Issue: May 15, 2020 Model : FC-286X3B2/4/6 Product Type : Smartwatch with BT module Applicant : FREDERIQUE CONSTANT SA Address : Champ des Filles32, 1228, CH-1228 Plan-les-Ouates, Genève, Switzerland Production Facility : FREDERIQUE CONSTANT SA Address : Champ des Filles32, 1228, CH-1228 Plan-les-Ouates, Genève, Switzerland Test Result : ◼ Positive  Negative Total pages including Appendices : 36 TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 708882044103-00 EMC_SHA_F_R_02.05E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 2 of 36 Rev. 20.00 1 Table of Contents 1 Table of Contents .................................................................................................................. 2 2 Details about the Test Laboratory ......................................................................................... 3 3 Description of the Equipment under Test .............................................................................. 4 4 Summary of Test Standards .................................................................................................. 5 5 Summary of Test Results ...................................................................................................... 6 6 General Remarks .................................................................................................................. 7 7 Test Setups ........................................................................................................................... 8 8 Systems test configuration .................................................................................................. 11 9 Technical Requirement ....................................................................................................... 12 9.1 Conducted Emission ..................................................................................................... 12 9.2 Conducted peak output power ...................................................................................... 15 9.3 6dB bandwidth and 99% Occupied Bandwidth ............................................................. 17 9.4 Power spectral density .................................................................................................. 20 9.5 Spurious RF conducted emissions ............................................................................... 22 9.6 Band edge .................................................................................................................... 26 9.7 Spurious radiated emissions for transmitter .................................................................. 28 10 Test Equipment List ......................................................................................................... 33 11 System Measurement Uncertainty ................................................................................... 34 12 Photographs of Test Set-ups ........................................................................................... 35 13 Photographs of EUT ........................................................................................................ 36 Report Number: 708882044103-00 EMC_SHA_F_R_02.05E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 3 of 36 Rev. 20.00 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch No.16 Lane, 1951 Du Hui Road, Shanghai 201108, P.R. China FCC Registration No.: 820234 IC Registration No.: 25988 Telephone: +86 21 6141 0123 Fax: +86 21 6140 8600 Report Number: 708882044103-00 EMC_SHA_F_R_02.05E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 4 of 36 Rev. 20.00 3 Description of the Equipment under Test Description of the Equipment Under Test Product: Smartwatch with BT module Model no.: FC-286X3B2/4/6 FCC ID: 2AD7G0006 IC: 12729A-0006 Options and accessories: NA Rating: DC 3.6V RF Transmission Frequency: 2402~2480MHz No. of Operated Channel: 40 Modulation: GFSK Data transmission rate: 1 Mbit/s Antenna Type: Ground Plane Antenna Antenna Gain: 1.5 dBi gain Description of the EUT: The Equipment U…

Text truncated - open the document above for the full version.

Manufacturer: FREDERIQUE CONSTANT SA Product: Smartwatch with BT module FCC ID: 2AD7G0006 ©2020 Not to be reproduced, except in its entirety, Page 1 of 2 without the Permission of TÜ V SÜ D Certification and Testing (China) Co., Ltd. Shanghai Branch PHOTOGRAPHS OF TEST SET UP Field Strength and Harmonics Test Setup Radiated Emission Setup 9kHz ~ 30MHz 30MHz ~ 1GHz Manufacturer: FREDERIQUE CONSTANT SA Product: Smartwatch with BT module FCC ID: 2AD7G0006 ©2020 Not to be reproduced, except in its entirety, Page 2 of 2 without the Permission of TÜ V SÜ D Certification and Testing (China) Co., Ltd. Shanghai Branch 1GHz ~ 18GHz Conducted emission Test Setup
